Vacuum Control Assembly Connector End View Terminal

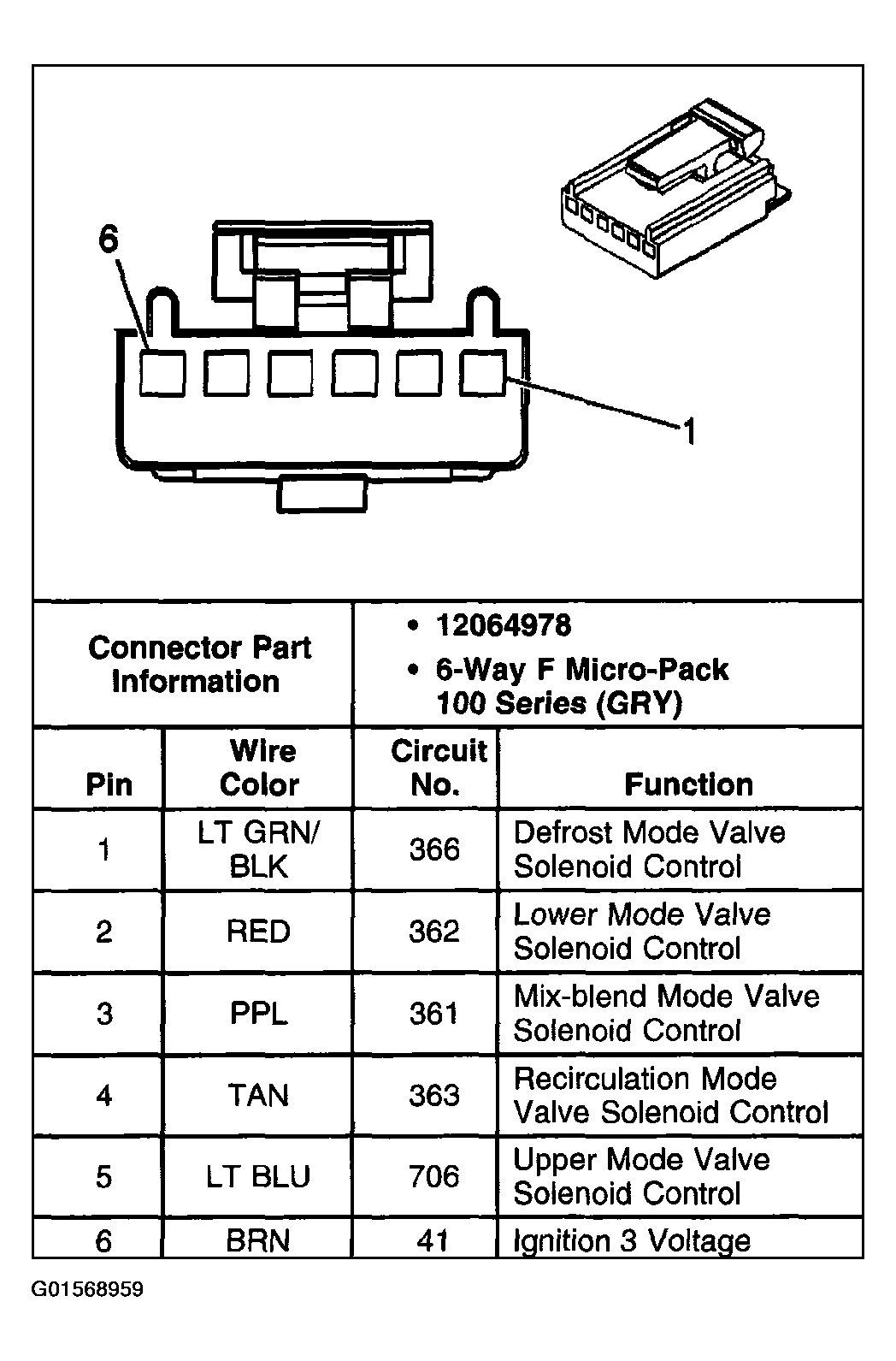

Fig 1: Vacuum Control Assembly Connector End View Terminal
G01568959Courtesy of GENERAL MOTORS CORP.
