Steering Wheel and Column Component Views

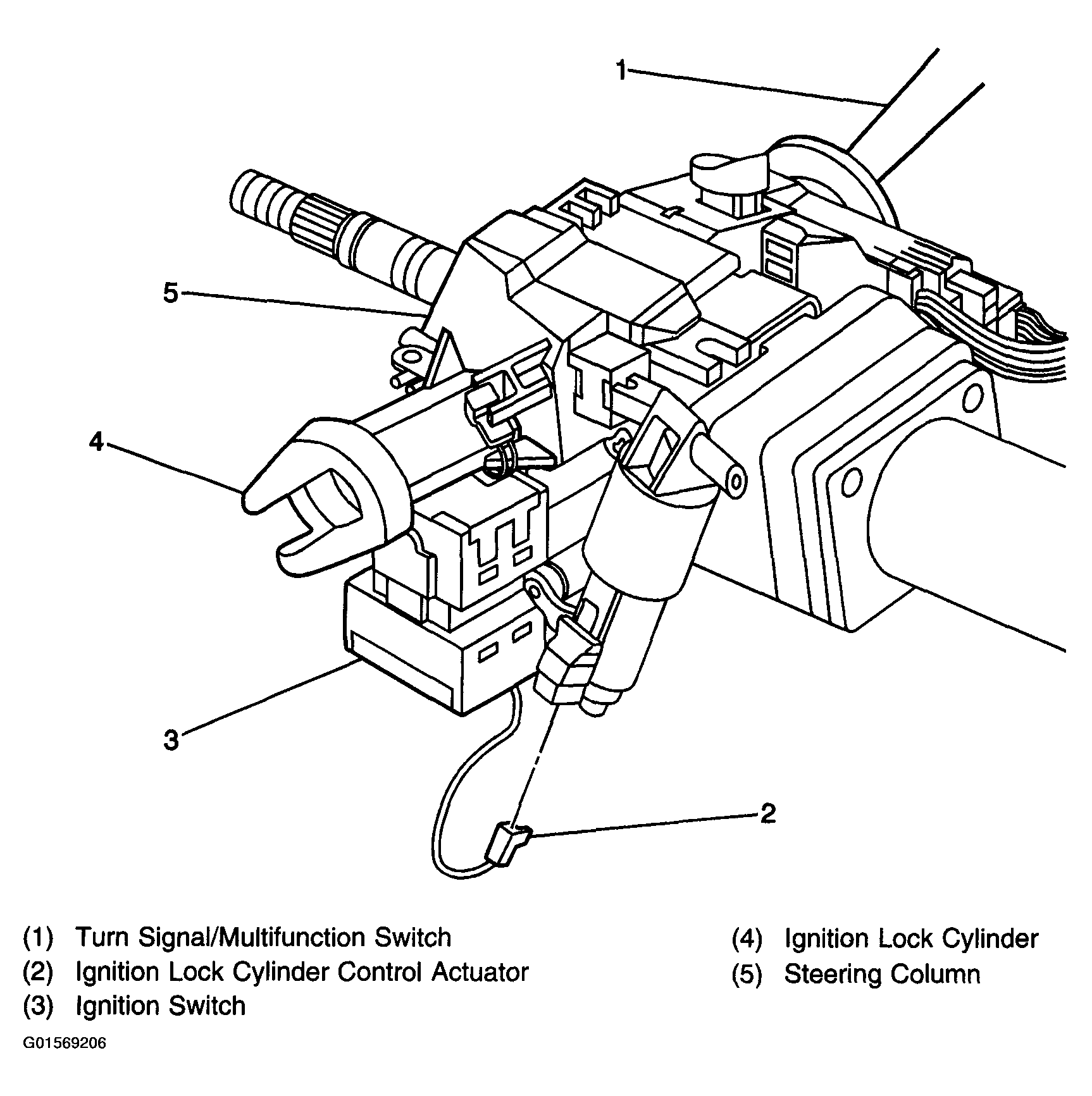

Fig 1: Steering Column Component View (Regal)
G01569206Courtesy of GENERAL MOTORS CORP.

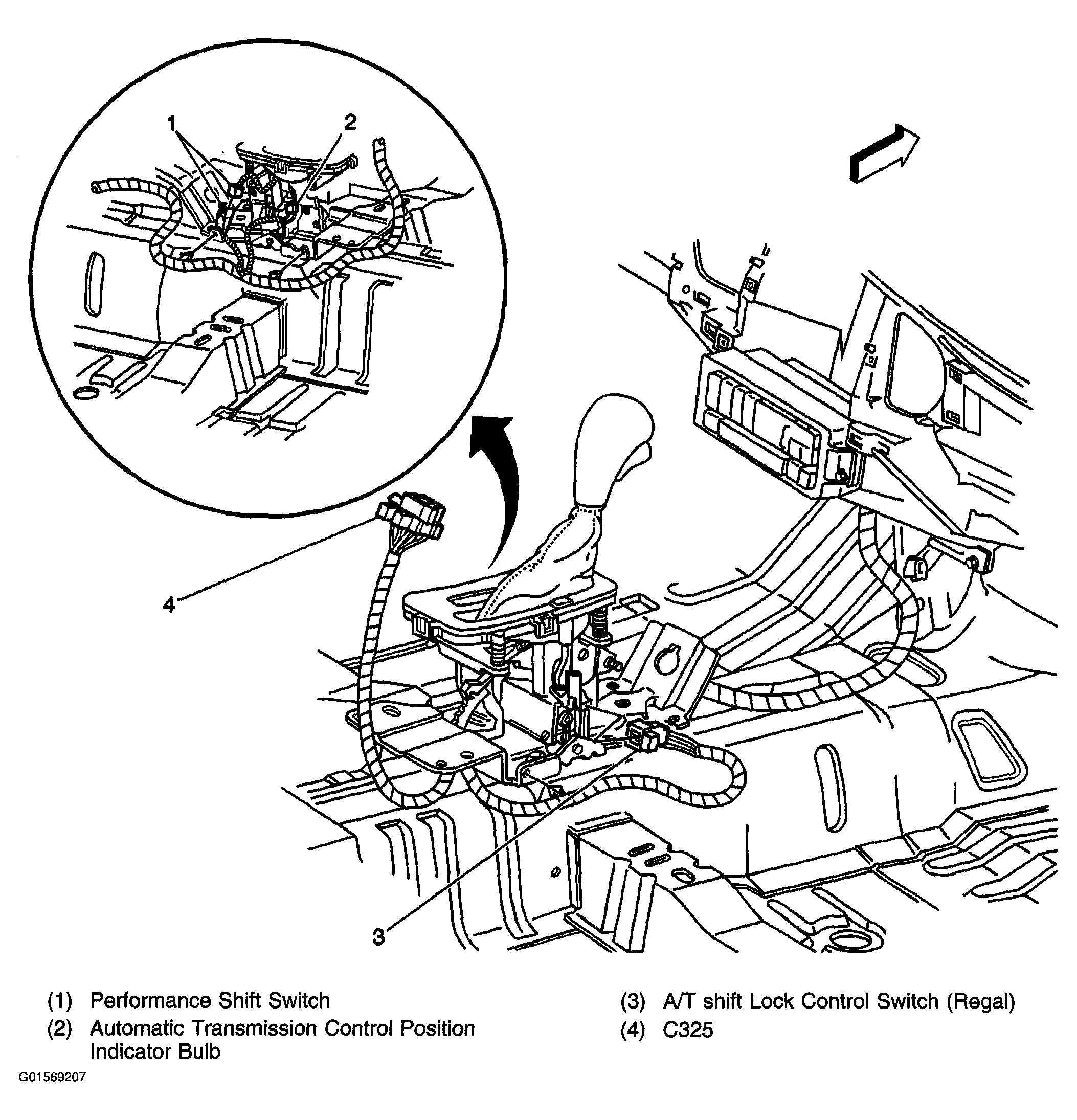

Fig 2: Center of Floor Console Component View
G01569207Courtesy of GENERAL MOTORS CORP.
