HVAC Control Module, C1 Connector End View Terminal

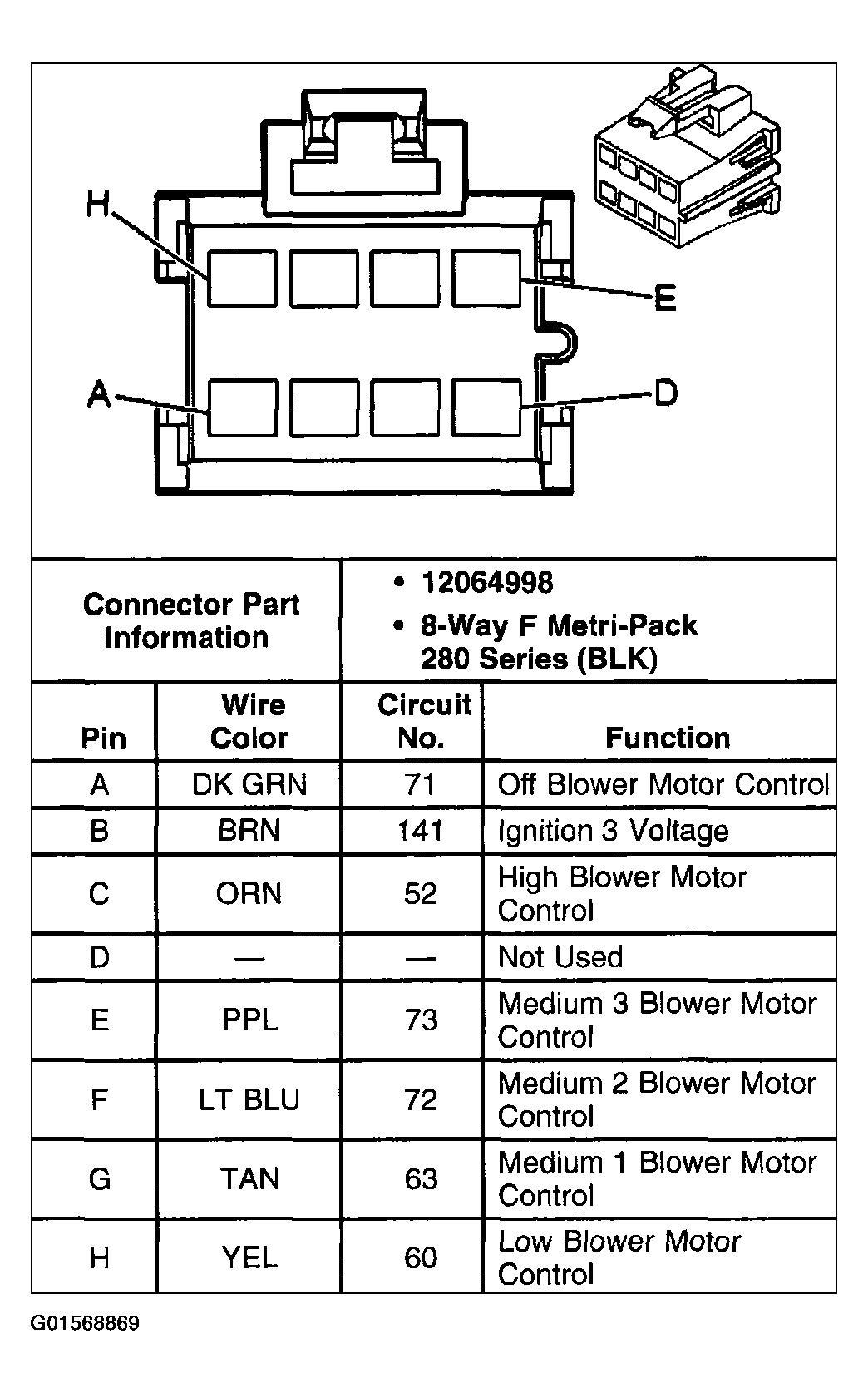

Fig 1: HVAC Control Module, C1 Connector End View Terminal
G01568869Courtesy of GENERAL MOTORS CORP.
