Installation Procedure

  1. Install the cruise control module on the shock tower mounting studs.
    NOTE: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.
  2. Install the cruise control module retaining nuts.

    Tighten

    Tighten the cruise control module to shock tower nuts to 2 N.m (18 lb in).

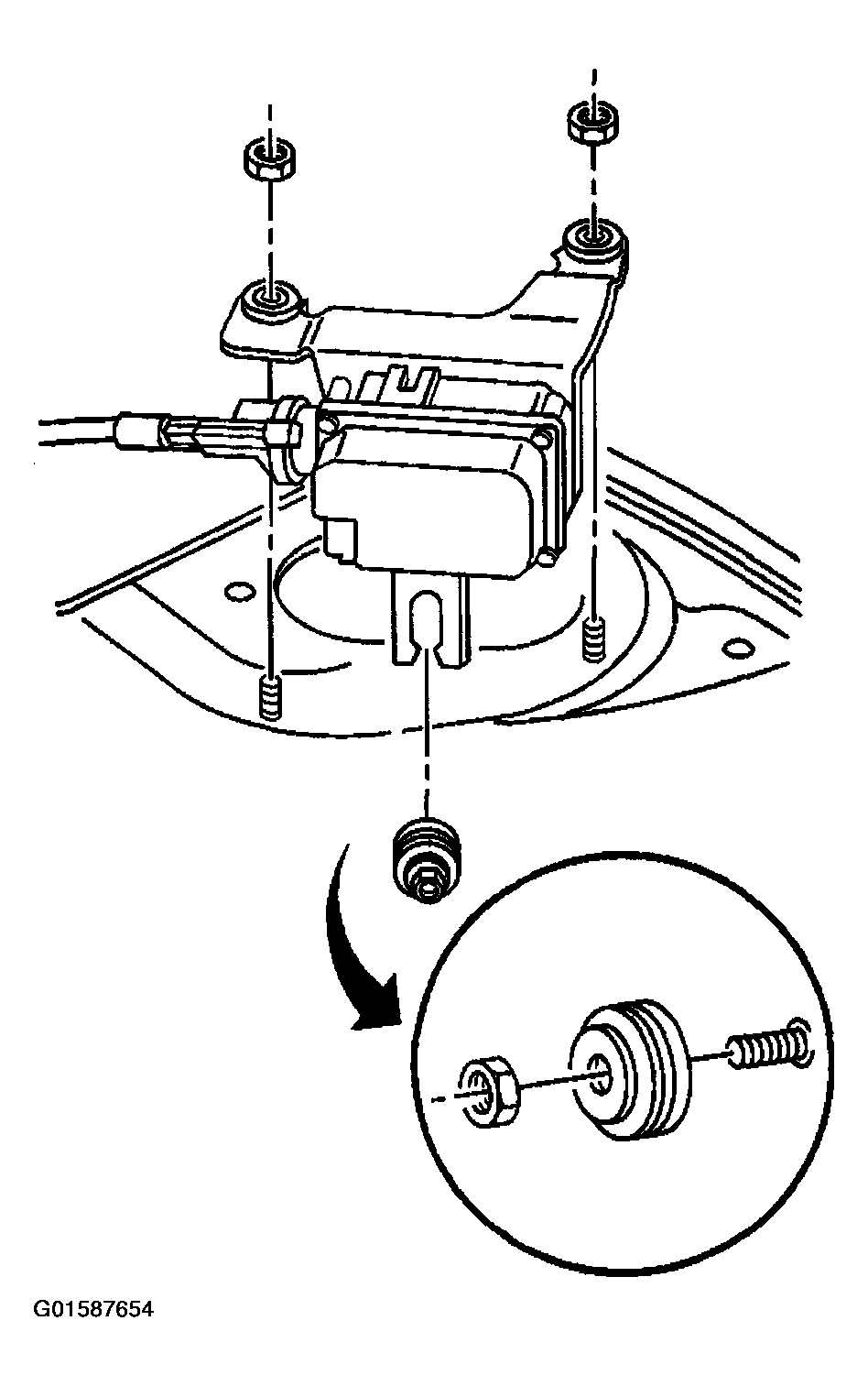

    3. Fig 1: Installing Cruise Control Module Retaining Nuts
    G01587654Courtesy of GENERAL MOTORS CORP.
  3. Connect the electrical connector to the cruise control module.
  4. Install the cruise control cable to the cruise control module. Refer to CRUISE CONTROL CABLE REPLACEMENT (3.1L)  or CRUISE CONTROL CABLE REPLACEMENT (3.8L)  .

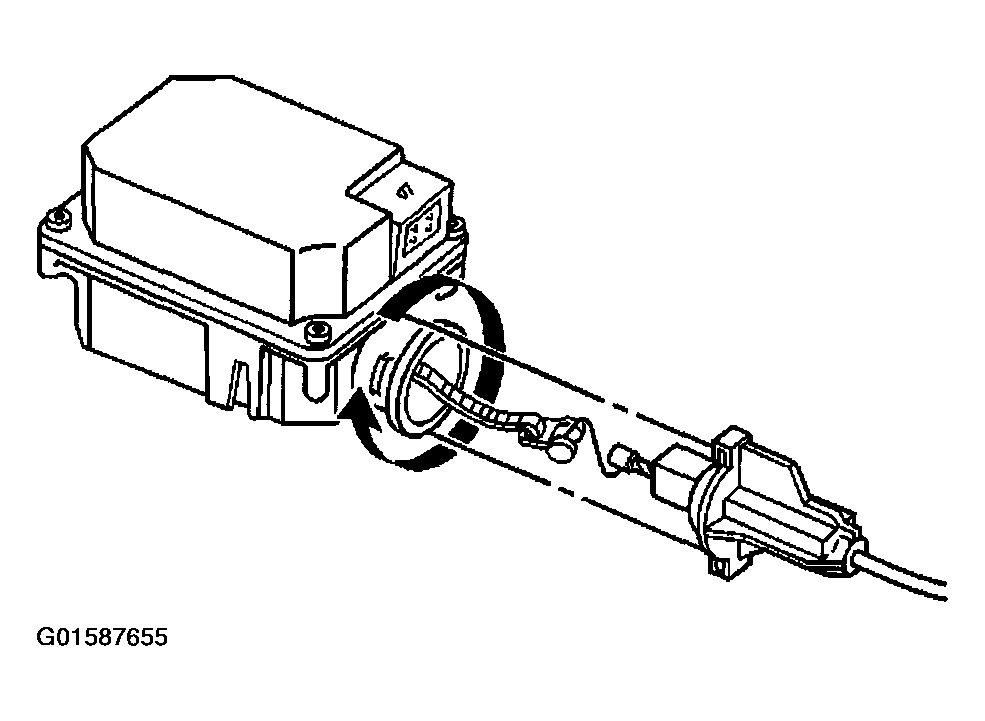

    5. Fig 2: Installing Cruise Control Cable To Cruise Control Module
    G01587655Courtesy of GENERAL MOTORS CORP.
