Power Door Systems Component Views

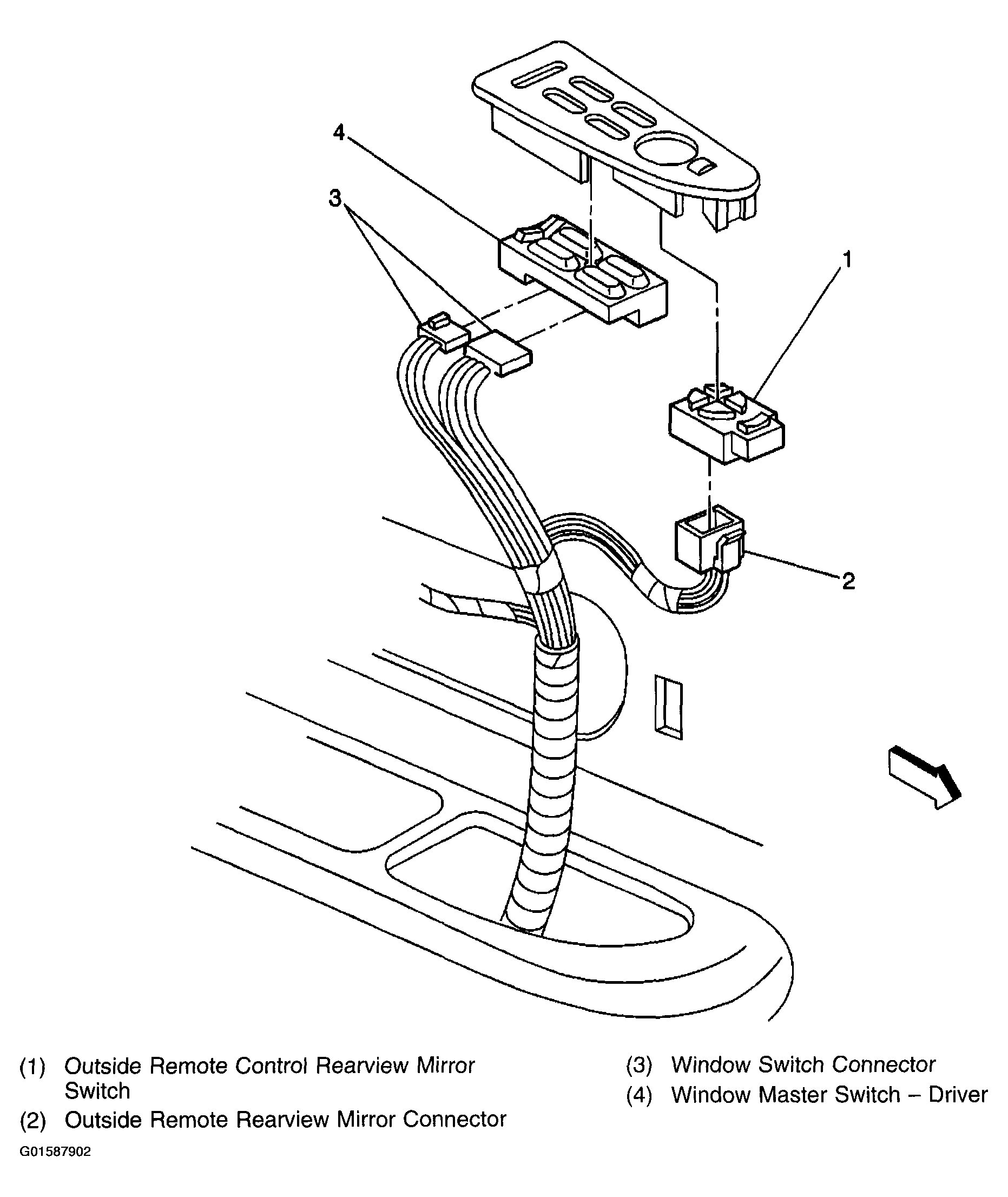

Fig 1: Center Of Left Front Door Trim Panel Component View

Courtesy of GENERAL MOTORS CORP.

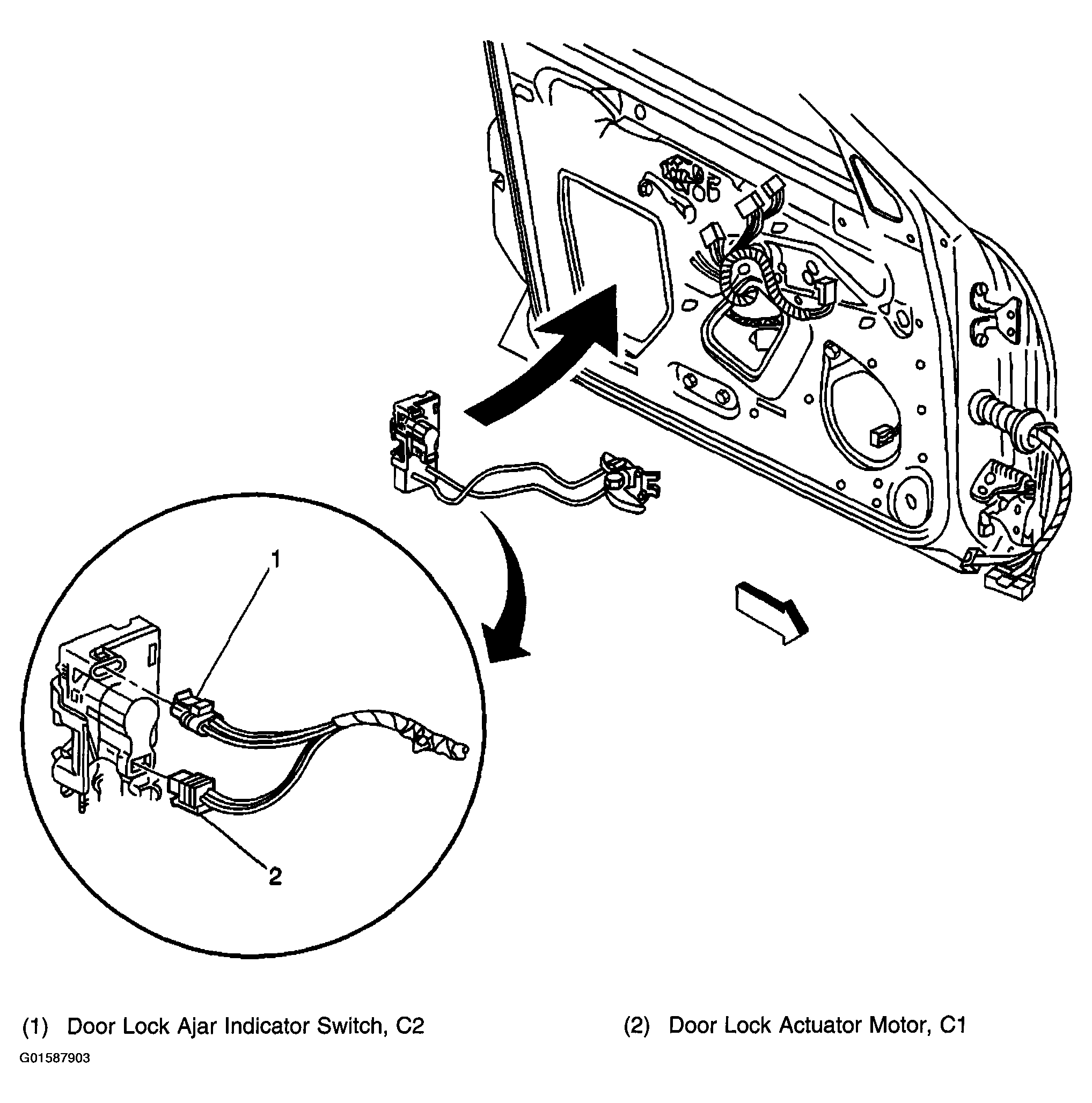

Fig 2: Inside Left Door Component View

Courtesy of GENERAL MOTORS CORP.

Fig 3: Left Front Door Component View

Courtesy of GENERAL MOTORS CORP.

Fig 4: Forward Edge Of Driver Door, Base Of Side Window - Left Component View

Courtesy of GENERAL MOTORS CORP.

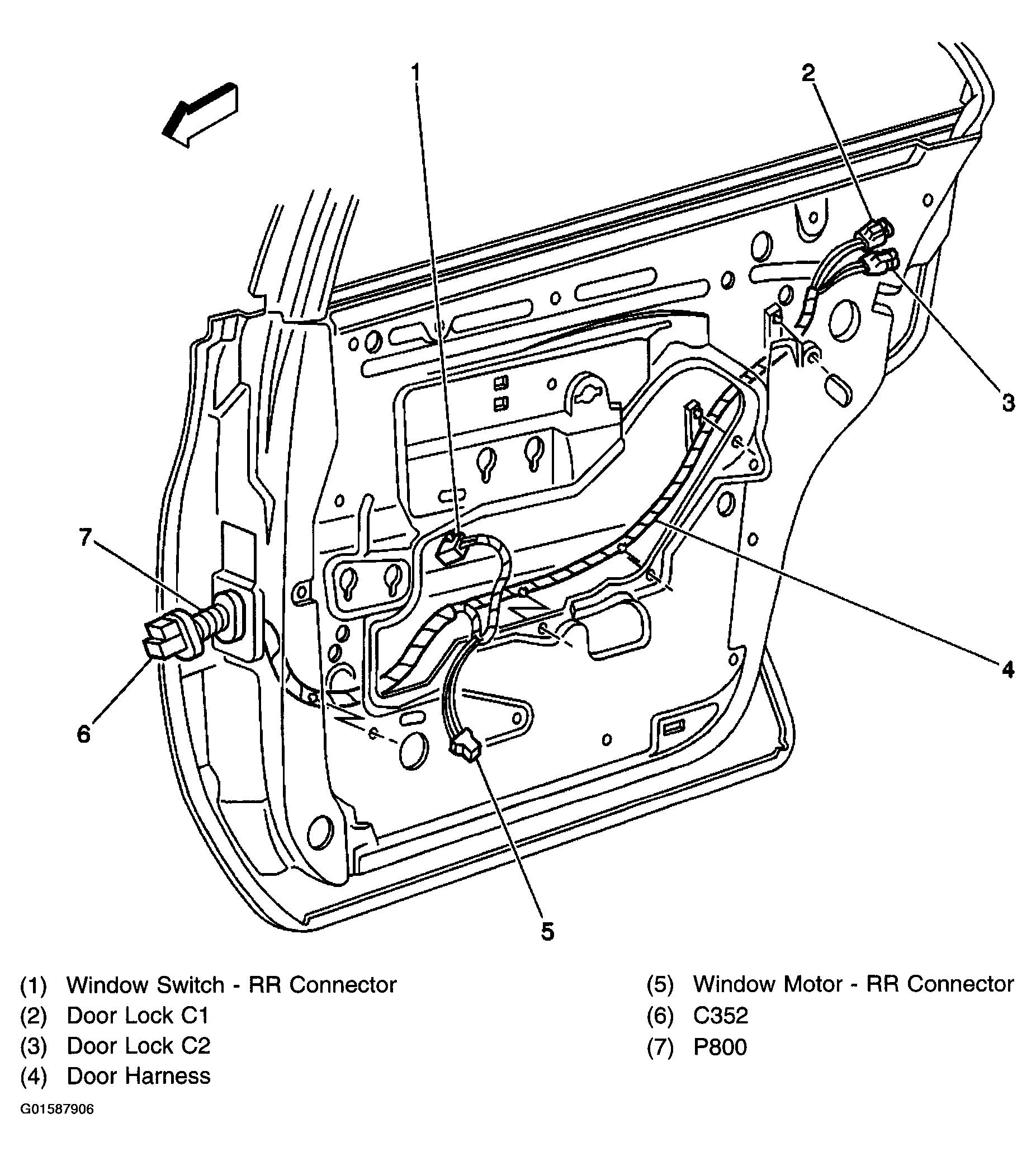

Fig 5: Right Rear Door Component View

Courtesy of GENERAL MOTORS CORP.

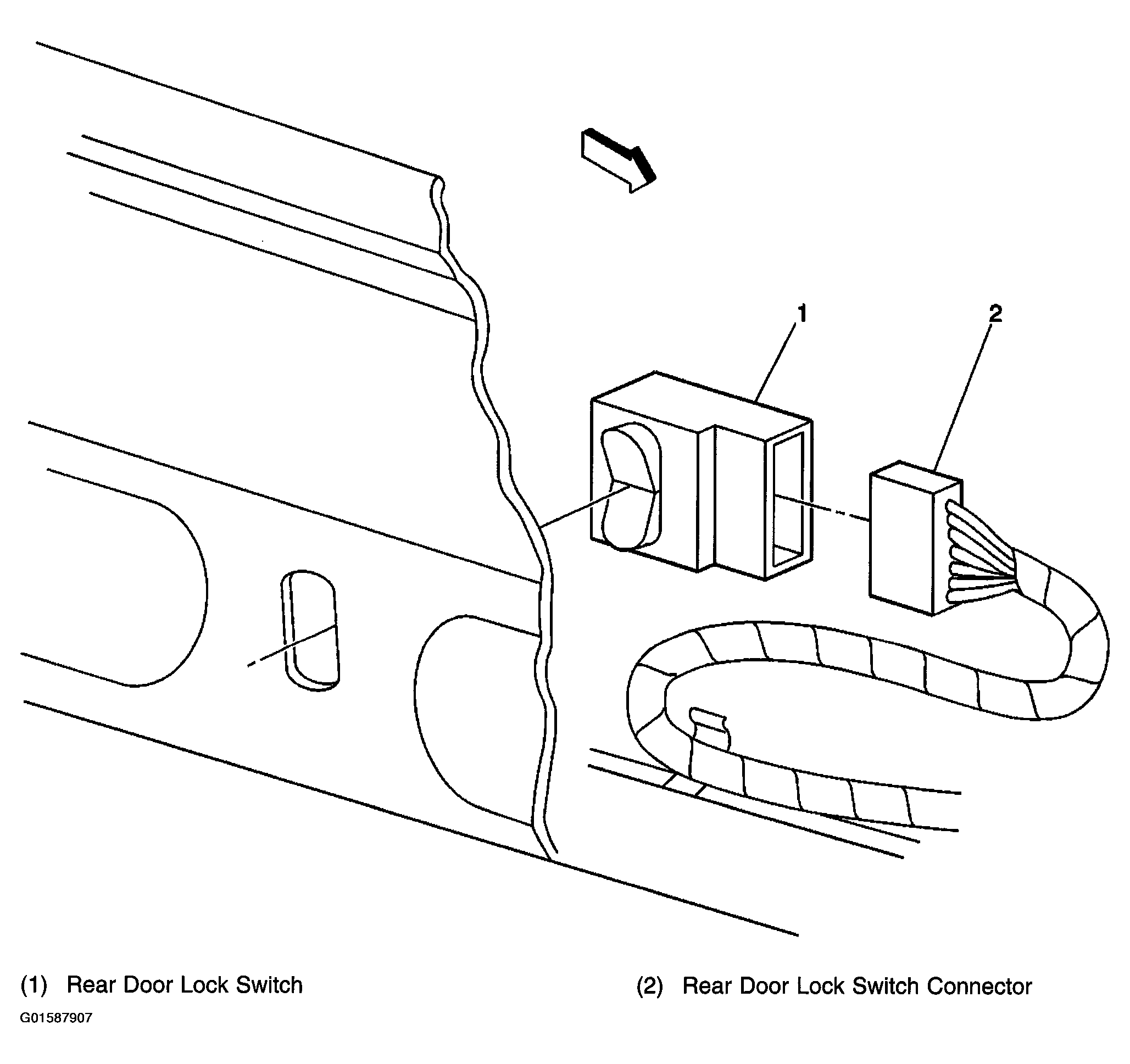

Fig 6: Rear Door Panel Component View

Courtesy of GENERAL MOTORS CORP.
