Entertainment Connector End Views

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.

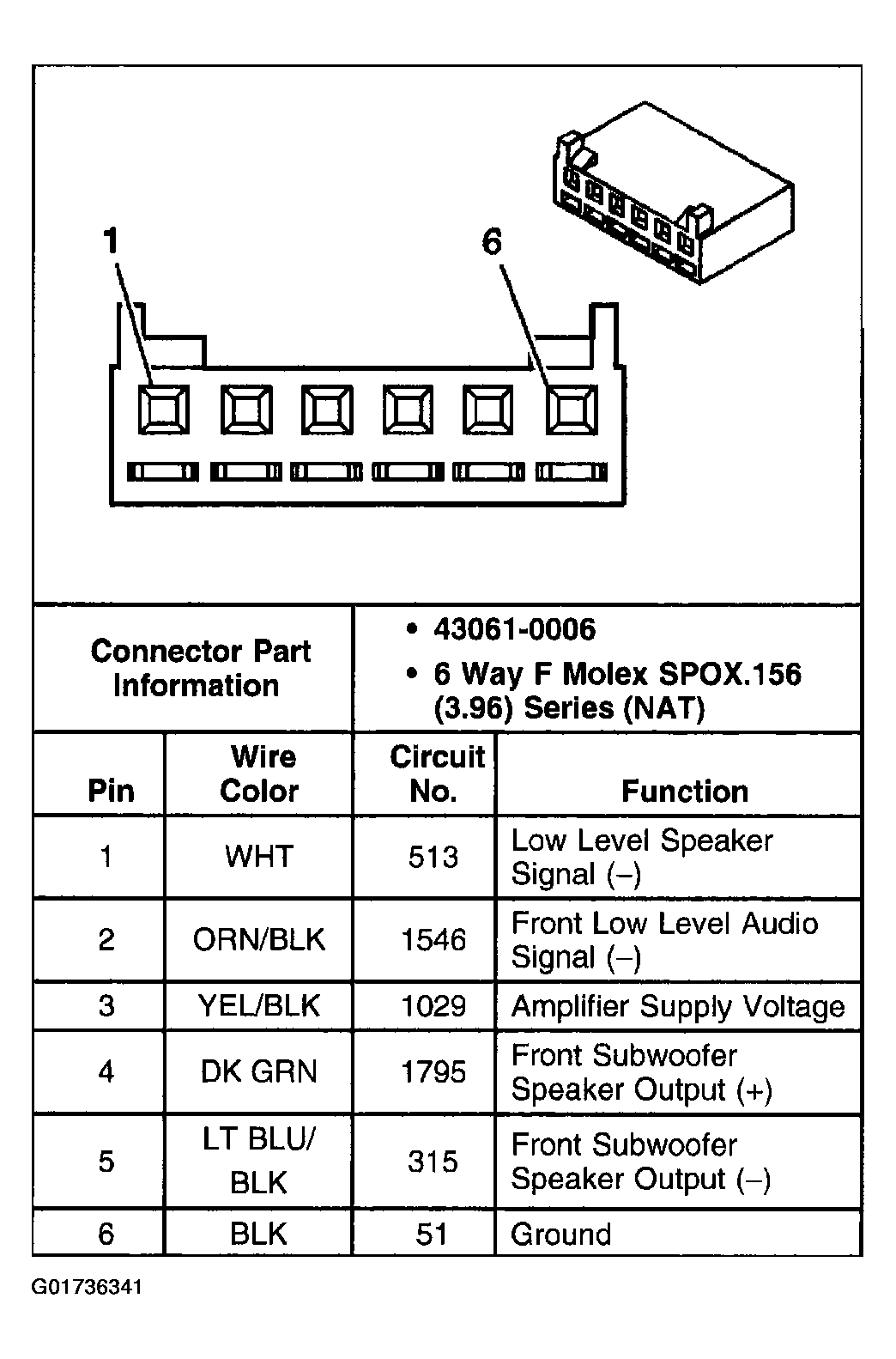

Fig 1: 100 Watt Audio Amplifier - Front

G01736341

Courtesy of GENERAL MOTORS CORP.

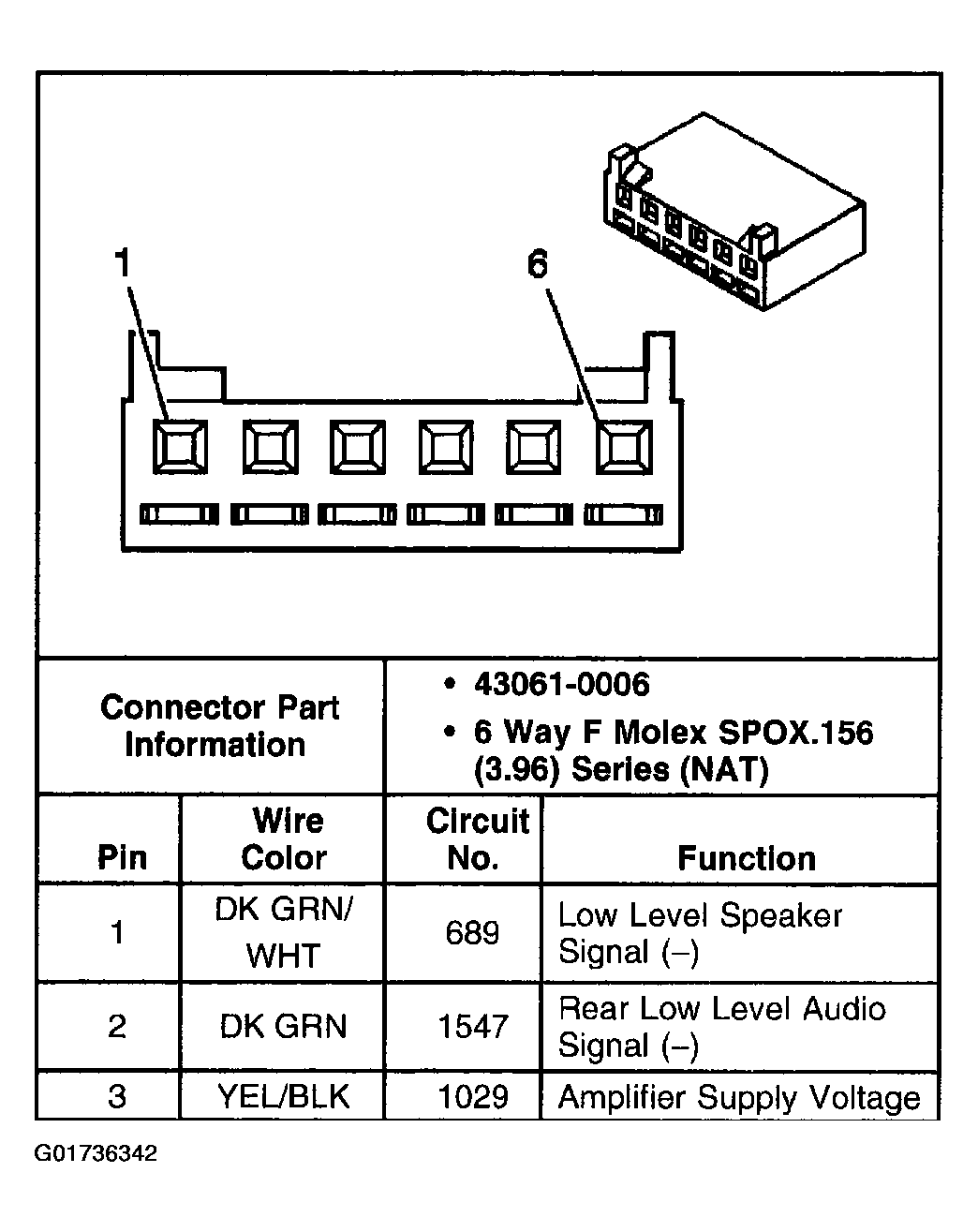

Fig 2: 100 Watt Audio Amplifier - Rear (1 Of 2)

G01736342

Courtesy of GENERAL MOTORS CORP.

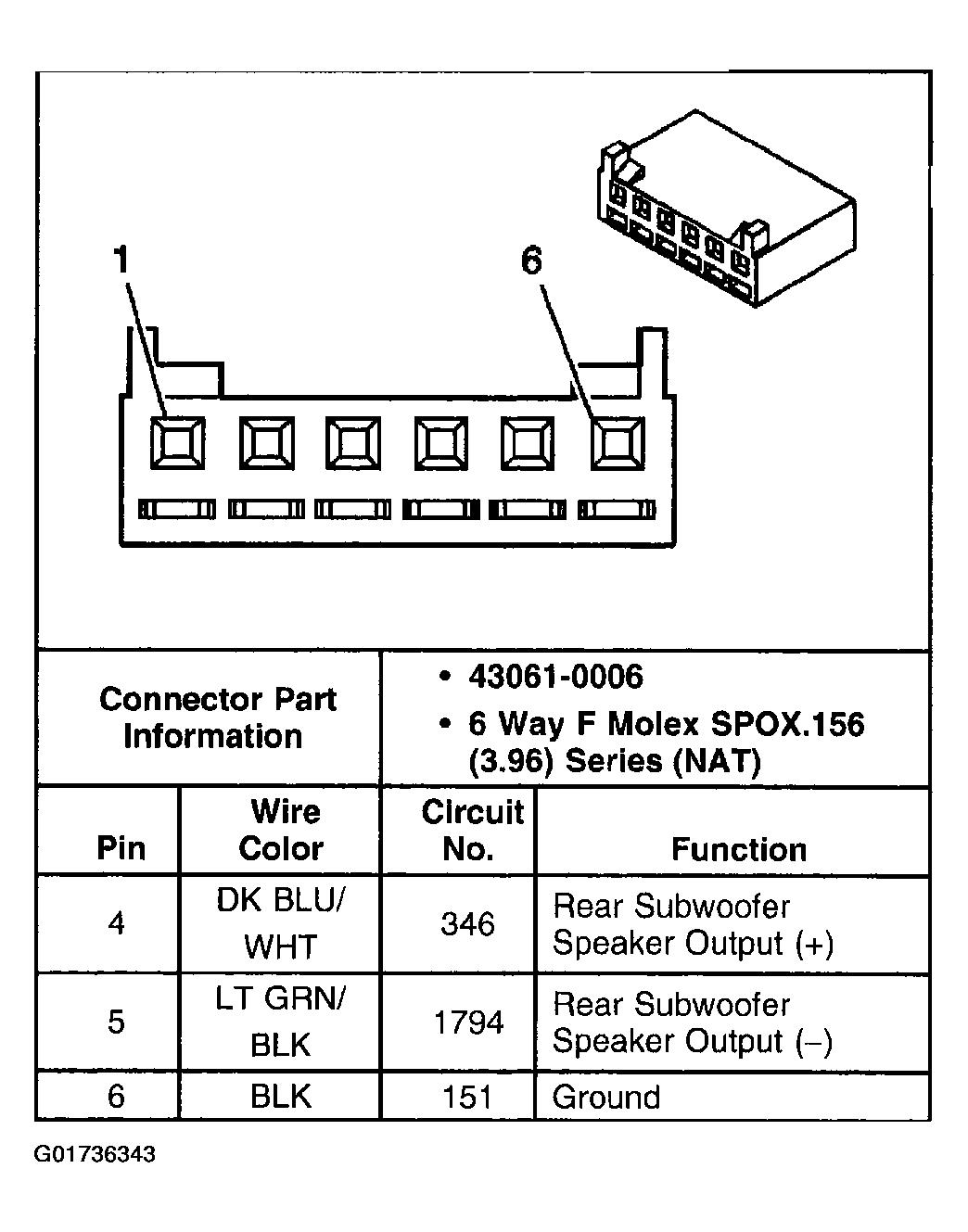

Fig 3: 100 Watt Audio Amplifier - Rear (2 Of 2)

G01736343

Courtesy of GENERAL MOTORS CORP.

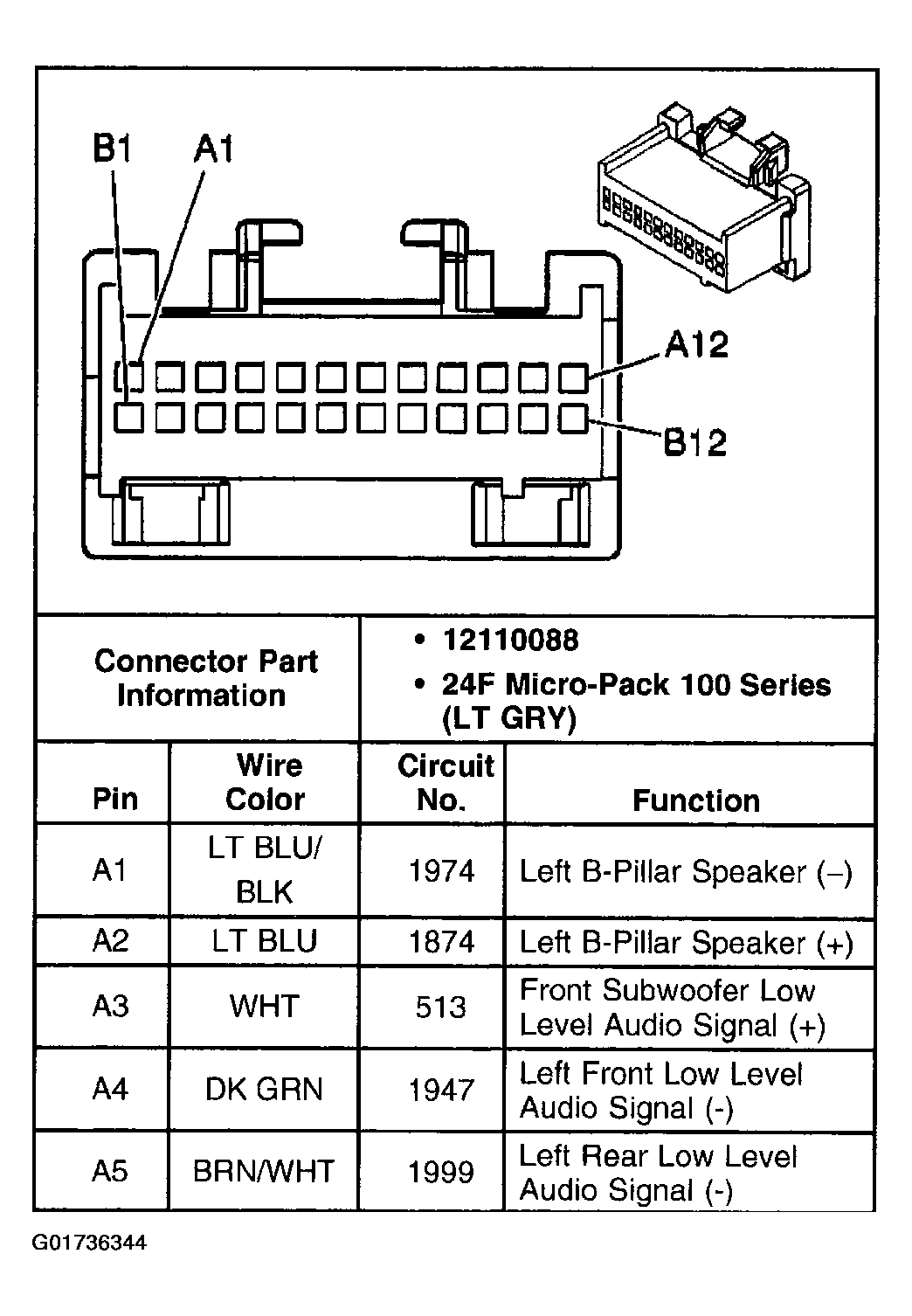

Fig 4: Bose 2000 AMP Amplifier - 1 (1 Of 2)

G01736344

Courtesy of GENERAL MOTORS CORP.

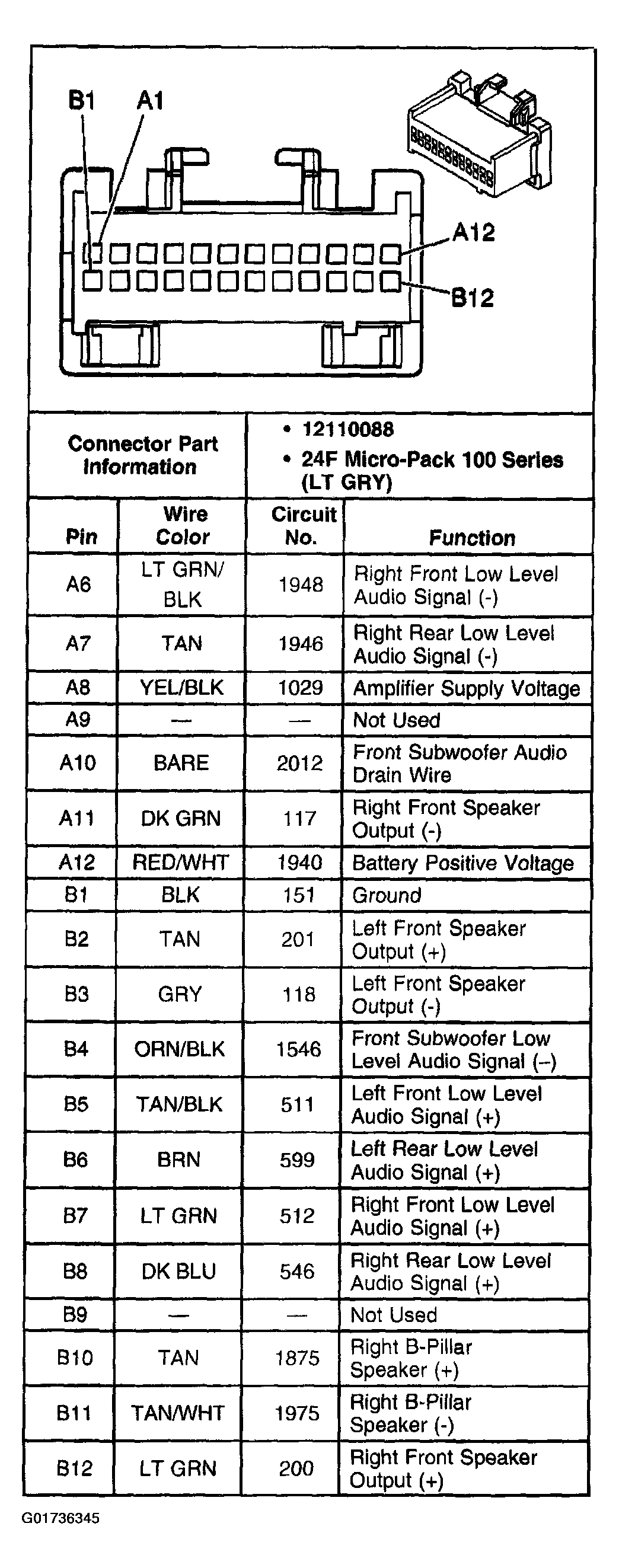

Fig 5: Bose 2000 AMP Amplifier - 1 (2 Of 2)

G01736345

Courtesy of GENERAL MOTORS CORP.

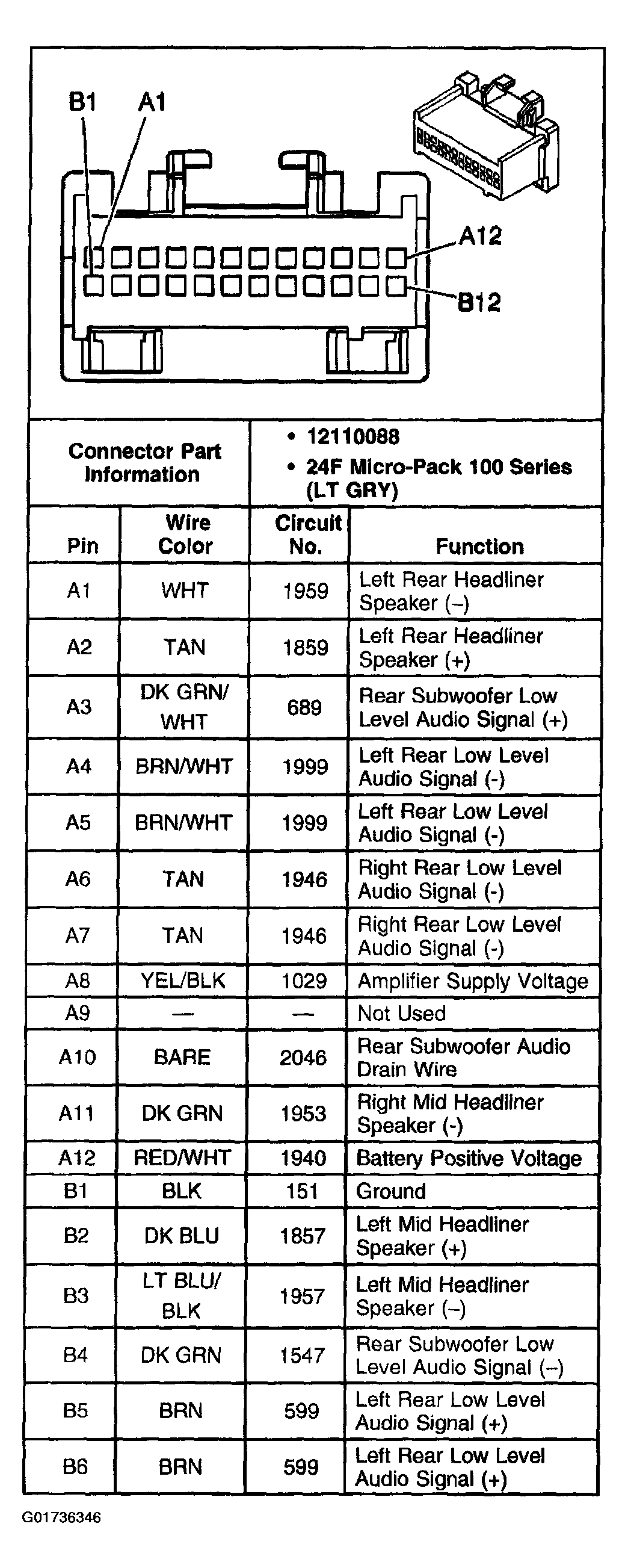

Fig 6: Bose 2000 AMP Amplifier - 2 (1 Of 2)

G01736346

Courtesy of GENERAL MOTORS CORP.

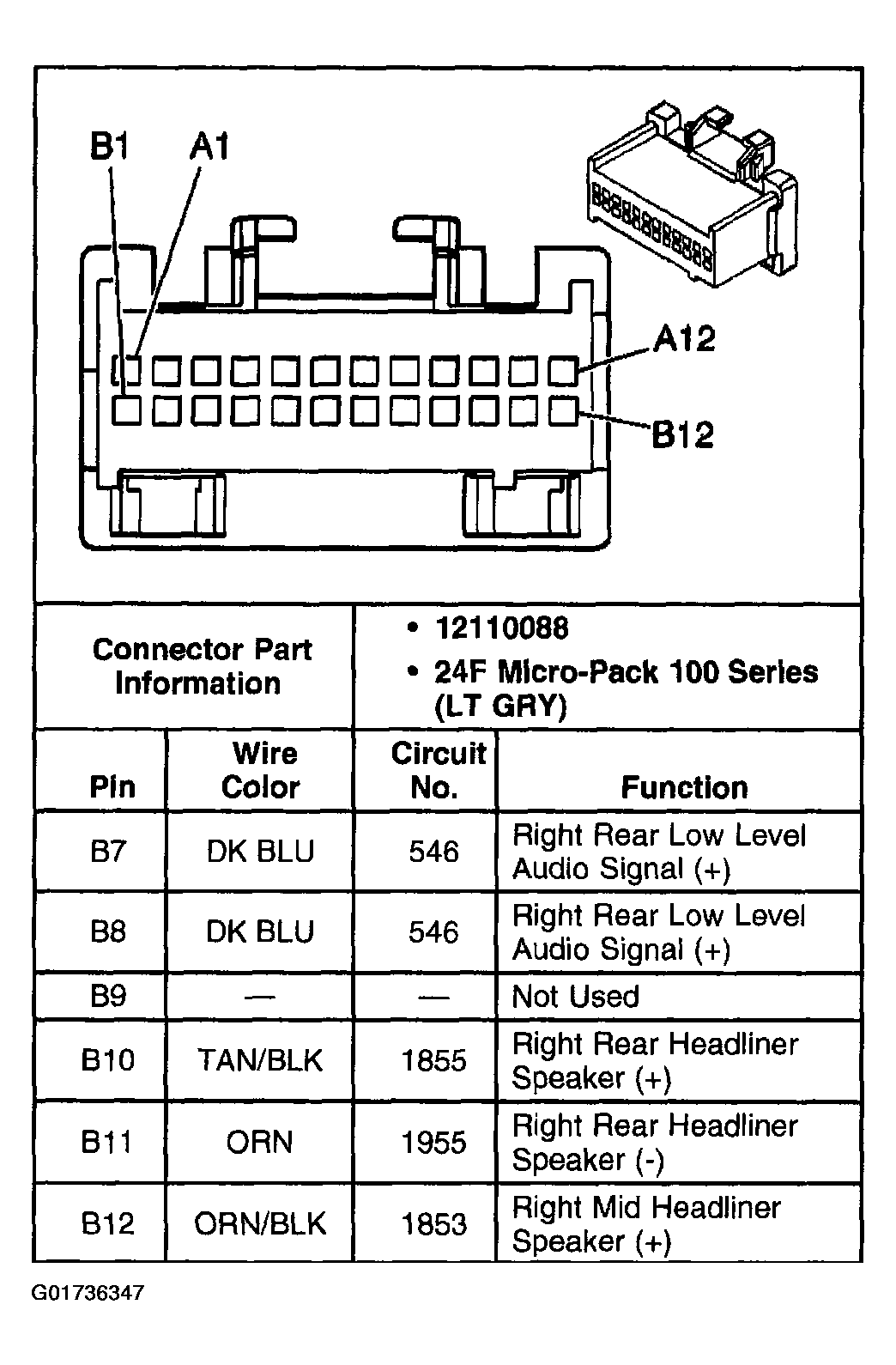

Fig 7: Bose 2000 AMP Amplifier - 2 (2 Of 2)

G01736347

Courtesy of GENERAL MOTORS CORP.

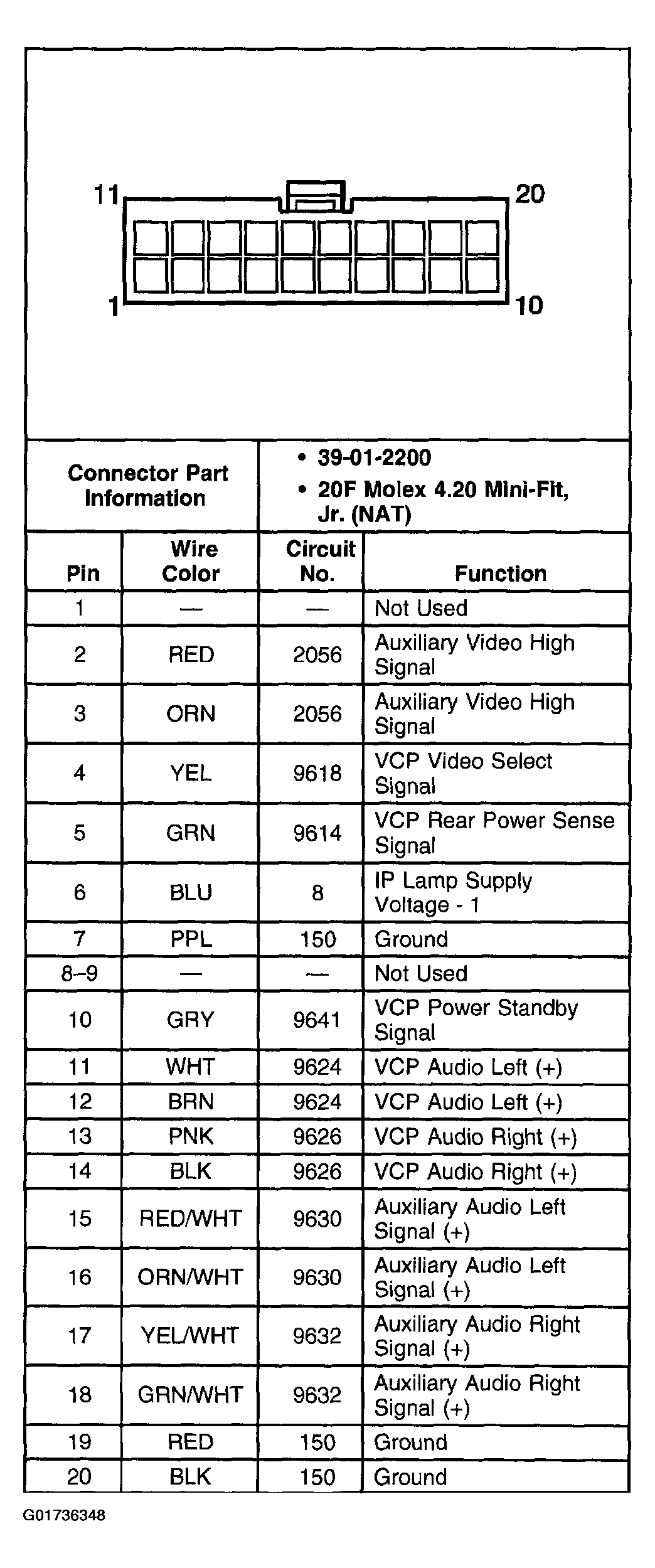

Fig 8: Game Box

G01736348

Courtesy of GENERAL MOTORS CORP.

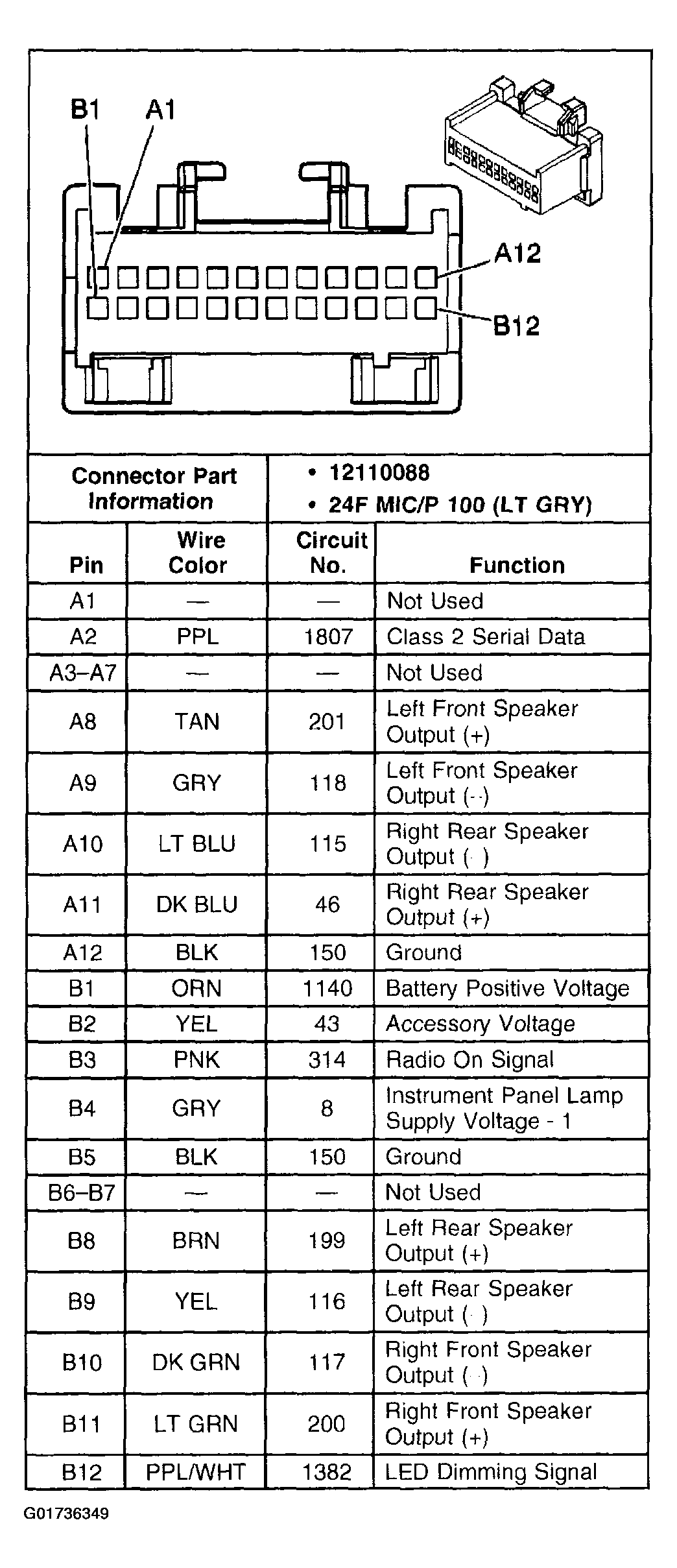

Fig 9: Radio Connector W/O Y91

G01736349

Courtesy of GENERAL MOTORS CORP.

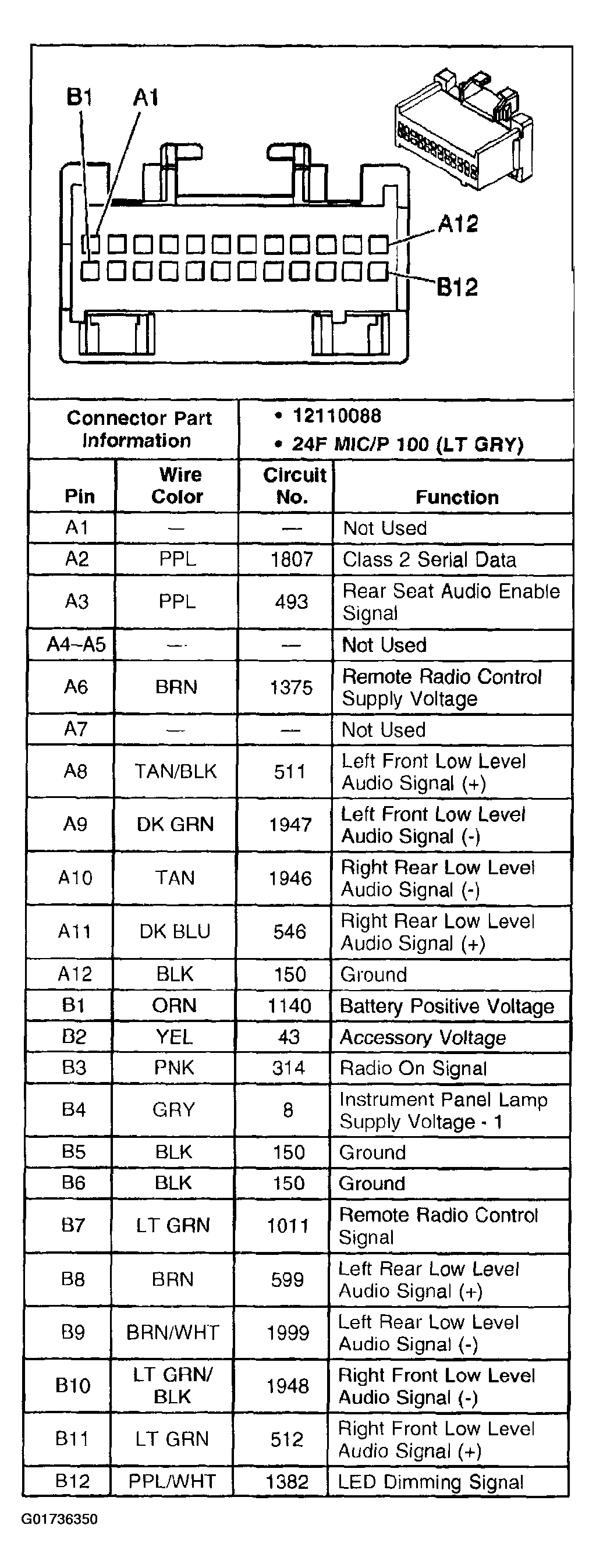

Fig 10: Radio Connector W/Y91

G01736350

Courtesy of GENERAL MOTORS CORP.

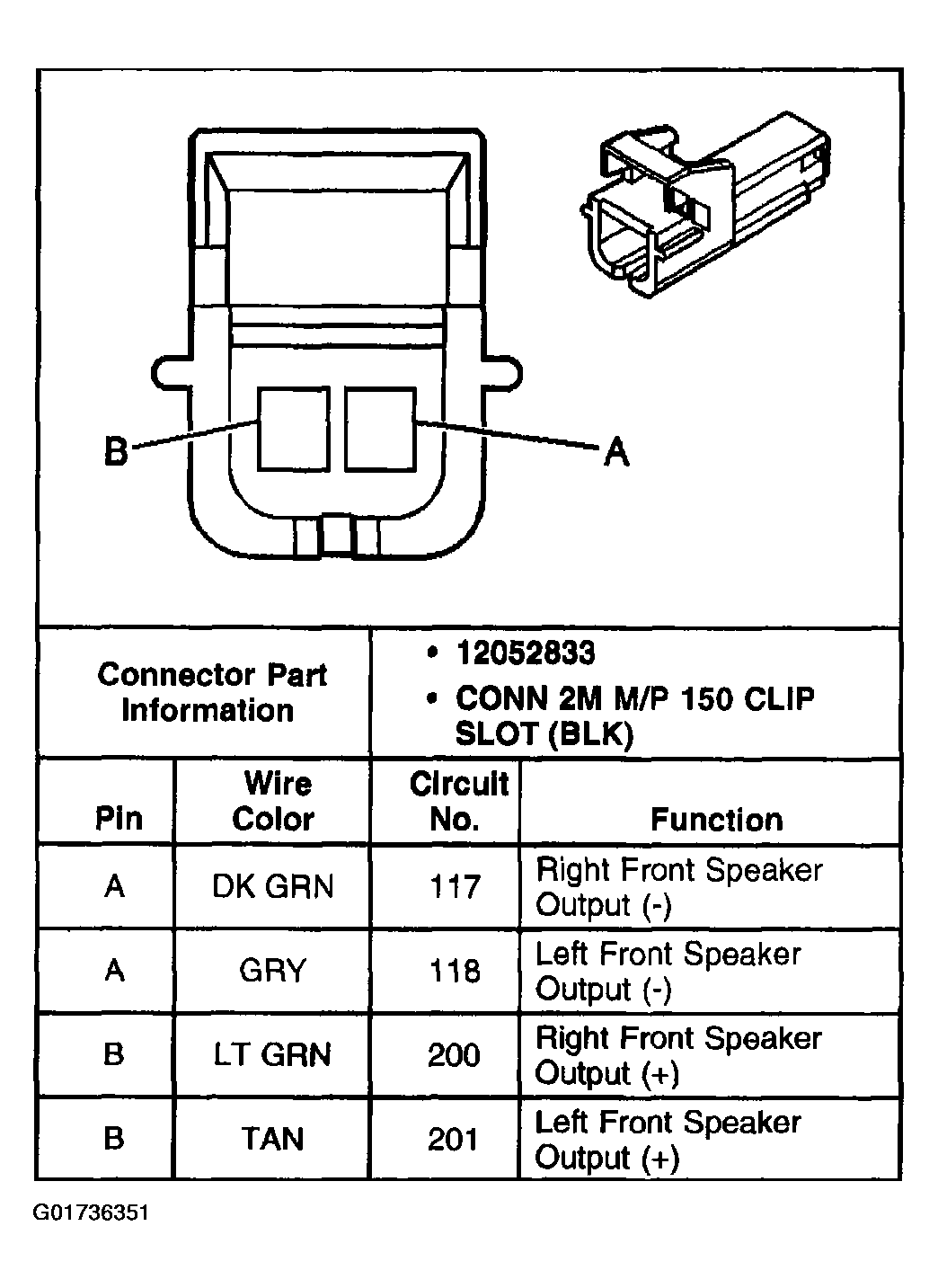

Fig 11: Radio Speaker-Tweeter

G01736351

Courtesy of GENERAL MOTORS CORP.

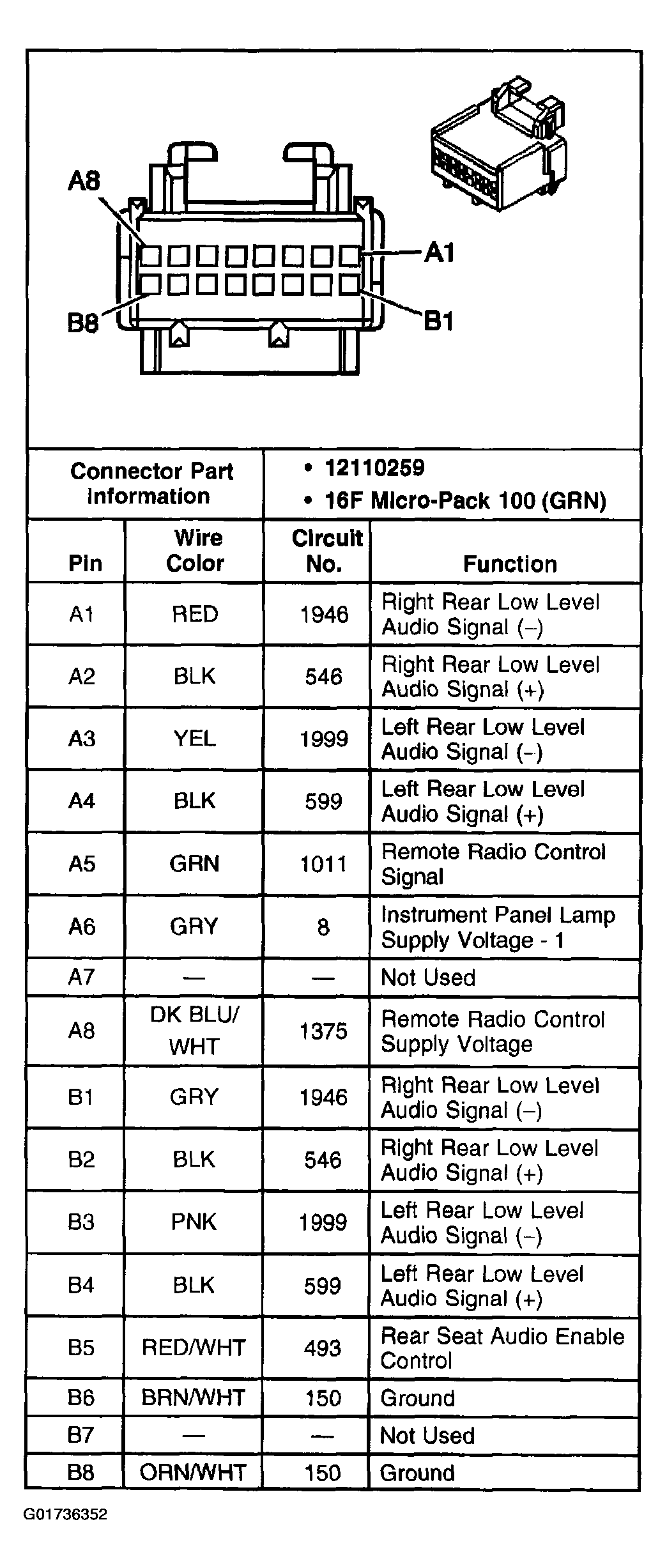

Fig 12: Rear Seat Audio (RSA) Control

G01736352

Courtesy of GENERAL MOTORS CORP.

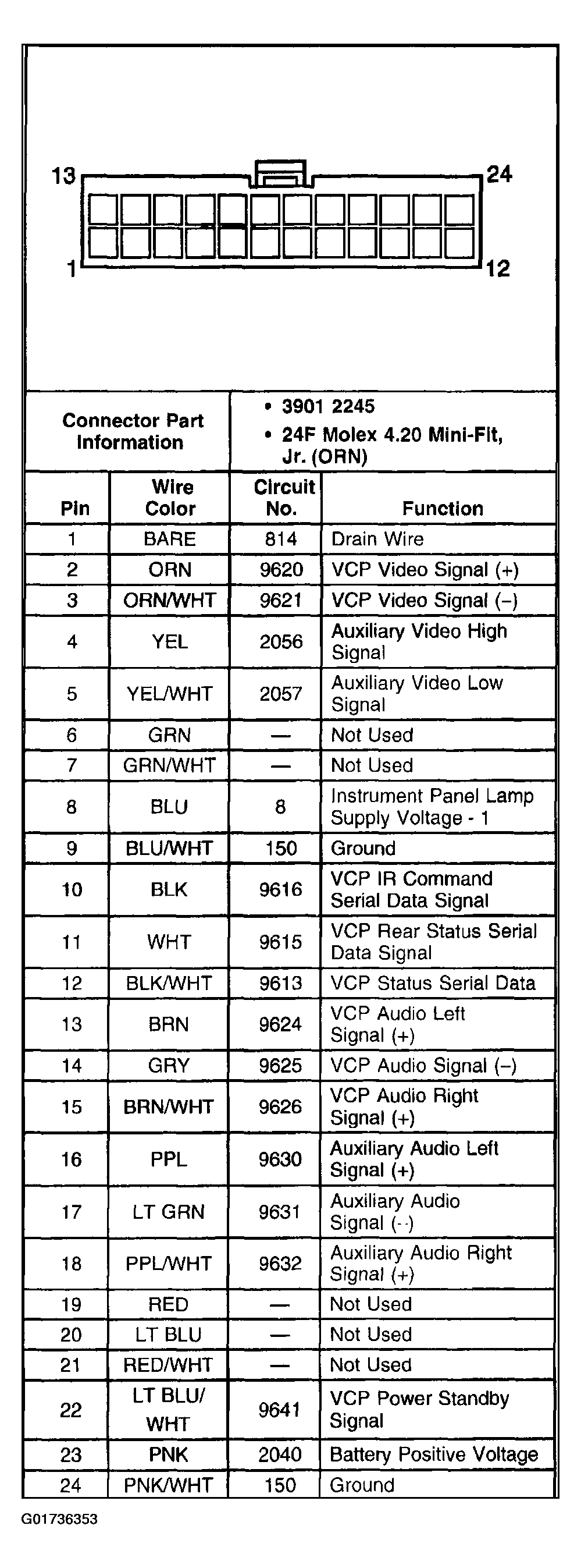

Fig 13: RSA-T C1

G01736353

Courtesy of GENERAL MOTORS CORP.

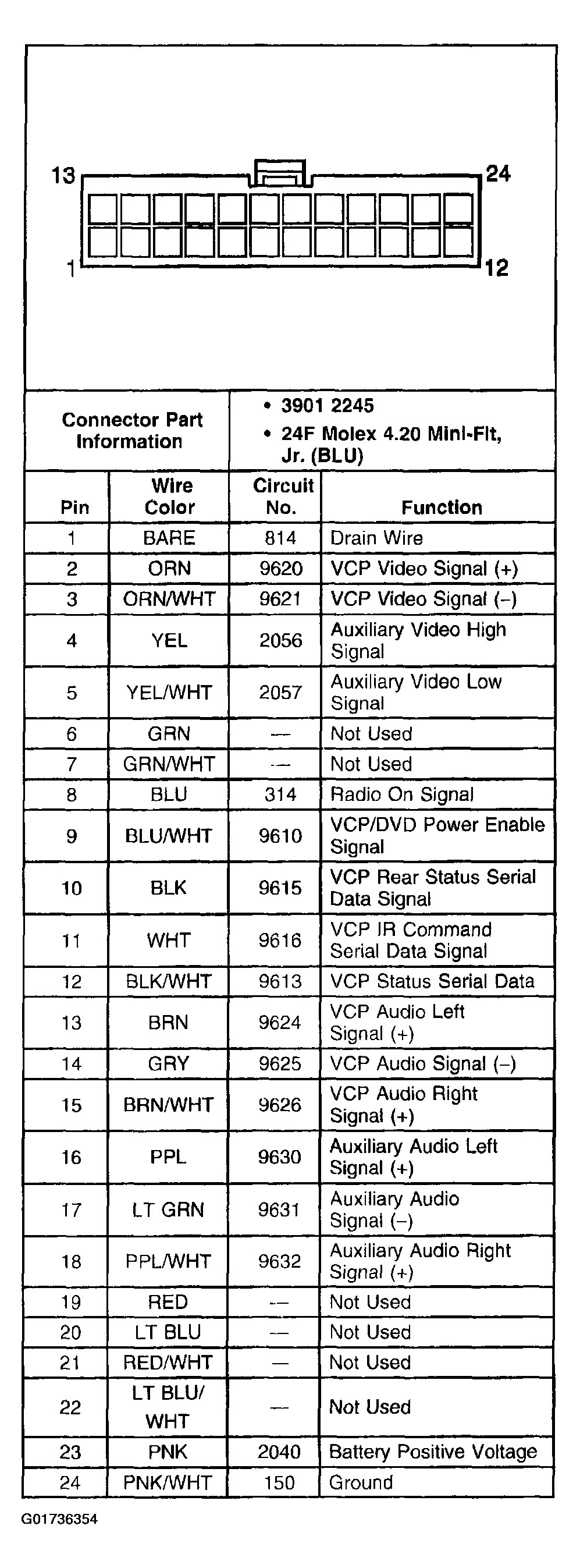

Fig 14: RSA-T C2

G01736354

Courtesy of GENERAL MOTORS CORP.

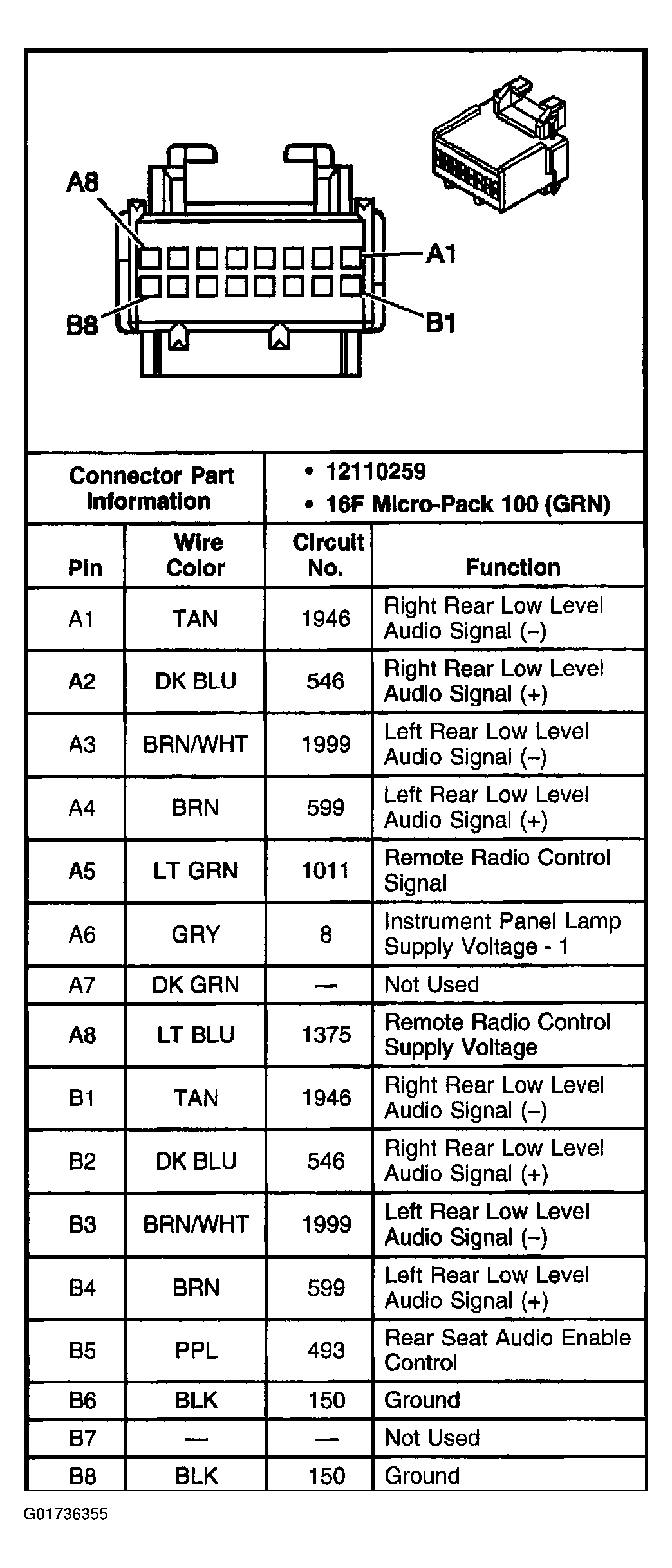

Fig 15: RSA-T C3

G01736355

Courtesy of GENERAL MOTORS CORP.

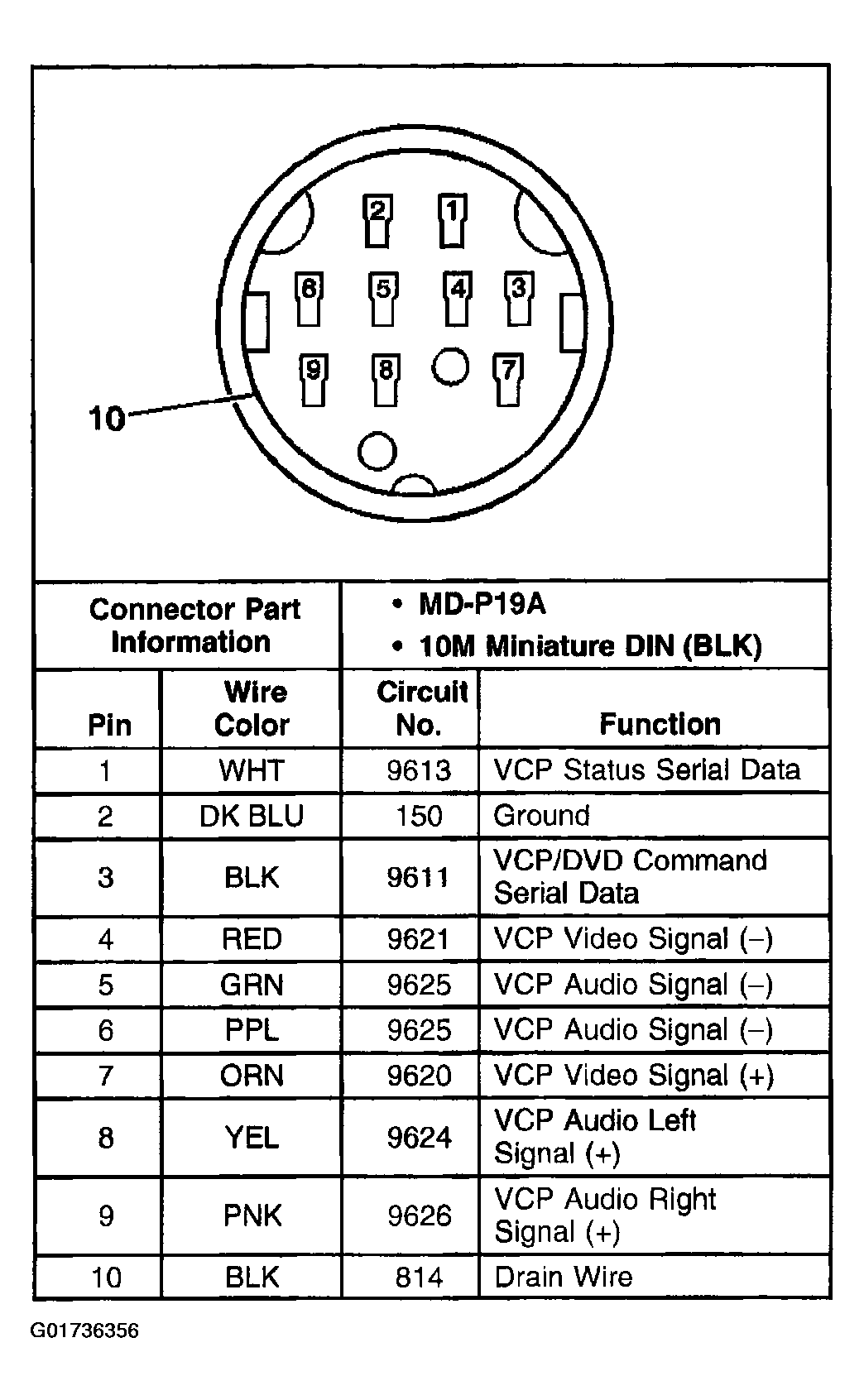

Fig 16: RSA-T C4

G01736356

Courtesy of GENERAL MOTORS CORP.

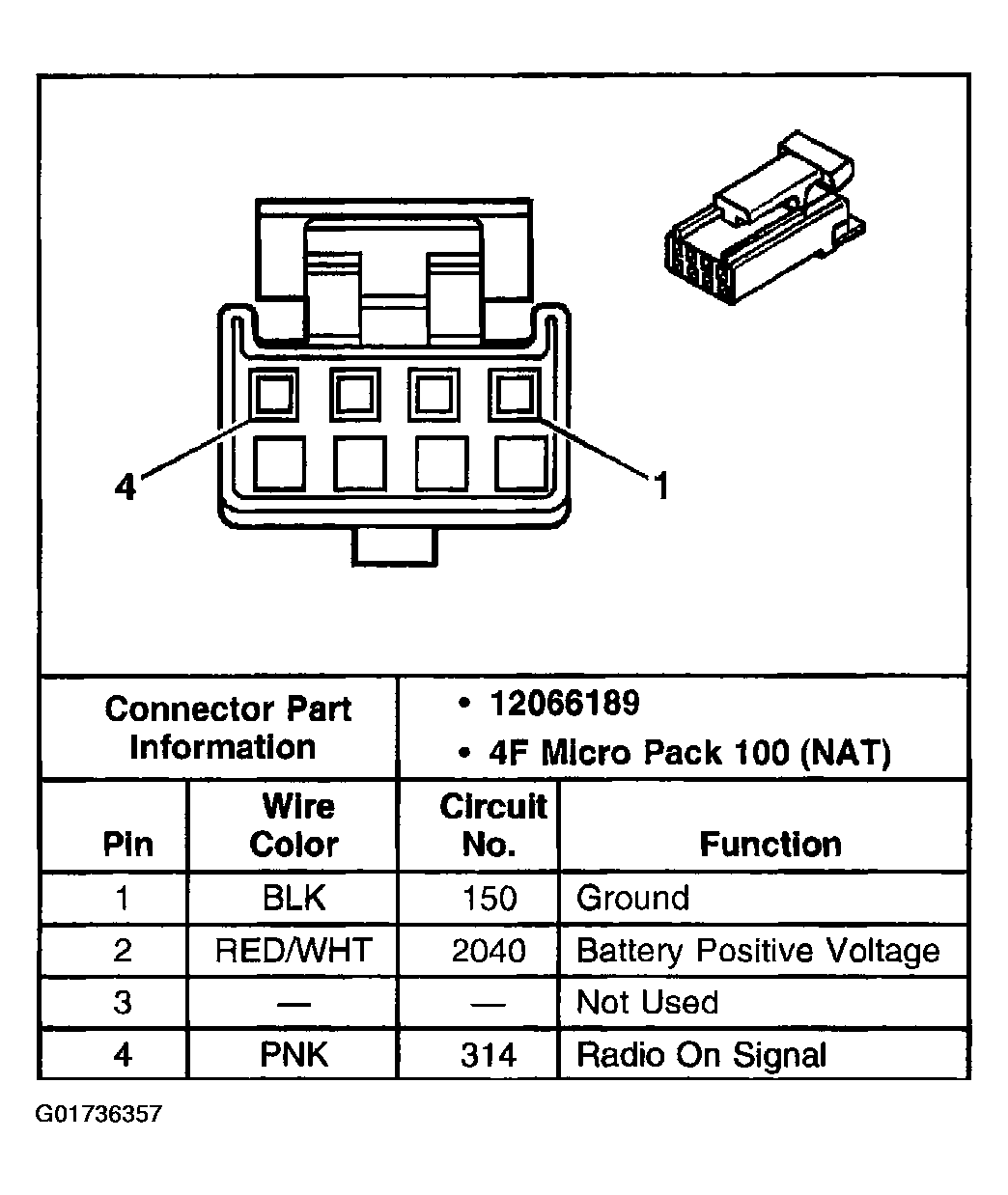

Fig 17: RSA-T C5

G01736357

Courtesy of GENERAL MOTORS CORP.

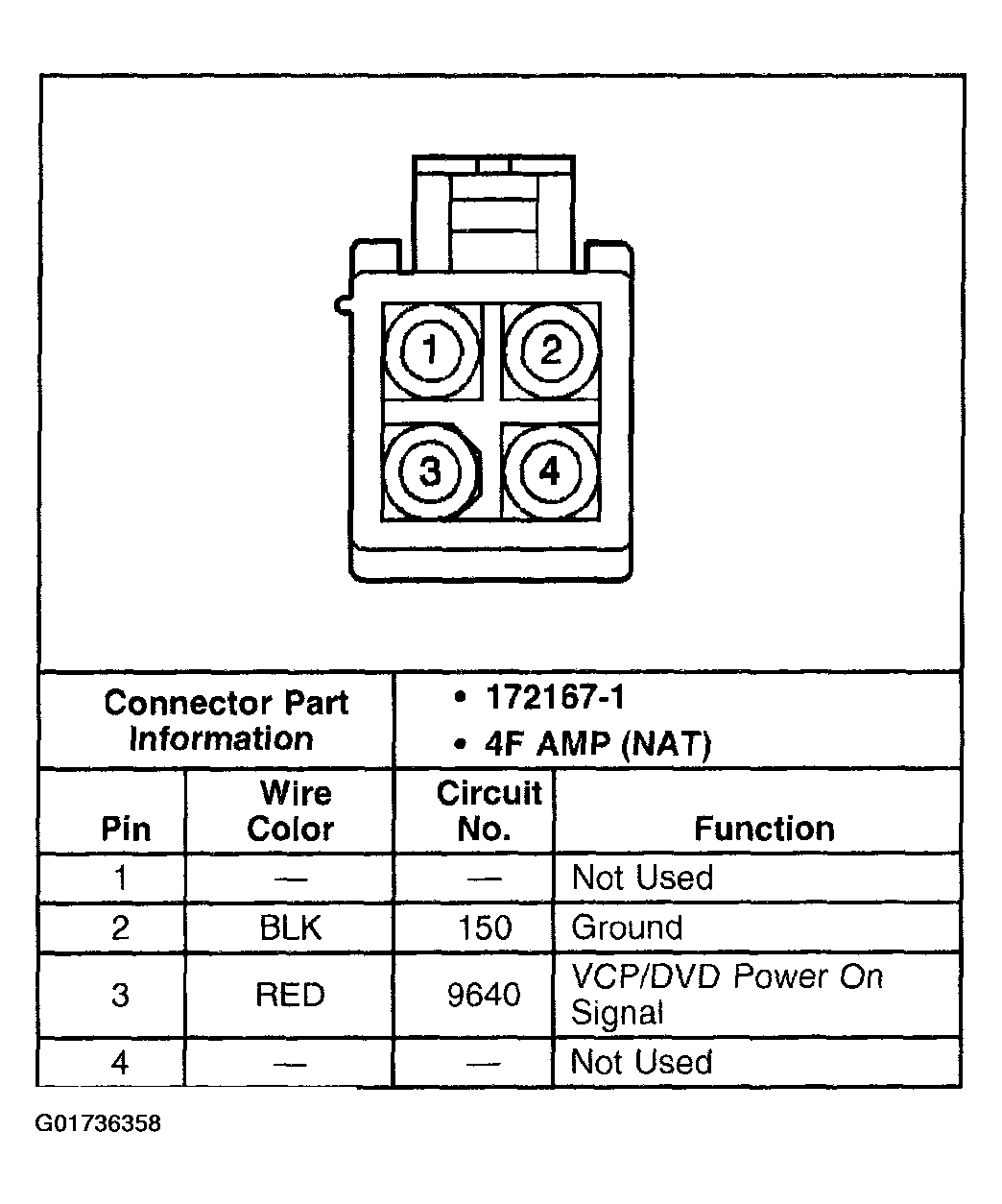

Fig 18: RSA-T C6

G01736358

Courtesy of GENERAL MOTORS CORP.

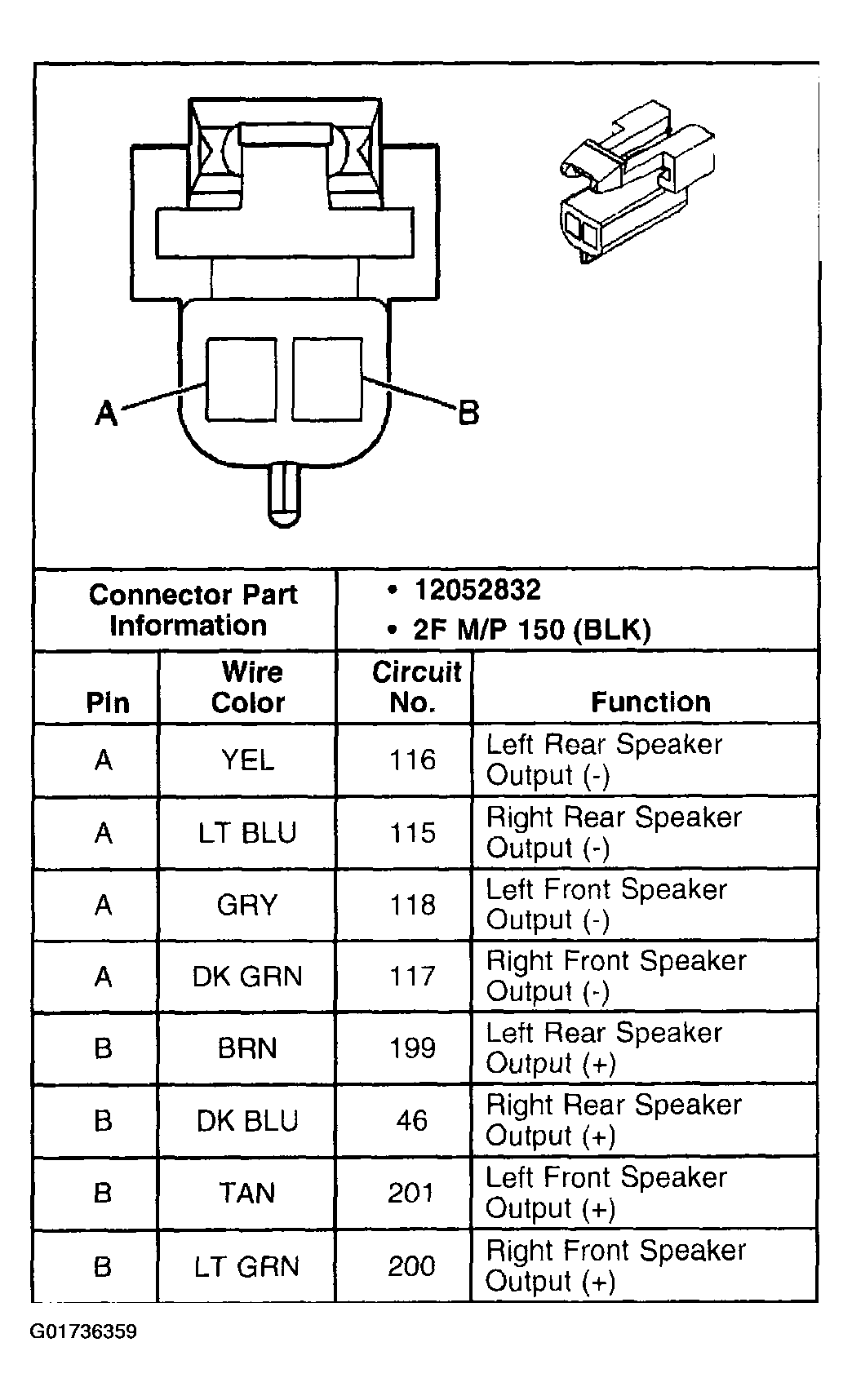

Fig 19: Speaker Connector

G01736359

Courtesy of GENERAL MOTORS CORP.

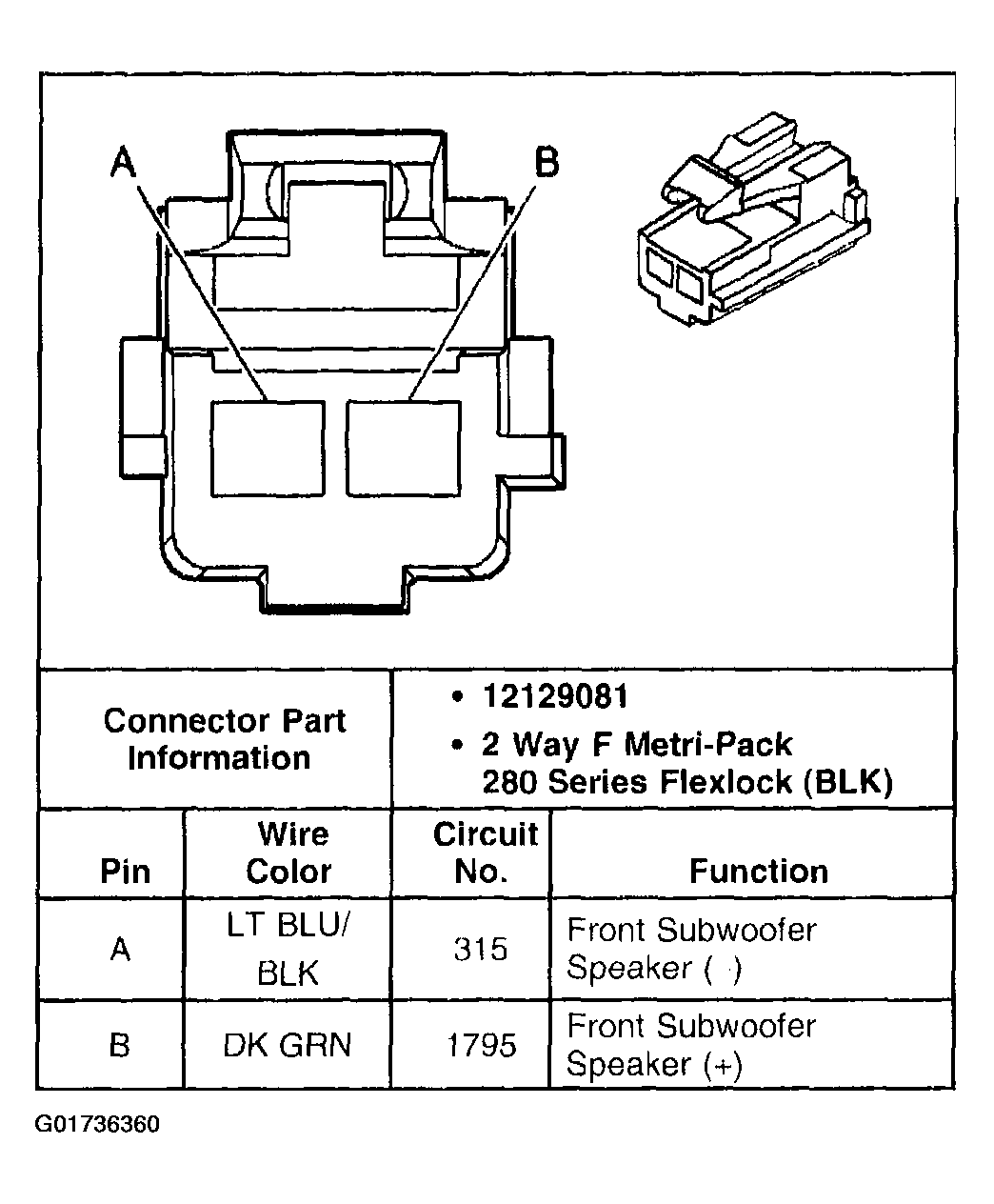

Fig 20: Speaker - Front Subwoofer-Luxury

G01736360

Courtesy of GENERAL MOTORS CORP.

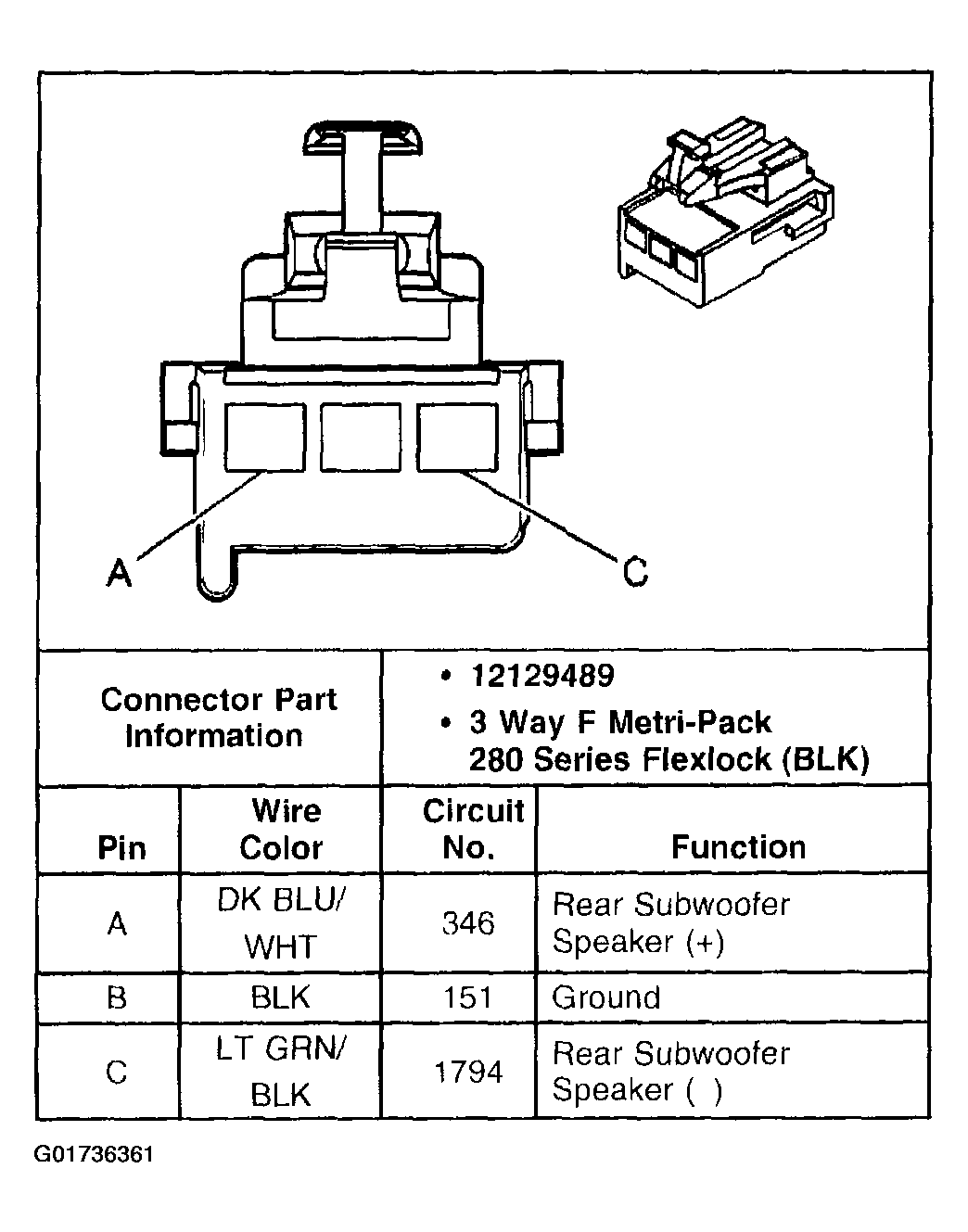

Fig 21: Speaker - Rear Subwoofer-Luxury

G01736361

Courtesy of GENERAL MOTORS CORP.

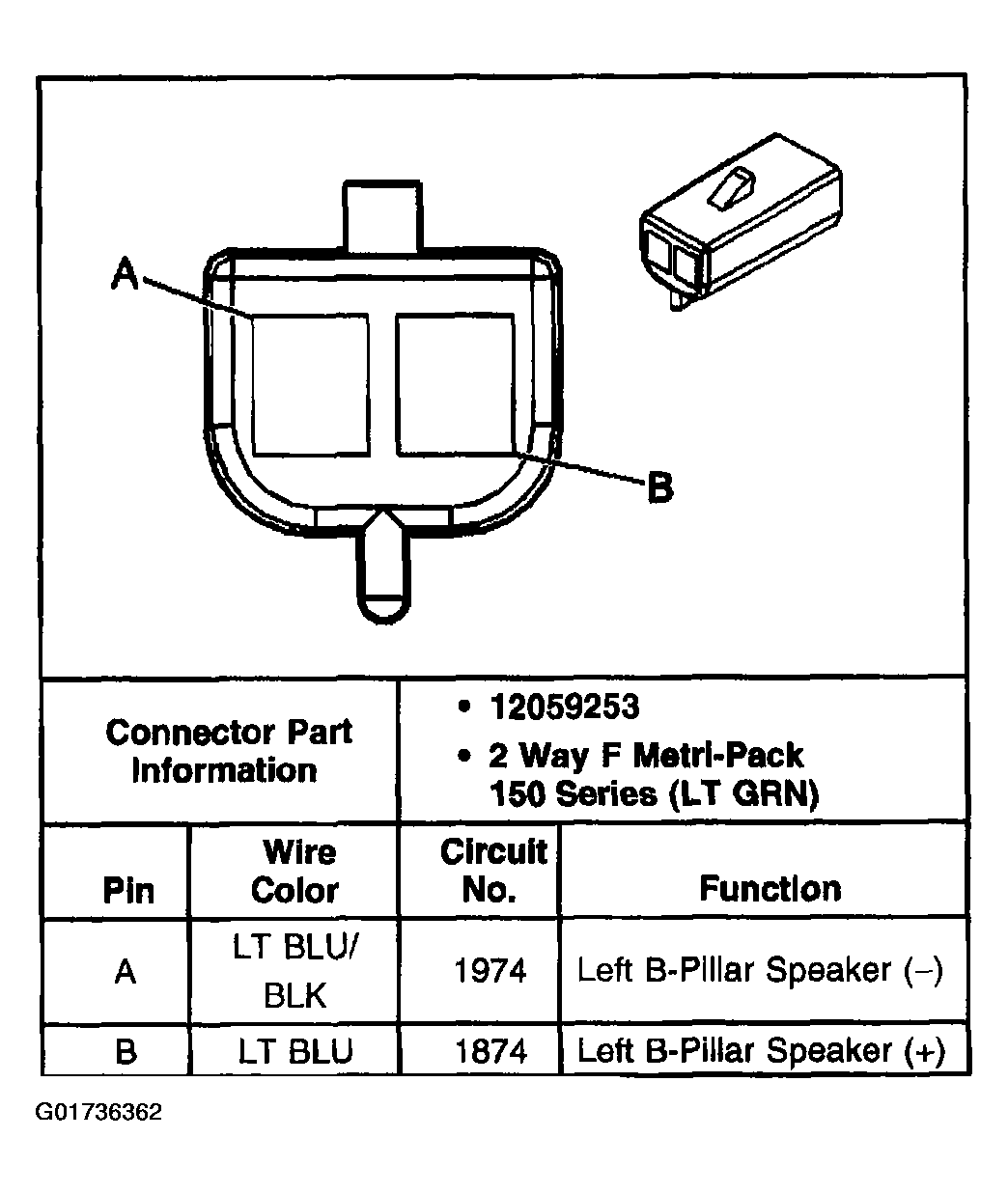

Fig 22: Speaker - Left B Pillar-Luxury

G01736362

Courtesy of GENERAL MOTORS CORP.

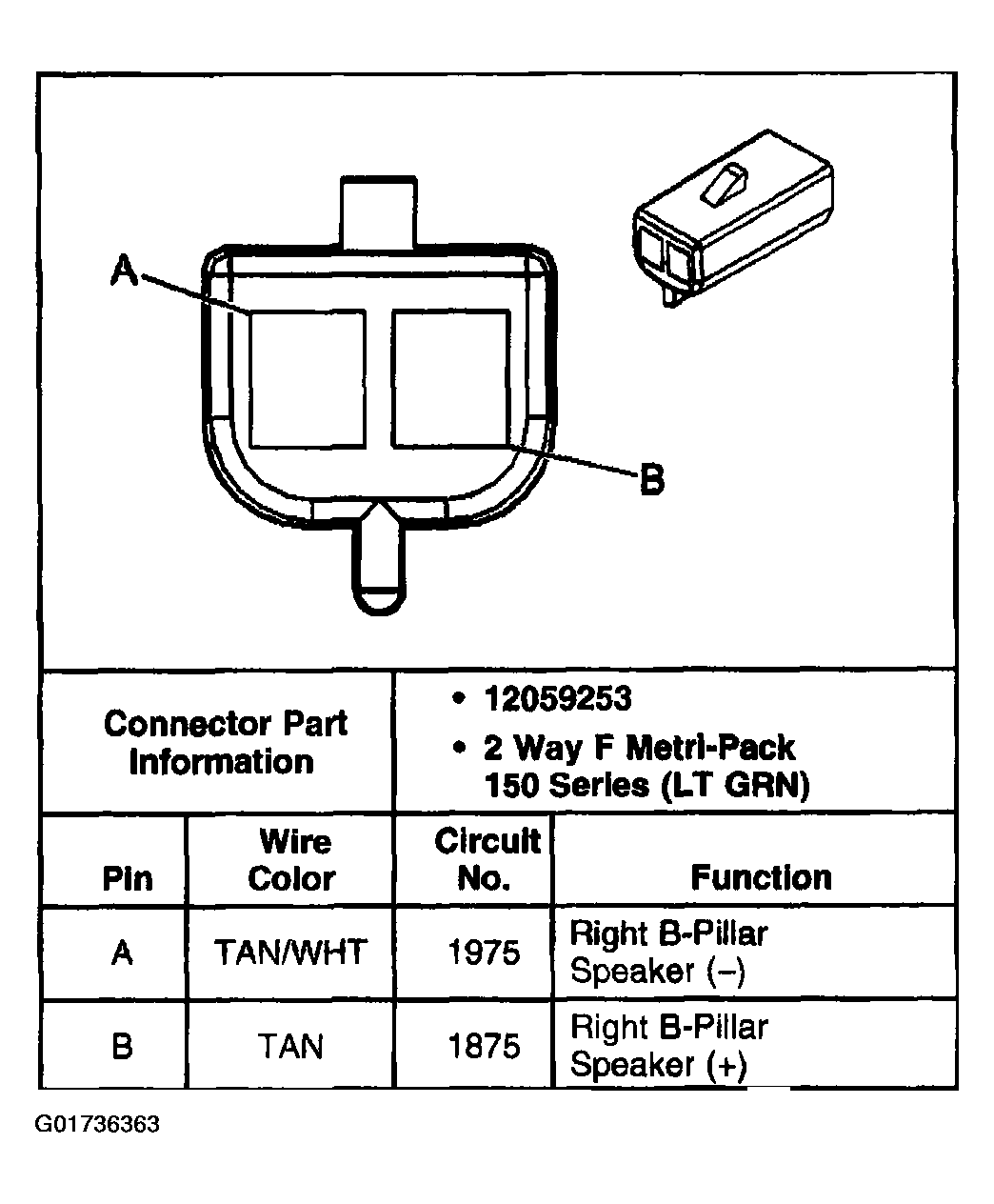

Fig 23: Speaker - Right B Pillar-Luxury

G01736363

Courtesy of GENERAL MOTORS CORP.

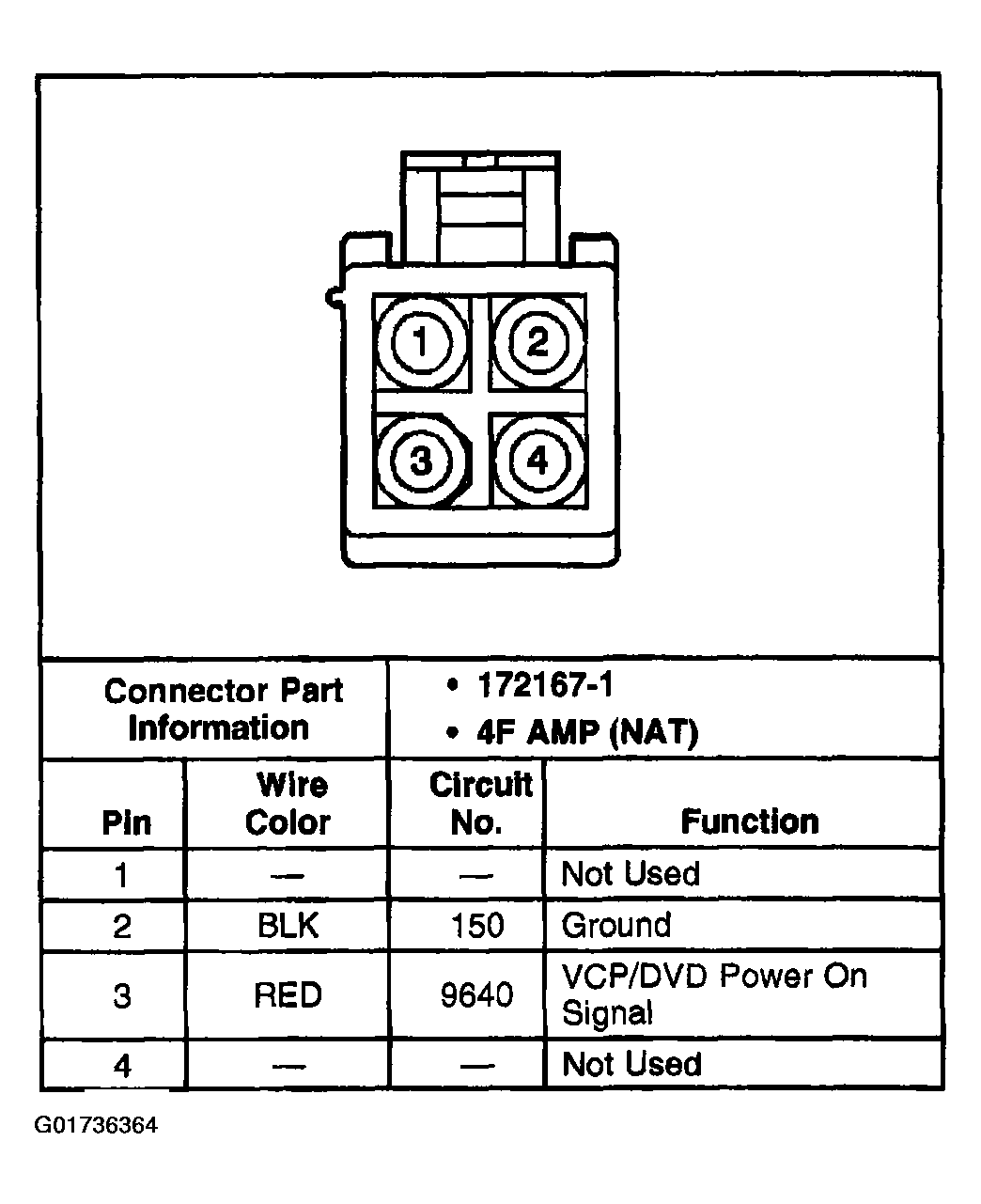

Fig 24: VCP C1

G01736364

Courtesy of GENERAL MOTORS CORP.

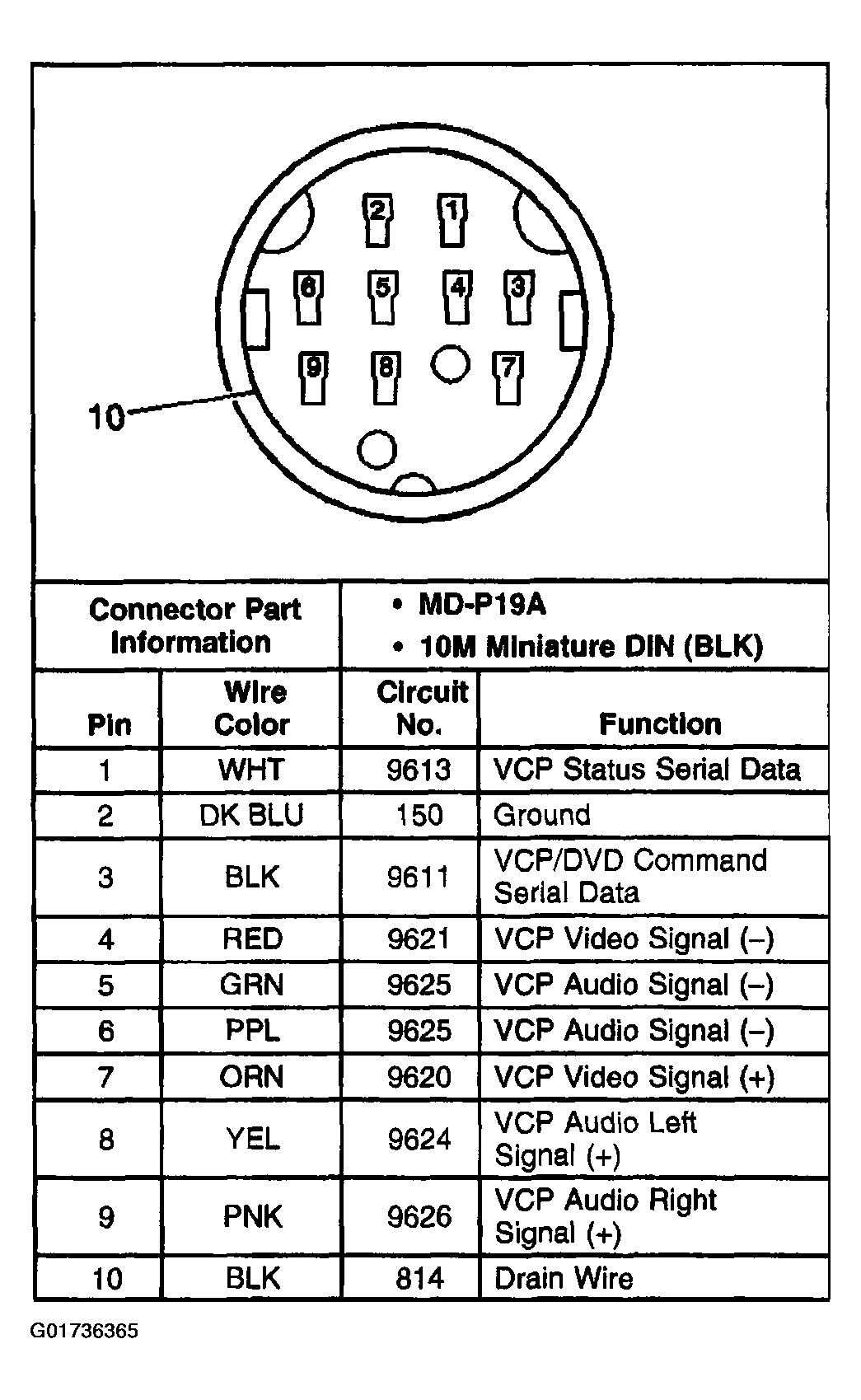

Fig 25: VCP C2

G01736365

Courtesy of GENERAL MOTORS CORP.

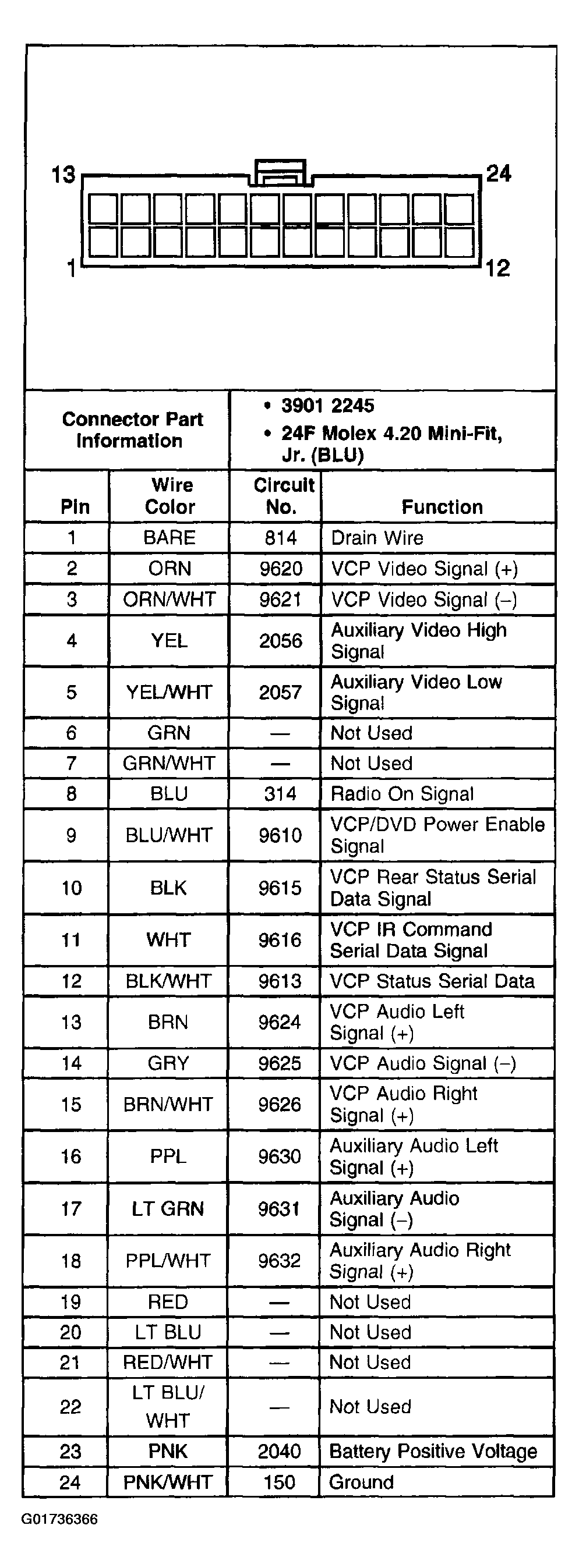

Fig 26: Video Display - Front C1

G01736366

Courtesy of GENERAL MOTORS CORP.

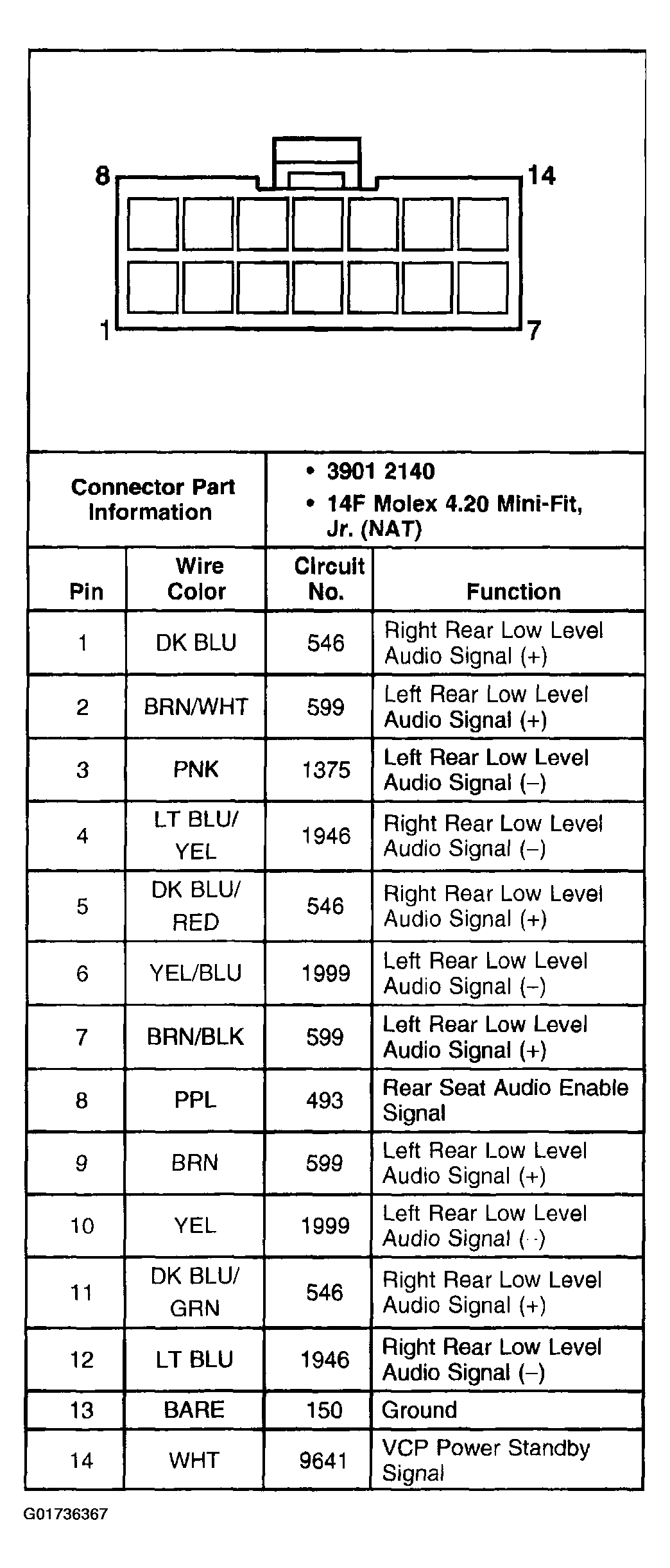

Fig 27: Video Display - Front C2

G01736367

Courtesy of GENERAL MOTORS CORP.

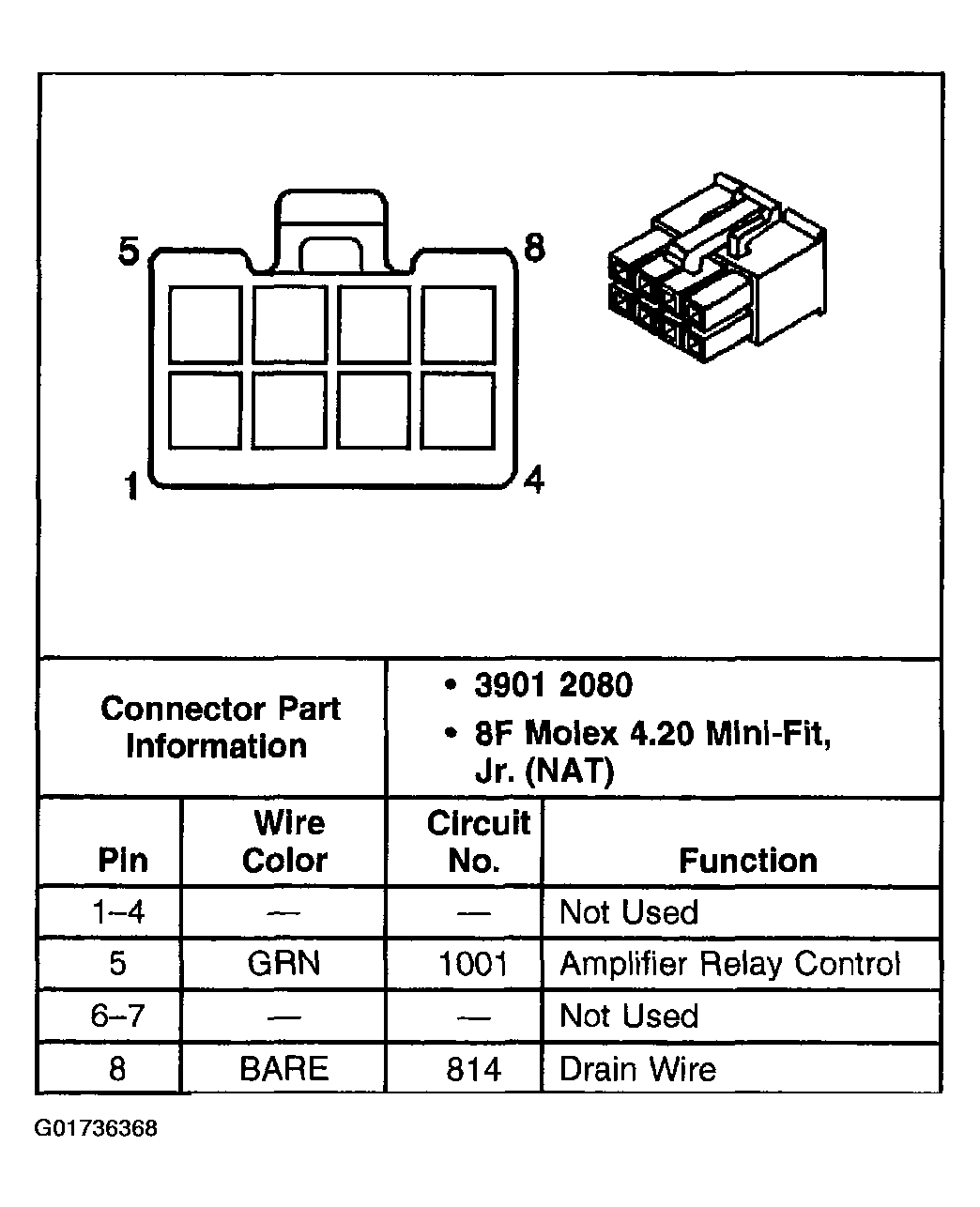

Fig 28: Video Display - Front C3

G01736368

Courtesy of GENERAL MOTORS CORP.

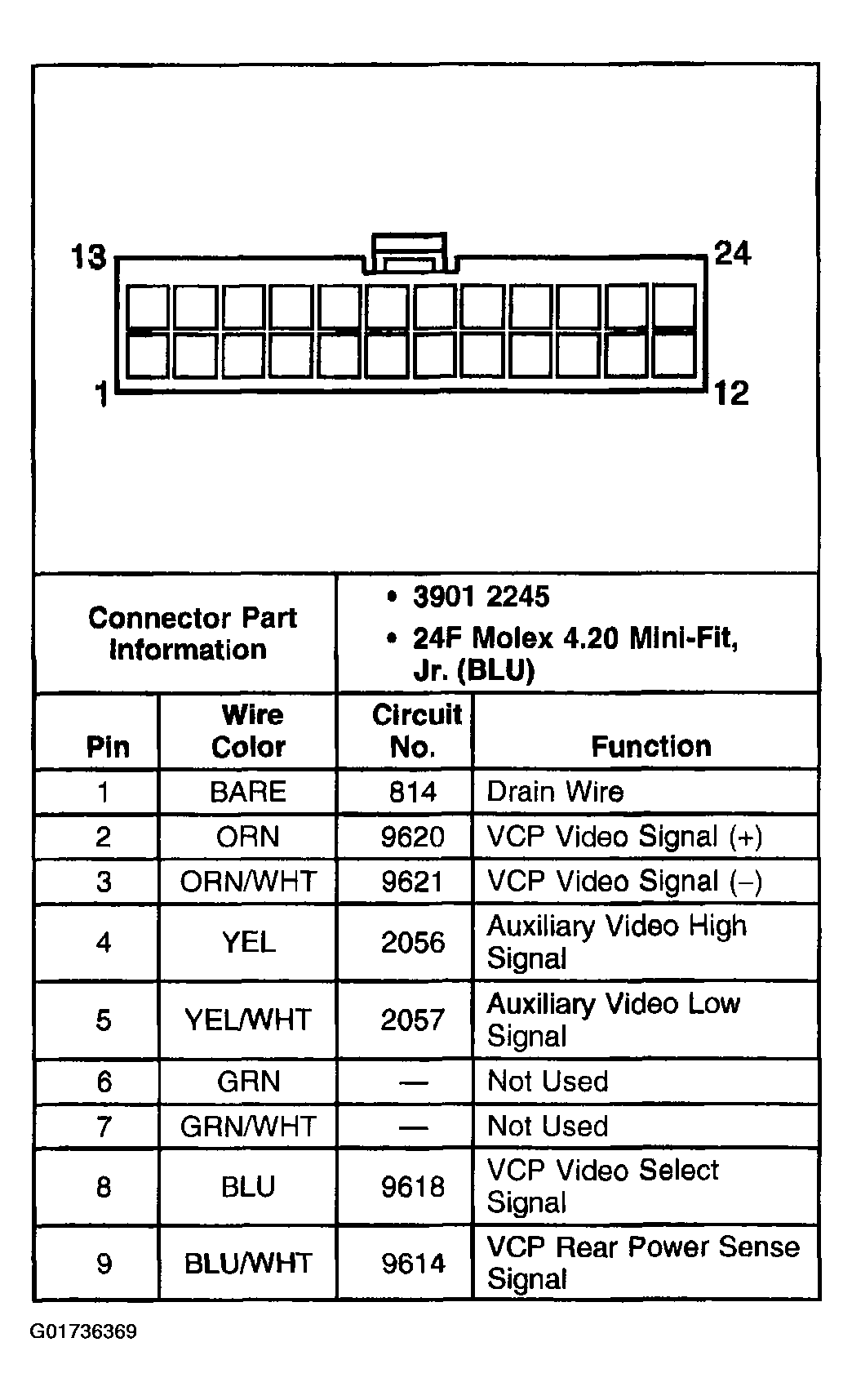

Fig 29: Video Display - Rear (1 Of 2)

G01736369

Courtesy of GENERAL MOTORS CORP.

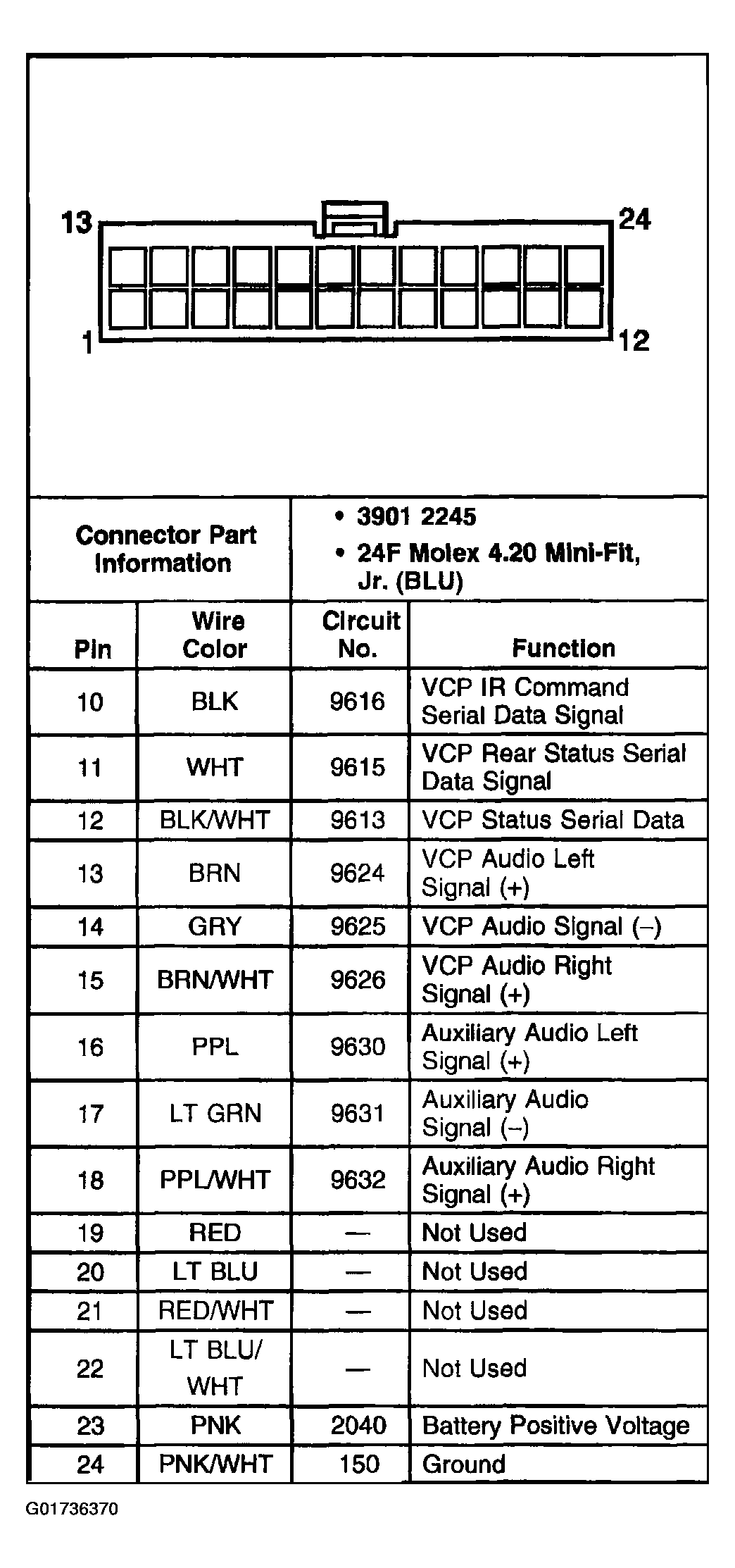

Fig 30: Video Display - Rear (2 Of 2)

G01736370

Courtesy of GENERAL MOTORS CORP.
