Lighting Systems Component Views

WARNING: This page is about a different car, the 2004 Buick Regal and 2004 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.

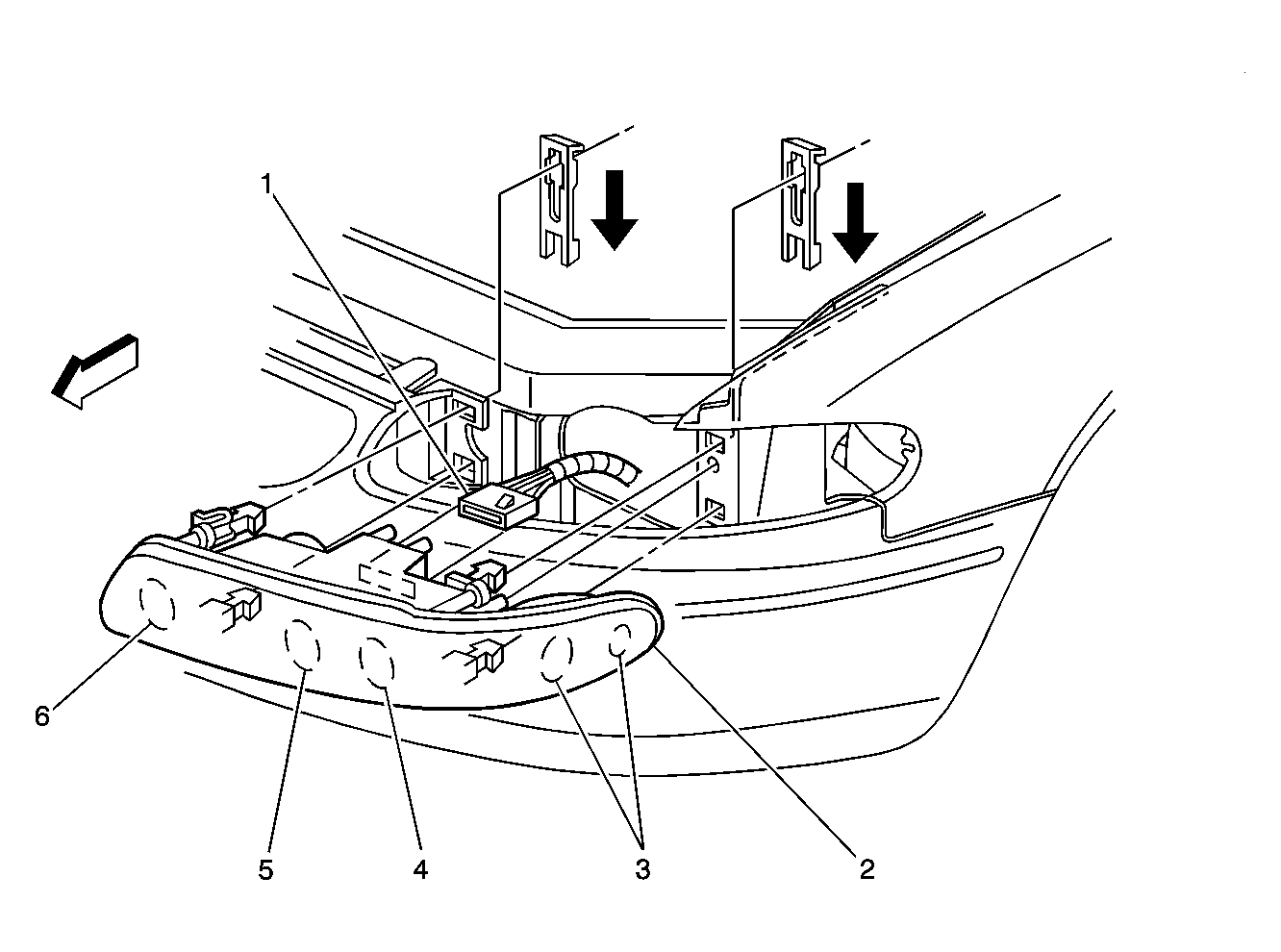

Fig 1: LF Of The Vehicle Component View
GM1254202Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 C106 Shown, C107 Similar
2 Headlamp Assembly - Left Shown, Right Similar
3 Cornering/Marker Lamp - Left Shown, Right Similar
4 Headlamp Low Beam - Left Shown, Right Similar
5 Headlamp High Beam - Left Shown, Right Similar
6 Park/Turn Signal Lamp - LF Shown, RF Similar

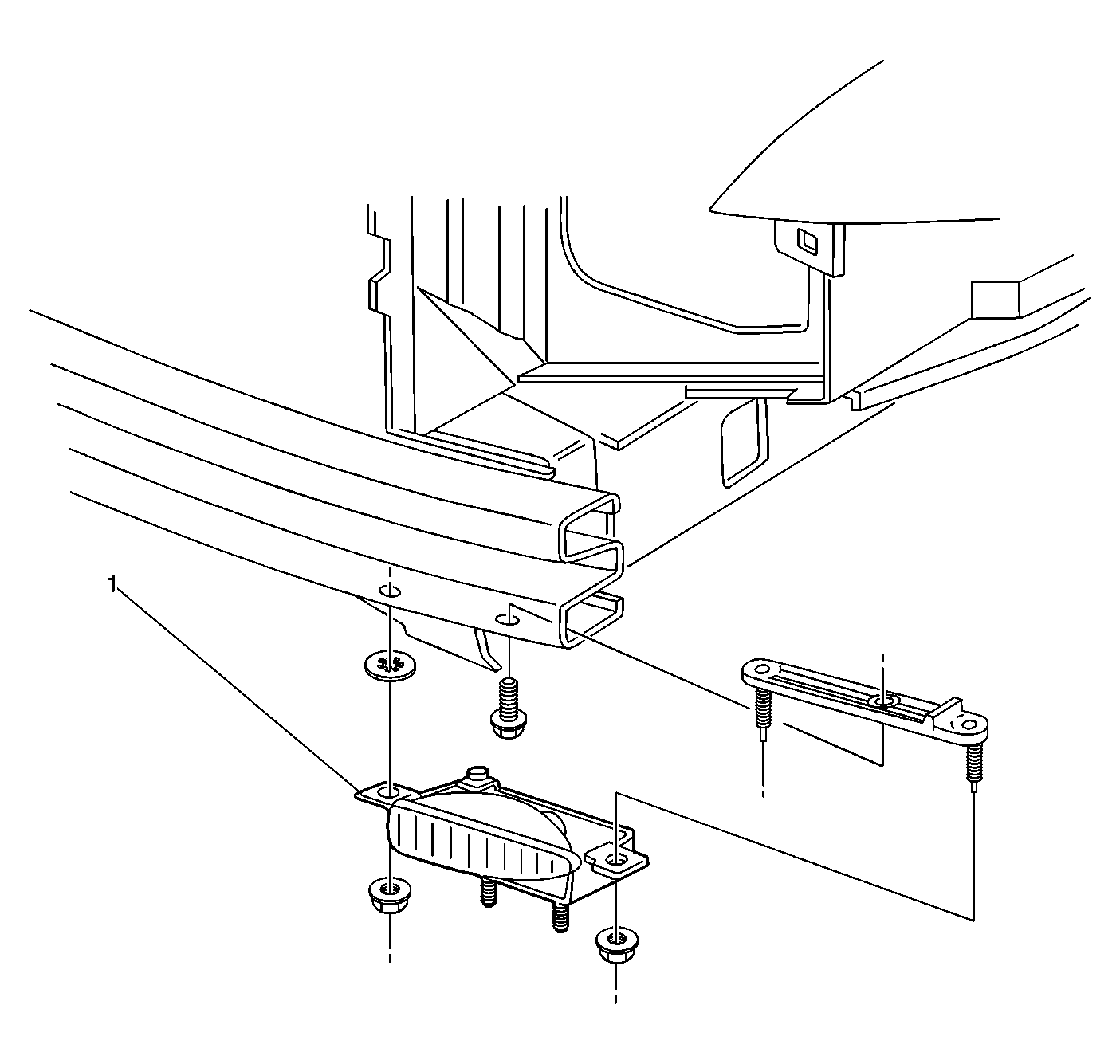

Fig 2: Lower Left Front of Vehicle Component View (Regal)
GM592276Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Fog Lamp - LF Shown, RF Similar

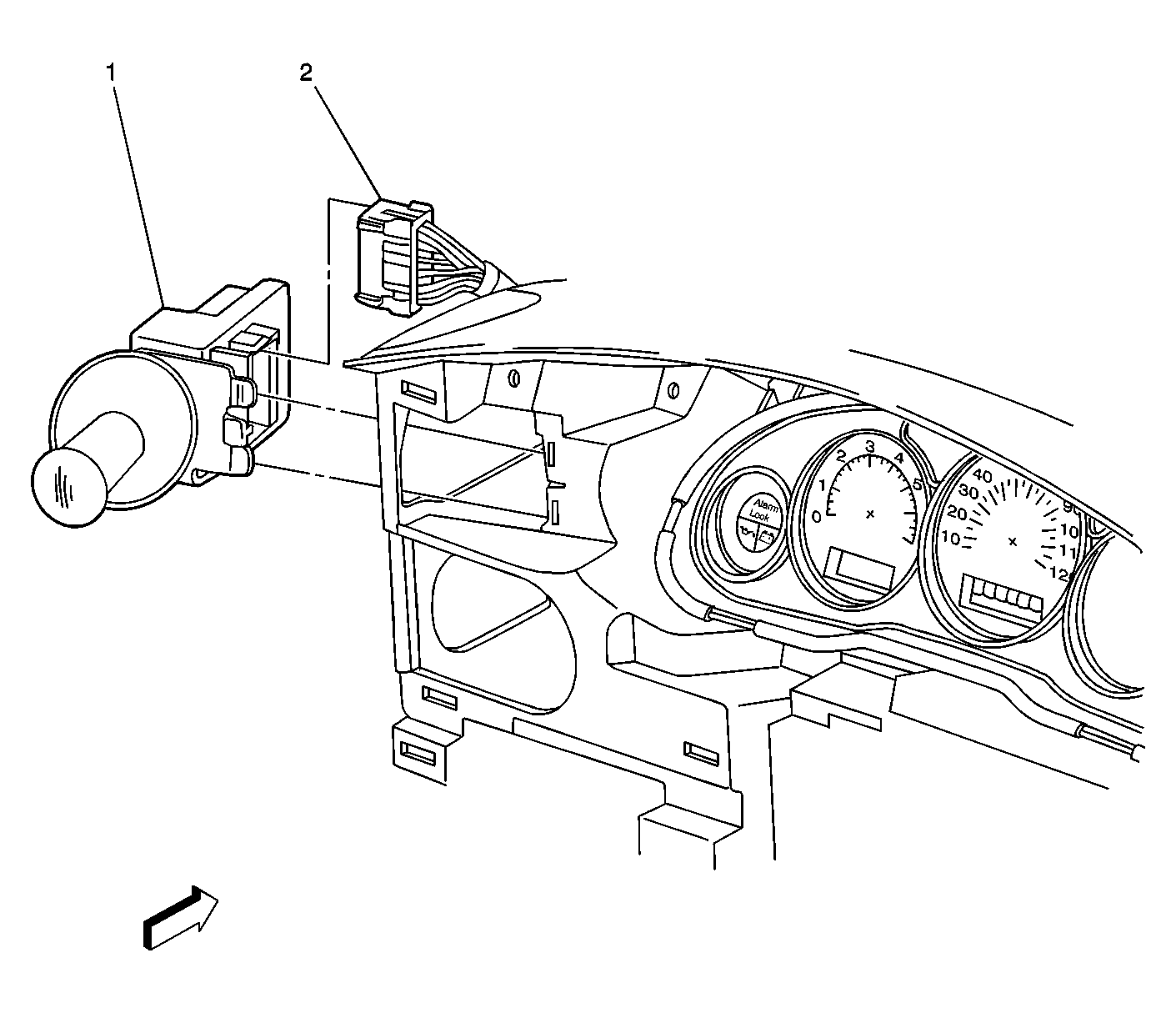

Fig 3: Upper Left Side Of Instrument Cluster Component View
GM592274Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Headlamp Switch
2 Headlamp Switch Connector

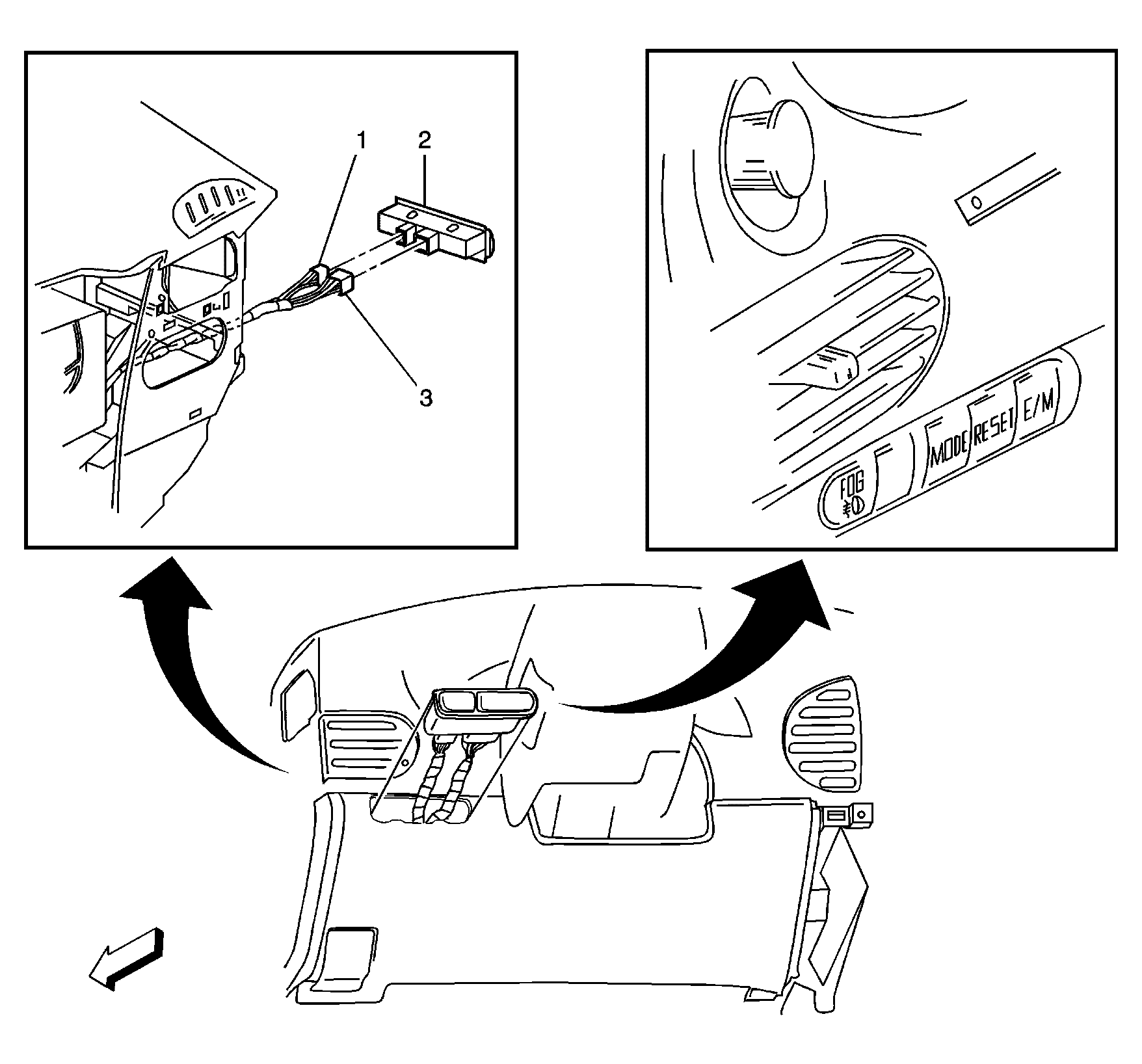

Fig 4: Lower Left Of Instrument Panel Component View (Regal)
GM1365062Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Driver Information Display Switch Connector
2 Driver Information Display/Fog Lamp Switch
3 Fog Lamp Switch Connector
Fig 5: Below Left Side of I/P
GM887933Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Body Control Module (BCM)
2 Body Control Module (BCM) Connector, C4
3 Body Control Module (BCM) Connector, C3
4 Body Control Module (BCM) Connector, C2
5 Body Control Module (BCM) Connector, C1
6 Fog Lamp Switch Connector
7 I/P Courtesy Lamp - Left
8 Turn Signal/Hazard Flasher Module
9 Backup Lamp Relay
Fig 6: Steering Column Component View
GM1318679Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Steering Wheel
2 Cruise Control On/Off Switch (K34)
3 Turn Signal/Multifunction Switch
4 Inflatable Restraint Steering Wheel Module Coil
5 C203 (UK3)
6 Inflatable Restraint Steering Wheel Module Connector
Fig 7: Lower Left Of The I/P Component Views (1 Of 2)
GM1254617Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Cruise Control Release Switch
2 Stop Lamp Switch
3 C201
4 Stop Lamp Switch Connector C2
5 Stop Lamp Switch Connector C1
6 C207
7 C216
8 C215
9 C201
10 G201
11 C205 (UK3)

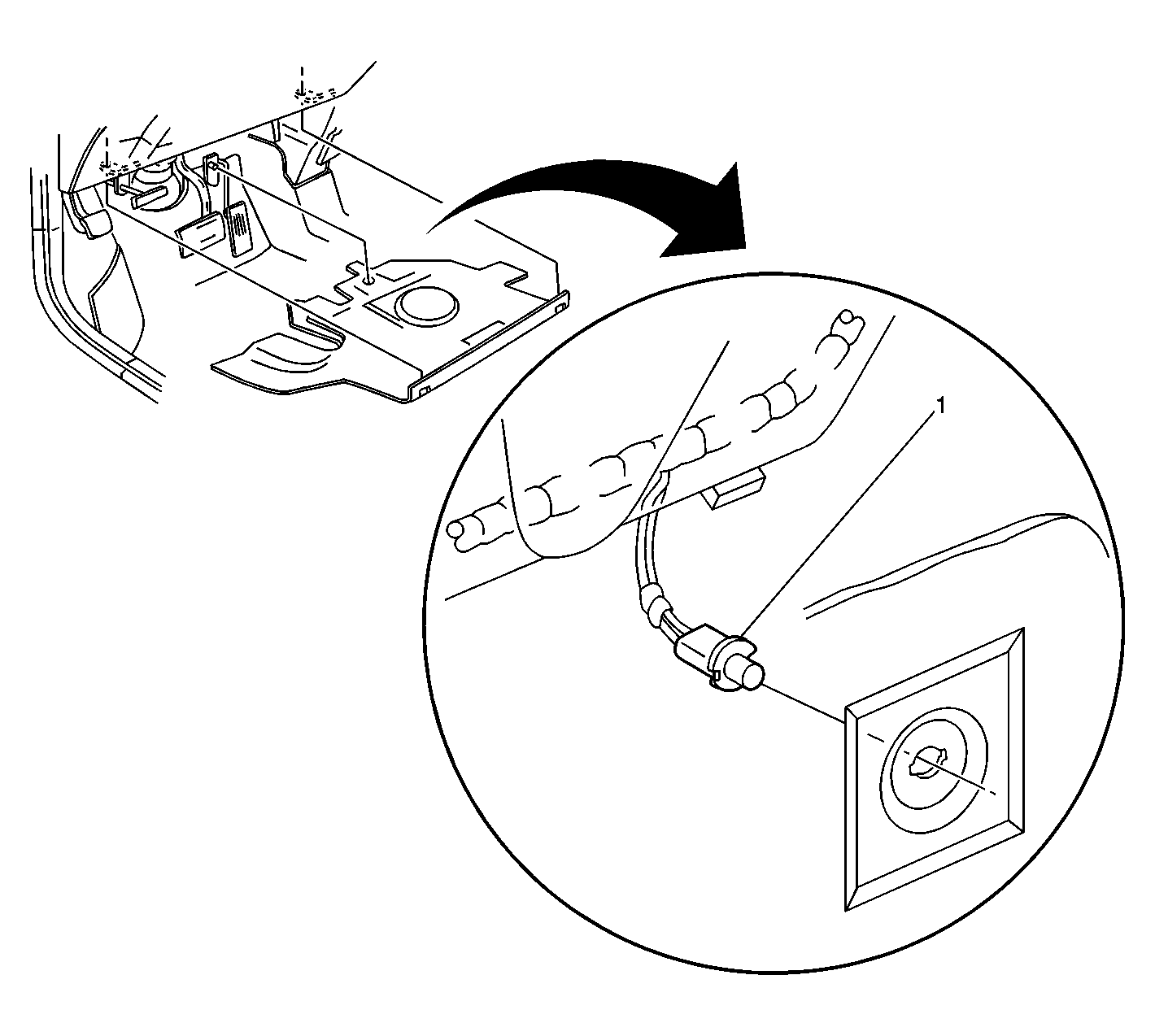

Fig 8: Lower Left Of The I/P Component Views, Page 2 Of 2
GM592278Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 I/P Courtesy Lamp - Left

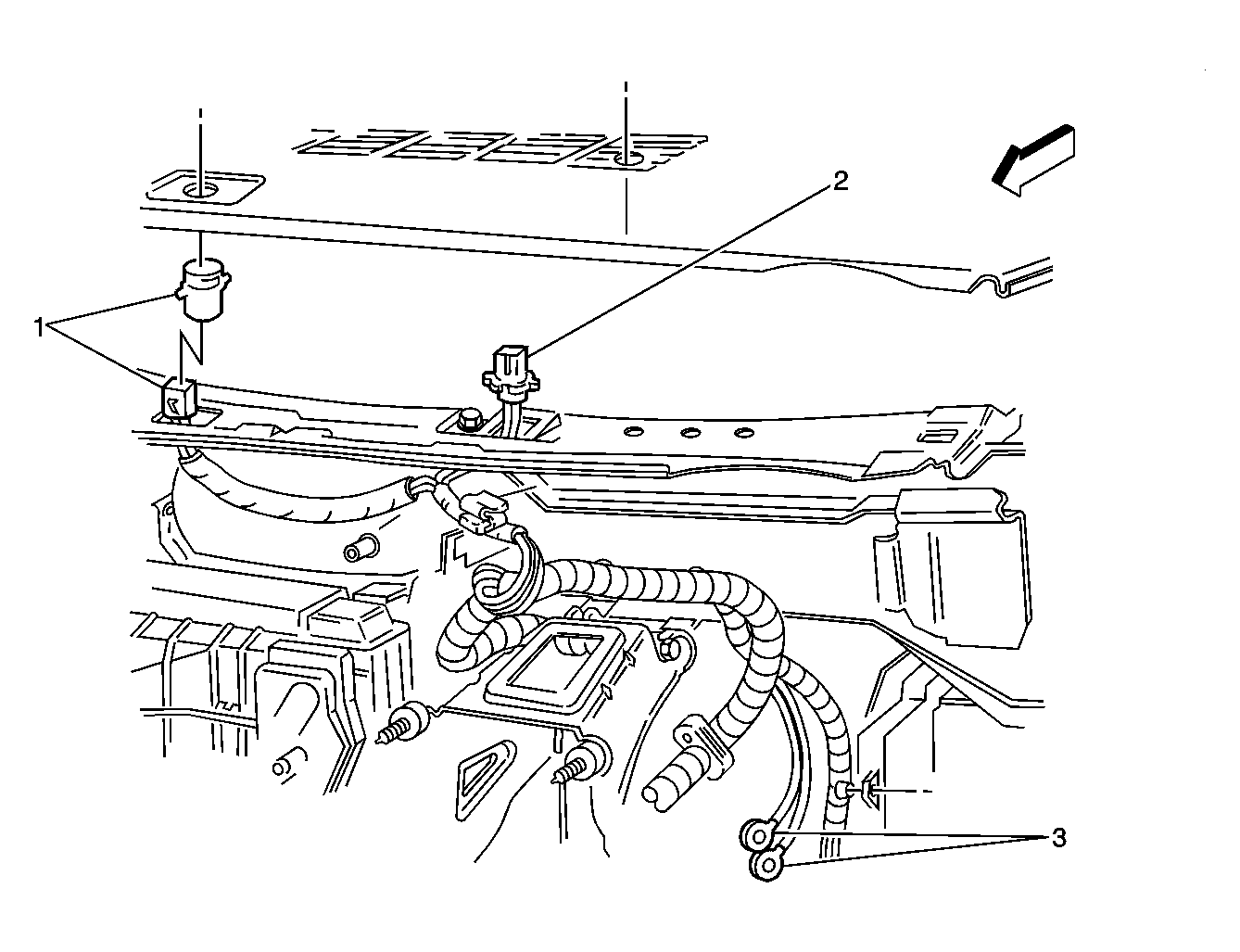

Fig 9: Upper Left Of Instrument Panel Component Views
GM1323986Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Ambient Light Sensor
2 Sun Load Sensor (CJ2)
3 G203
Fig 10: Center Console Component Views (D06)
GM1246259Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Heated Seat Switch - Driver (KA1)
2 Traction Control Switch (Regal)
3 Heated Seat Switch - Passenger (KA1)
4 Cigar Lighter
5 Auxiliary Power Outlet (Regal)
6 C240 (Regal)
7 I/P Wiring Harness

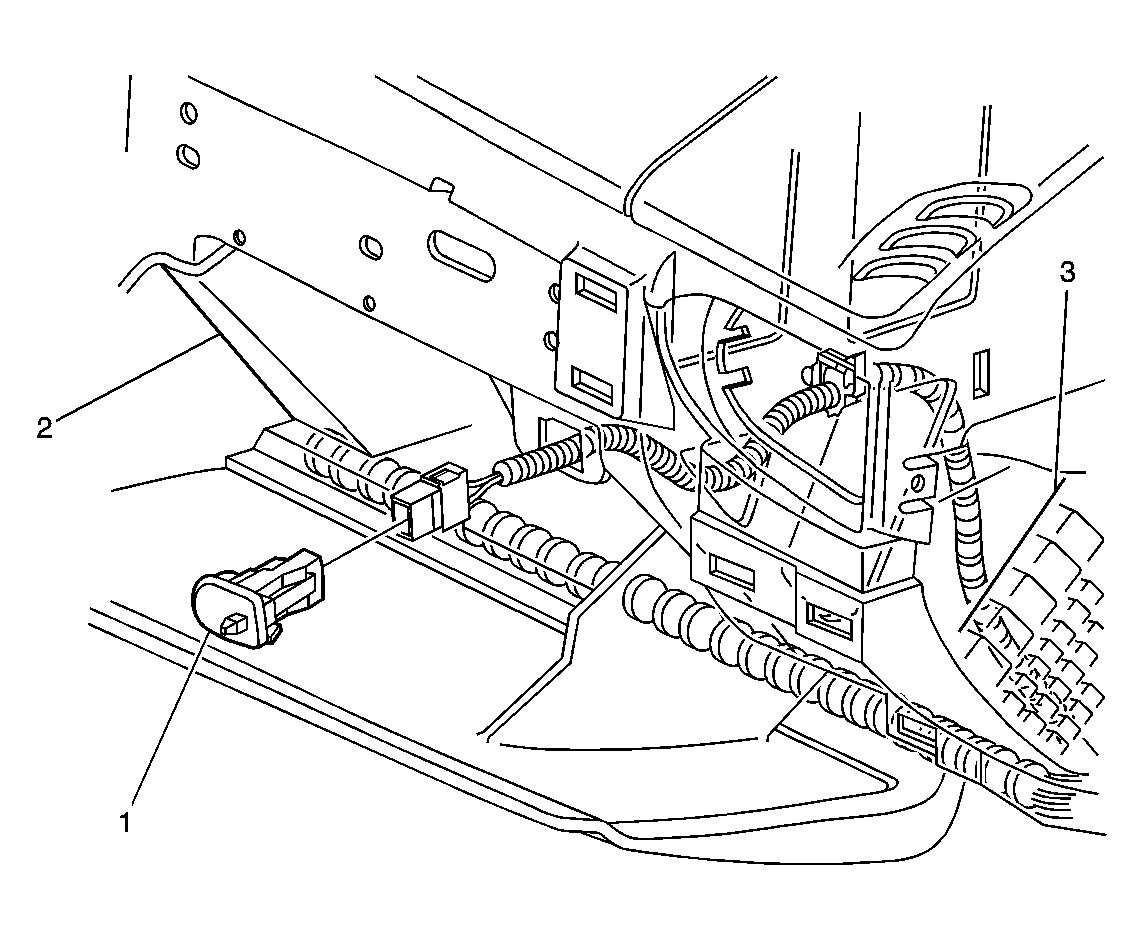

Fig 11: Glove Compartment Component Views
GM908759Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 I/P Compartment Lamp/Switch
2 Glove Compartment
3 Fuse Block - I/P
Fig 12: Right Side of Instrument Panel Component Views - Rear
GM855481Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Park Lamp Relay
2 Brake to Shift Relay
3 P100
4 Fuse Block-I/P
Fig 13: Behind the Right Side Of The I/P Component Views
GM1162362Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Vacuum Reservoir
2 G200
3 Fuse Block - I/P
4 C200
5 Blower Motor
6 Blower Motor Resistor Assembly (CJ3)/Blower Motor Control Processor (CJ2)
7 P100
8 Vacuum Reservoir
9 Black Vacuum Hose
10 Air Temperature Actuator - Right
11 Automatic Headlamp Relay
12 Rear Compartment Lid Release Relay
13 Rear Window Defogger Relay
14 Retained Accessory Power (RAP) Relay
15 I/P Wiring Harness
16 Air Temperature Actuator - Left

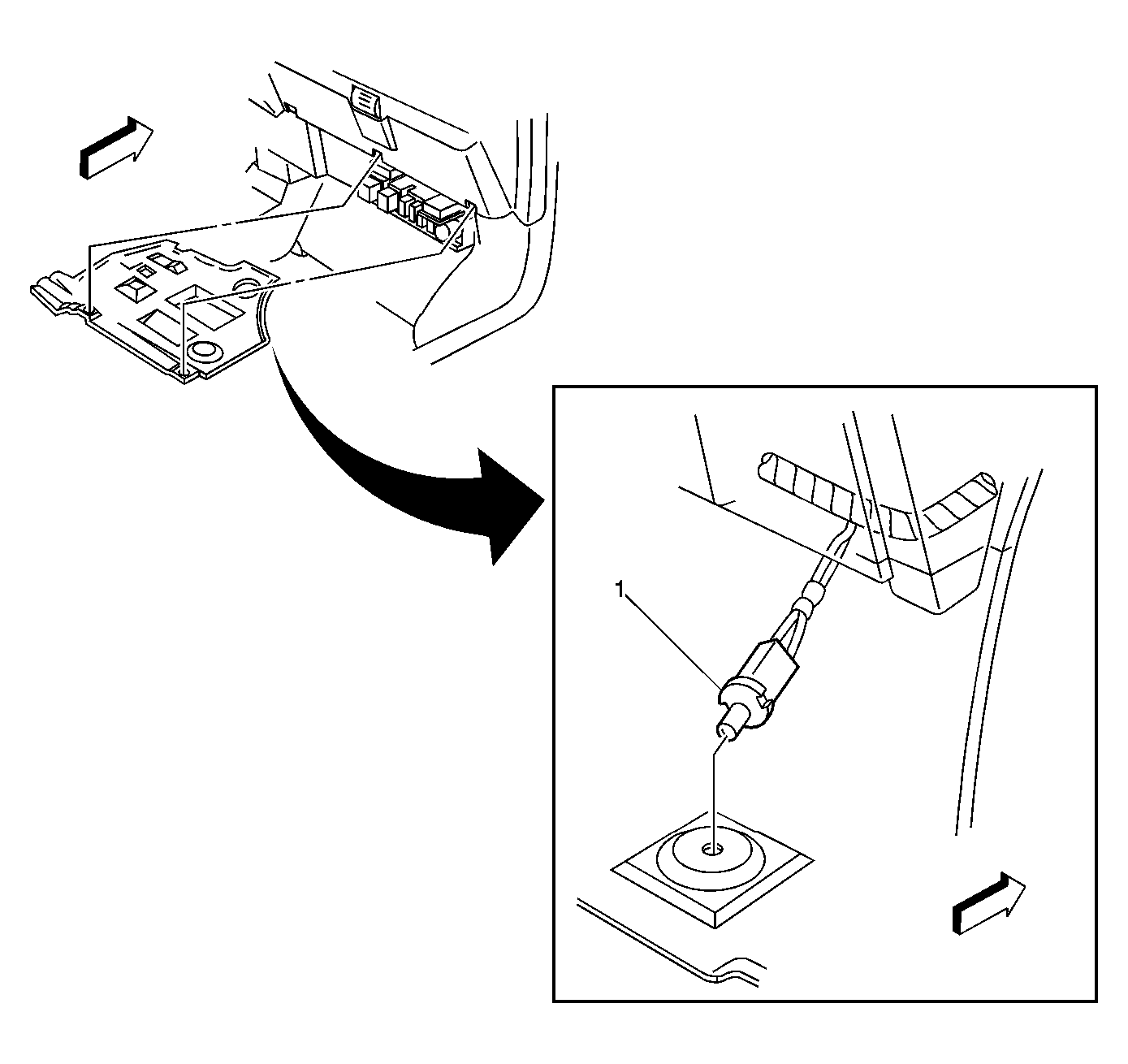

Fig 14: Lower Right Of The I/P Component Views
GM1365413Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 I/P Courtesy Lamp - Right

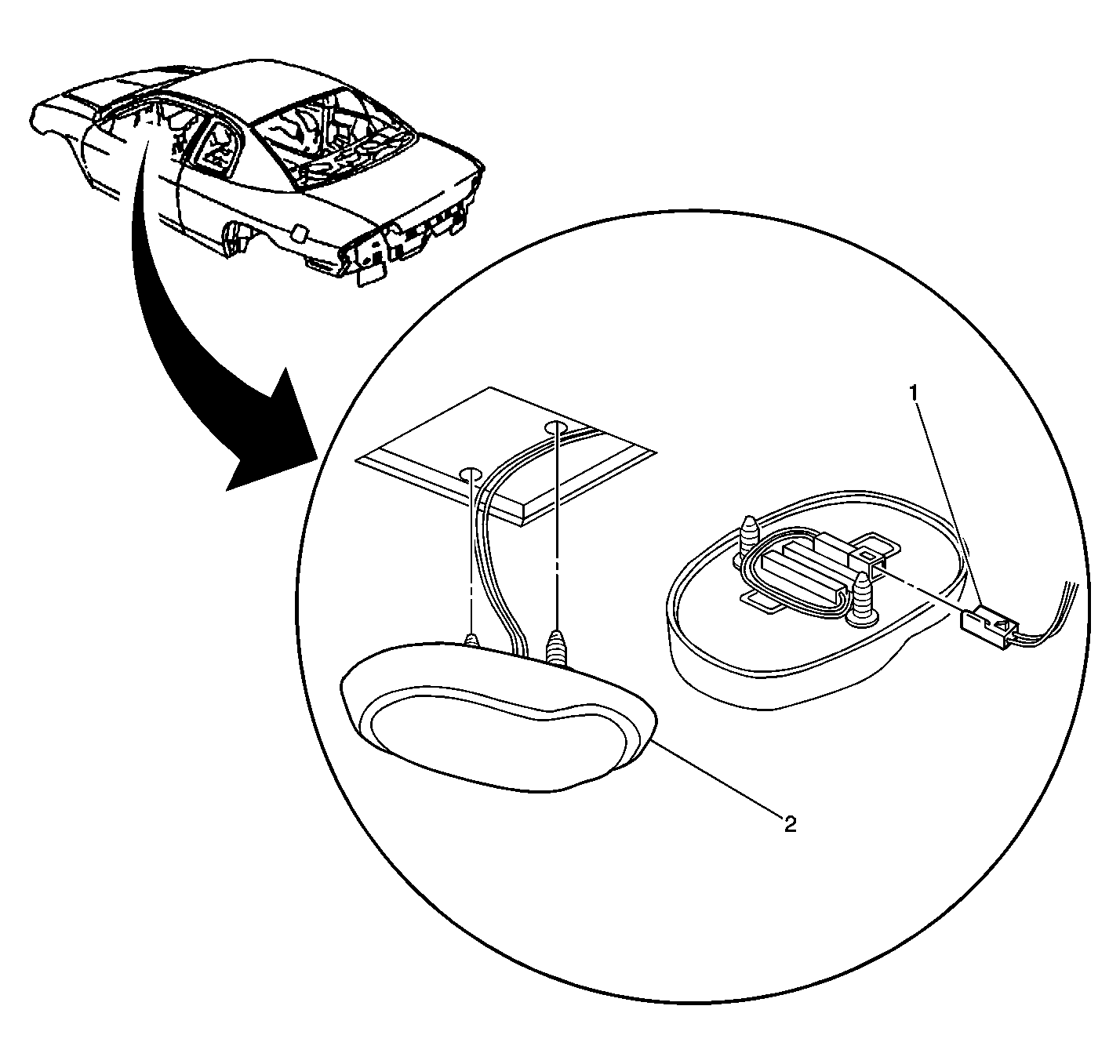

Fig 15: Roof/Headliner Component Views (W/O CF5, W/O C79)
GM388937Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Dome Lamp Connector
2 Dome Lamp

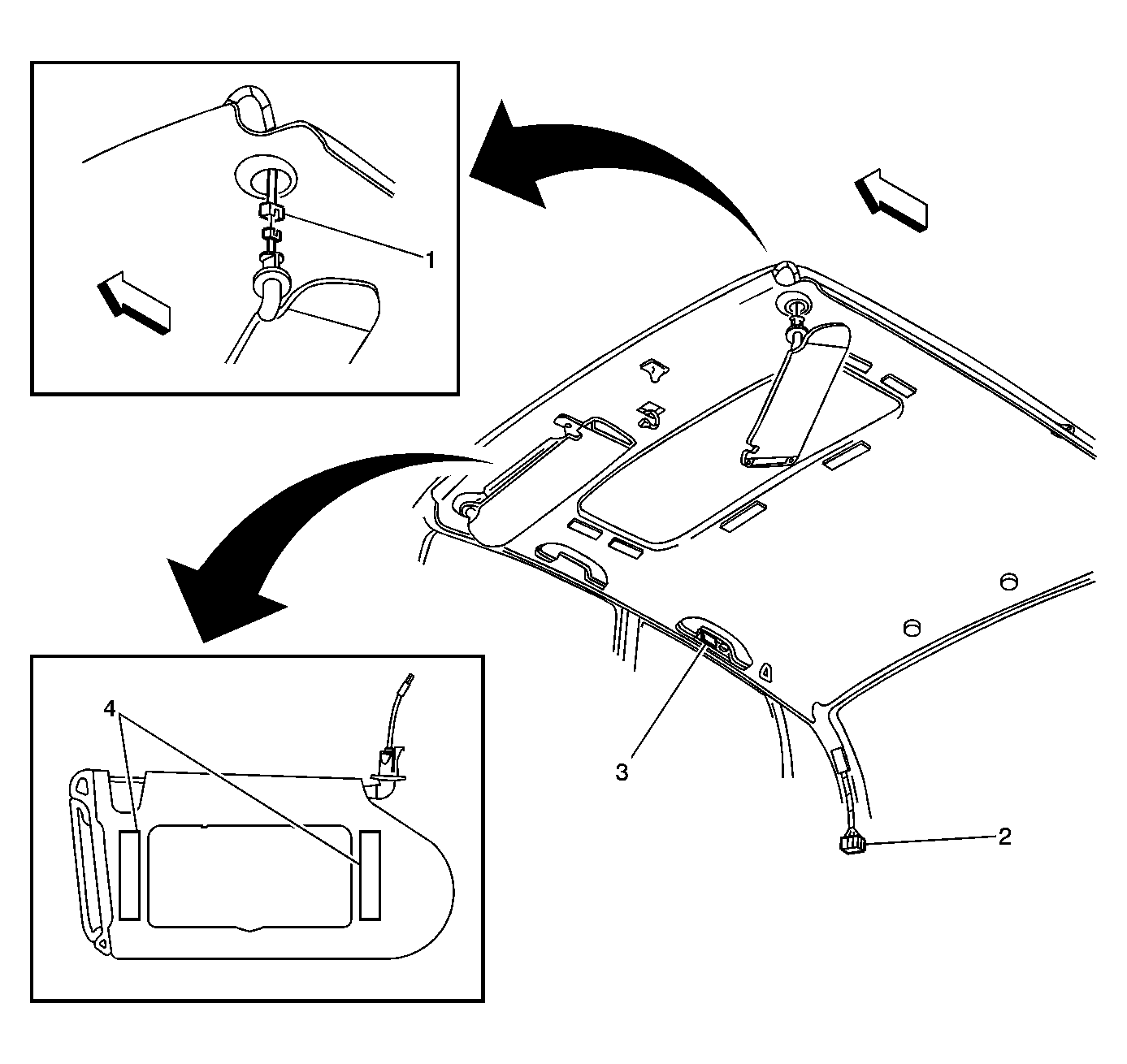

Fig 16: Roof/Headliner Component Views
GM1366420Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Vanity Mirror Lamp - Left Connector Shown (DH6), Right Similar (DH6)
2 C390
3 Roof Rail Courtesy/Reading Lamp - Right Shown (C79), Left Similar (C79)
4 Vanity Mirror Lamp - Right Shown (DH6), Left Similar (DH6)

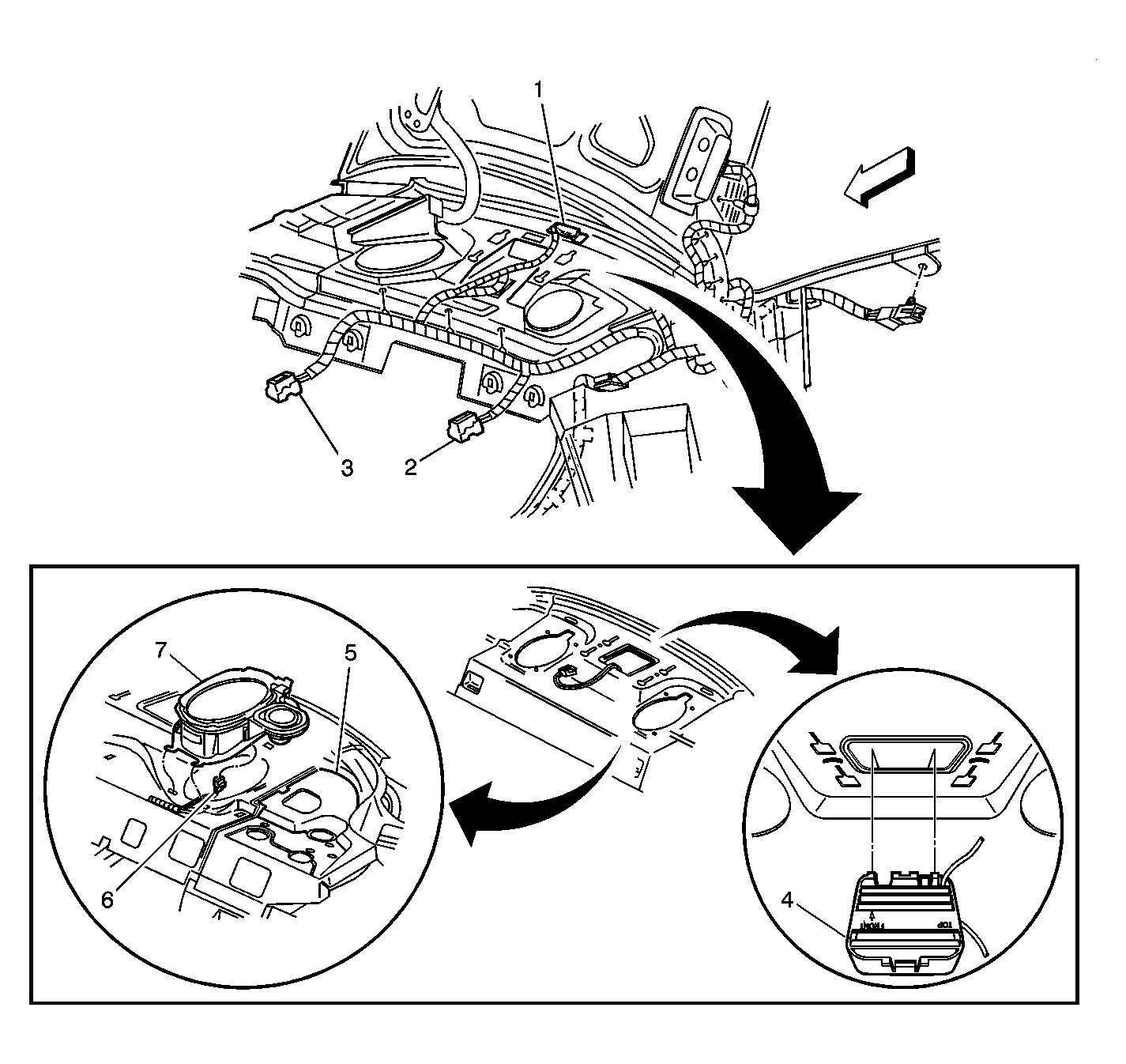

Fig 17: Luggage Compartment Component Views
GM1365728Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Rear Compartment Courtesy Lamp
2 Speaker - RR Connector
3 Speaker - LR Connector
4 Center High Mounted Stop Lamp (CHMSL)
5 Rear Package Shelf
6 Speaker - LR Connector Shown, RR Similar
7 Speaker - LR Shown, RR Similar

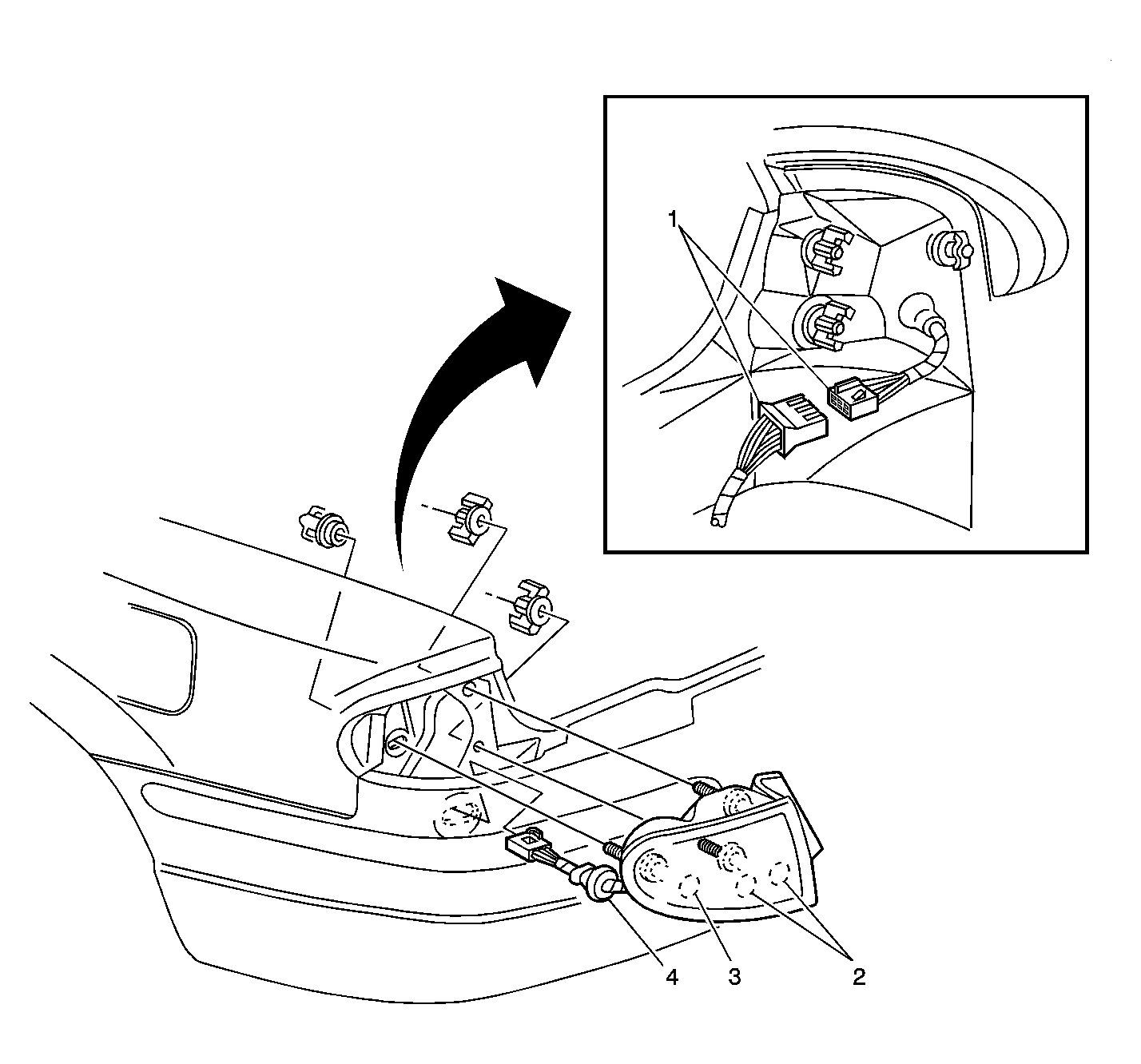

Fig 18: Left Rear Of Vehicle Component Views
GM1366158Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 C401 Shown, C402 Similar
2 Tail/Stop and Turn Signal Lamp - Left Shown, Right Similar
3 Marker Lamp - LR Shown, RR Similar
4 P401 Shown, P402 Similar

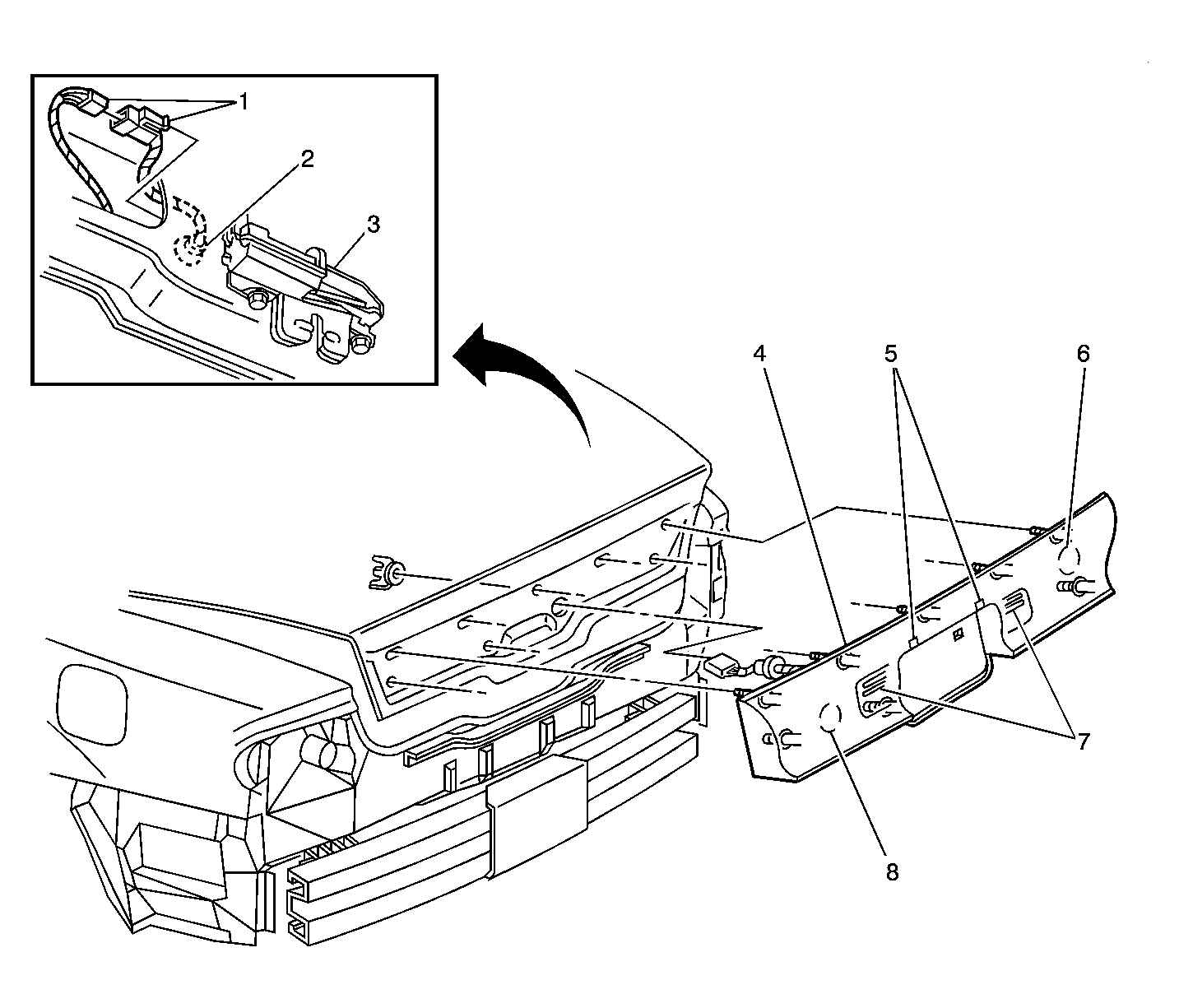

Fig 19: Rear Of The Vehicle Component Views
GM1365922Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 C915
2 P915
3 Rear Compartment Lid Lock Release Actuator
4 Rear Compartment Lid Applique
5 License Lamps
6 Tail Lamp - Right
7 Back Up Lamps
8 Tail Lamp - Left
