Camshaft Position Sensor: Service and Repair

REMOVAL PROCEDURE

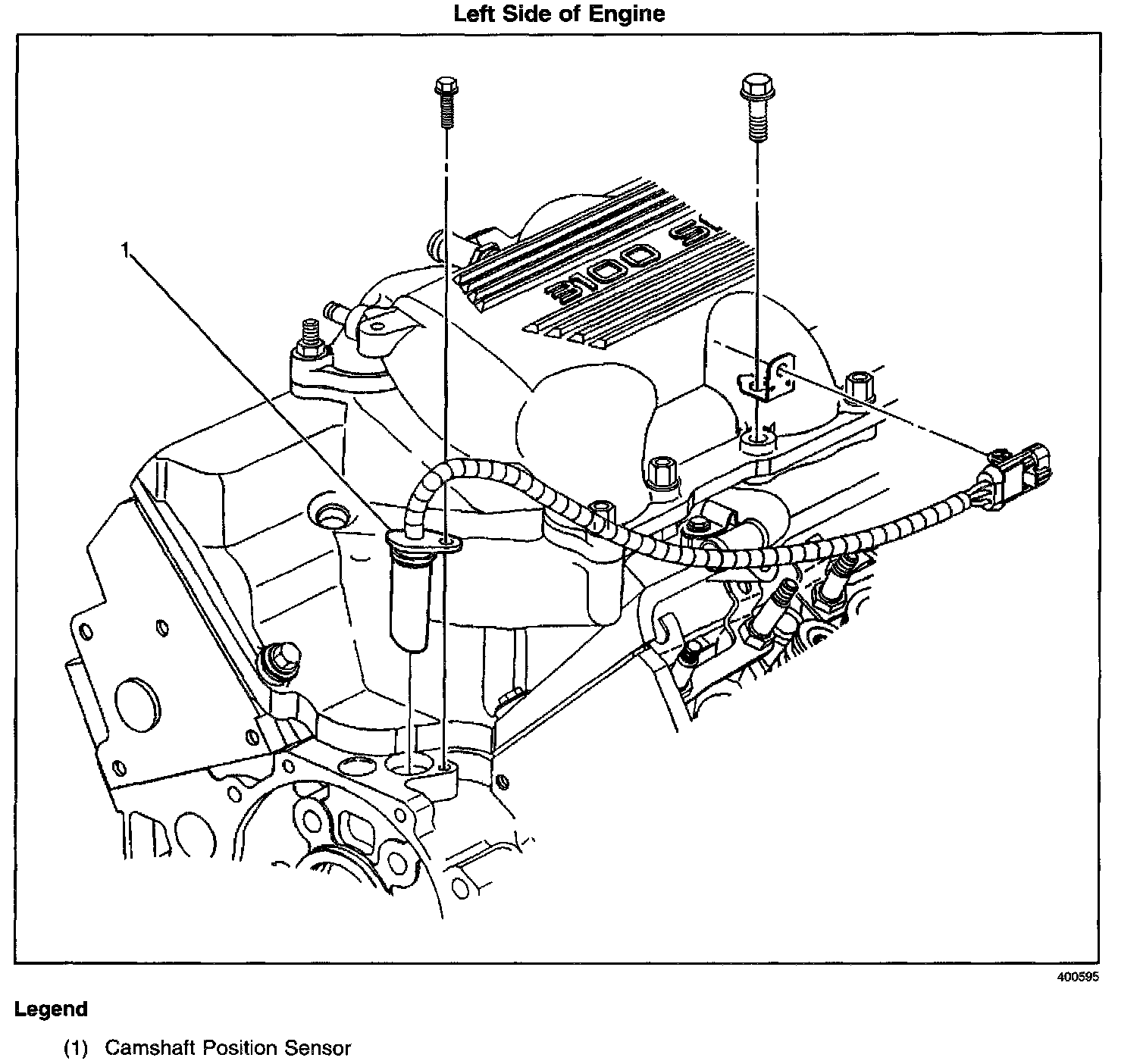

Locations View:

1. Remove the power steering pump.
2. Disconnect the camshaft position (CMP) sensor electrical connector.
3. Remove the CMP sensor bolt.
4. Remove the CMP sensor.
5. Inspect the sensor O-ring for wear, cracks or leakage if the sensor is not being replaced.

INSTALLATION PROCEDURE
1. Lubricate the O-ring with clean engine oil. Replace the O-ring if the O-ring is damaged.
2. Install the CMP camshaft position sensor.

Locations View:

3. Install the CMP sensor bolt.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten
Tighten the bolt to 8 N.m (71 lb in).

4. Connect the CMP sensor electrical connector.
5. Install the power steering pump.
