Installation Procedure

  1. Install the cruise control module (2) to the bracket.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the module to bracket fasteners.

    Tighten

    Tighten the fasteners to 7.5 N.m (66 lb in).

  3. Install the cruise control module and bracket assembly to the vehicle.
  4. Install the module retaining fasteners (1, 3).

    Tighten

    Tighten the fasteners to 9 N.m (80 lb in).

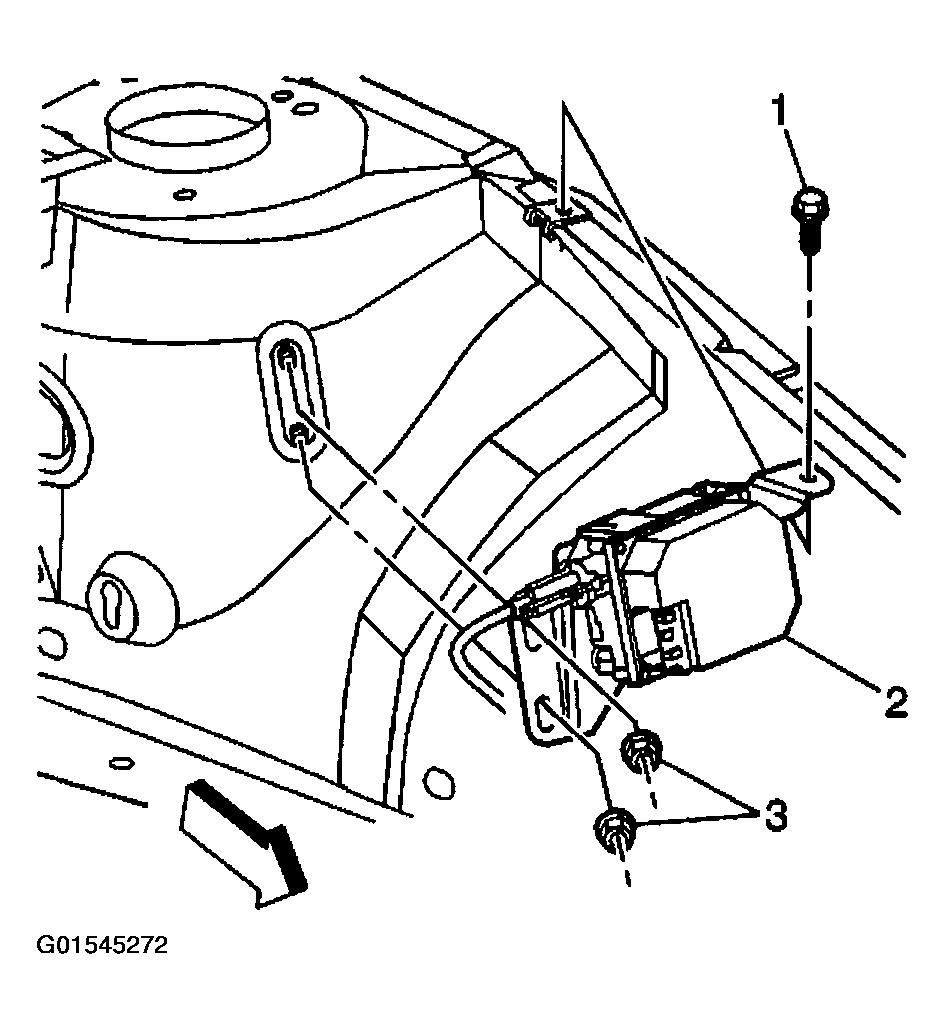

    Fig 1: Installing Cruise Control Module & Bracket Assembly
    G01545272Courtesy of GENERAL MOTORS CORP.
  5. Connect the electrical connector (2).

    Important:  The cruise control cable does not require mechanical adjusting after the replacement. The cruise control module internally adjusts the cable. Refer to CRUISE CONTROL DESCRIPTION AND OPERATION  for the complete operational details.

  6. Connect the cruise control cable. Refer to CRUISE CONTROL CABLE REPLACEMENT  .
  7. Inspect the component operation.

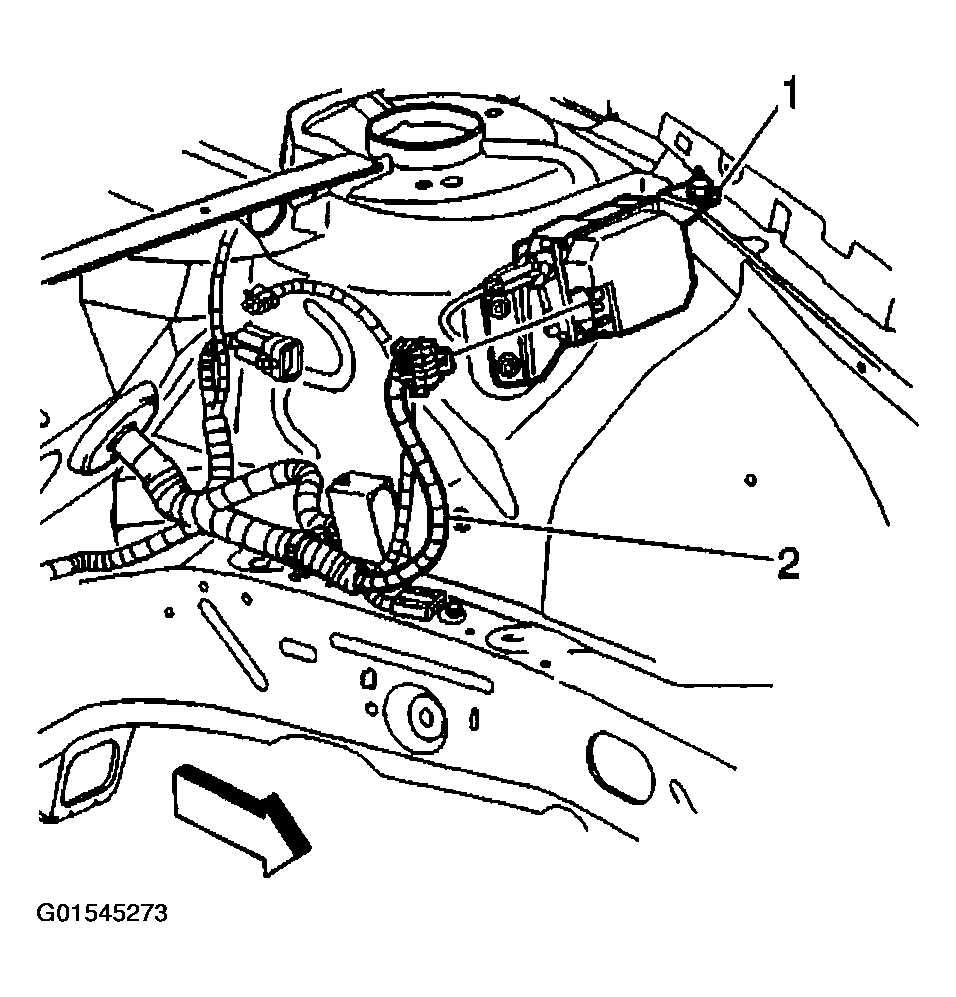

    Fig 2: Connecting Electrical Connector
    G01545273Courtesy of GENERAL MOTORS CORP.
