HVAC Control Module Connector End View

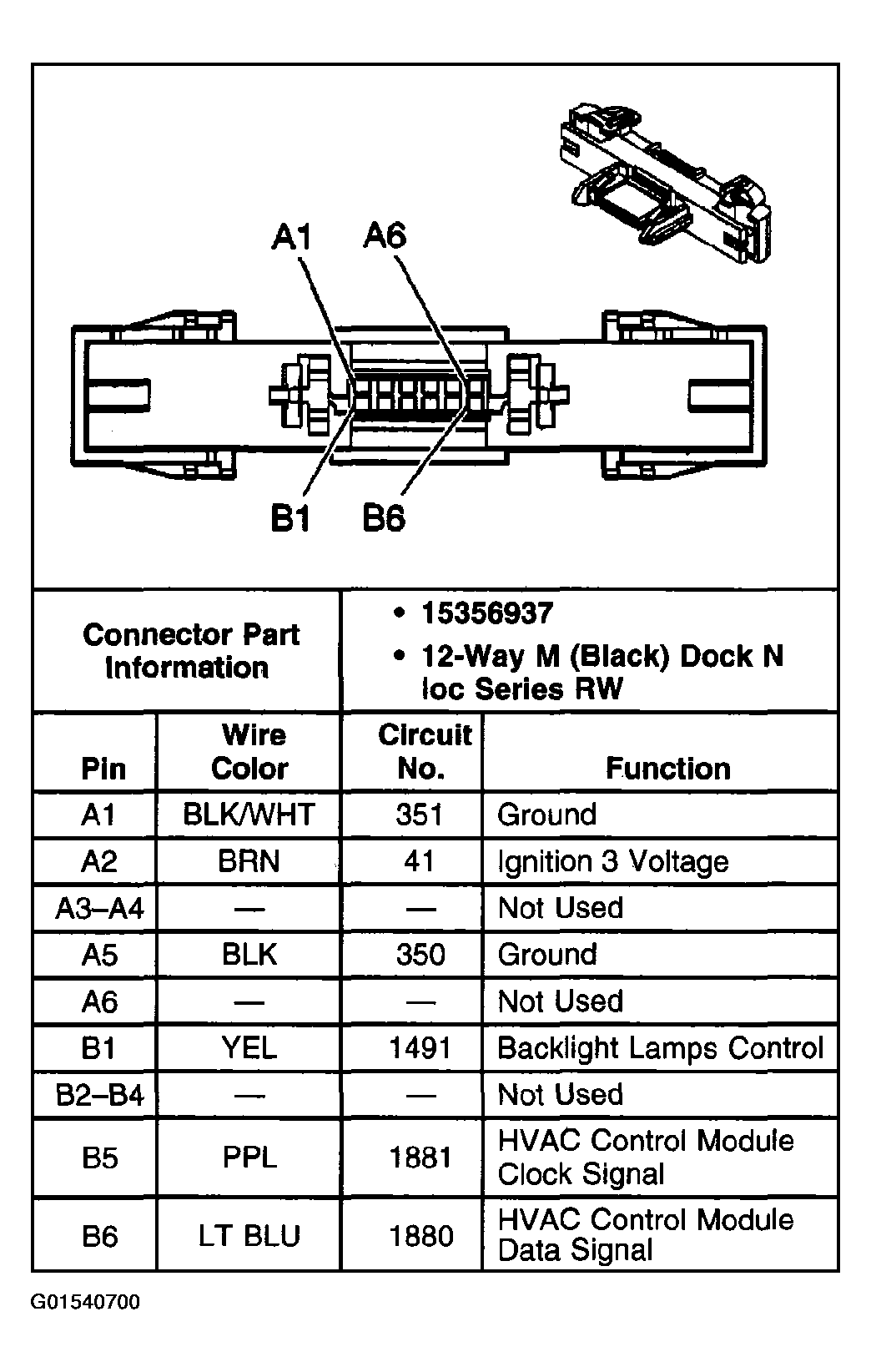

Fig 1: HVAC Control Module (w/CJ2)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
