Power Door Systems Connector End Views

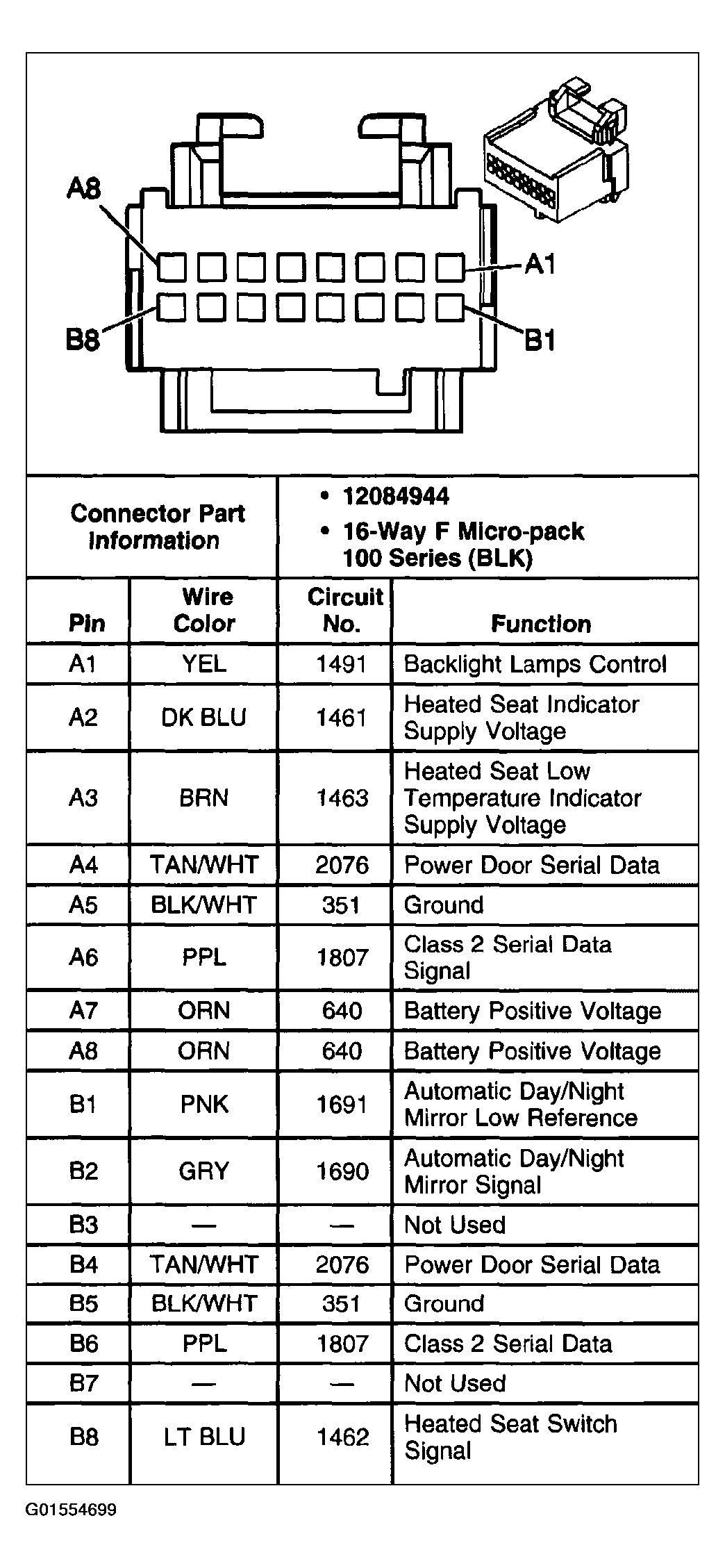

Fig 1: Power Door Systems Connector C1 End View (Driver Door Module DDM)

G01554699

Courtesy of GENERAL MOTORS CORP.

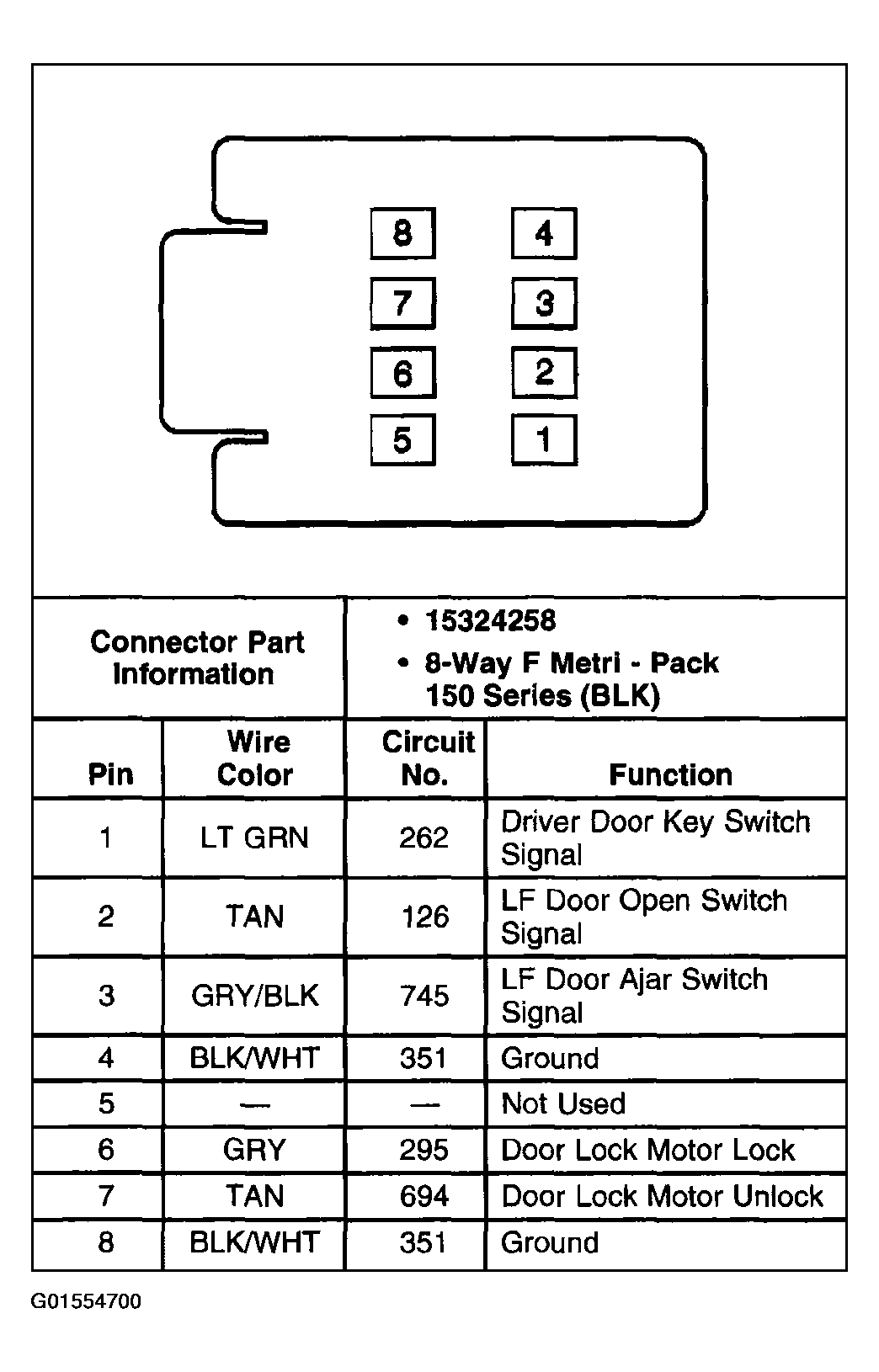

Fig 2: Power Door Systems Connector C2 End View (Drivers Door Module DDM)

G01554700

Courtesy of GENERAL MOTORS CORP.

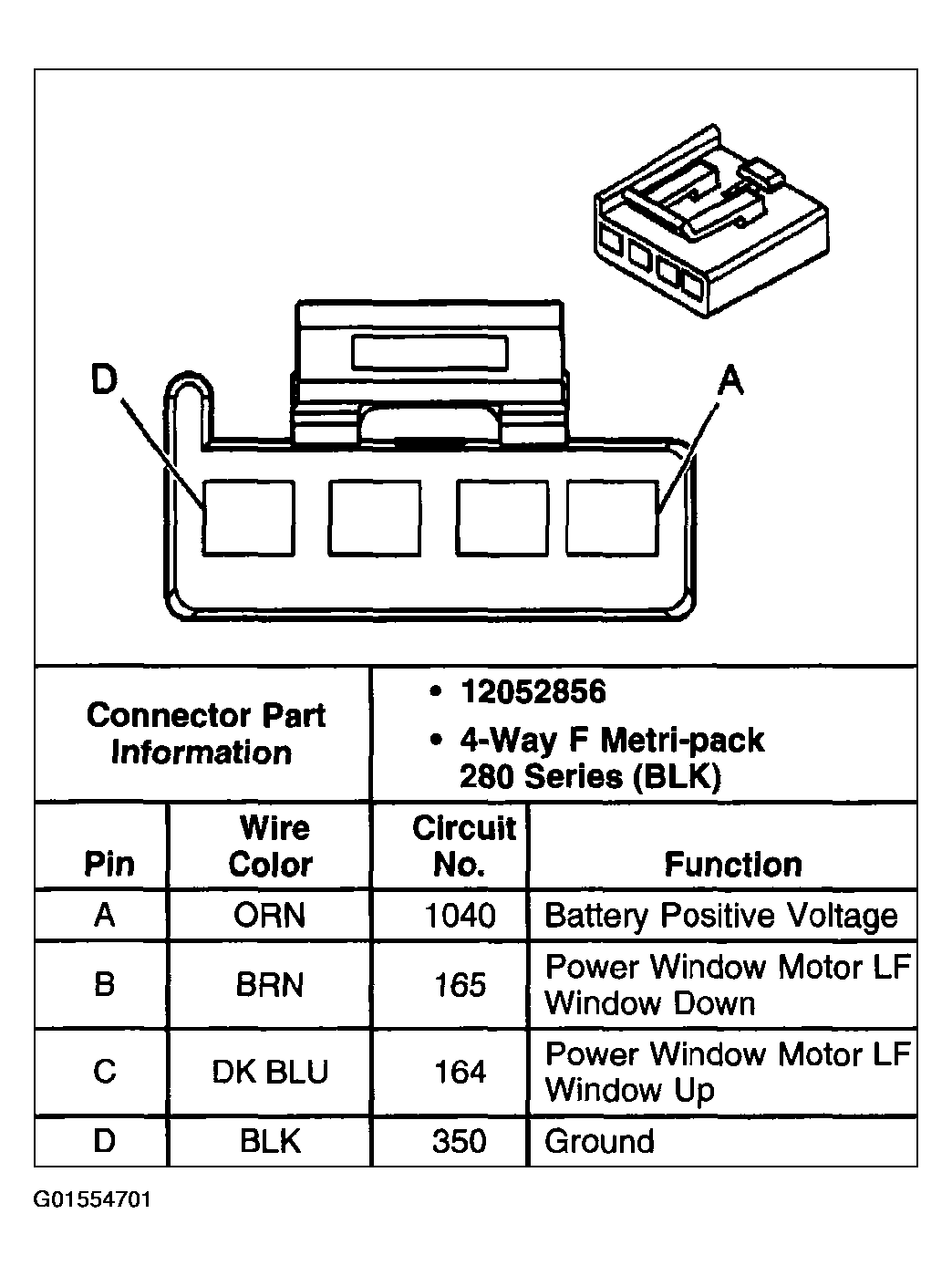

Fig 3: Power Door Systems Connector C3 End View (Driver Door Module DDM)

G01554701

Courtesy of GENERAL MOTORS CORP.

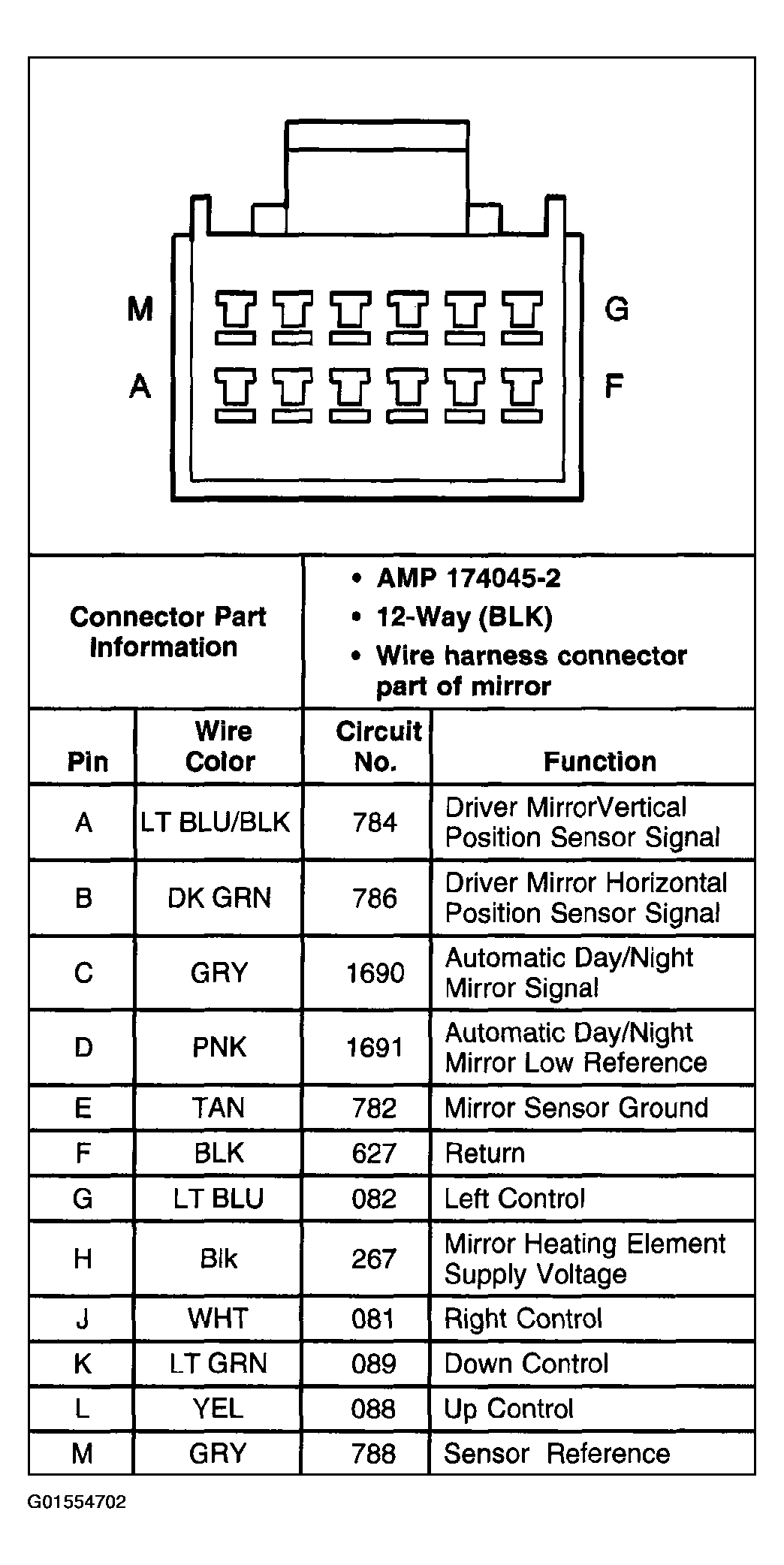

Fig 4: Power Door Systems Connector C4 End View (Driver Door Module DDM)

G01554702

Courtesy of GENERAL MOTORS CORP.

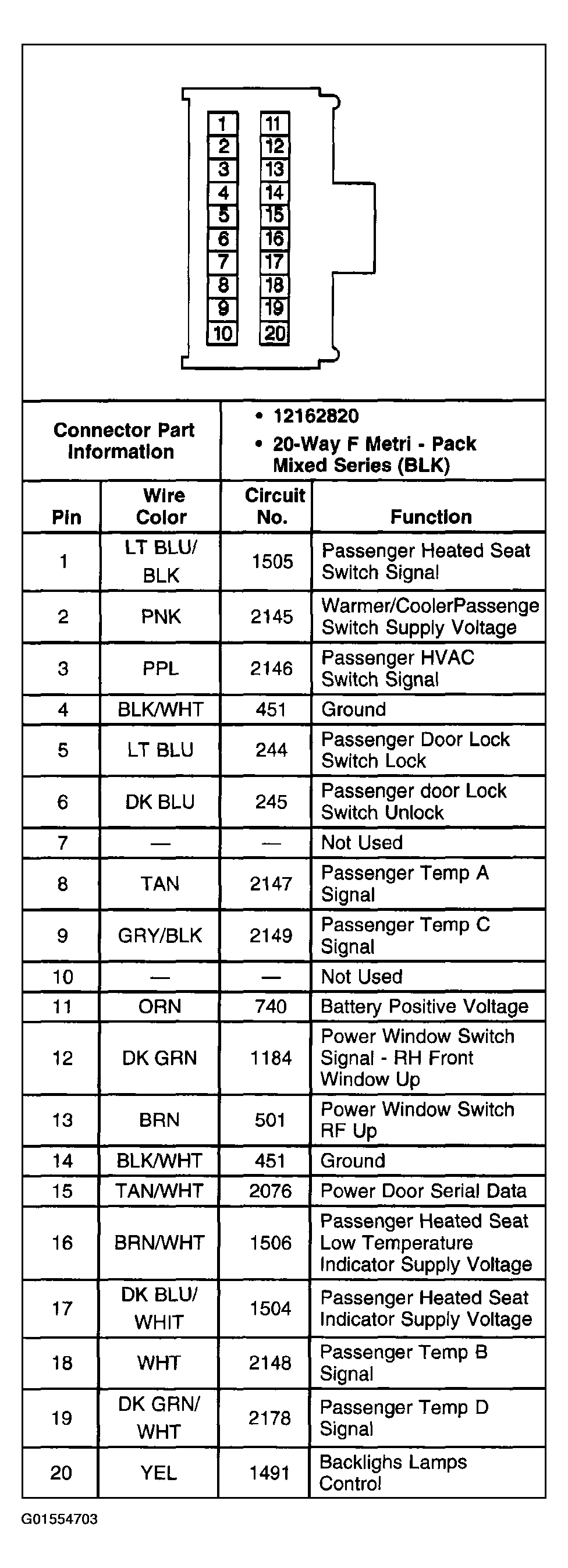

Fig 5: Power Door Systems Connector C1 End View (Front Passenger Door Module FPDM)

G01554703

Courtesy of GENERAL MOTORS CORP.

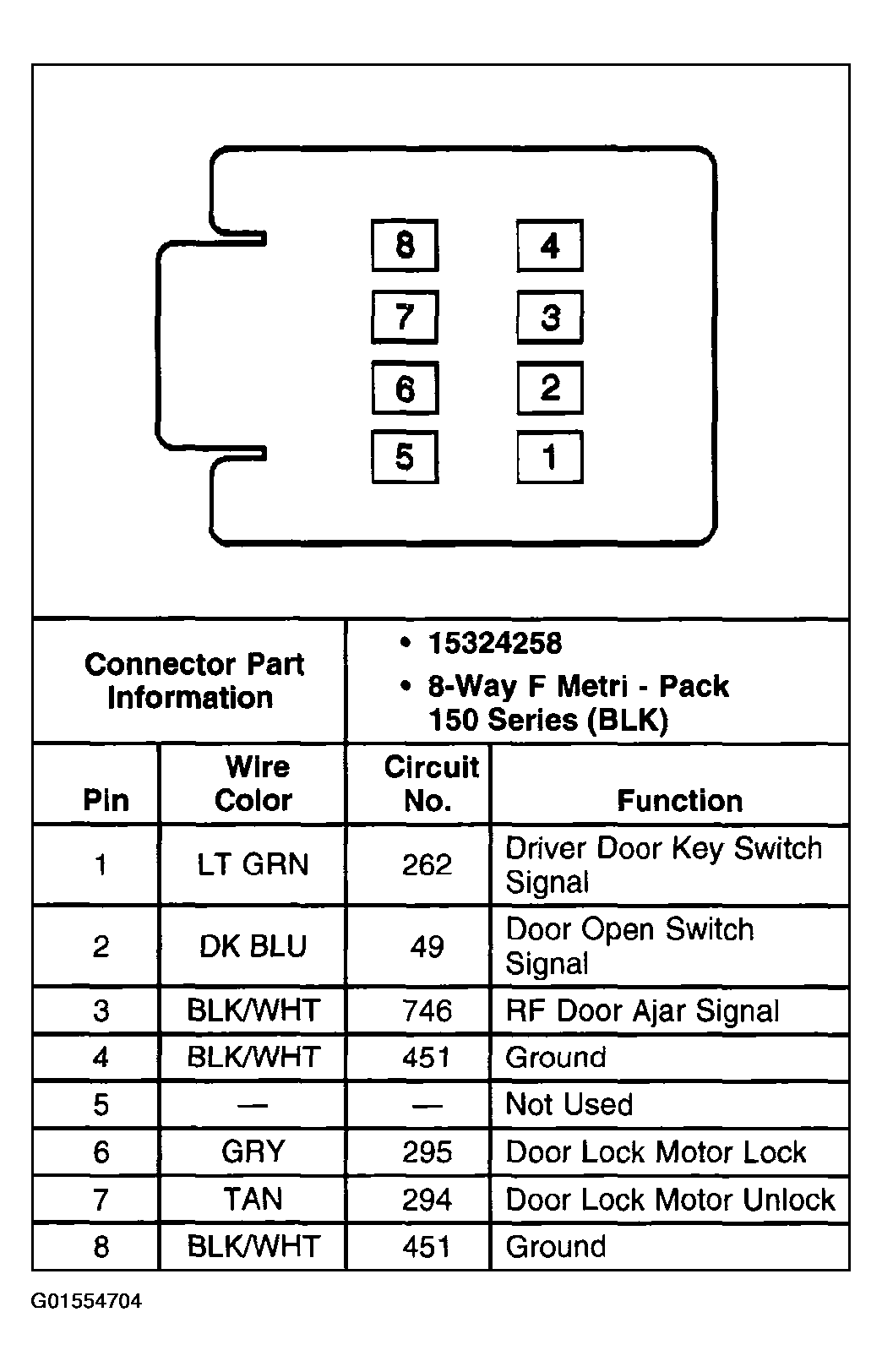

Fig 6: Power Door Systems Connector C2 End View (Front Passenger Door Module FPDM)

G01554704

Courtesy of GENERAL MOTORS CORP.

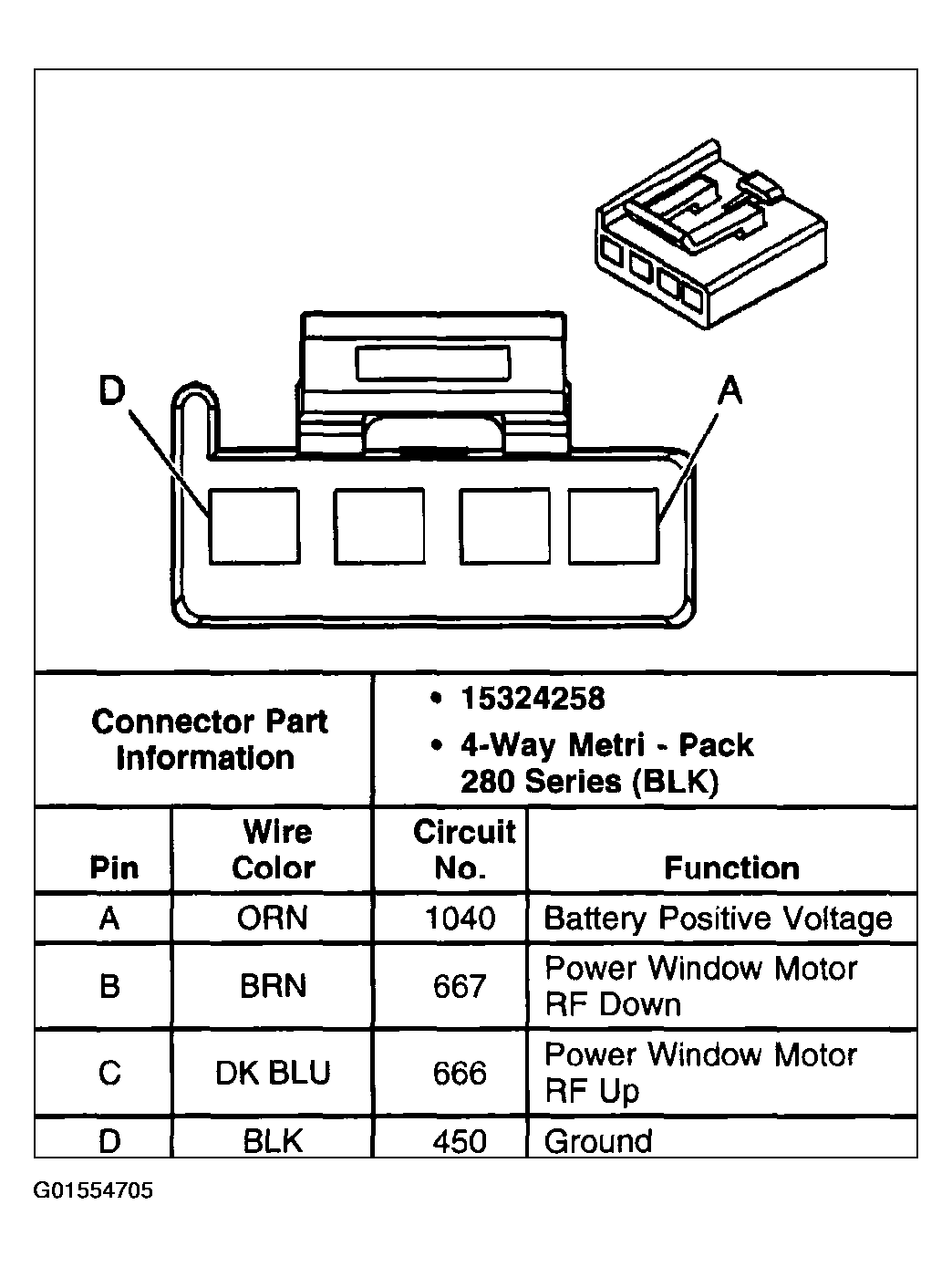

Fig 7: Power Door Systems Connector C3 End View (Front Passenger Door Module FPDM)

G01554705

Courtesy of GENERAL MOTORS CORP.

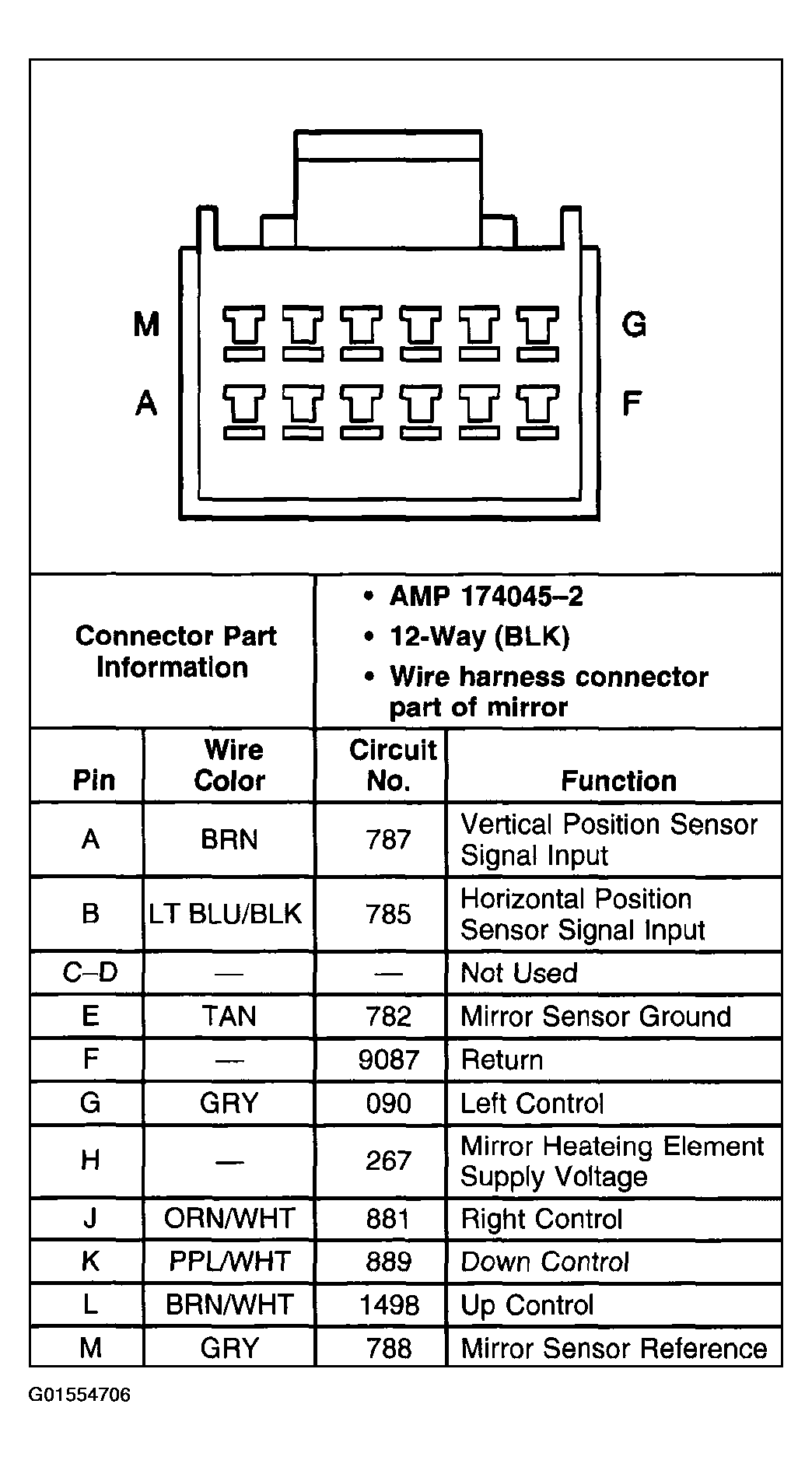

Fig 8: Power Door Systems Connector C4 End View (Passenger Door Module)

G01554706

Courtesy of GENERAL MOTORS CORP.

Fig 9: Power Door Systems Connector C1 End View (Door Lock Actuator - Driver)

G01554707

Courtesy of GENERAL MOTORS CORP.

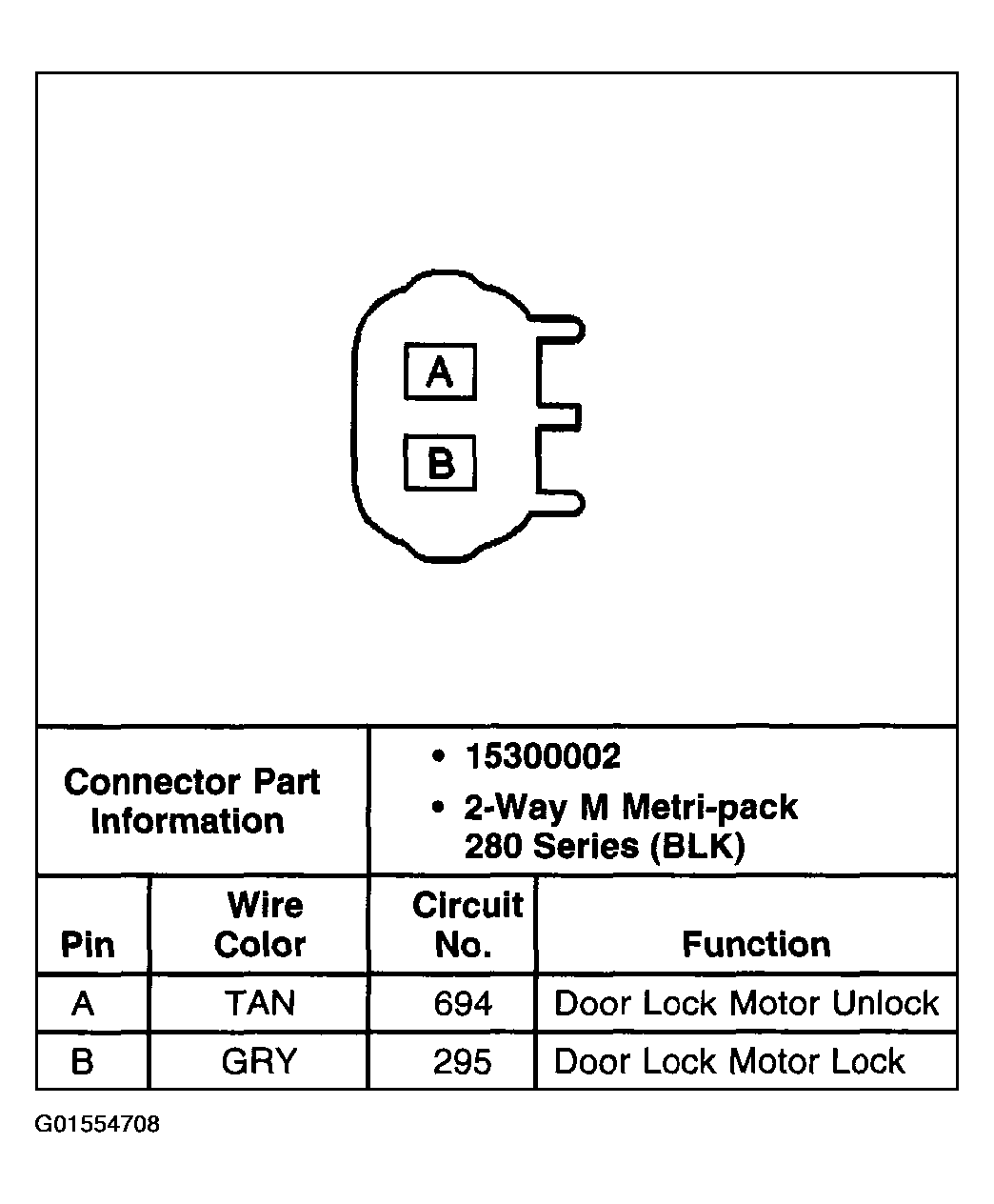

Fig 10: Power Door Systems Connector C2 End View (Door Lock Actuator - Driver)

G01554708

Courtesy of GENERAL MOTORS CORP.

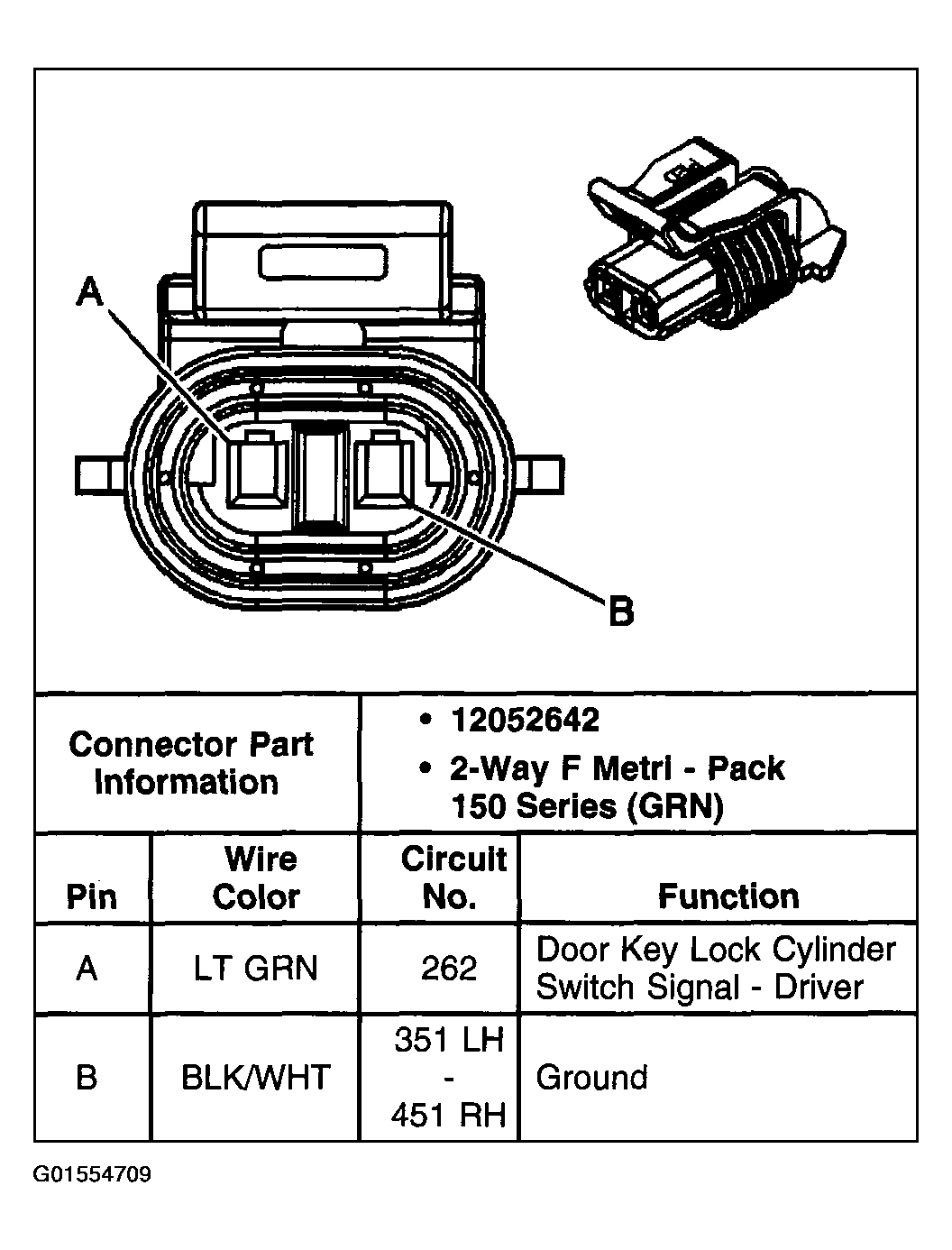

Fig 11: Power Door Systems Connector End View (Door Lock Cylinder Switch - Driver - Front Passenger - W/UA6)

G01554709

Courtesy of GENERAL MOTORS CORP.

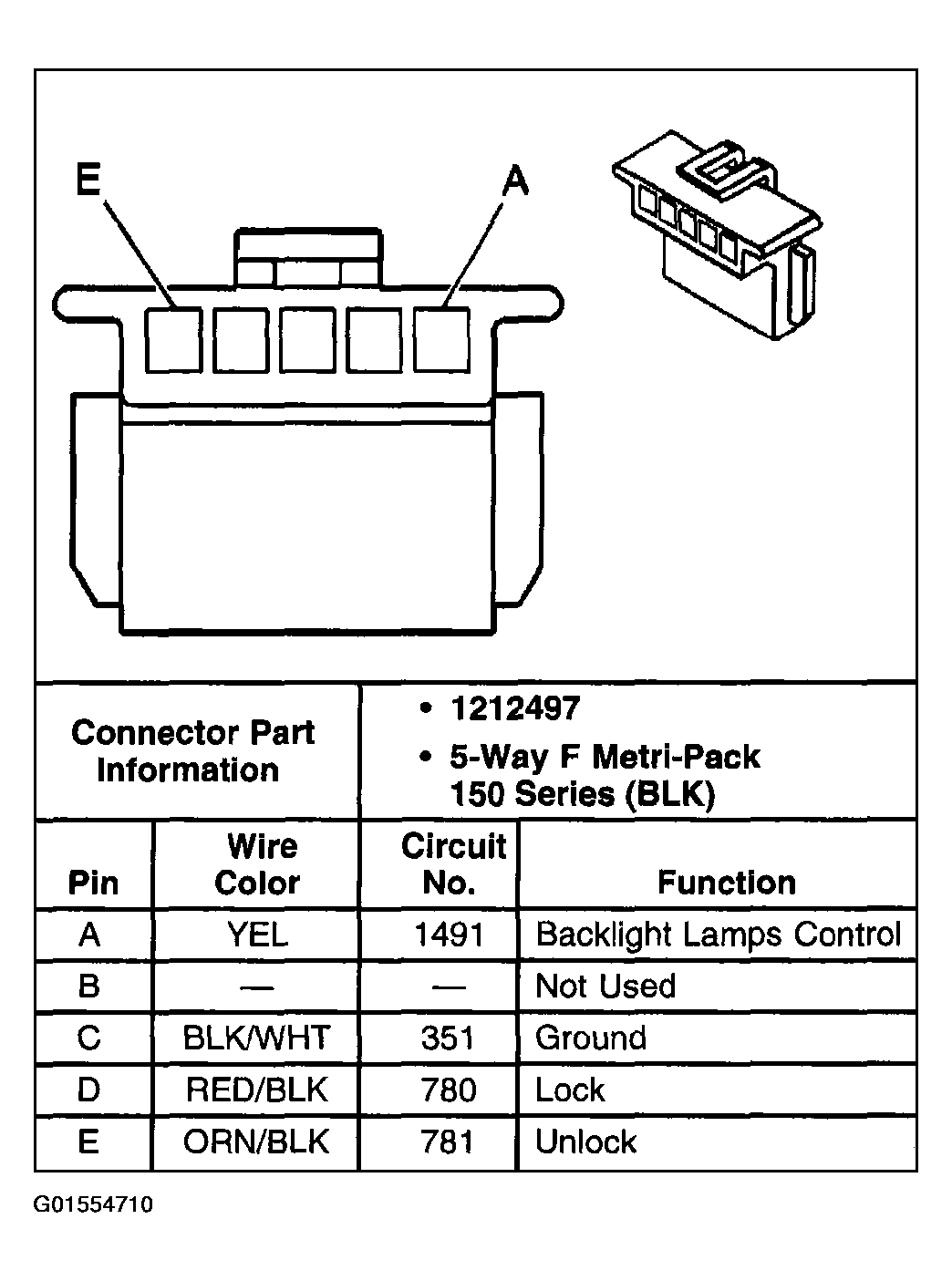

Fig 12: Power Door Systems Connector End View (Door Lock Switch - Driver)

G01554710

Courtesy of GENERAL MOTORS CORP.

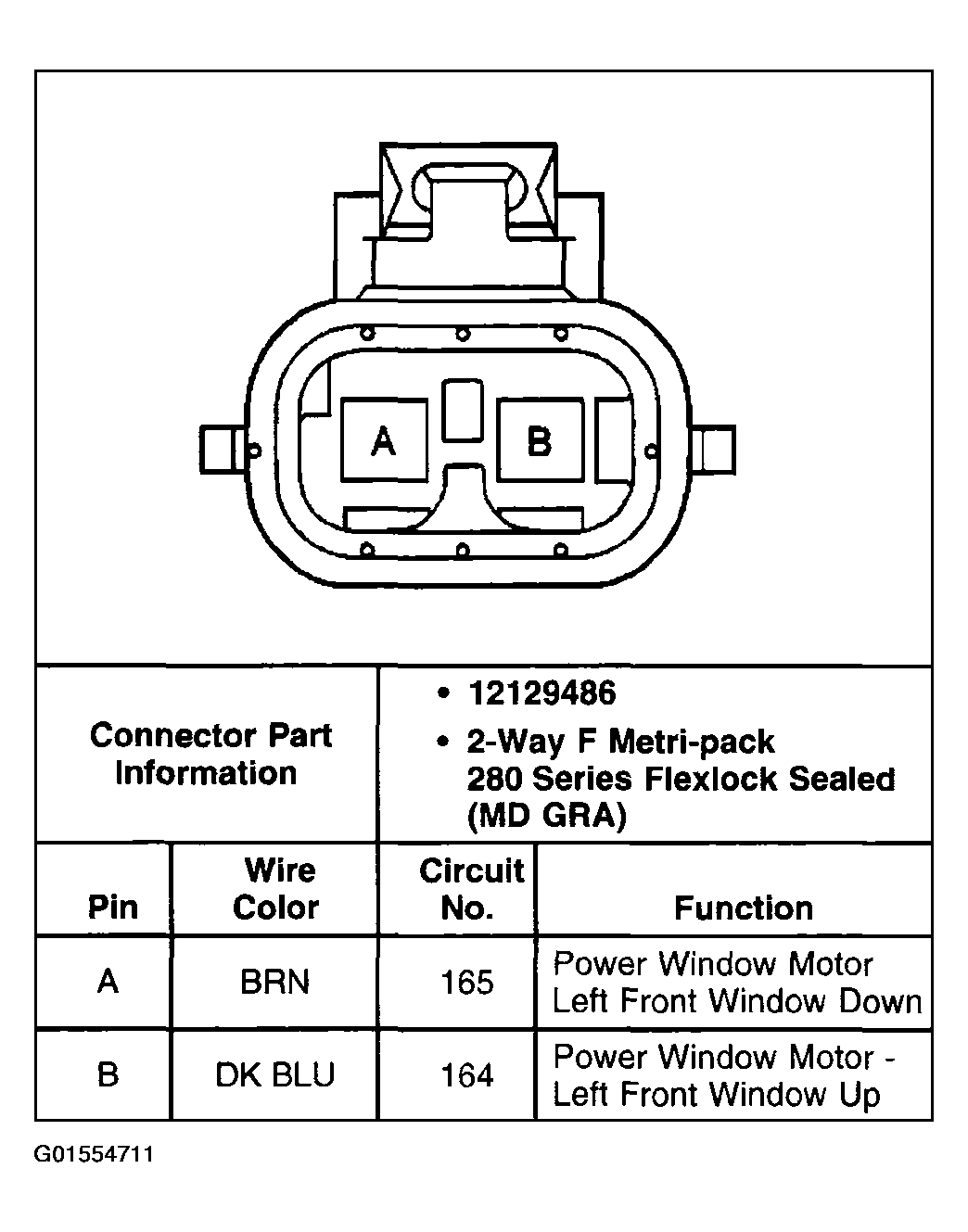

Fig 13: Power Door Systems Connector End View (Window Motor - Driver)

G01554711

Courtesy of GENERAL MOTORS CORP.

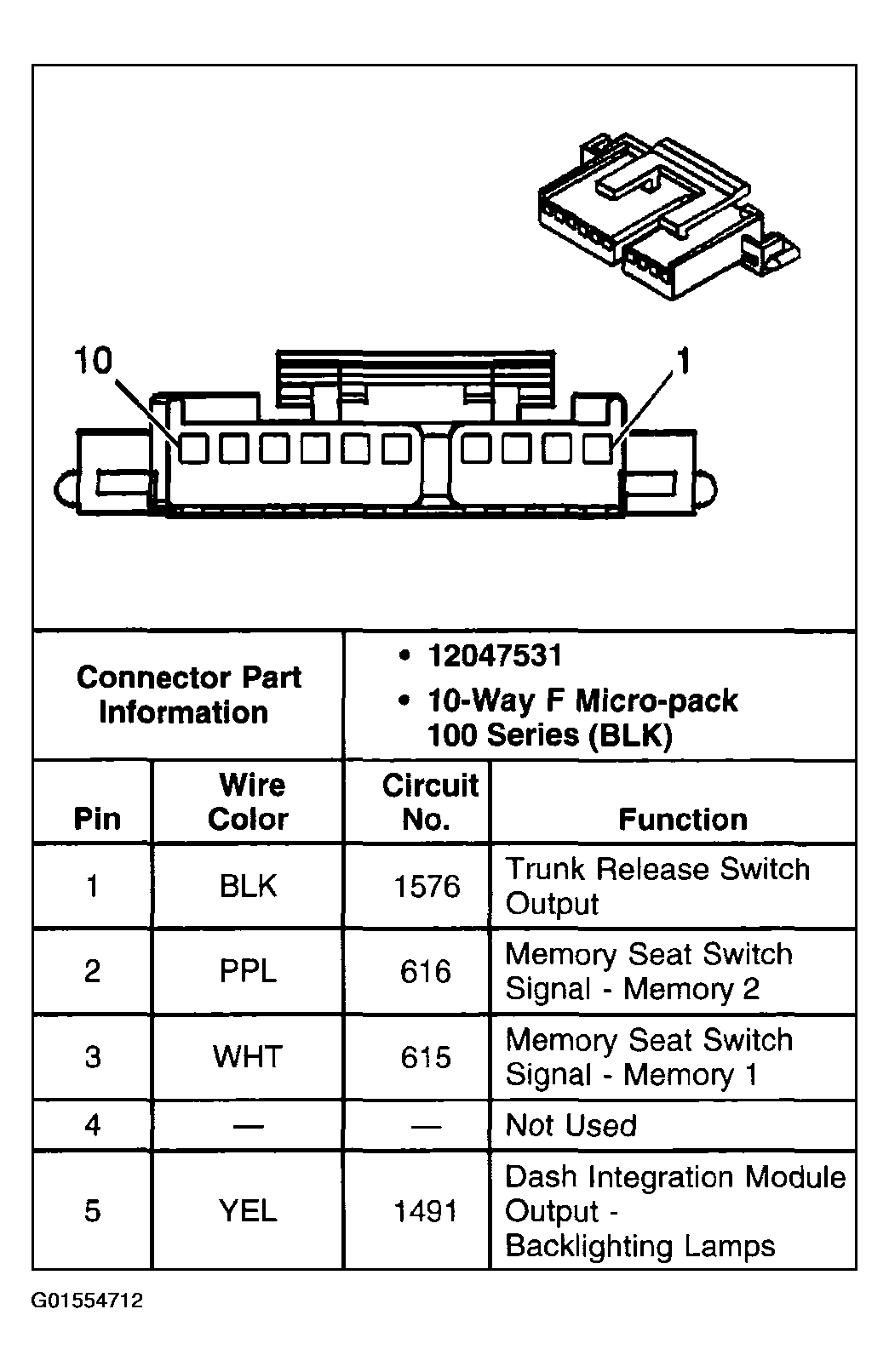

Fig 14: Power Door Systems Connector End View (Driver Door Switch Assembly DDSA) (1 Of 2)

G01554712

Courtesy of GENERAL MOTORS CORP.

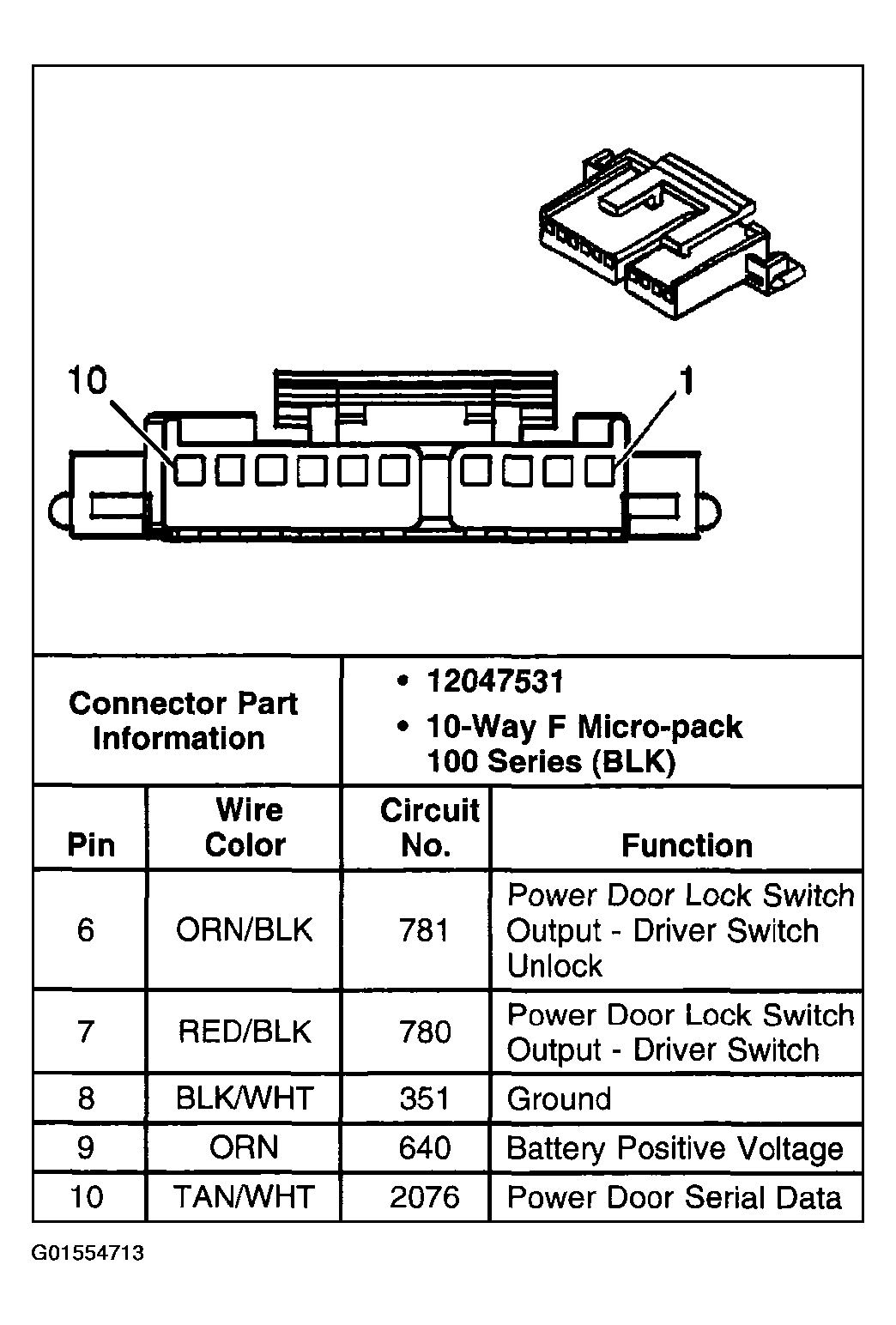

Fig 15: Power Door Systems Connector End View (Driver Door Switch Assembly DDSA) (2 Of 2)

G01554713

Courtesy of GENERAL MOTORS CORP.

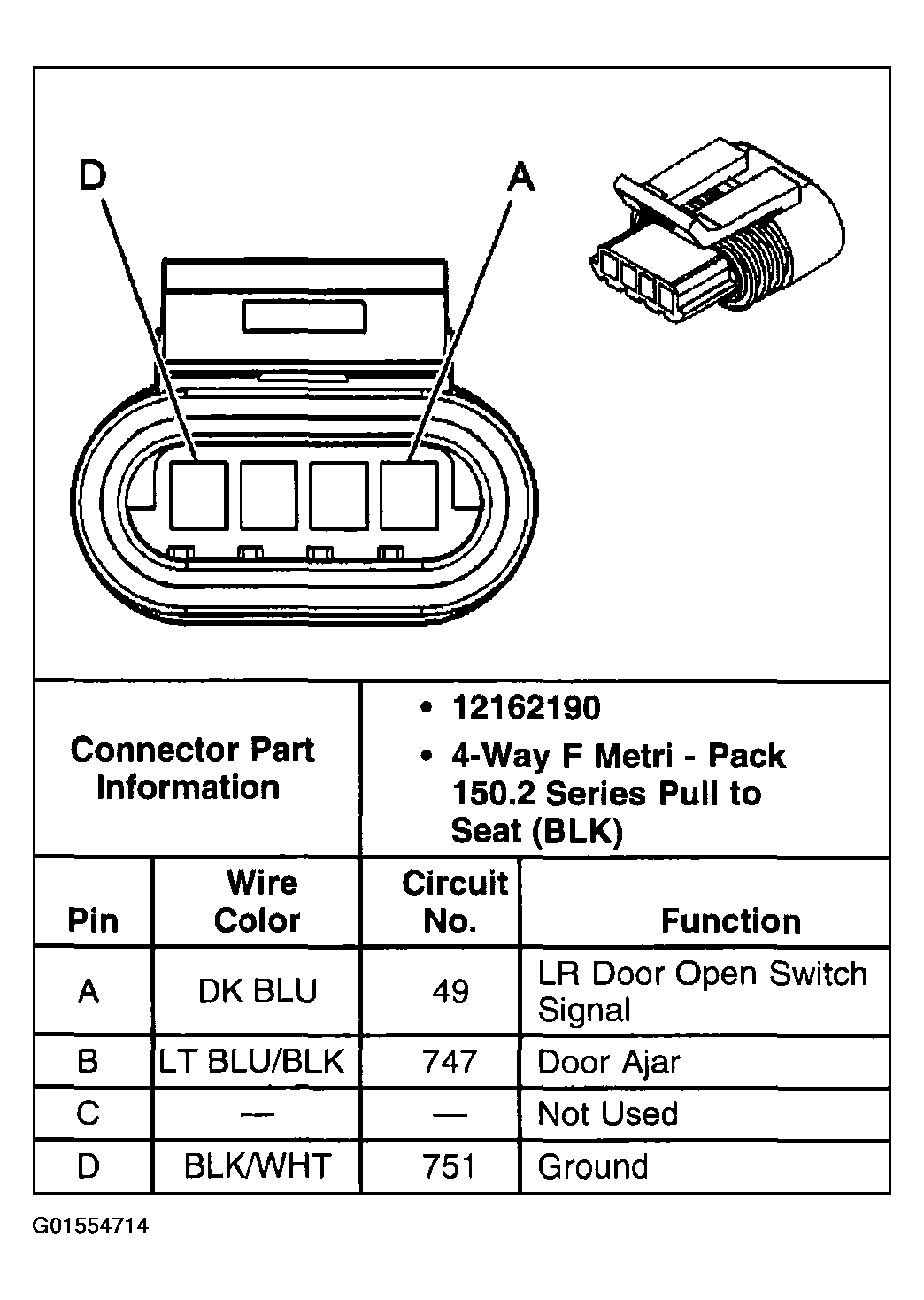

Fig 16: Power Door Systems Connector C1 End View (Door Lock Actuator - LR)

G01554714

Courtesy of GENERAL MOTORS CORP.

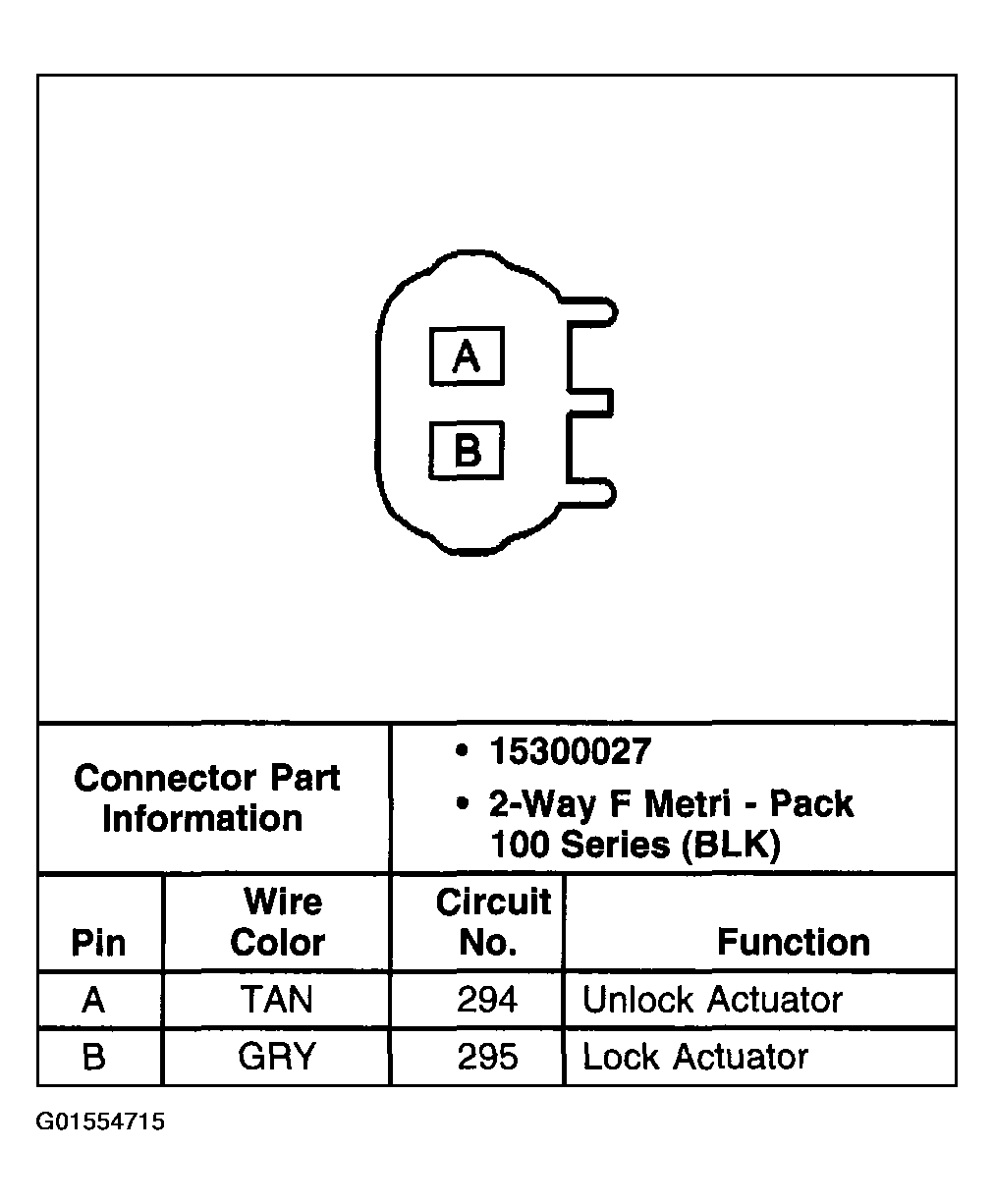

Fig 17: Power Door Systems Connector C2 End View (Door Lock Actuator - LR)

G01554715

Courtesy of GENERAL MOTORS CORP.

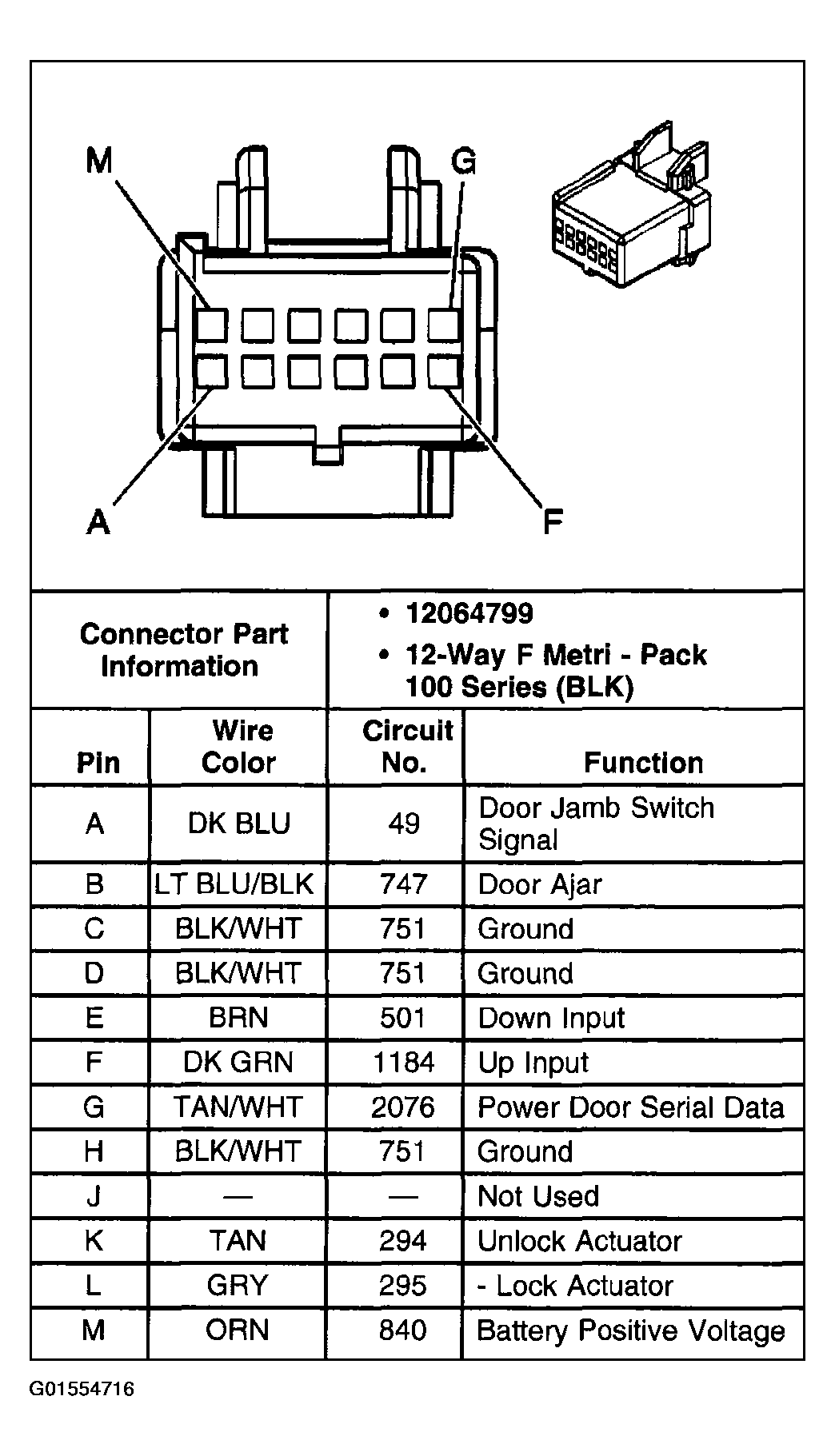

Fig 18: Power Door Systems Connector End View (Left Rear Door Module LRDM)

G01554716

Courtesy of GENERAL MOTORS CORP.

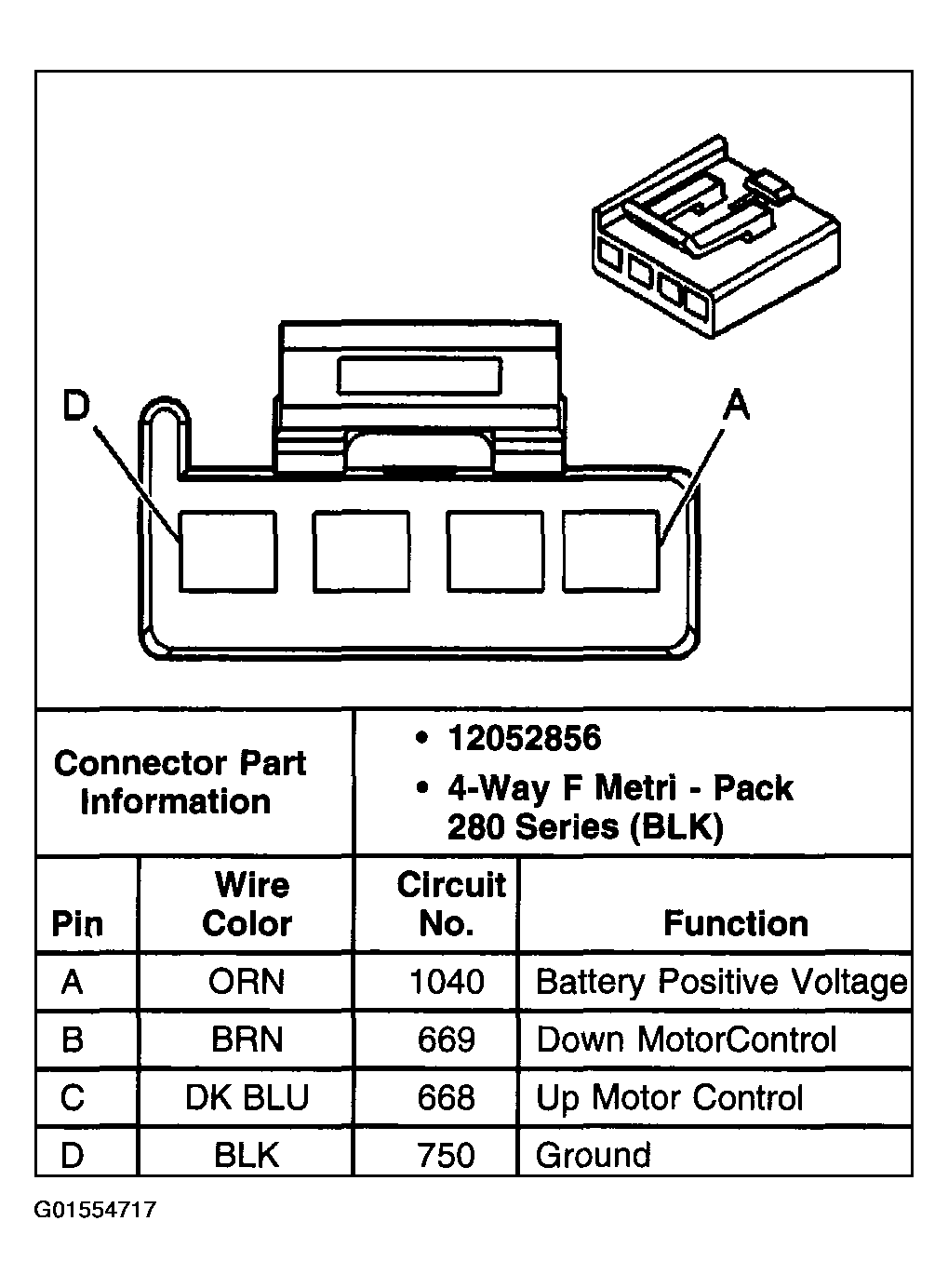

Fig 19: Power Door Systems Connector End View (Left Rear Door Module LRDM)

G01554717

Courtesy of GENERAL MOTORS CORP.

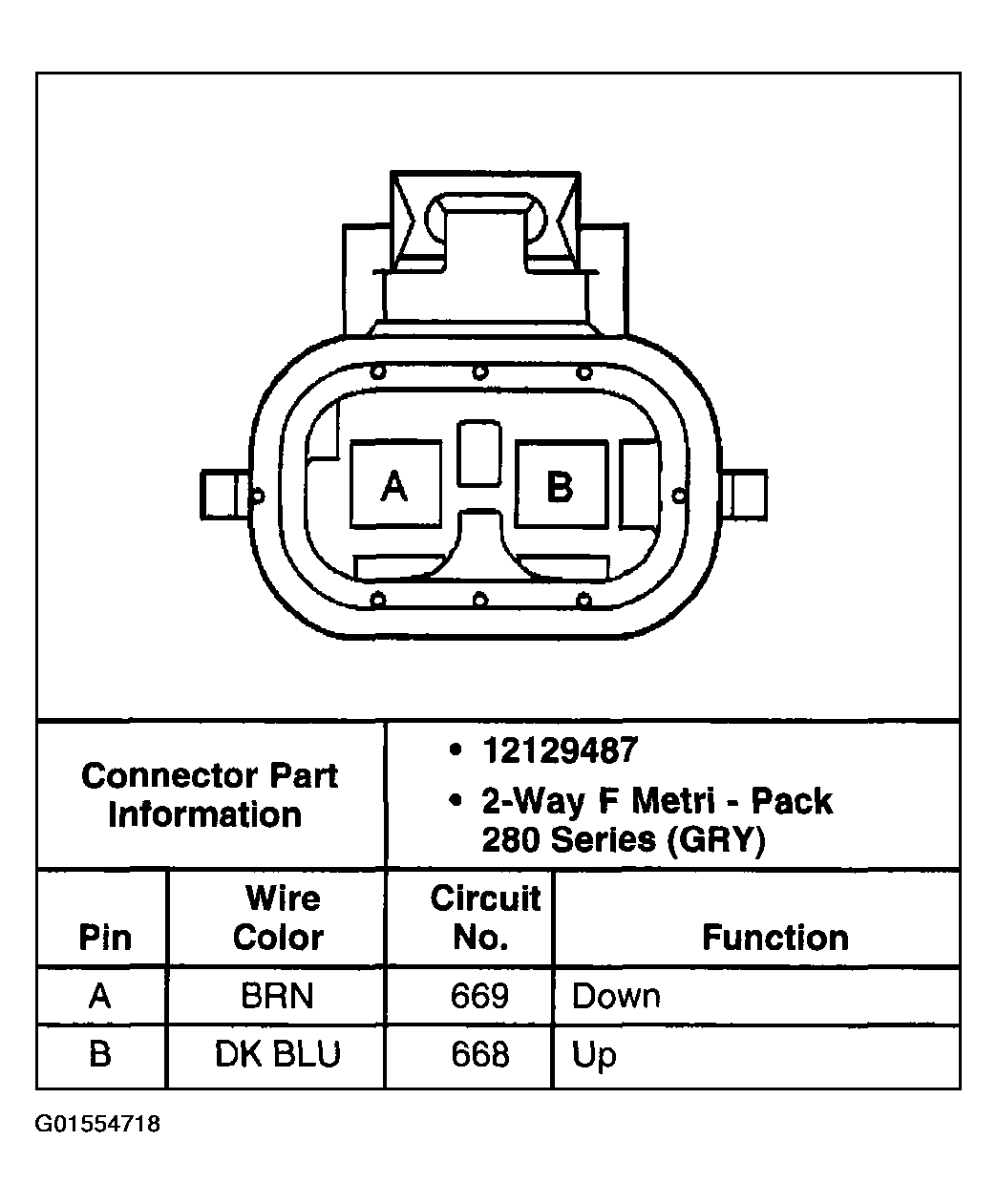

Fig 20: Power Door Systems Connector End View (Window Motor - LR)

G01554718

Courtesy of GENERAL MOTORS CORP.

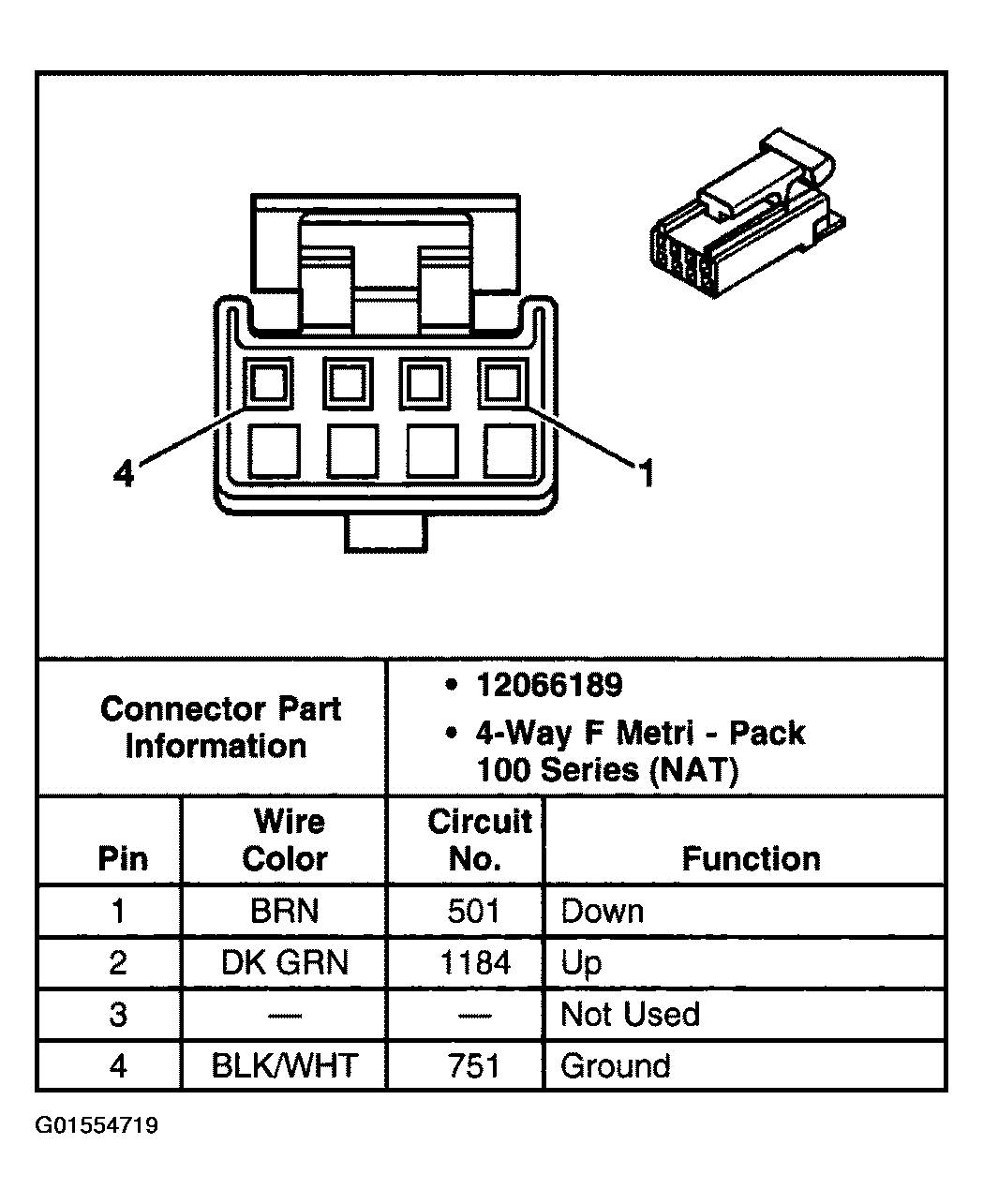

Fig 21: Power Door Systems Connector End View (Window Switch - LR)

G01554719

Courtesy of GENERAL MOTORS CORP.

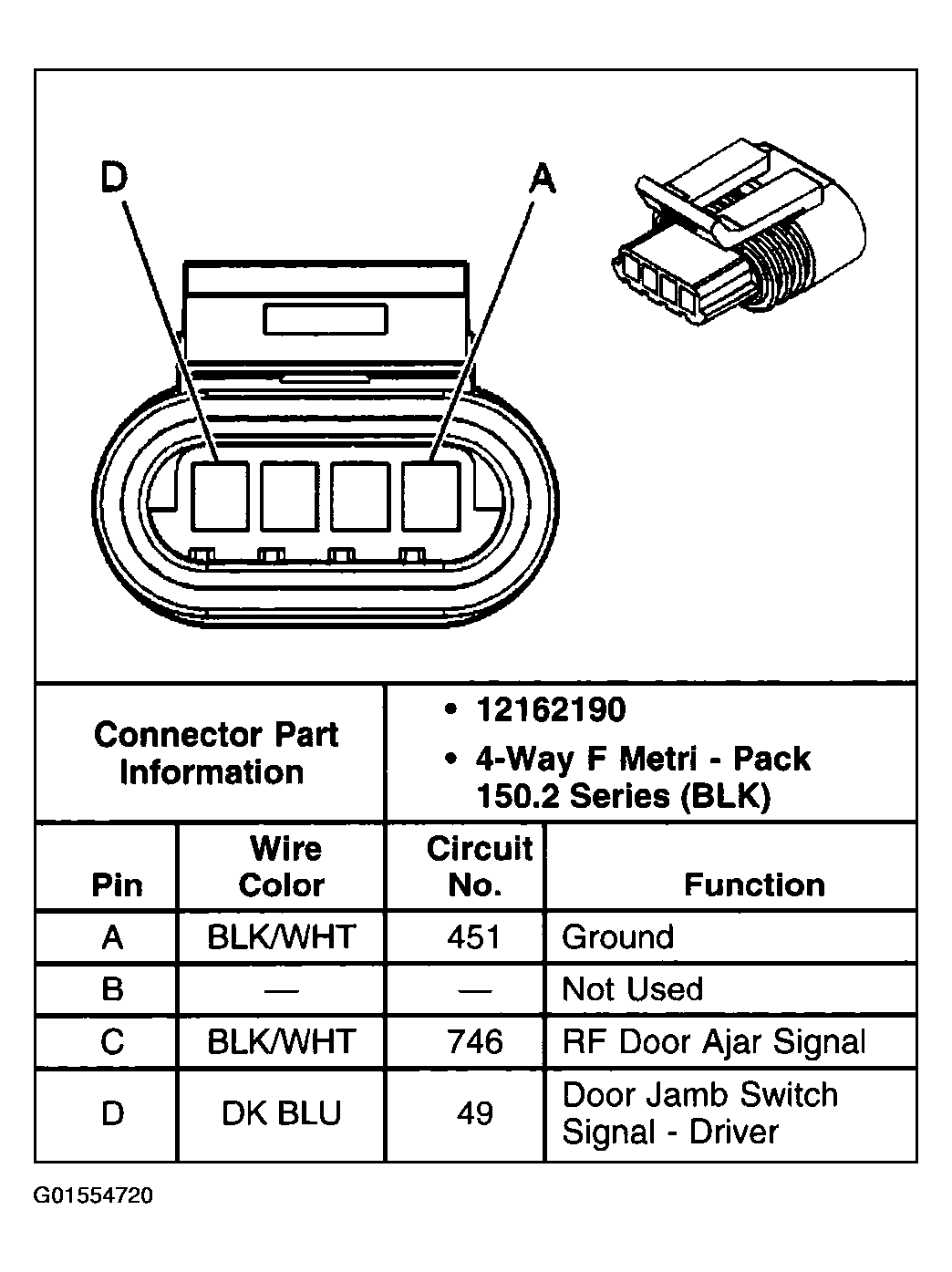

Fig 22: Power Door Systems Connector C1 End View (Door Lock Actuator - Front Passenger)

G01554720

Courtesy of GENERAL MOTORS CORP.

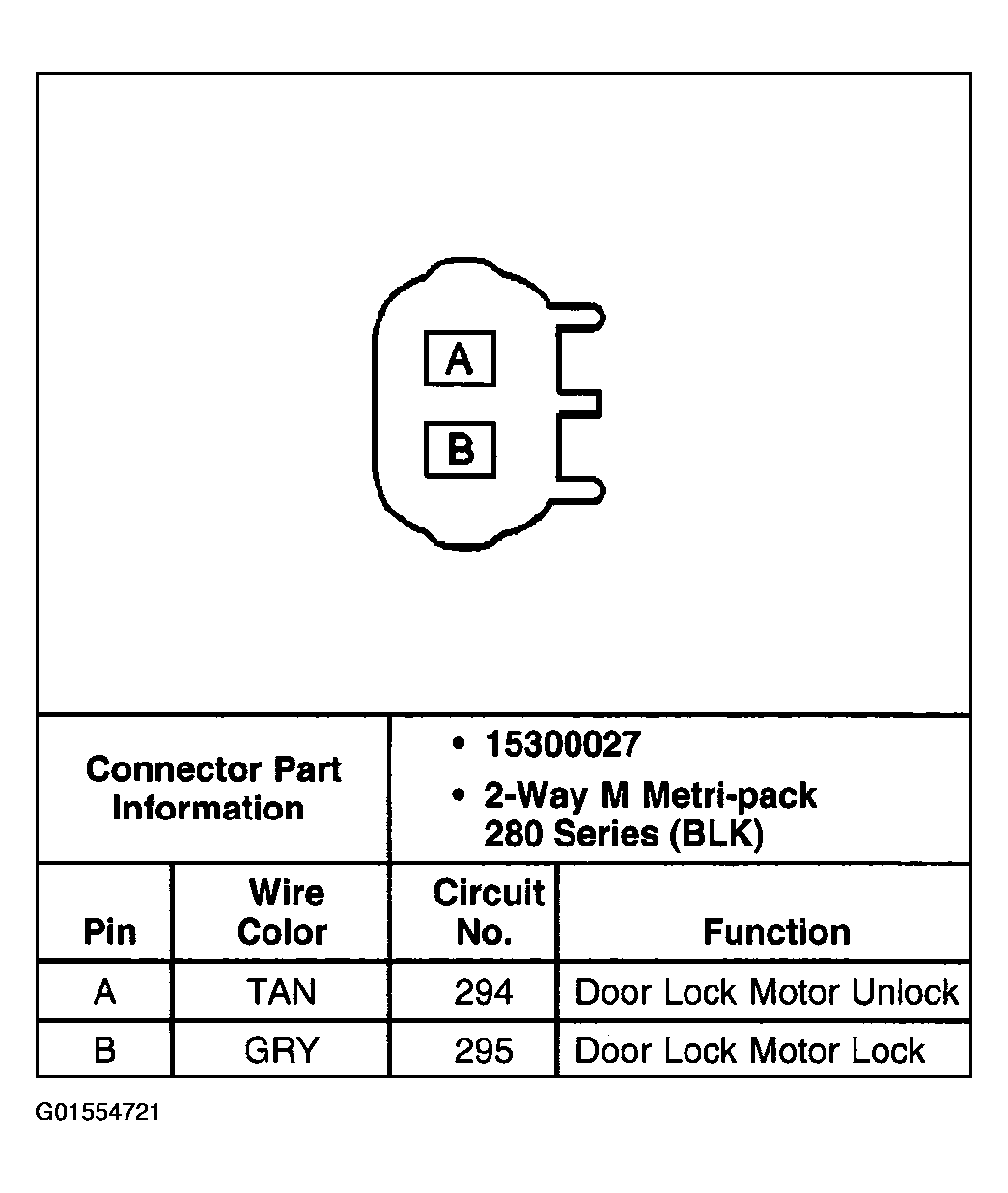

Fig 23: Power Door Systems Connector C2 End View (Door Lock Actuator - Front Passenger)

G01554721

Courtesy of GENERAL MOTORS CORP.

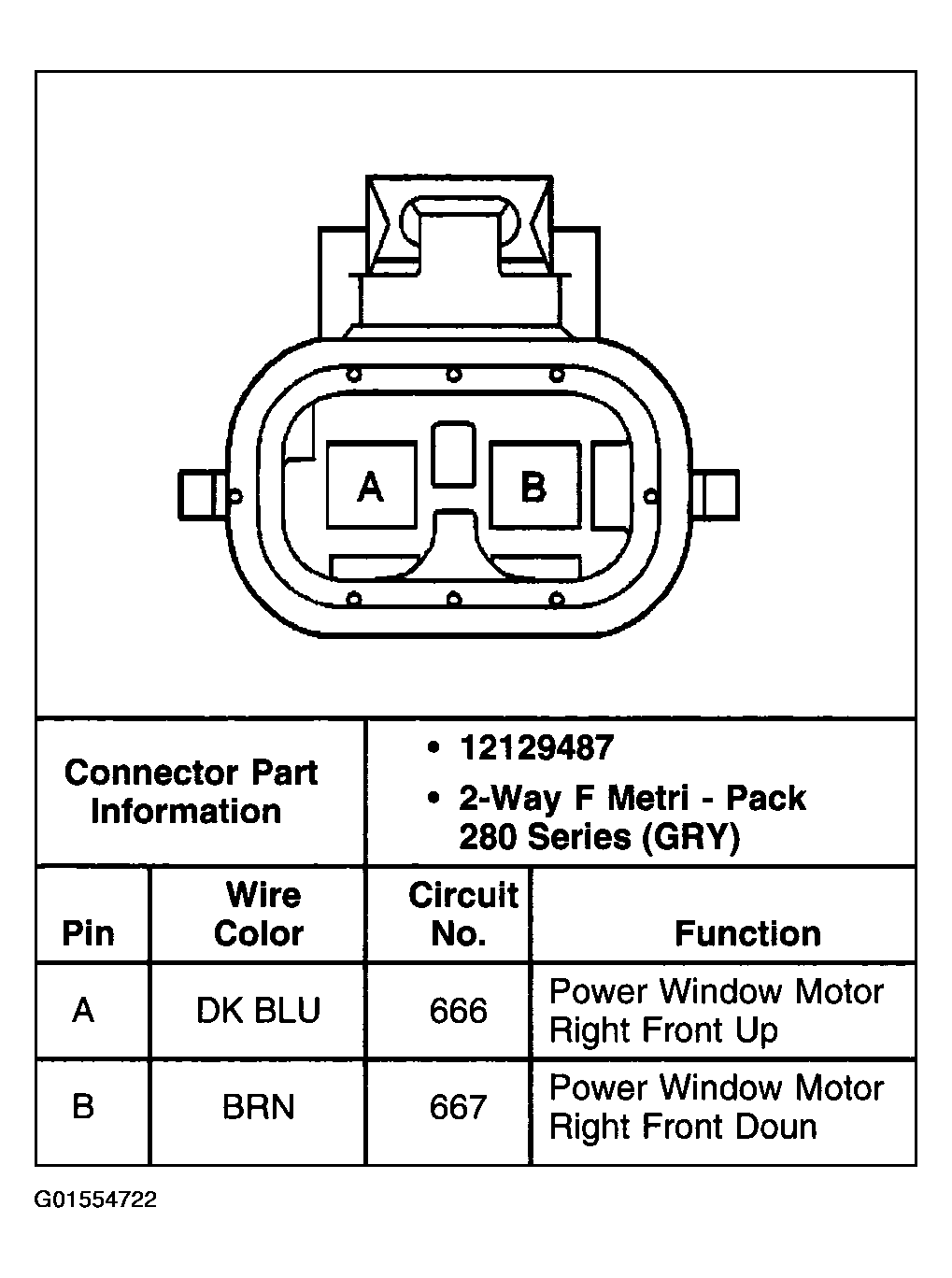

Fig 24: Power Door Systems Connector End View (Window Motor - Front Passenger)

G01554722

Courtesy of GENERAL MOTORS CORP.

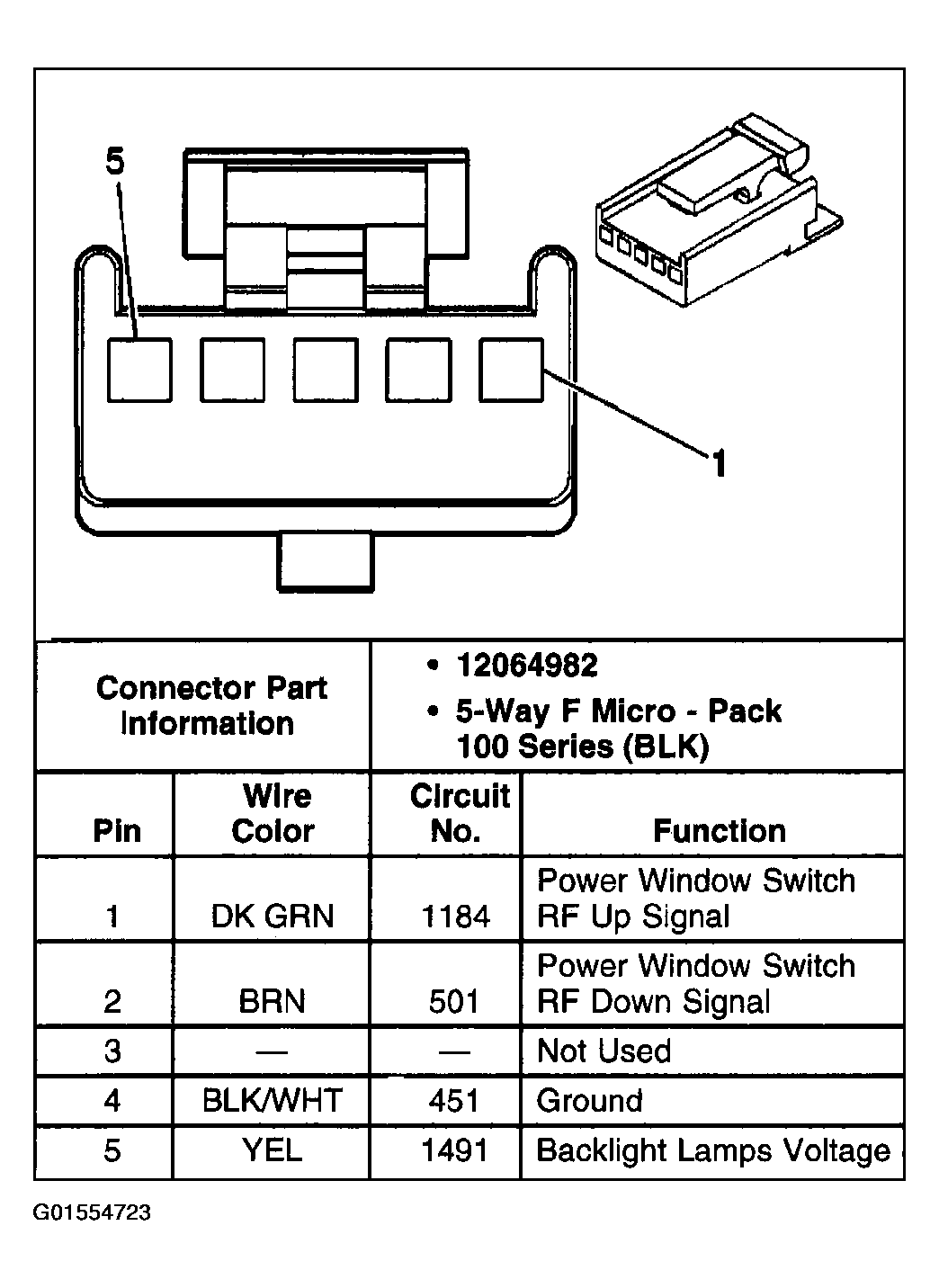

Fig 25: Power Door Systems Connector End View (Window Switch - Front Passenger)

G01554723

Courtesy of GENERAL MOTORS CORP.

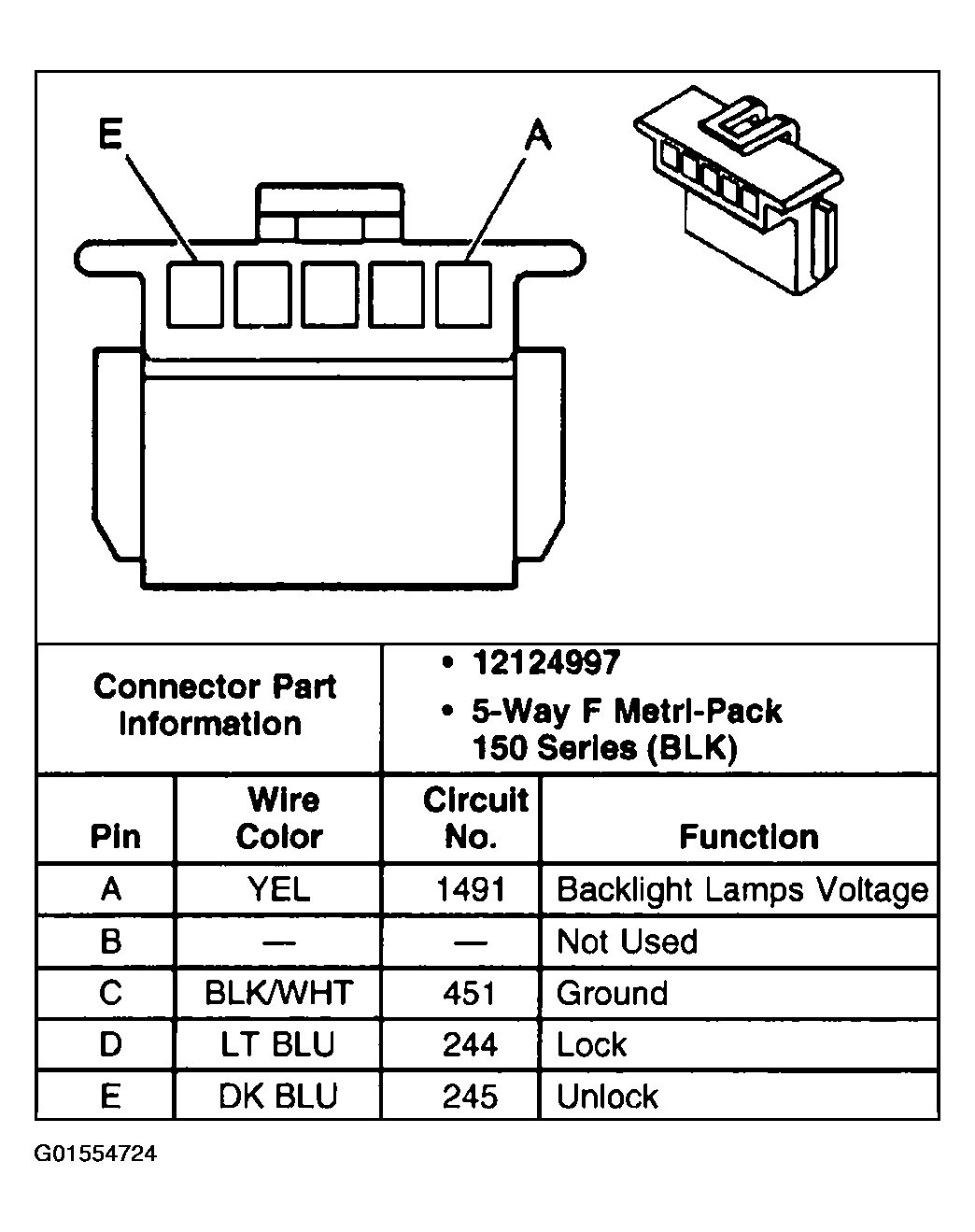

Fig 26: Power Door Systems Connector End View (Door Lock Switch - Front Passenger)

G01554724

Courtesy of GENERAL MOTORS CORP.

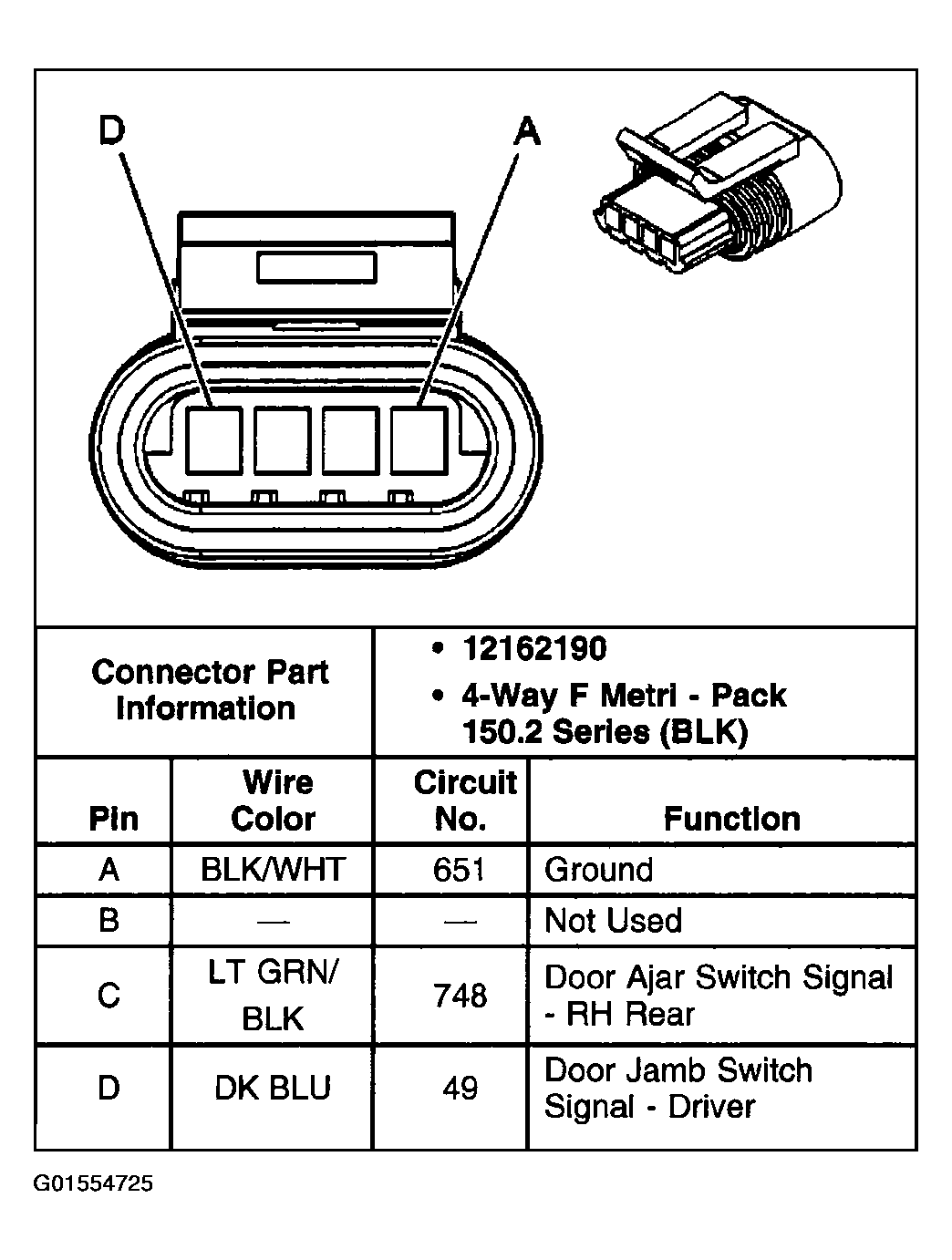

Fig 27: Power Door Systems Connector C1 End View (Door Lock Actuator - RR)

G01554725

Courtesy of GENERAL MOTORS CORP.

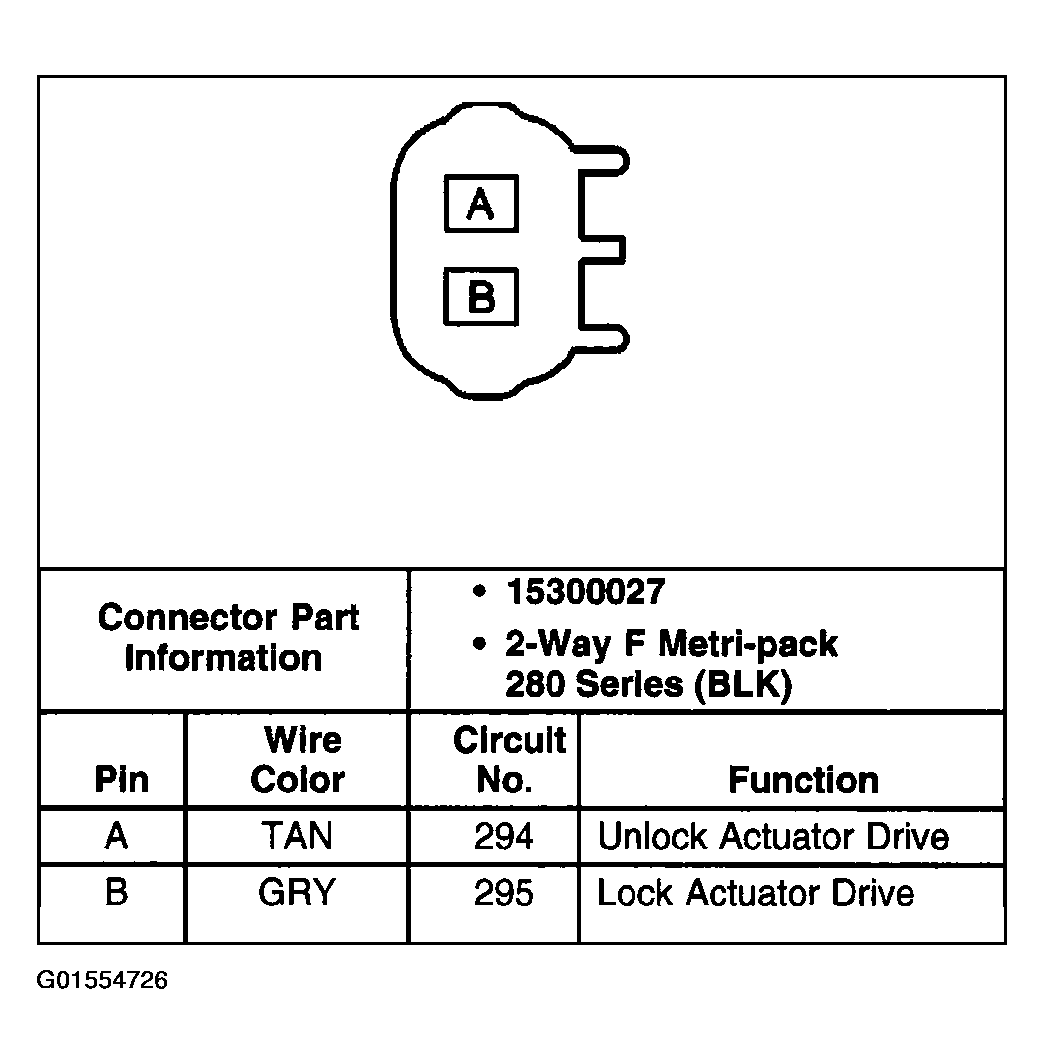

Fig 28: Power Door Systems Connector C2 End View (Door Lock Actuator - RR)

G01554726

Courtesy of GENERAL MOTORS CORP.

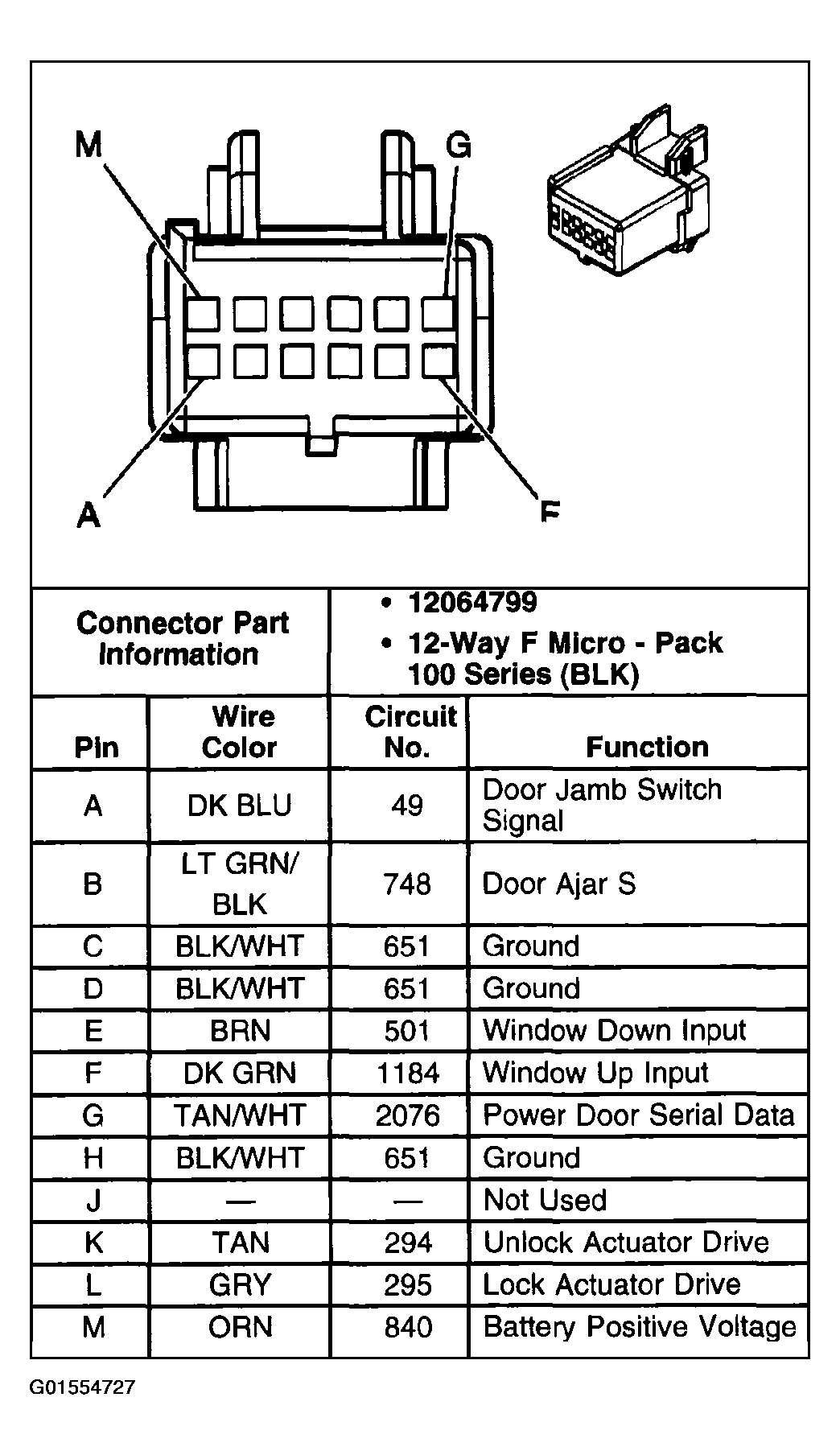

Fig 29: Power Door Systems Connector C1 End View (Right Rear Door Module - RRDM)

G01554727

Courtesy of GENERAL MOTORS CORP.

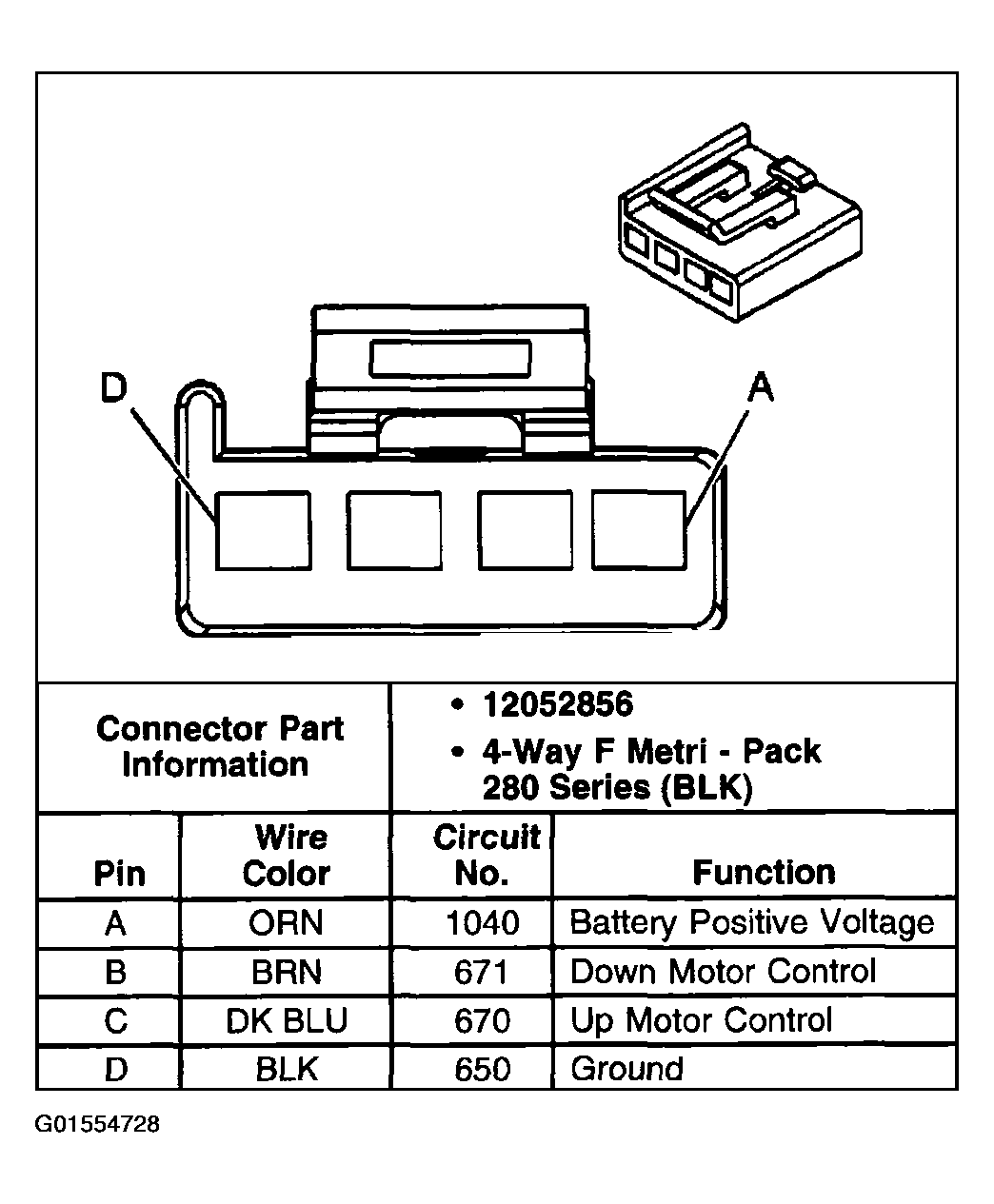

Fig 30: Power Door Systems Connector C2 End View (Right Rear Door Module - RRDM)

G01554728

Courtesy of GENERAL MOTORS CORP.

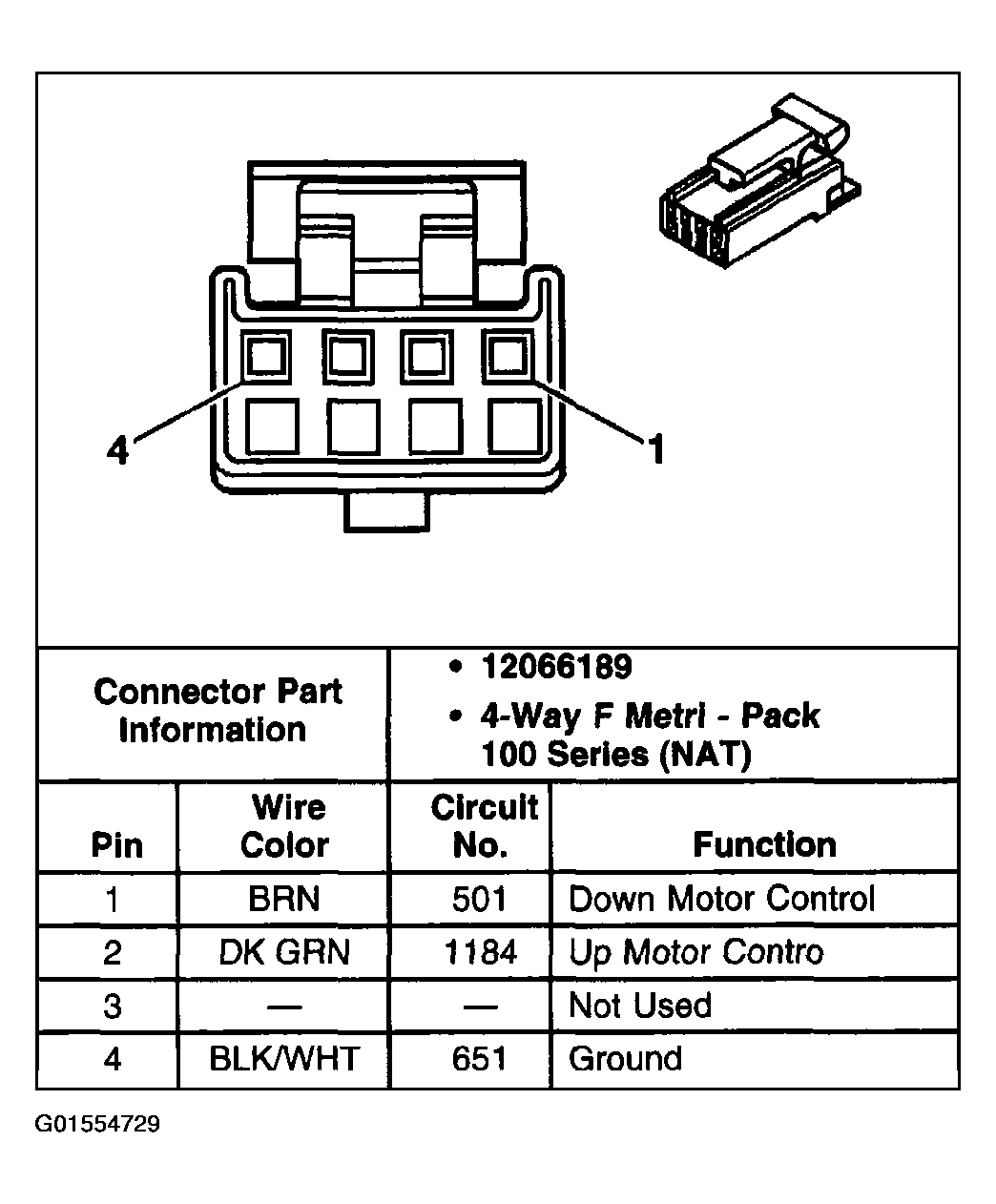

Fig 31: Power Door Systems Connector End View (Window Switch - RR)

G01554729

Courtesy of GENERAL MOTORS CORP.

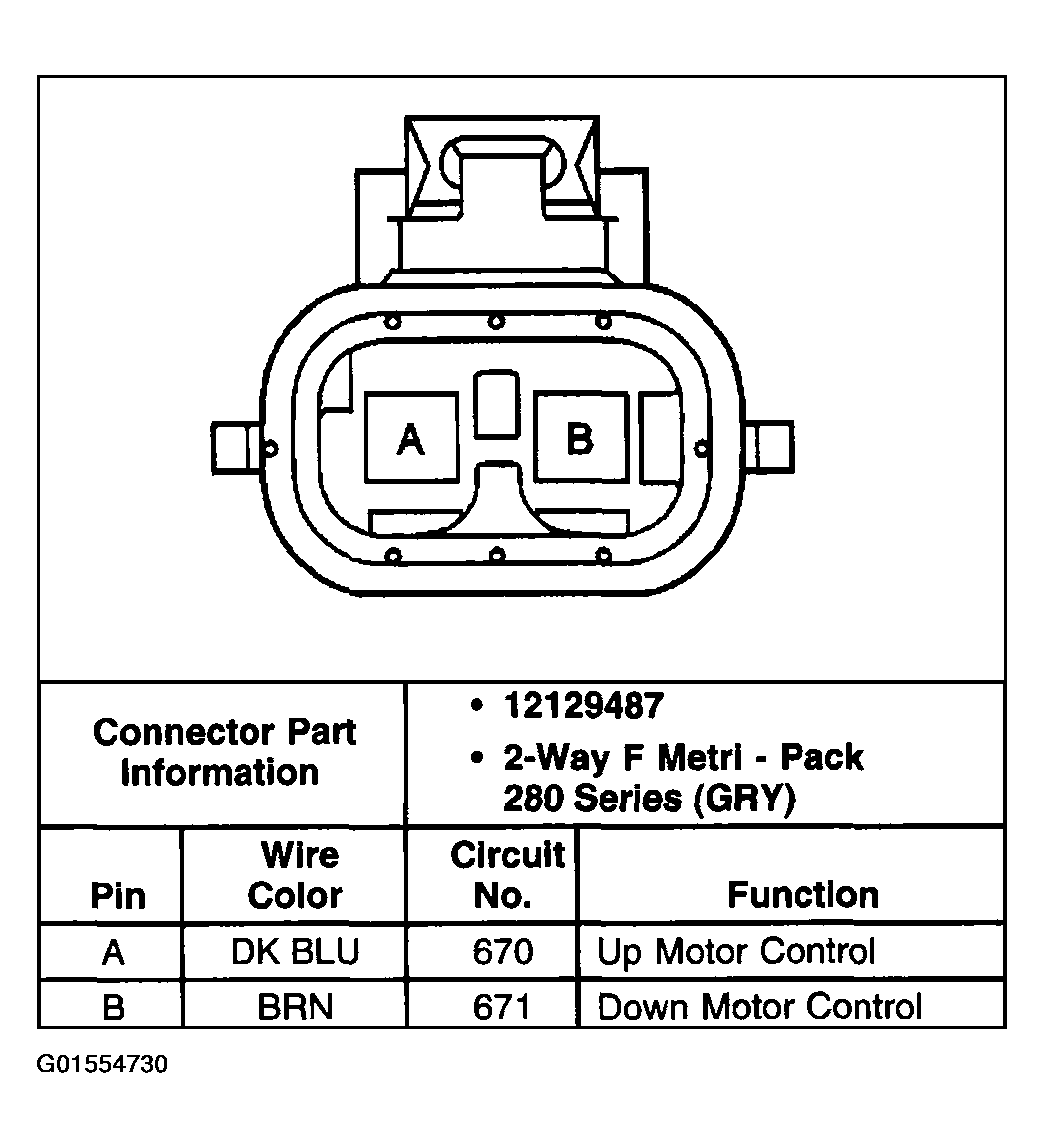

Fig 32: Power Door Systems Connector End View (Window Motor - RR)

G01554730

Courtesy of GENERAL MOTORS CORP.
