ABS Component Views

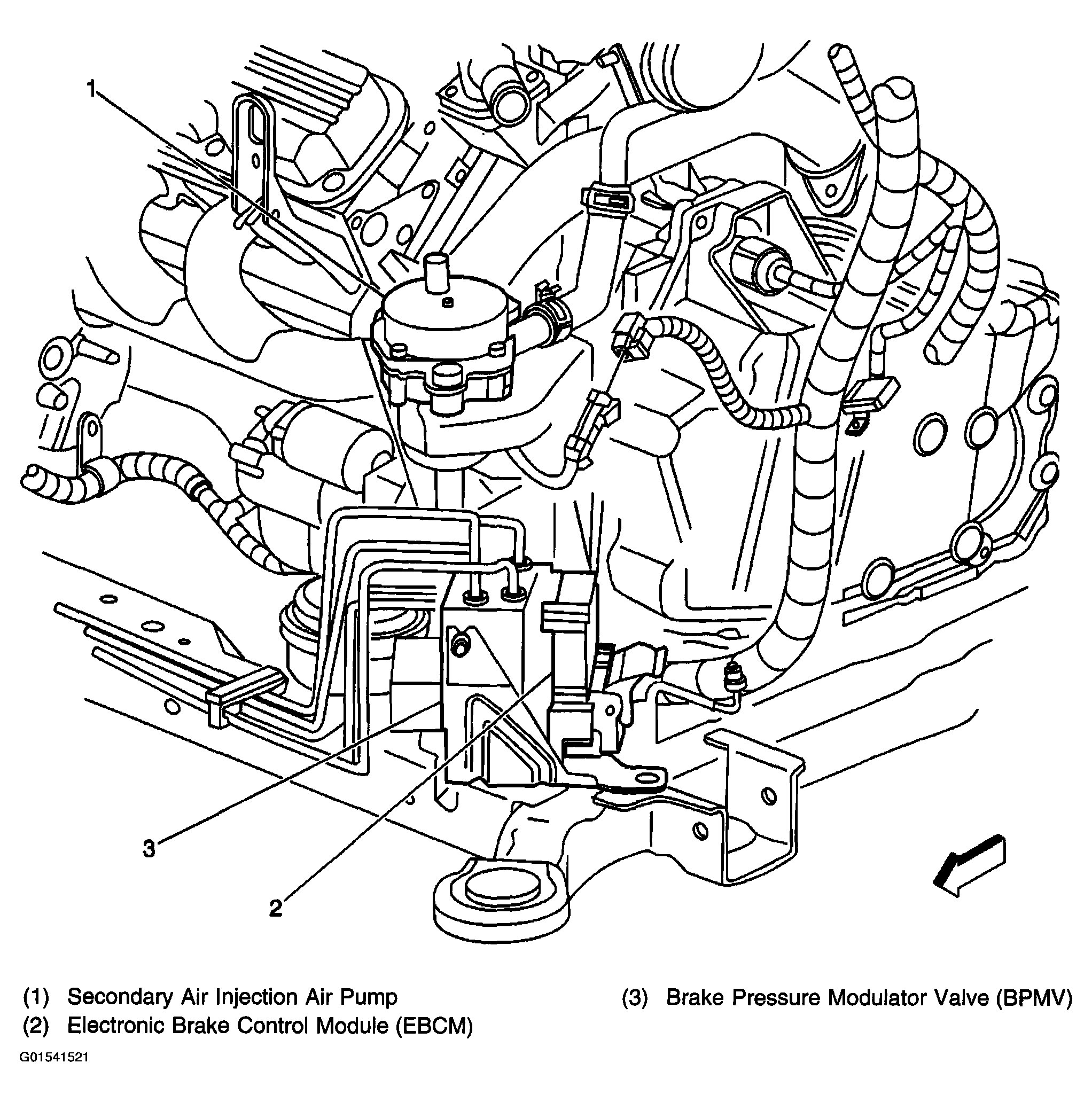

Fig 1: Component Location - EBCM/BPMV, Left Front Corner Of Engine Compartment, On Frame Rail

Courtesy of GENERAL MOTORS CORP.

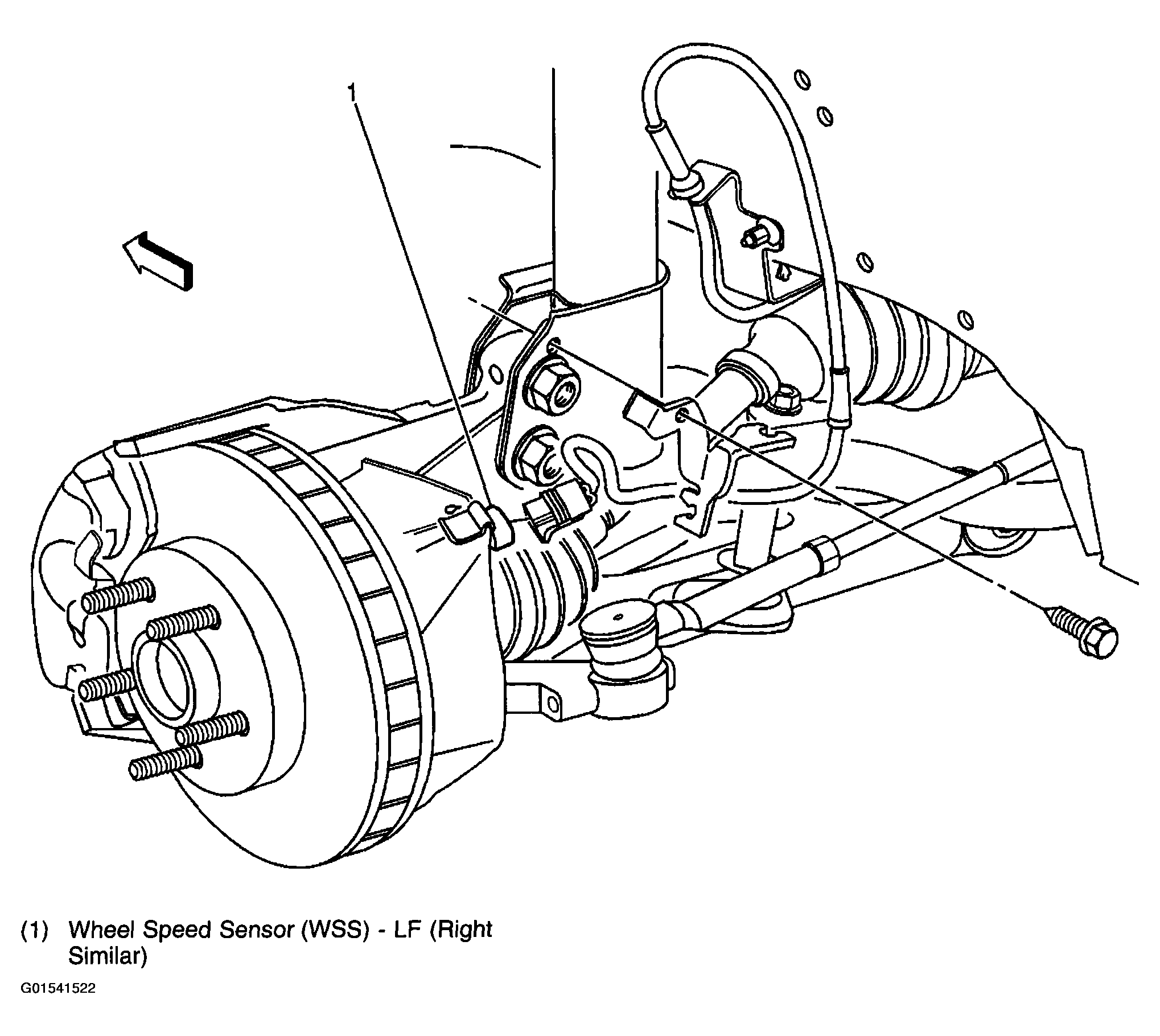

Fig 2: Component Location - Front Wheel Speed Sensor, Under Left Front Of Vehicle, Above Front Axle

Courtesy of GENERAL MOTORS CORP.

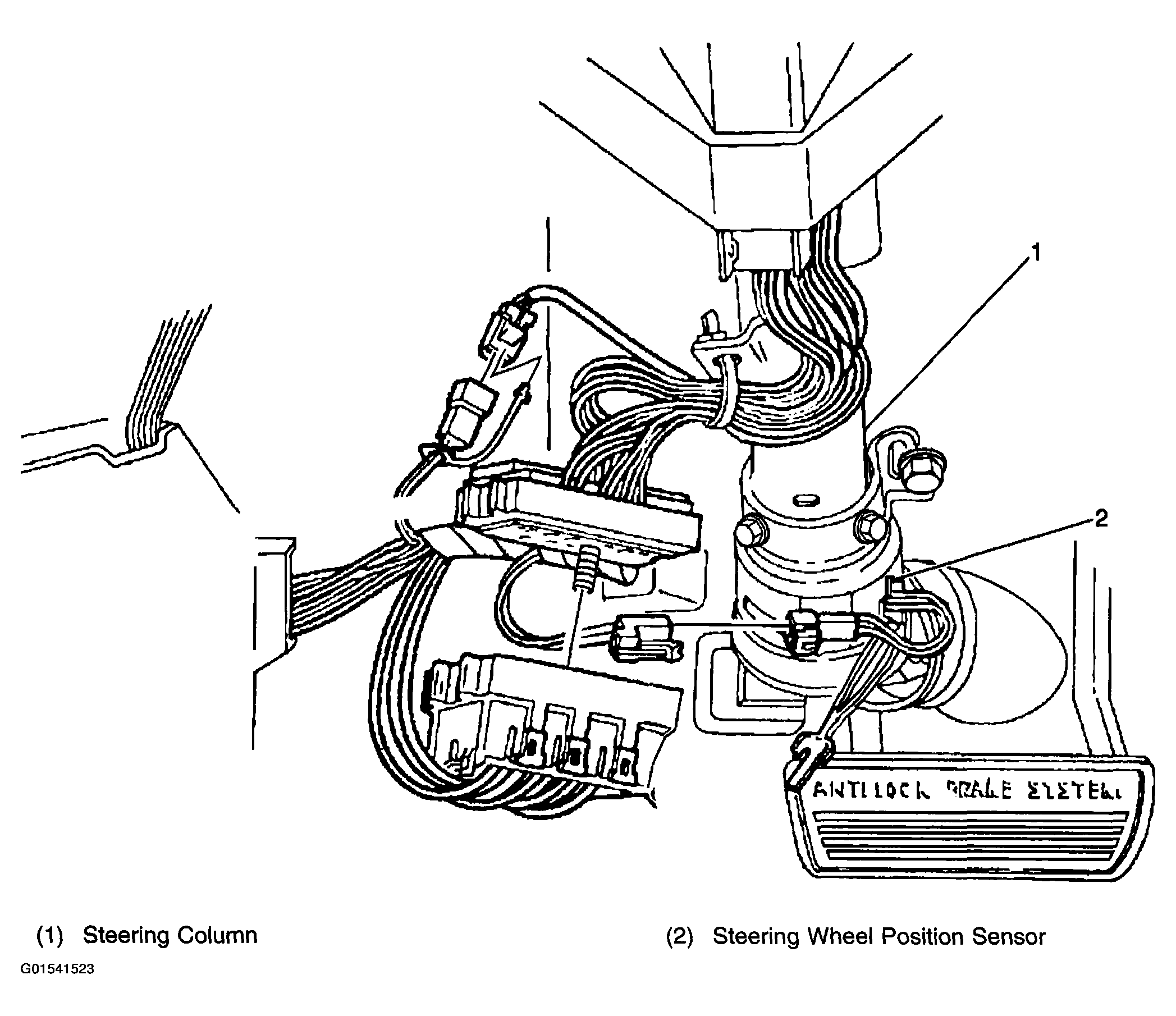

Fig 3: Component Location - Below Left Of Instrument Panel

Courtesy of GENERAL MOTORS CORP.

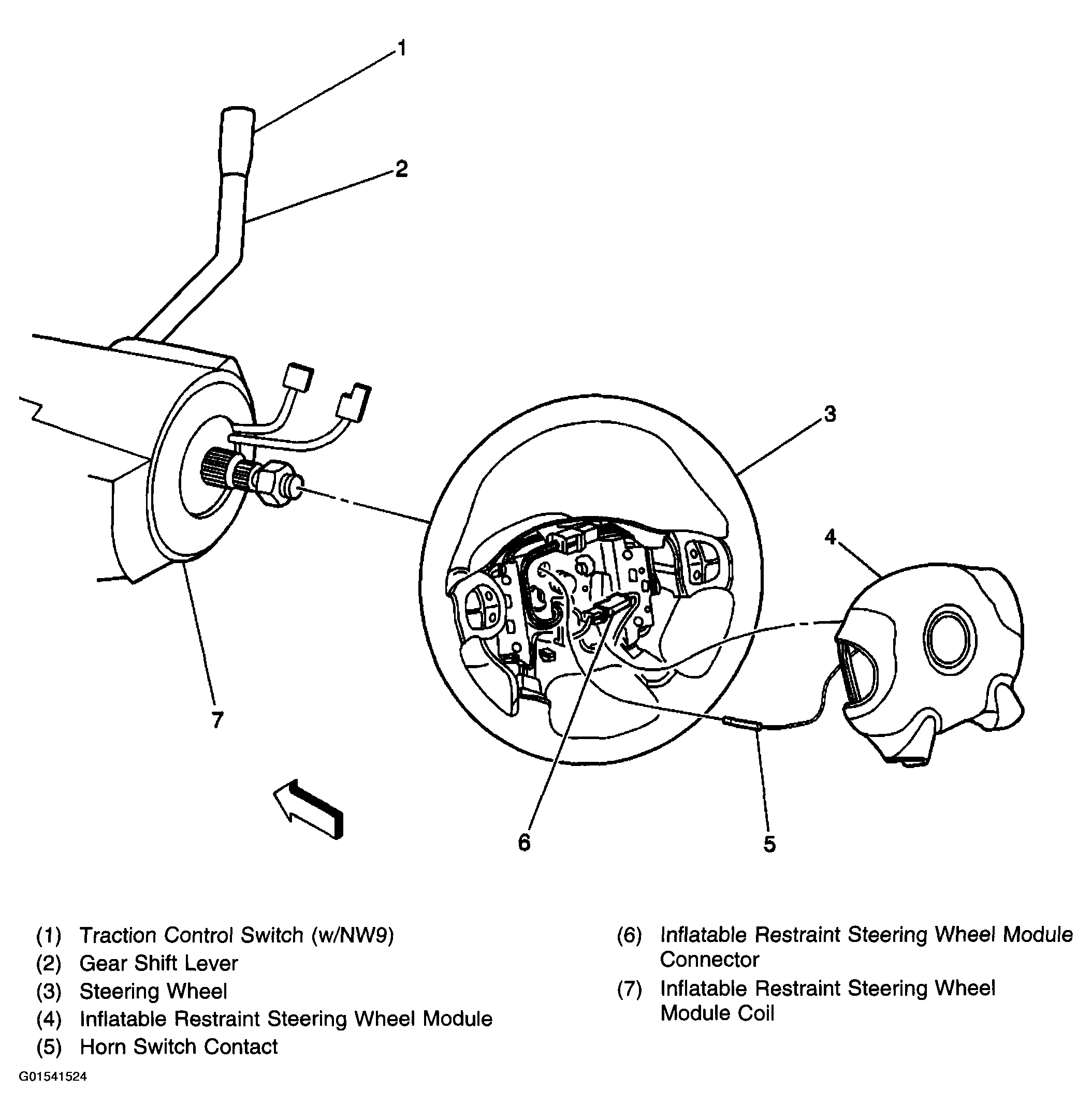

Fig 4: Component Location - Steering Wheel & Inflator Module

Courtesy of GENERAL MOTORS CORP.

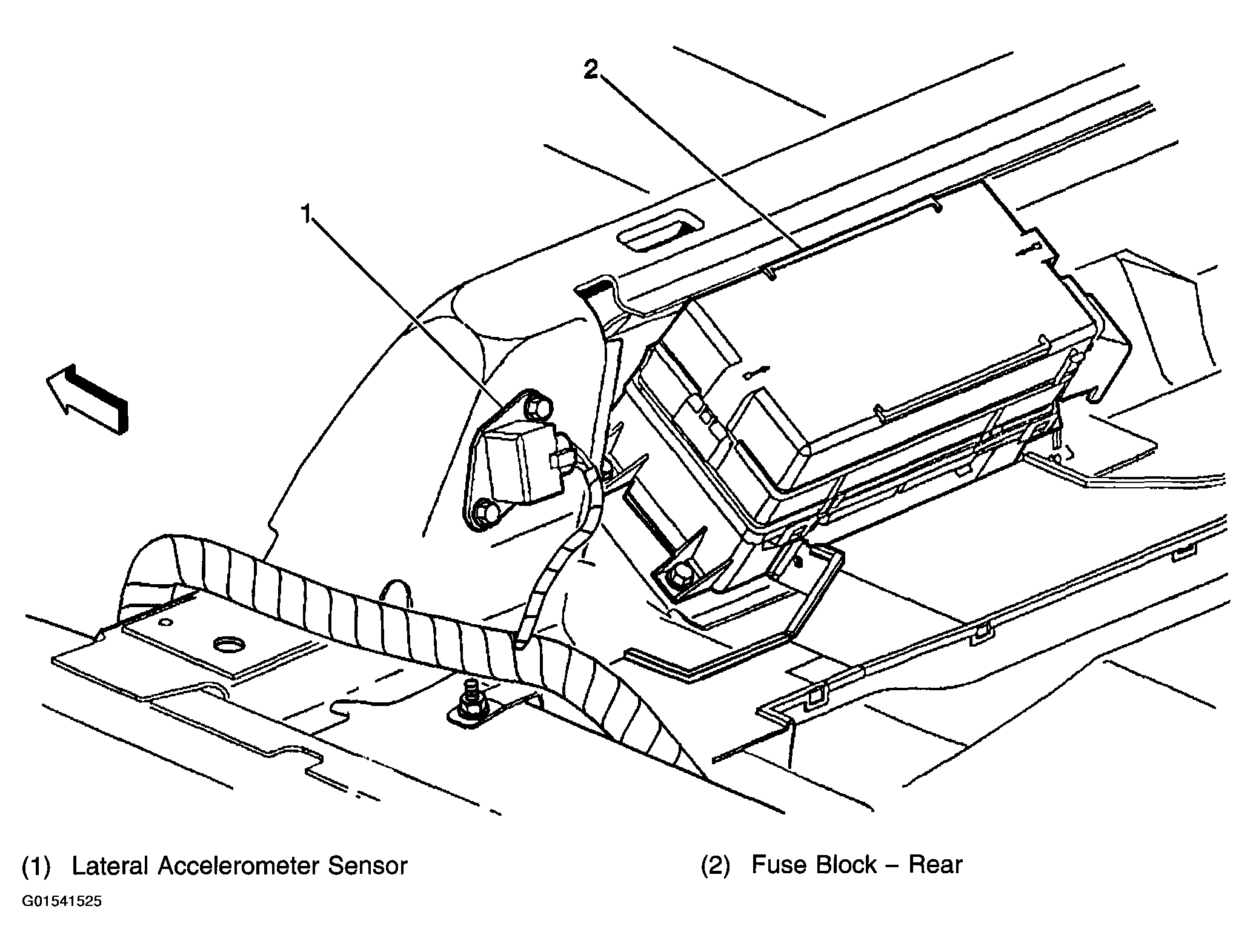

Fig 5: Component Location - Left Rear Of Passenger Compartment, Under Rear Seat

Courtesy of GENERAL MOTORS CORP.

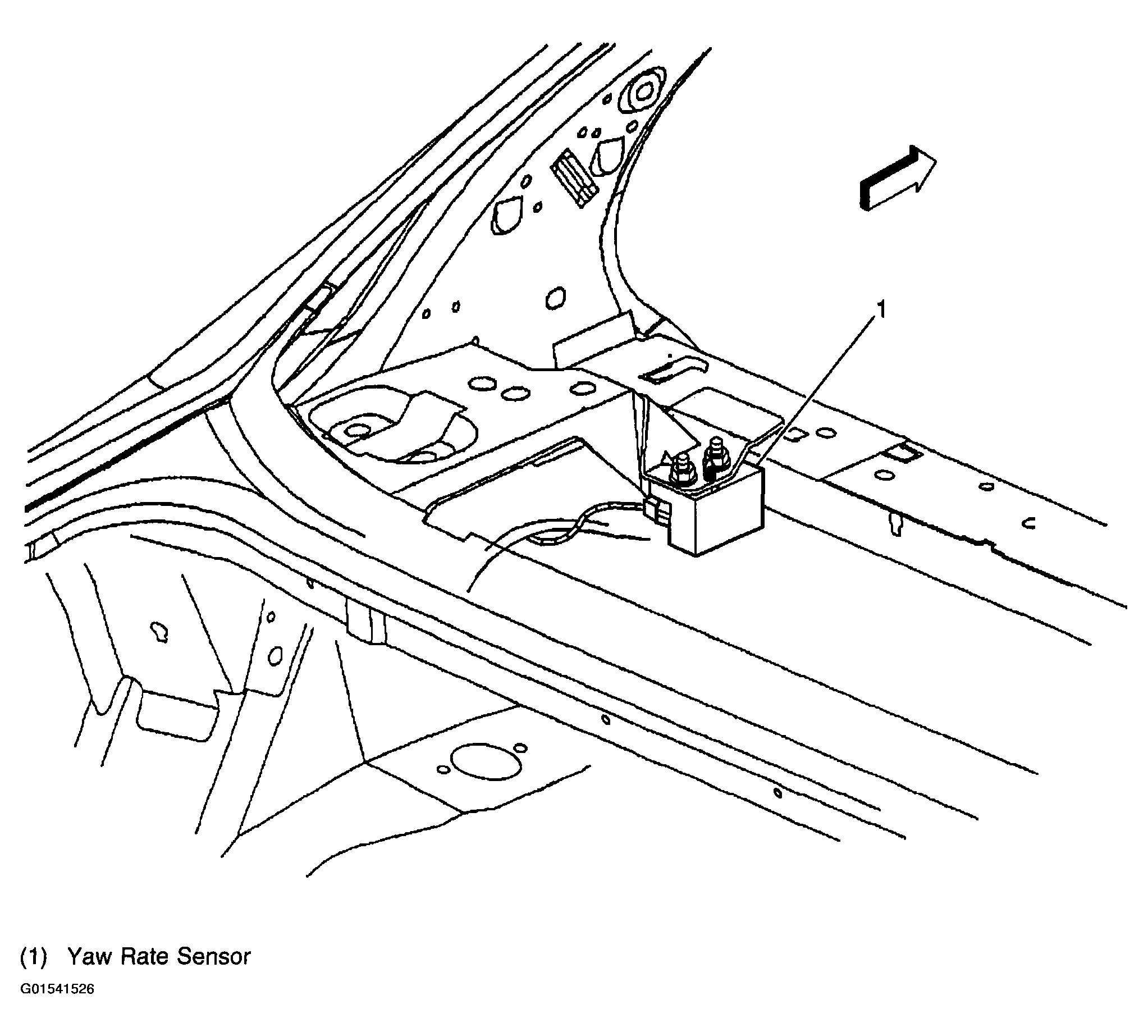

Fig 6: Component Location - Yaw Rate Sensor, Left Corner Of Rear Compartment, In Rear Shelf

Courtesy of GENERAL MOTORS CORP.

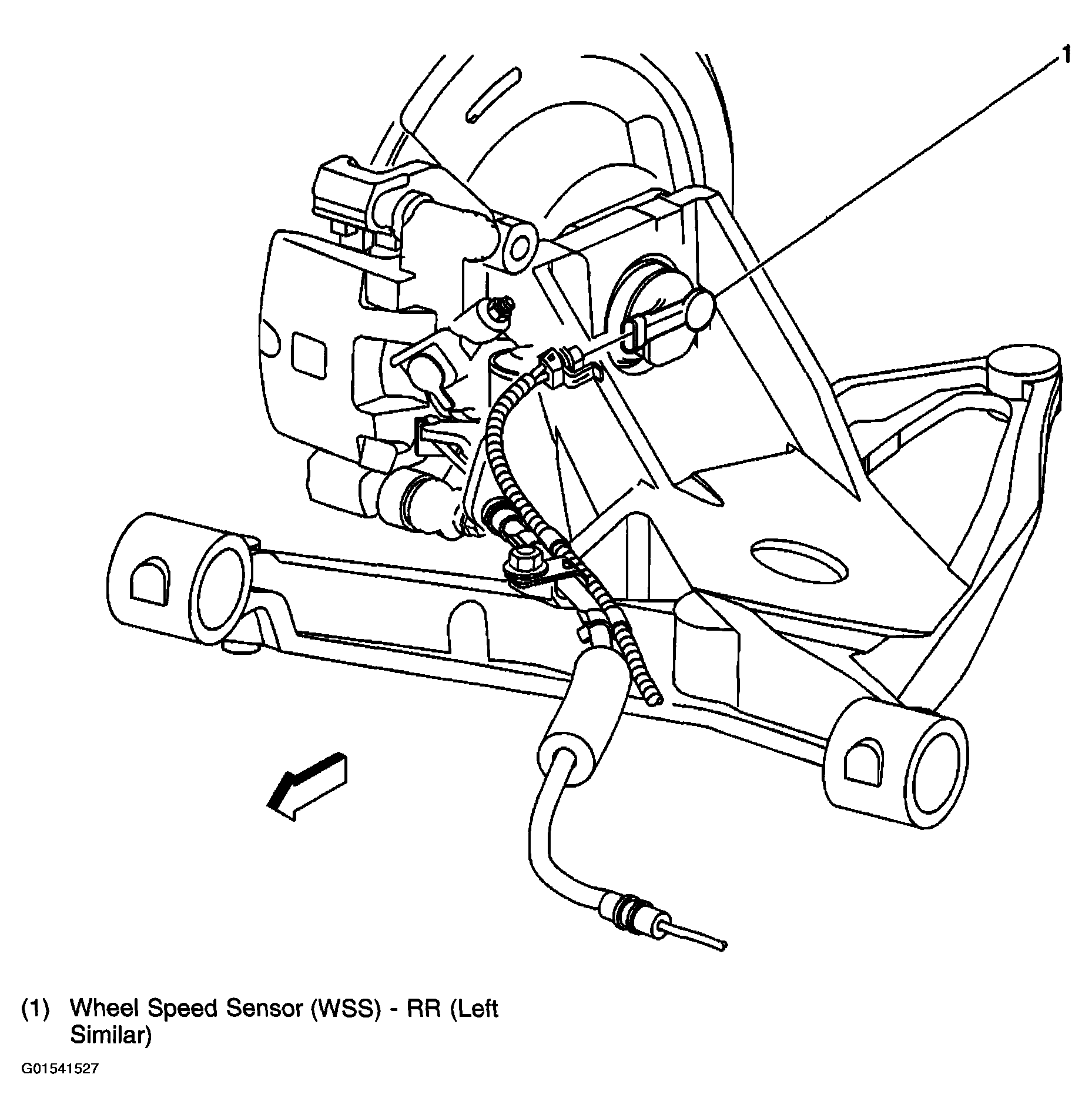

Fig 7: Component Location - Under Right Rear Of Vehicle, Above Rear Axle

Courtesy of GENERAL MOTORS CORP.
