Removal Procedure

  1. Remove rear shelf trim from inside of rear storage compartment. Refer to COMPARTMENT TRIM PANEL REPLACEMENT - REAR in Body Rear End.
  2. Disconnect the electrical connector from the module.
  3. Remove the module retainers (2).
  4. Remove RFA module (1) from the shelf (2).

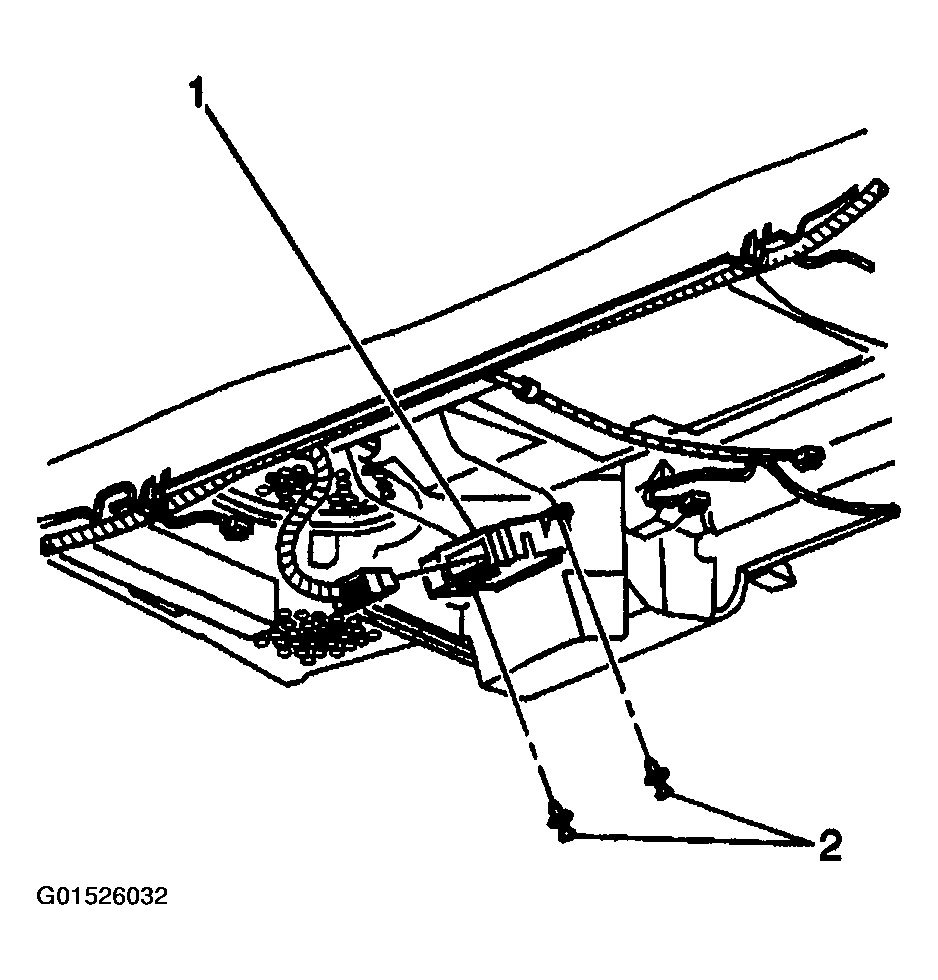

    Fig 1: Removing Remote Control Door Lock Receiver
    G01526032Courtesy of GENERAL MOTORS CORP.
