Installation Procedure

  1. Install the battery (2) with the positive (+) side up. Use one 3 V CR2032 battery (or the equivalent).
  2. Close the transmitter case (6,4).

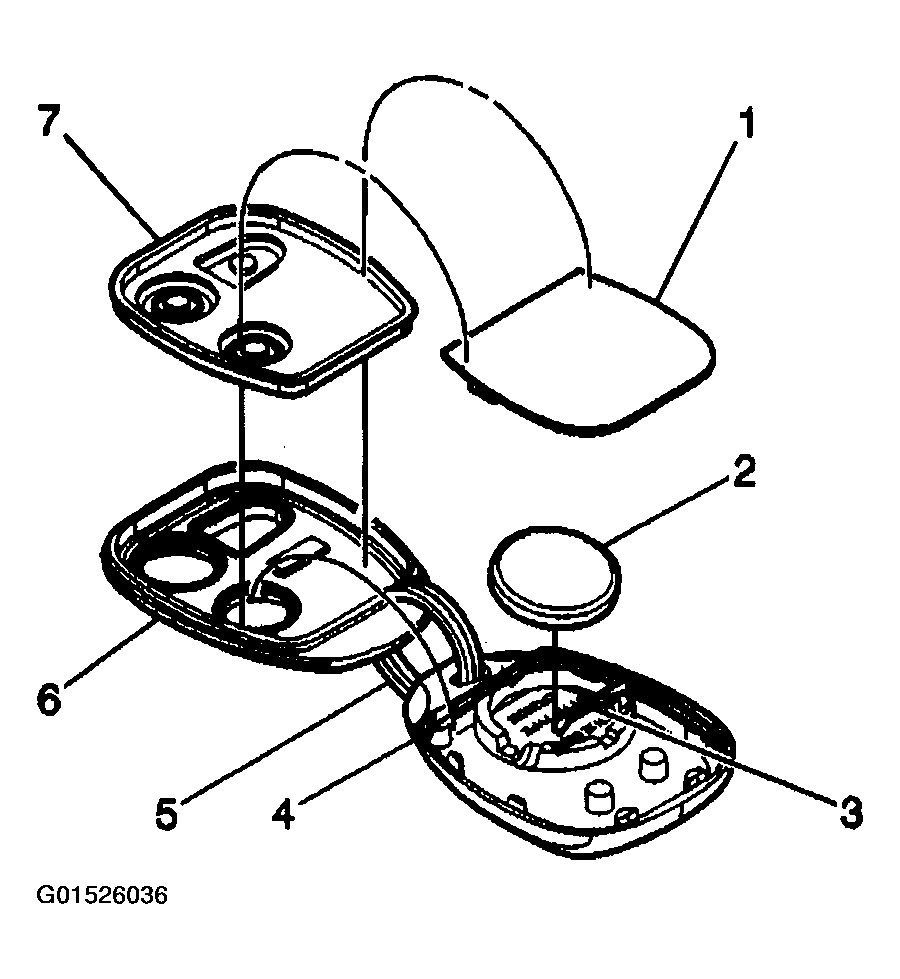

    Fig 1: Installing Transmitter Battery
    G01526036Courtesy of GENERAL MOTORS CORP.
  3. Ensure that the seal is in position. Align the 2 halves of the case and snap the 2 halves together.

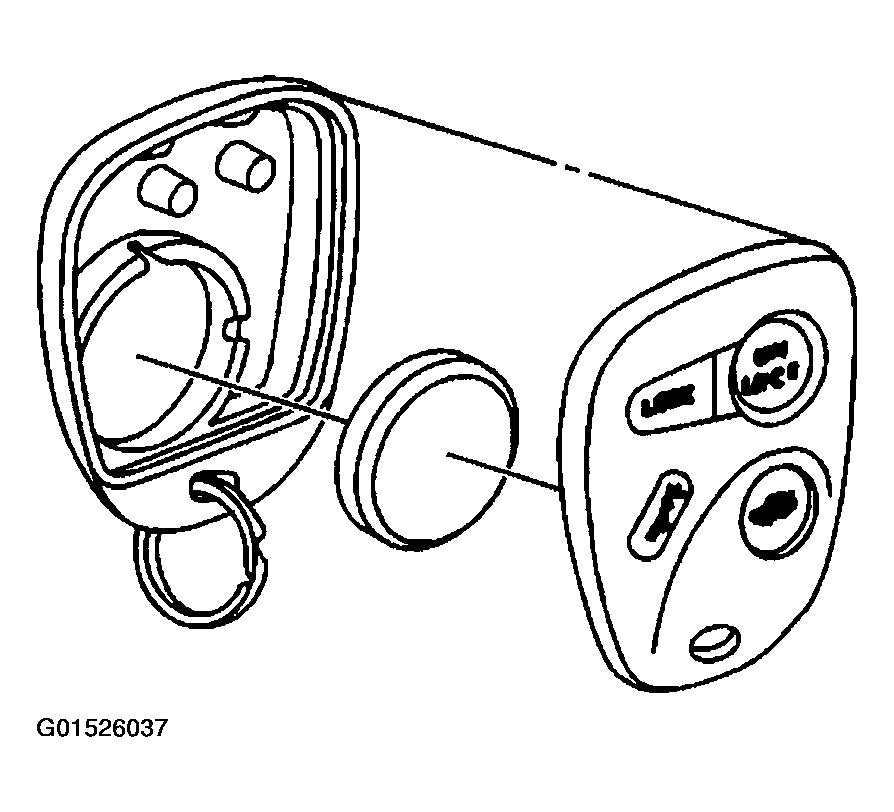

    Fig 2: Snapping Halves Together
    G01526037Courtesy of GENERAL MOTORS CORP.
  4. Resynchronize the transmitter.
  5. Replace the batteries when the range of the transmitter decreases to less than 7 m (23 ft).
