Power Door Systems Component Views

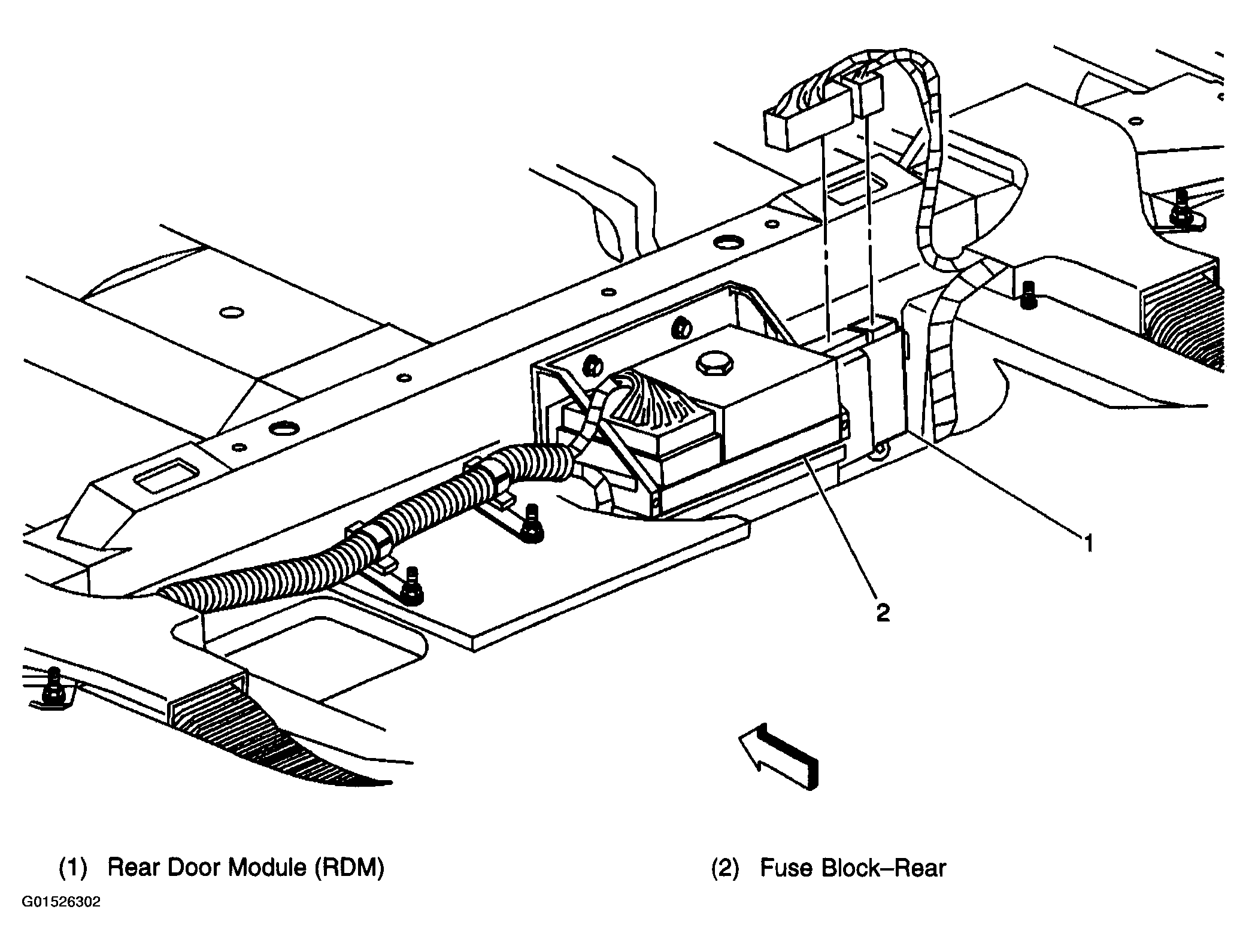

Fig 1: Under Rear Seat Component View
Courtesy of GENERAL MOTORS CORP.

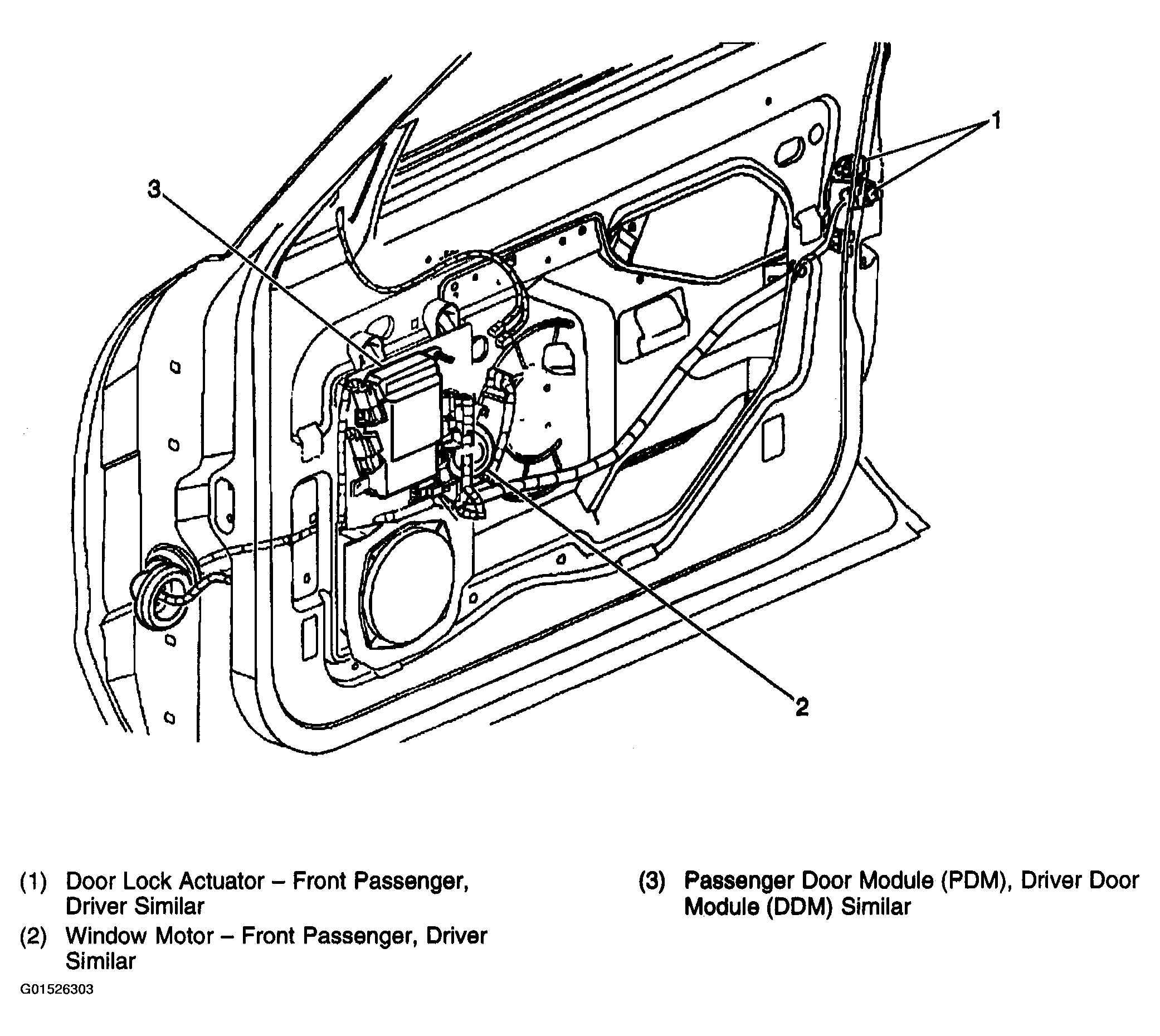

Fig 2: Behind Right Front Door Trim Component View
Courtesy of GENERAL MOTORS CORP.

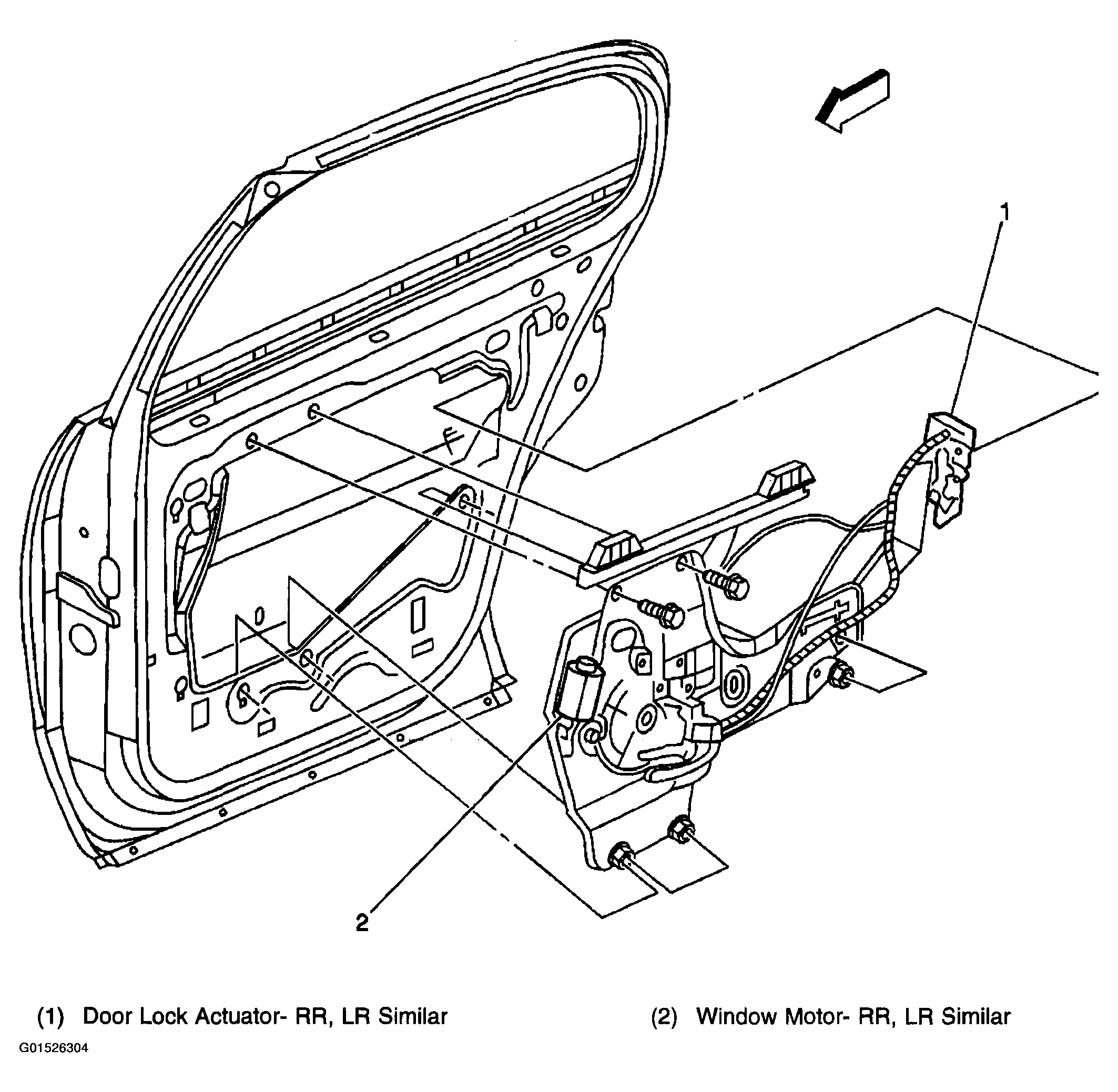

Fig 3: Right Rear Door Component View
Courtesy of GENERAL MOTORS CORP.

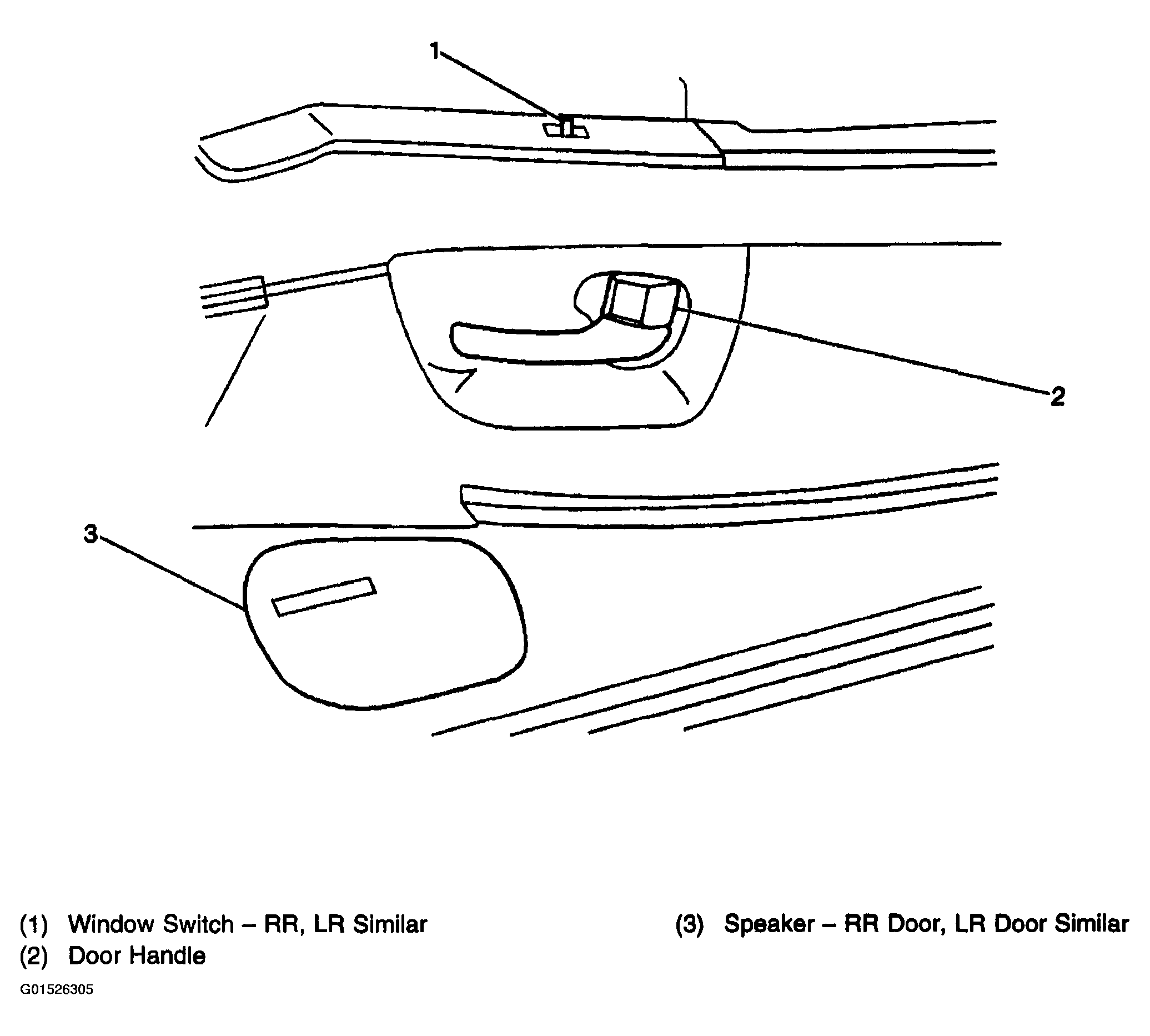

Fig 4: RR Door Component View
Courtesy of GENERAL MOTORS CORP.

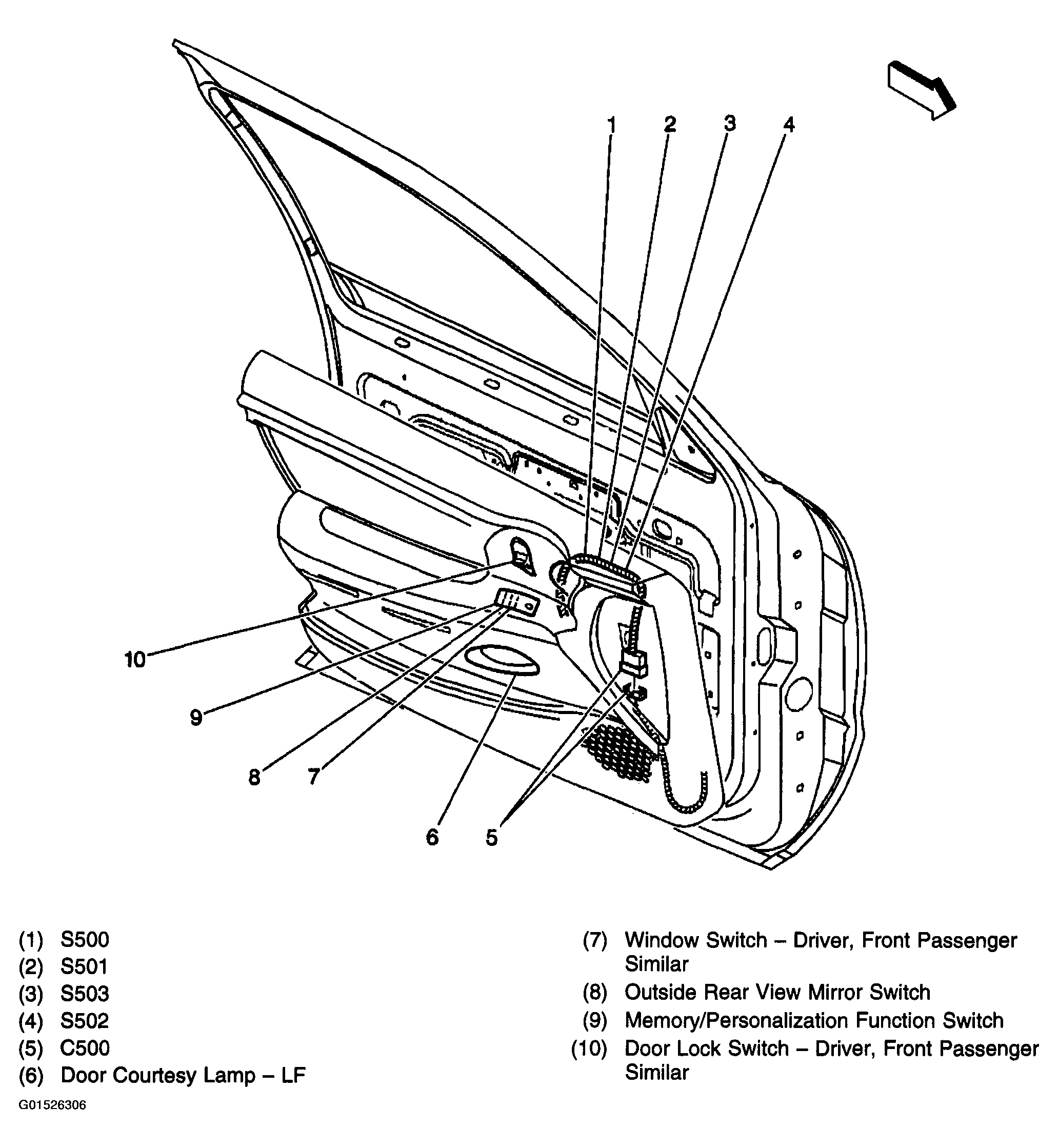

Fig 5: Left Front Door Component View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
