Removal Procedure

  1. Remove the door trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE FRONT DOOR  .
  2. Disconnect the electrical connectors.
  3. Remove the door control module fasteners.
  4. Remove the control module (1).

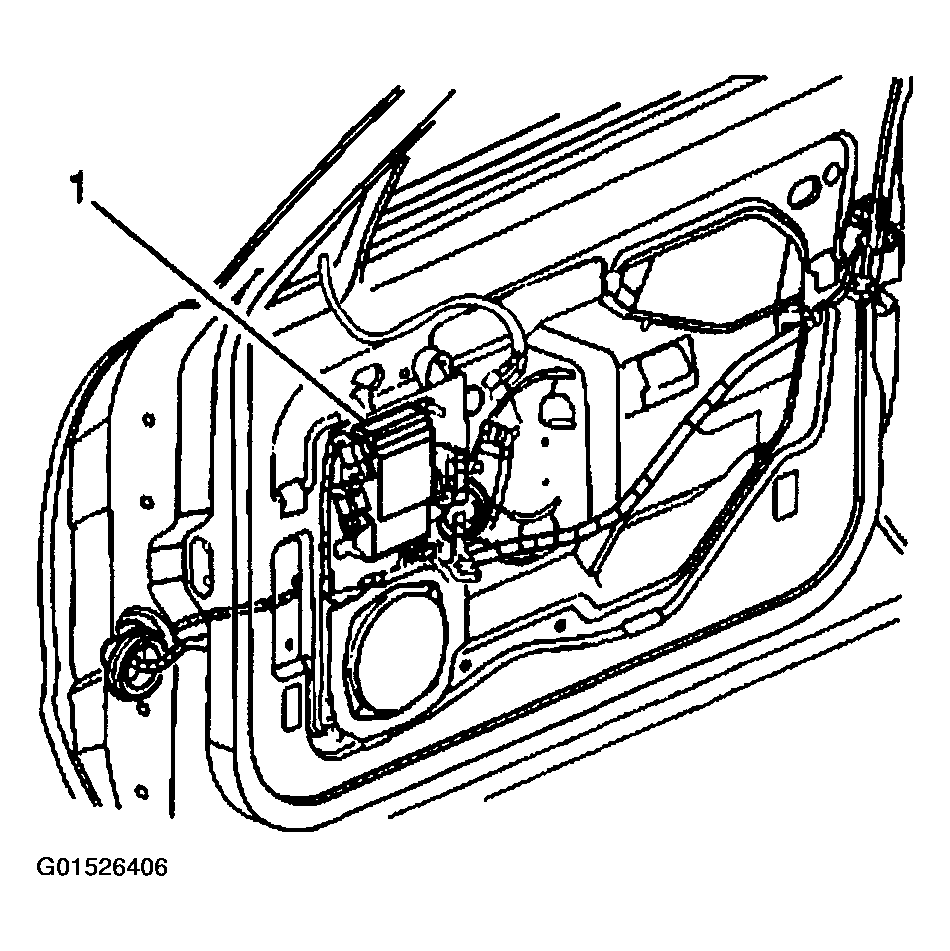

    Fig 1: Removing Control Module
    G01526406Courtesy of GENERAL MOTORS CORP.
