Removal Procedure

  1. Remove the rear seat cushion.
  2. Disconnect the electrical connectors to the rear door module (1).
  3. Remove the fasteners retaining the junction block to the rear floor.

    Set the junction block aside.

  4. Remove the fastener retaining the rear door module (1).
  5. Remove the module (1).

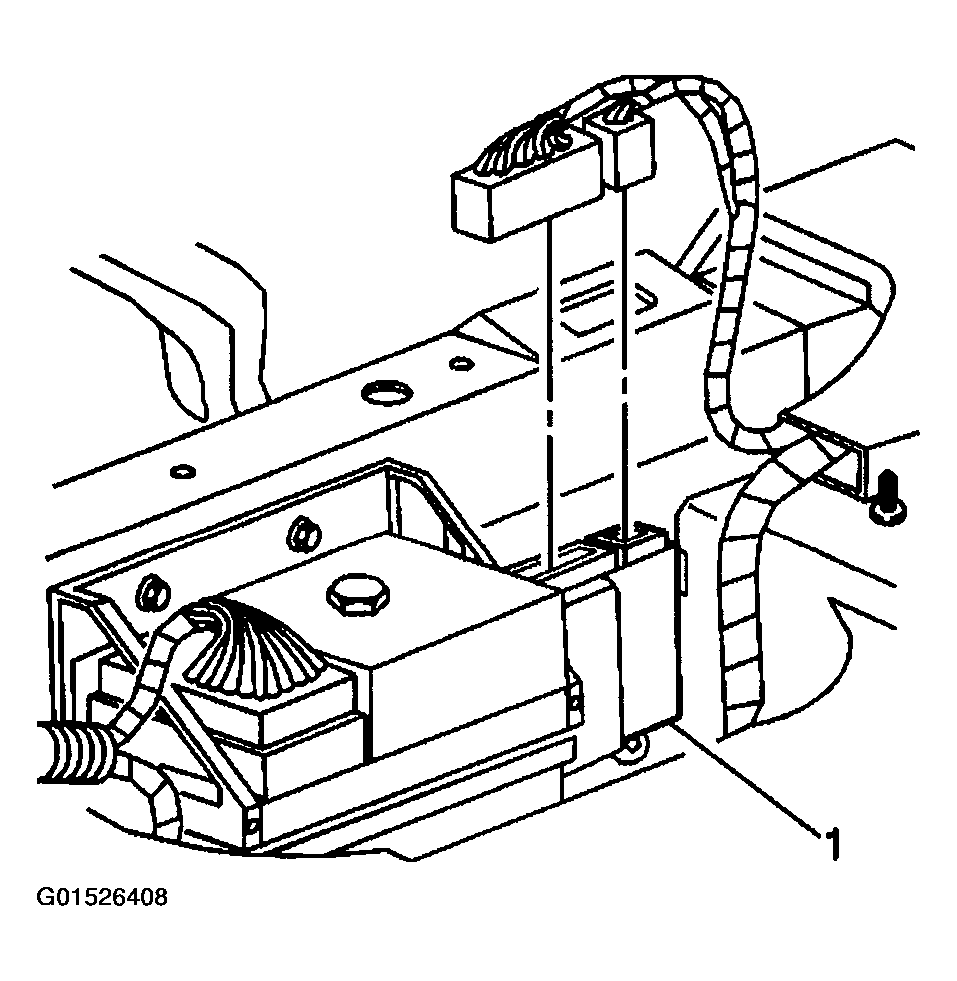

    Fig 1: Removing Rear Door Module
    G01526408Courtesy of GENERAL MOTORS CORP.
