Installation Procedure

  1. Install the lateral accelerometer sensor (3).

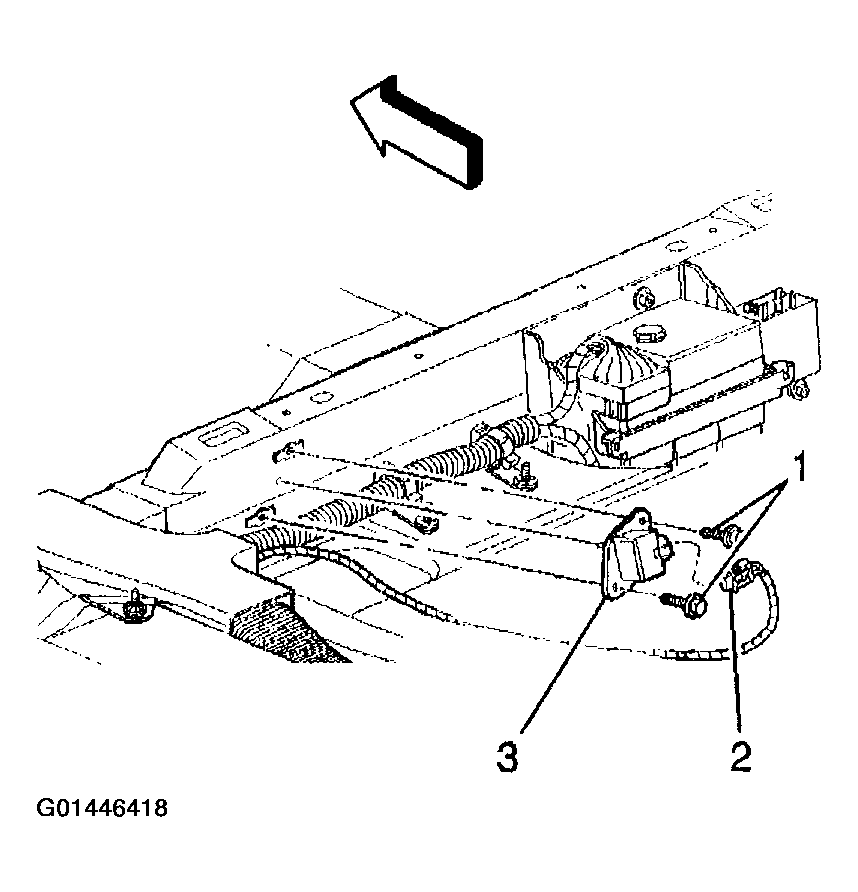

    Fig 1: Installing Lateral Accelerometer Sensor
    G01446418Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the 2 lateral accelerometer sensor mounting screws (1).

    Tighten

    Tighten the 2 lateral accelerometer sensor mounting screws to 2.4 N.m (21 lb in).

  3. Connect the lateral accelerometer sensor electrical connector (2).
  4. Install the rear seat cushion. Refer to SEAT CUSHION REPLACEMENT - REAR in Seats.
  5. Perform the ABS Diagnostic System Check. Refer to DIAGNOSTIC SYSTEM CHECK-ABS  .
