Installation Procedure

Install the child tether anchors to the vehicle.

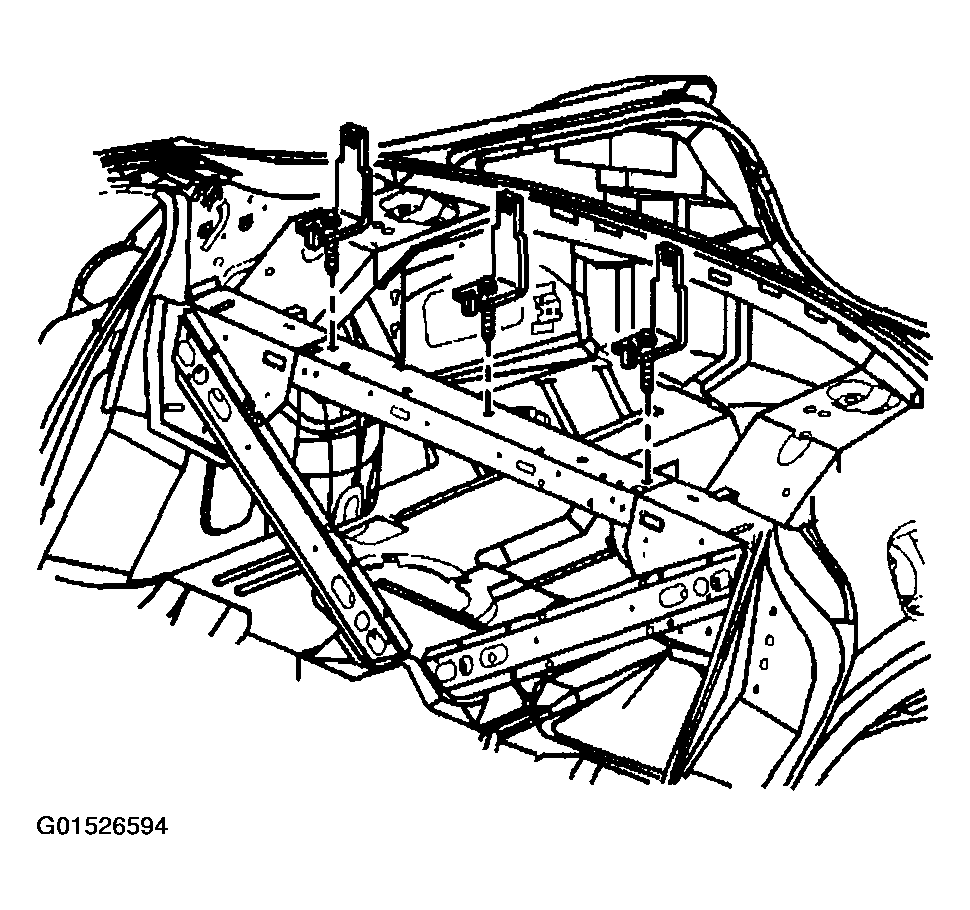

Fig 1: Installing Child Restraint Tether Anchor
Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to FASTENER NOTICE .
Install the child tether anchor fasteners.
Tighten

Tighten the fastener to 30 N.m (22 lb. ft).
Install the rear shelf trim panel. Refer to TRIM PANEL REPLACEMENT - REAR WINDOW SHELF in Interior Trim.
