Seat Temperature Control Module

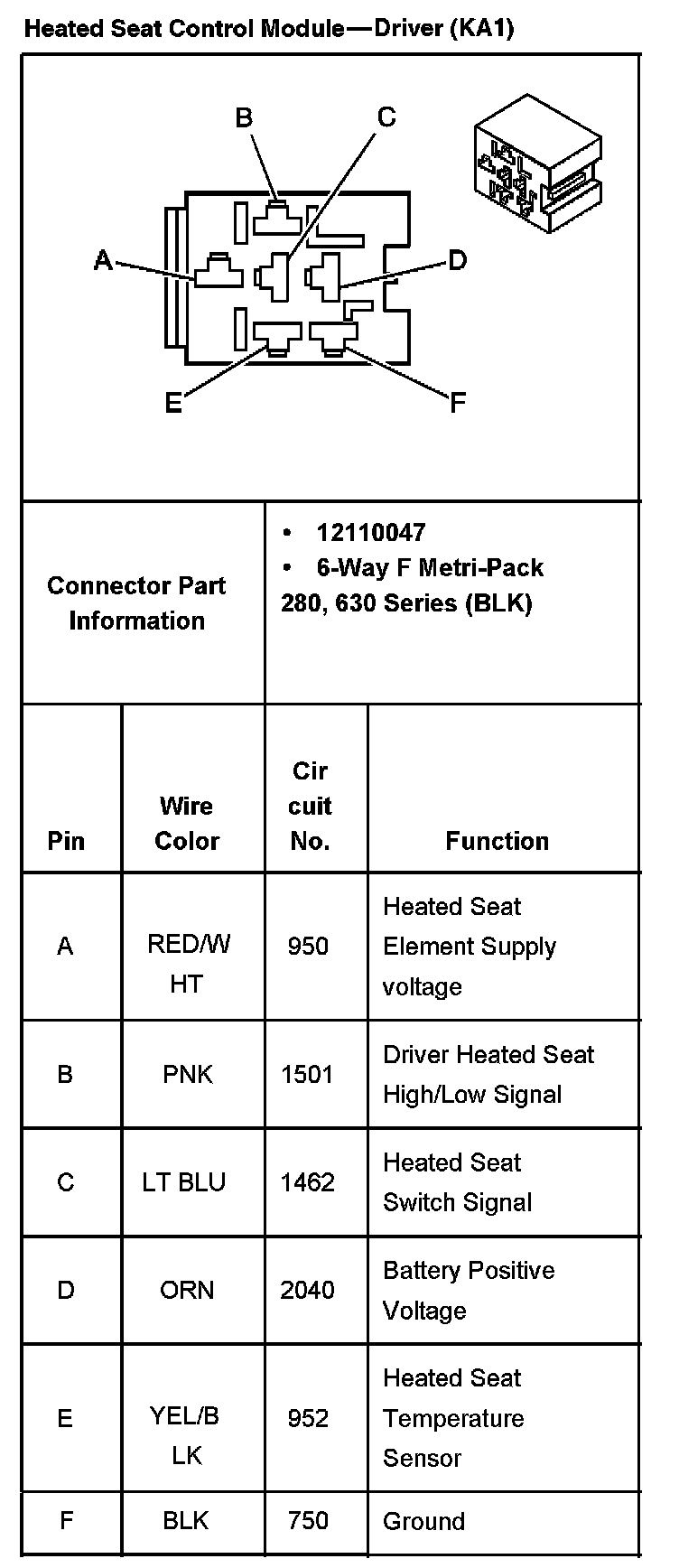

Heated Seat Control Module-Driver With RPO Code KA1:

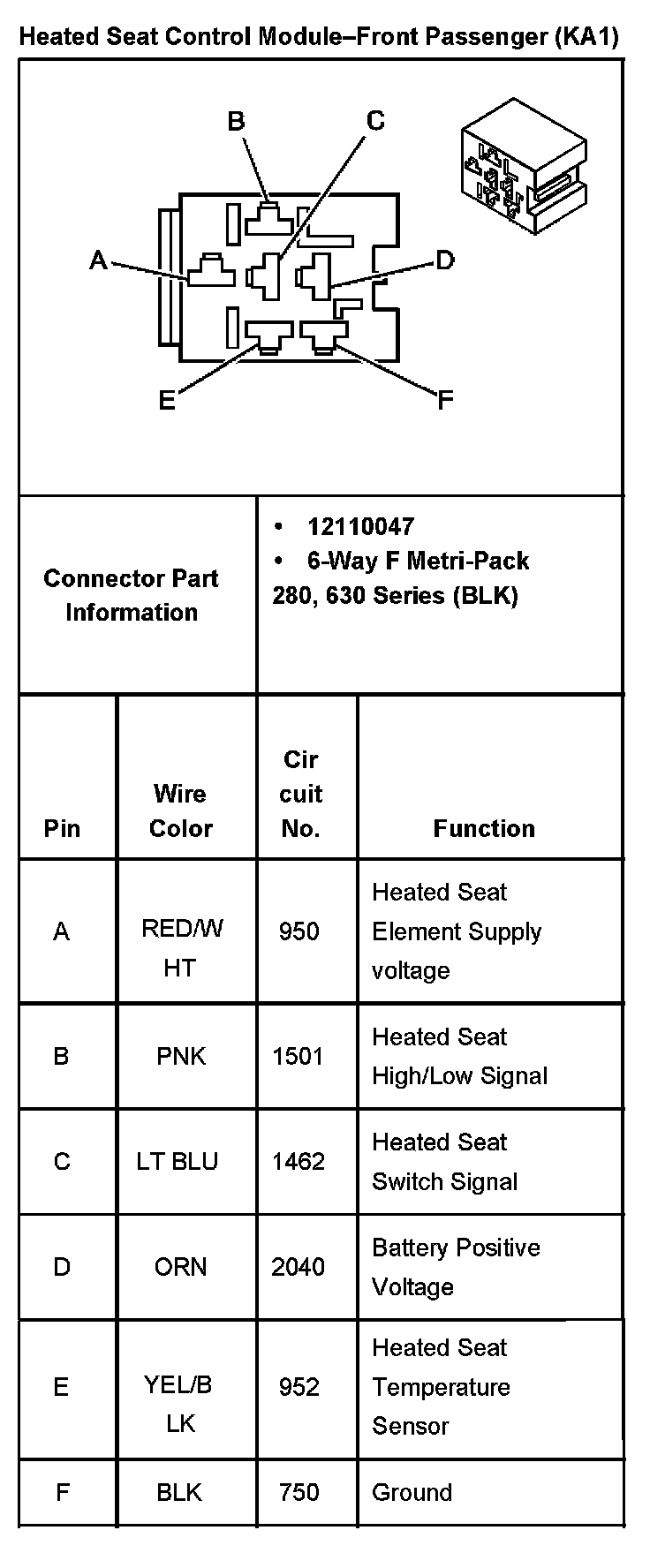

Heated Seat Control Module-Front Passenger With RPO Code KA1:
