ABS Component Views

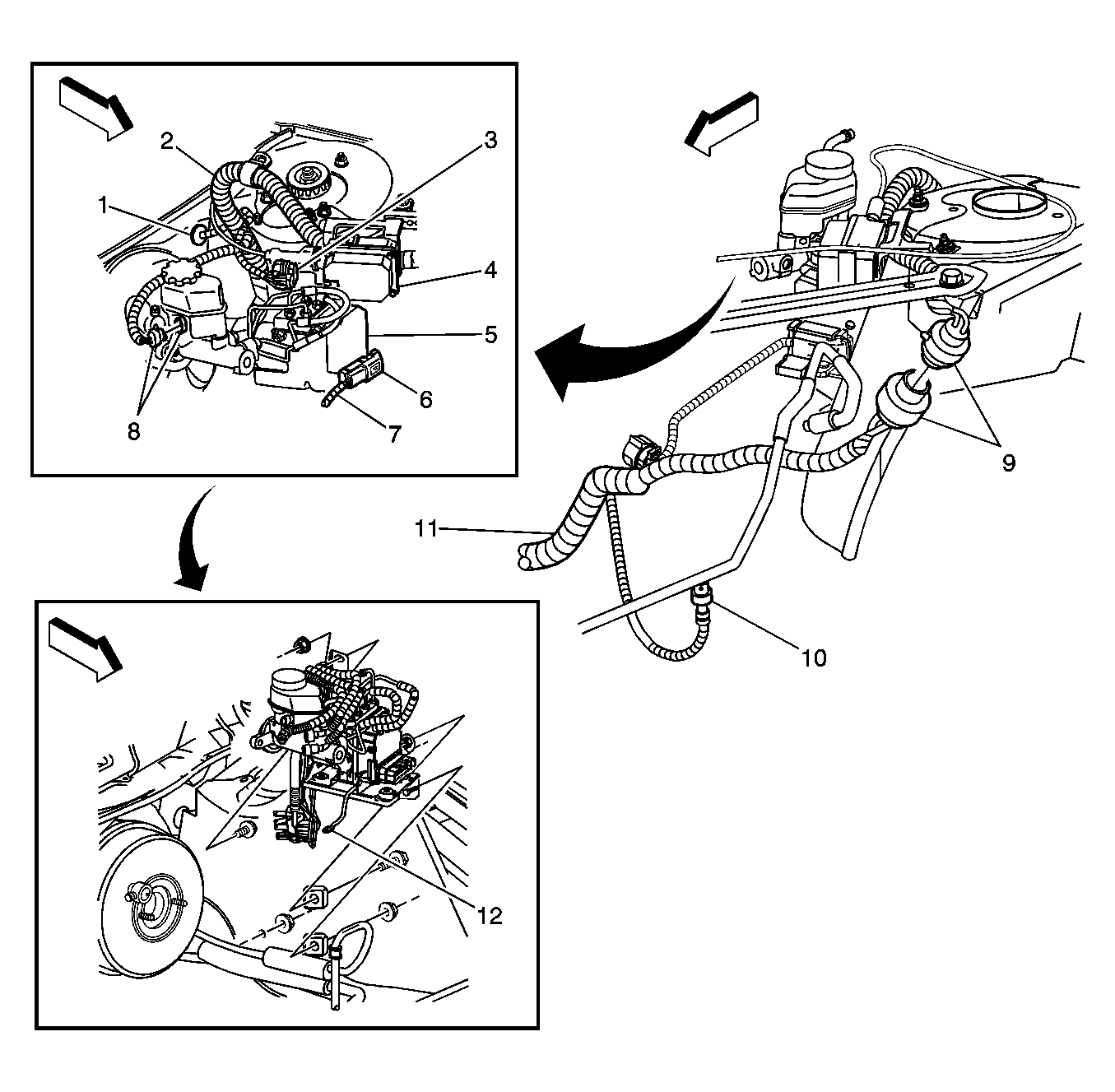

Fig 1: LR Of The Engine Compartment Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	P103
2	I/P Wiring Harness
3	Cruise Control Module (CCM) Connector
4	Cruise Control Module (CCM) (K34)
5	Electronic Brake Control Module (EBCM) (JL9/JM4)
6	Electronic Brake Control Module (EBCM) Connector (JL9/JM4)
7	Engine Wiring Harness
8	Brake Fluid Level Switch
9	C101
10	A/C Refrigerant Pressure Sensor
11	Engine Wiring Harness
12	G171 (JL9/JM4)

Fig 2: Center Console Component View (D06)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Heated Seat Switch - Driver (KA1)
2	Traction Control Switch (Regal)
3	Heated Seat Switch - Passenger (KA1)
4	Cigar Lighter
5	Auxiliary Power Outlet (Regal)
6	C240 (Regal)
7	I/P Wiring Harness

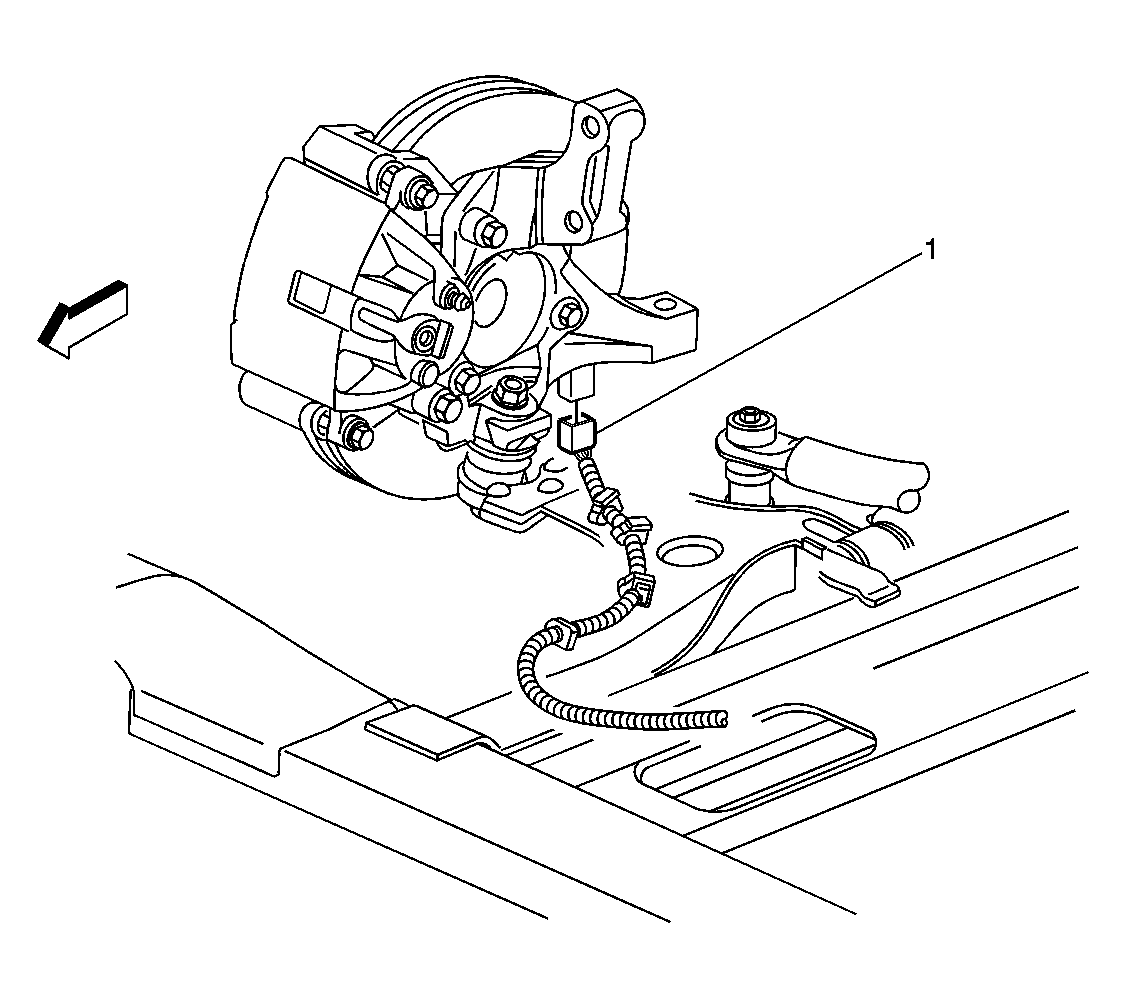

Fig 3: Wheel Speed Sensor Component View - RF (LF Similar)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Wheel Speed Sensor (WSS) - RF, LF Similar

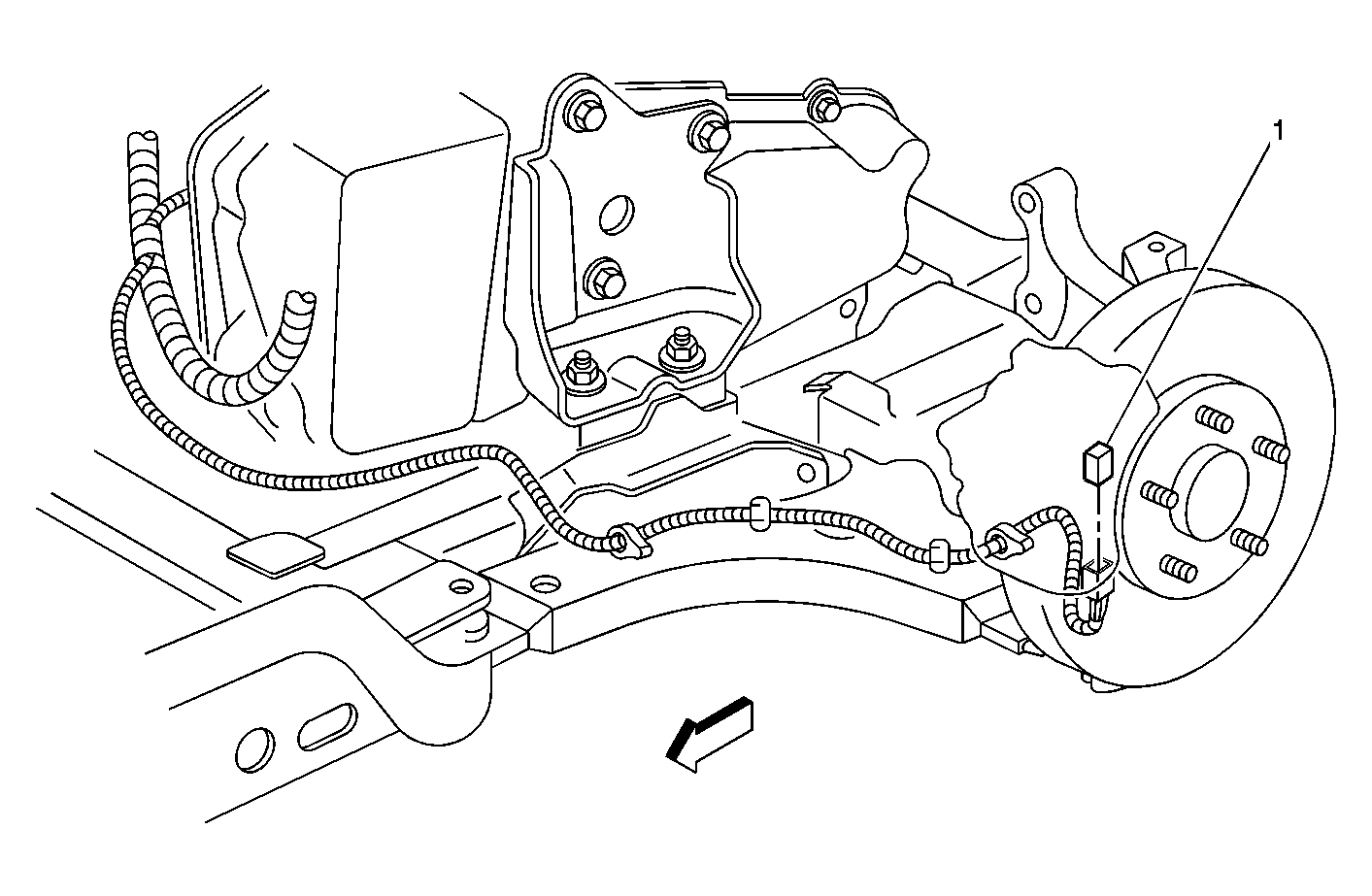

Fig 4: LR Suspension Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Wheel Speed Sensor (WSS) - LR Shown, RR Similar
