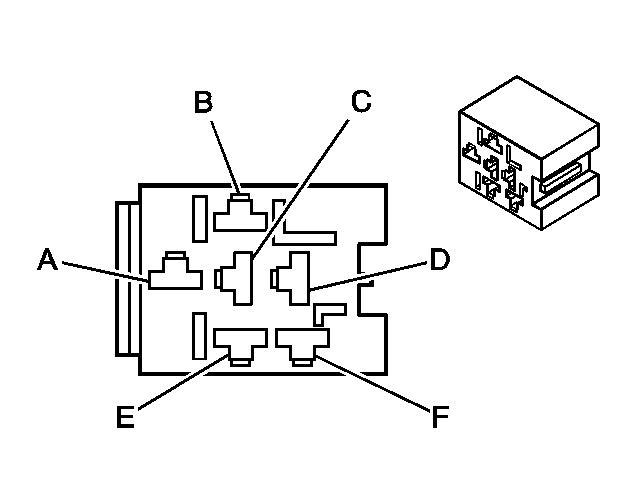

Heated Seat Control Module Connector End View - Driver (KA1)

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		12110047 6-Way F Metri-Pack 280, 630 Series (BLK)
Pin	Wire Color	Circuit No.	Function
A	RED/WHT	950	Heated Seat Element Supply voltage
B	PNK	1501	Driver Heated Seat High/Low Signal
C	LT BLU	1462	Heated Seat Switch Signal
D	ORN	2040	Battery Positive Voltage
E	YEL/BLK	952	Heated Seat Temperature Sensor
F	BLK	750	Ground
