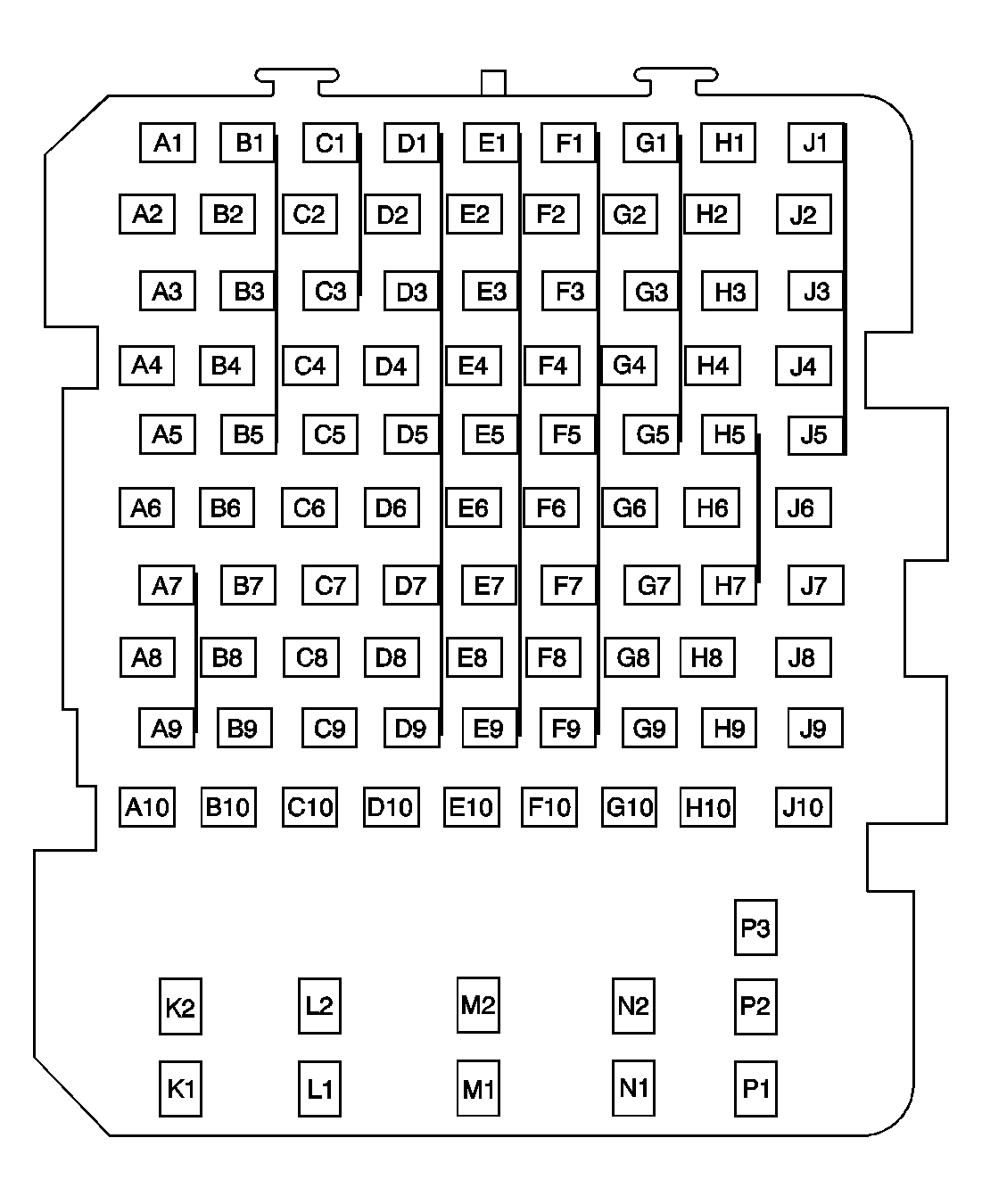

Fuse Block - I/P, Bottom View
Fuse Block - I/P, Wire Pinout
| Pin | Wire Color | Circuit No. | Function |
|---|---|---|---|
| A1-A2 | - | - | Not Used |
| A3 | YEL | 5 | Crank Voltage |
| A4 | PPL | 806 | Crank Voltage |
| A5-A7 | - | - | Not Used |
| A8 | PPL | 1500 | Ignition 0 Voltage |
| A9 | DK GRN | 500 | Ignition 0 Voltage |
| A10 | PPL | 1600 | Ignition 0 Voltage (Regal) |
| B1 | - | - | Not Used |
| B2 | BRN | 141 | Ignition 3 Voltage (CJ3) |
| B3 | ORN | 300 | Ignition 3 Voltage |
| B4 | BRN | 41 | Ignition 3 Voltage |
| B5 | - | - | Not Used |
| B6 | BRN | 341 | Ignition 3 Voltage |
| B7-B10 | - | - | Not Used |
| C1 | - | - | Not Used |
| C2 | PNK | 1339 | Ignition 1 Voltage |
| C3 | PNK | 3 | Ignition 1 Voltage |
| C4 | PNK | 1439 | Ignition 1 Voltage |
| PNK | 1439 | Ignition 1 Voltage | |
| C5-C10 | - | - | Not Used |
| D1 | - | - | Not Used |
| D2 | PNK | 539 | Ignition 1 Voltage |
| D3 | - | - | Not Used |
| D4 | YEL | 1139 | Ignition 1 Voltage |
| D5 | PNK | 3 | Ignition 1 Voltage |
| D6 | PNK | 39 | Ignition 1 Voltage |
| D7-D9 | - | - | Not Used |
| D10 | PNK | 439 | Ignition 1 Voltage |
| E1 | - | - | Not Used |
| E2 | ORN | 640 | Battery Positive Voltage |
| E3 | - | - | Not Used |
| E4 | ORN | 2340 | Battery Positive Voltage |
| E5 | - | - | Not Used |
| E6 | ORN | 2540 | Battery Positive Voltage |
| E7 | RED | 242 | Battery Positive Voltage |
| E8 | ORN | 240 | Battery Positive Voltage |
| ORN | 240 | Battery Positive Voltage (RAP) | |
| E9 | - | - | Not Used |
| E10 | ORN | 2940 | Battery Positive Voltage (U85, UQ3/UX7 w/UK3)) |
| F1 | - | - | Not Used |
| F2 | ORN | 40 | Battery Positive Voltage |
| F3 | - | - | Not Used |
| F4 | ORN | 1840 | Battery Positive Voltage |
| F5 | - | - | Not Used |
| F6 | ORN | 140 | Battery Positive Voltage |
| F7 | RED | 642 | Battery Positive Voltage |
| F8 | ORN | 1540 | Battery Positive Voltage |
| F9 | - | - | Not Used |
| F10 | ORN | 1140 | Battery Positive Voltage |
| G1 | - | - | Not Used |
| G2 | ORN | 1940 | Battery Positive Voltage (Regal) |
| G3 | RED | 742 | Battery Positive Voltage (Regal) |
| G4 | ORN | 1440 | Battery Positive Voltage (Regal) |
| G5 | RED | 742 | Battery Positive Voltage (Century) |
| G6 | ORN | 1240 | Battery Positive Voltage |
| G7-G10 | - | - | Not Used |
| H1 | GRY | 8 | Instrument Panel Lamps Dimmer Switch Signal (UK3) |
| H2 | GRY/BLK | 1458 | Instrument Panel Lamp Supply Voltage 4 (UK3) |
| H3-H5 | - | - | Not Used |
| H6 | BRN | 9 | Park Lamp Supply Voltage |
| H7 | LT BLU | 74 | Park Lamp Switch Signal |
| LT BLU | 74 | Park Lamp Switch Signal | |
| H8 | BRN/WHT | 301 | Rear Park Lamps Supply Voltage |
| H9 | BRN/WHT | 301 | Rear Park Lamps Supply Voltage |
| H10 | YEL | 32 | Park Lamps Supply Voltage |
| J1 | - | - | Not Used |
| J2 | YEL | 243 | Accessory Voltage |
| J3 | BRN | 4 | Accessory Voltage |
| J4 | YEL | 443 | Accessory Voltage |
| J5 - J10 | - | - | Not Used |
| K1 | BLK | 1550 | Ground |
| K2 | LT GRN | 1055 | Low Tire Pressure Reset Switch Signal |
| L1 | BRN | 4 | Accessory Voltage (w/o RAP) |
| L1 | DK BLU | 75 | RAP Relay Switch Supply Voltage (RAP) |
| L2 | YEL | 143 | Accessory Voltage |
| M1 | RED | 742 | Battery Positive Voltage |
| M2 | ORN | 1040 | Battery Positive Voltage |
| N1 | RED | 742 | Battery Positive Voltage |
| N2 | ORN | 340 | Battery Positive Voltage |
| P1-P3 | - | - | Not Used |
