Power and Grounding Component Views

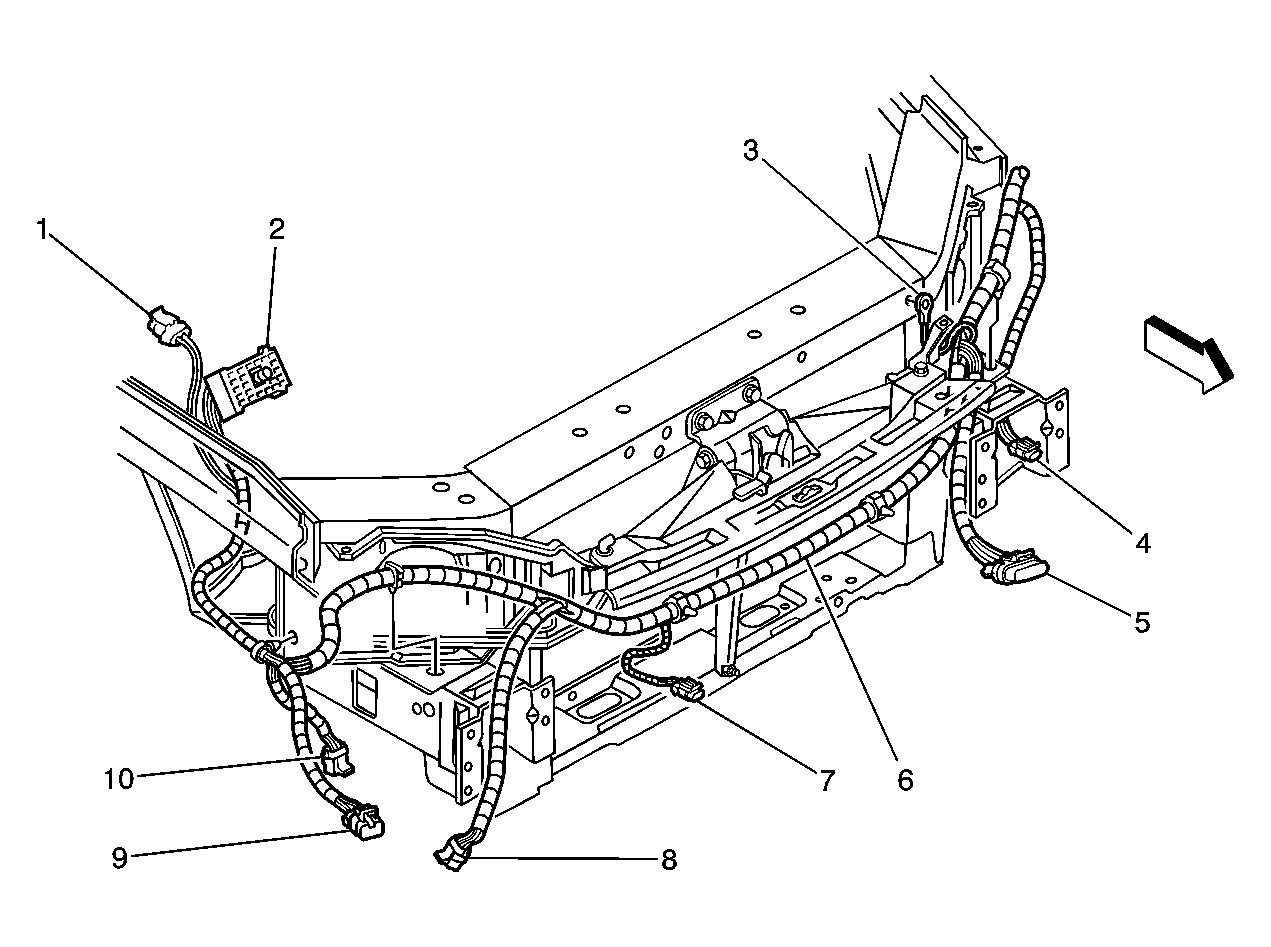

Fig 1: Front Of Vehicle Component View
GM1340766Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 C120
2 Fuse Block - Underhood, C3
3 G101
4 Fog Lamp - LF Connector (Regal)
5 C106
6 Forward Lamp Wiring Harness
7 Ambient Outside Air Temperature Sensor Connector (CJ2)
8 Fog Lamp - RF Connector (Regal)
9 C107
10 C103
Fig 2: Battery Cable And Grounding Point Component View
GM581299Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Battery
2 Fuse Block-Underhood
3 G100

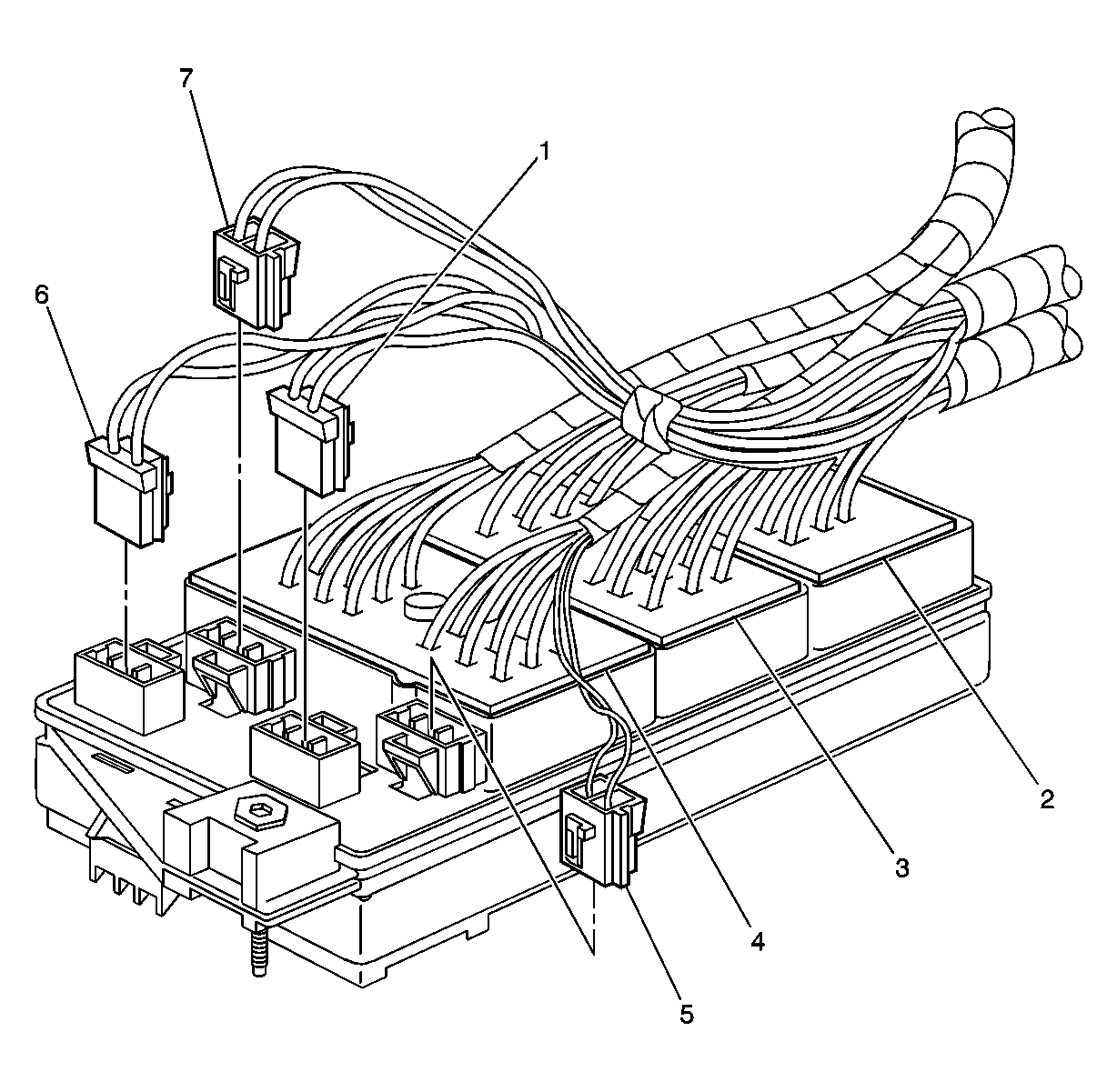

Fig 3: Underhood Accessory Wiring Junction Block Component View
GM399300Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Underhood Accessory Wiring Junction, C6
2 Underhood Accessory Wiring Junction Block, C3 (Forward Lamp)
3 Underhood Accessory Wiring Junction Block, C2 (Instrument Panel)
4 Underhood Accessory Wiring Junction Block, C1 (Engine)
5 Underhood Accessory Wiring Junction Block, C7
6 Underhood Accessory Wiring Junction Block, C5
7 Underhood Accessory Wiring Junction Block, C4
Fig 4: Lower Front Of The Engine Components Component View (L36)
GM1364274Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Starter Solenoid B Terminal
2 Fusible Link from Generator
3 G113
4 Battery Cable Wiring Harness
5 Engine Wiring Harness
6 Starter Solenoid S Terminal
7 Engine Oil Level Sensor
8 Knock Sensor (KS) 1
9 Starter
Fig 5: Lower Front Of The Engine Components (L67)
GM1364339Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Starter Solenoid B Terminal
2 Fusible Link from Generator
3 G113
4 Battery Cable Wiring Harness
5 Engine Wiring Harness
6 Starter Solenoid S Terminal
7 Engine Oil Level Sensor
8 Knock Sensor (KS) 1
Fig 6: RF Of The Engine Compartment Component View (L36/L67)
GM1043757Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Camshaft Position (CMP) Sensor
2 Ignition Control Module (ICM) Wiring Harness
3 C110
4 Ignition Control Module (ICM)
5 Ignition Coils
6 G111
7 Ignition Control Module (ICM) Wiring Harness
8 Ignition Control Module (ICM) Wiring Harness
9 Crankshaft Position (CKP) Sensor

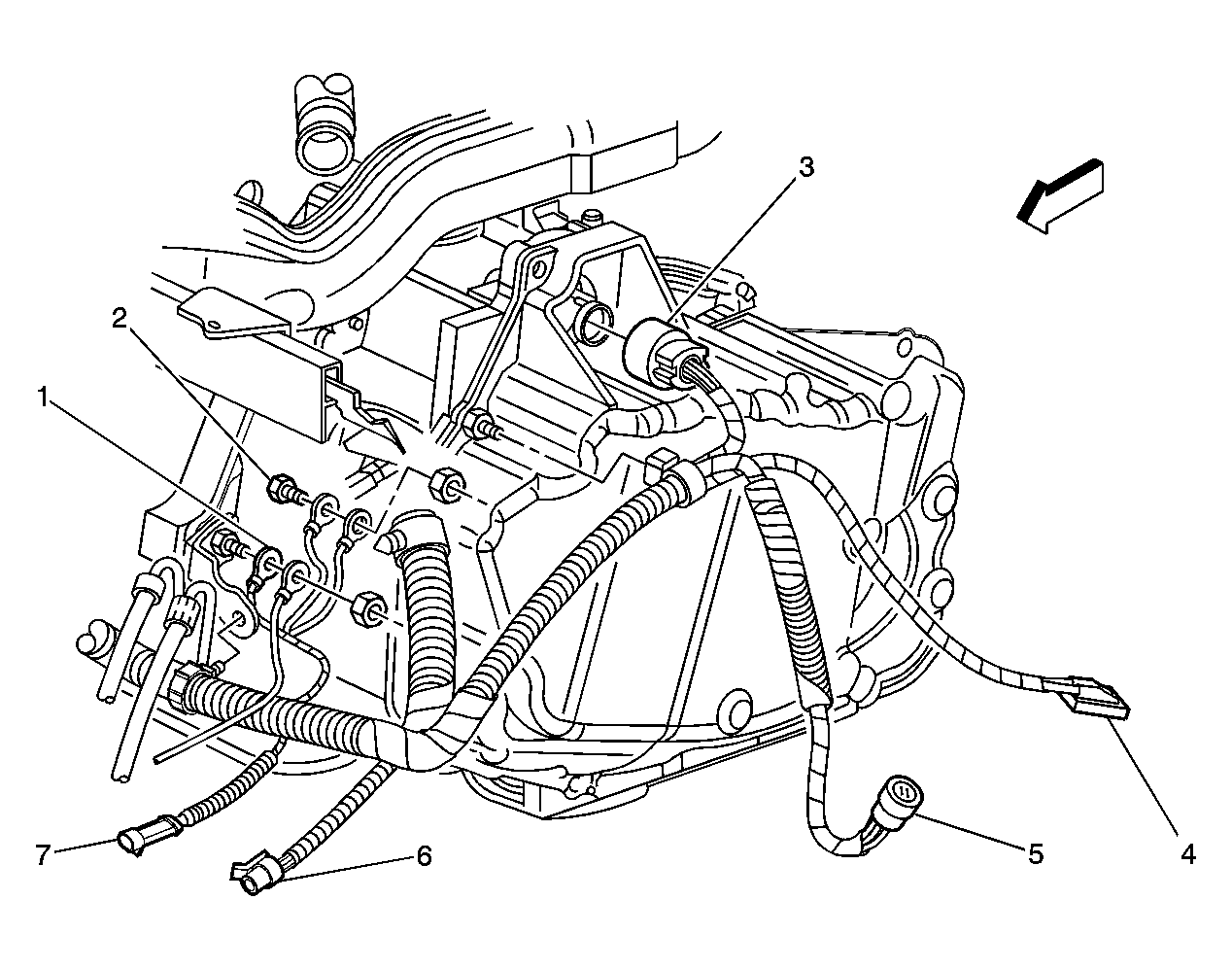

Fig 7: Left Side Of Engine Compartment Component View (LG8)
GM849492Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 G111
2 G113
3 C113
4 Electronic Brake Control Module (EBCM) Connector (JL9/JM4)
5 C101
6 A/C Refrigerant Pressure Sensor Connector
7 Wheel Speed Sensor (WSS) - LF (JL9/JM4)
Fig 8: LR Of The Engine Compartment Component View
GM1095521Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 P103
2 I/P Wiring Harness
3 Cruise Control Module (CCM) Connector
4 Cruise Control Module (CCM) (K34)
5 Electronic Brake Control Module (EBCM) (JL9/JM4)
6 Electronic Brake Control Module (EBCM) Connector (JL9/JM4)
7 Engine Wiring Harness
8 Brake Fluid Level Switch
9 C101
10 A/C Refrigerant Pressure Sensor
11 Engine Wiring Harness
12 G171 (JL9/JM4)
Fig 9: Steering Column Component View
GM903673Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Turn Signal/Multifunction Switch
2 Ignition Lock Cylinder Control Actuator (Regal)
3 Ignition Switch
4 Ignition Lock Cylinder
5 Steering Column
Fig 10: Upper Left Of Instrument Panel Component View
GM1323986Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Ambient Light Sensor
2 Sun Load Sensor (CJ2)
3 G203
Fig 11: Right Side Of The I/P Component View - Front
GM1250639Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 C200
2 G200
3 Fuse Block - I/P
4 I/P Wiring Harness
5 C290
6 Body Wiring Harness
7 C200

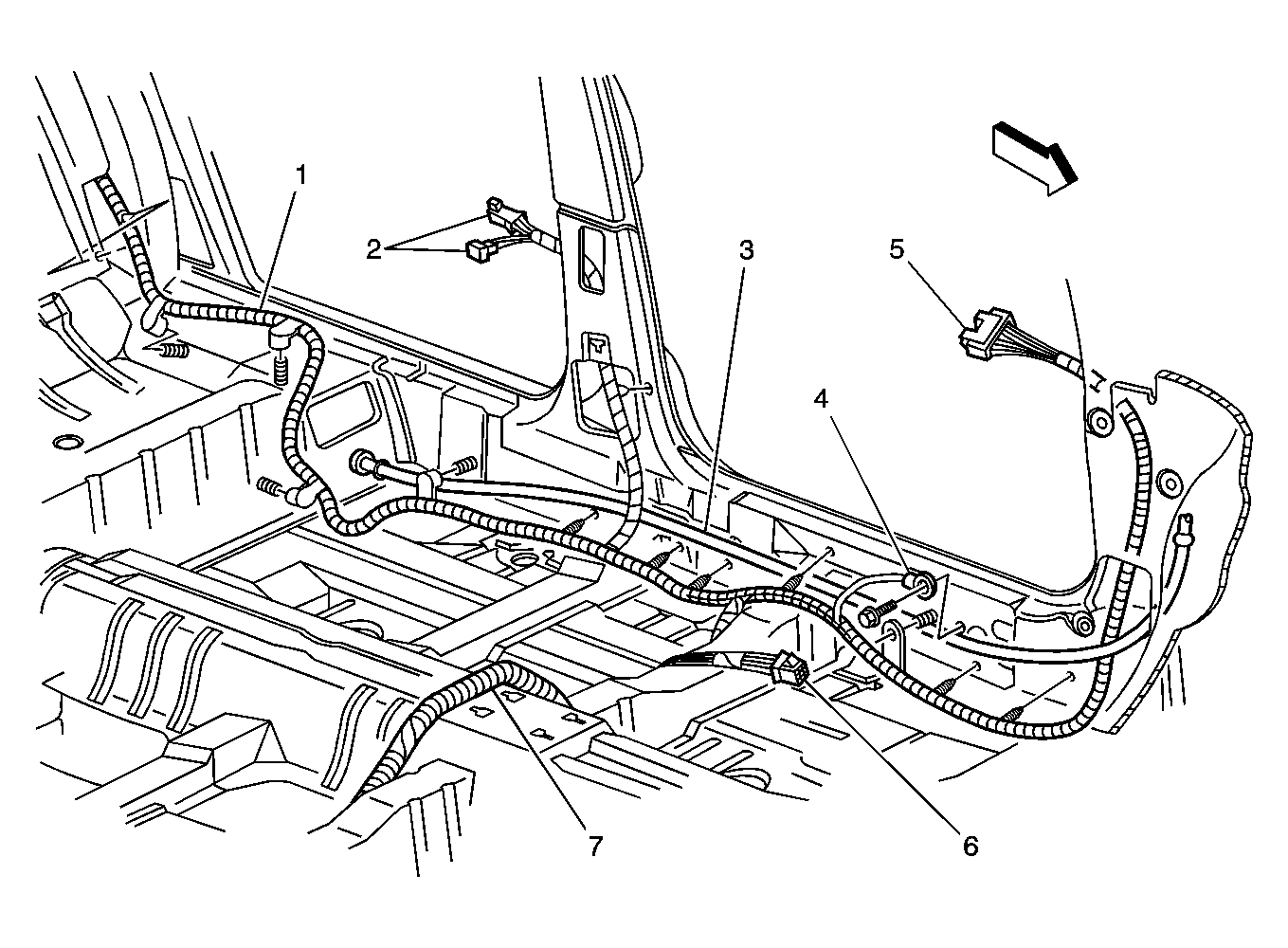

Fig 12: Left Side Of The Passenger Compartment Component View
GM1340808Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Body Wiring Harness
2 C351
3 Park Brake Cable
4 G301
5 C301
6 C311
7 Body Wiring Harness

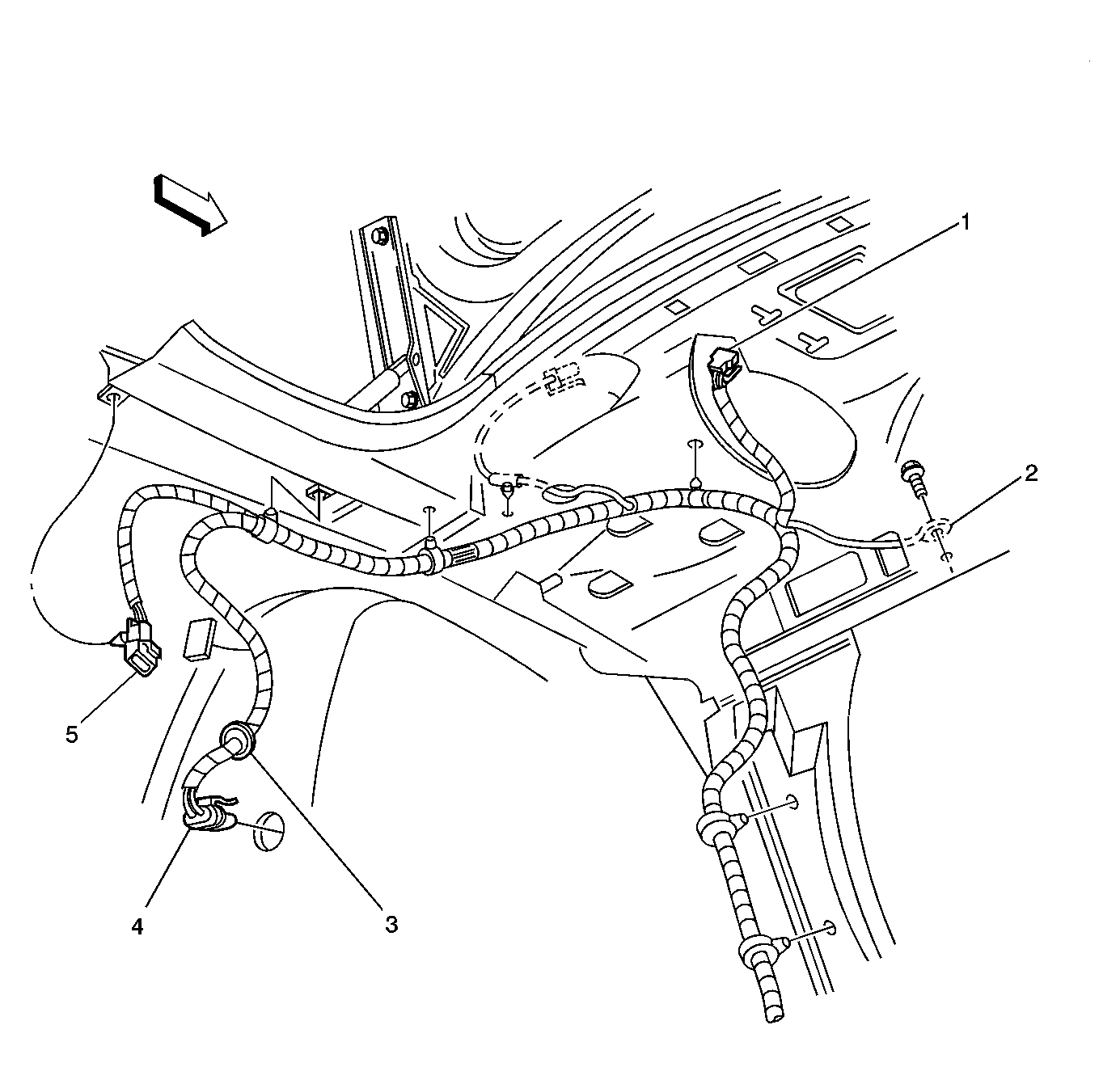

Fig 13: Left Side Of Rear Compartment Component View
GM1367423Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Speaker - RR Connector
2 G401
3 P425
4 Evaporative Emissions (EVAP) Canister Vent Solenoid Connector
5 C402
