Range Selector Displays Incorrect Range: Notes

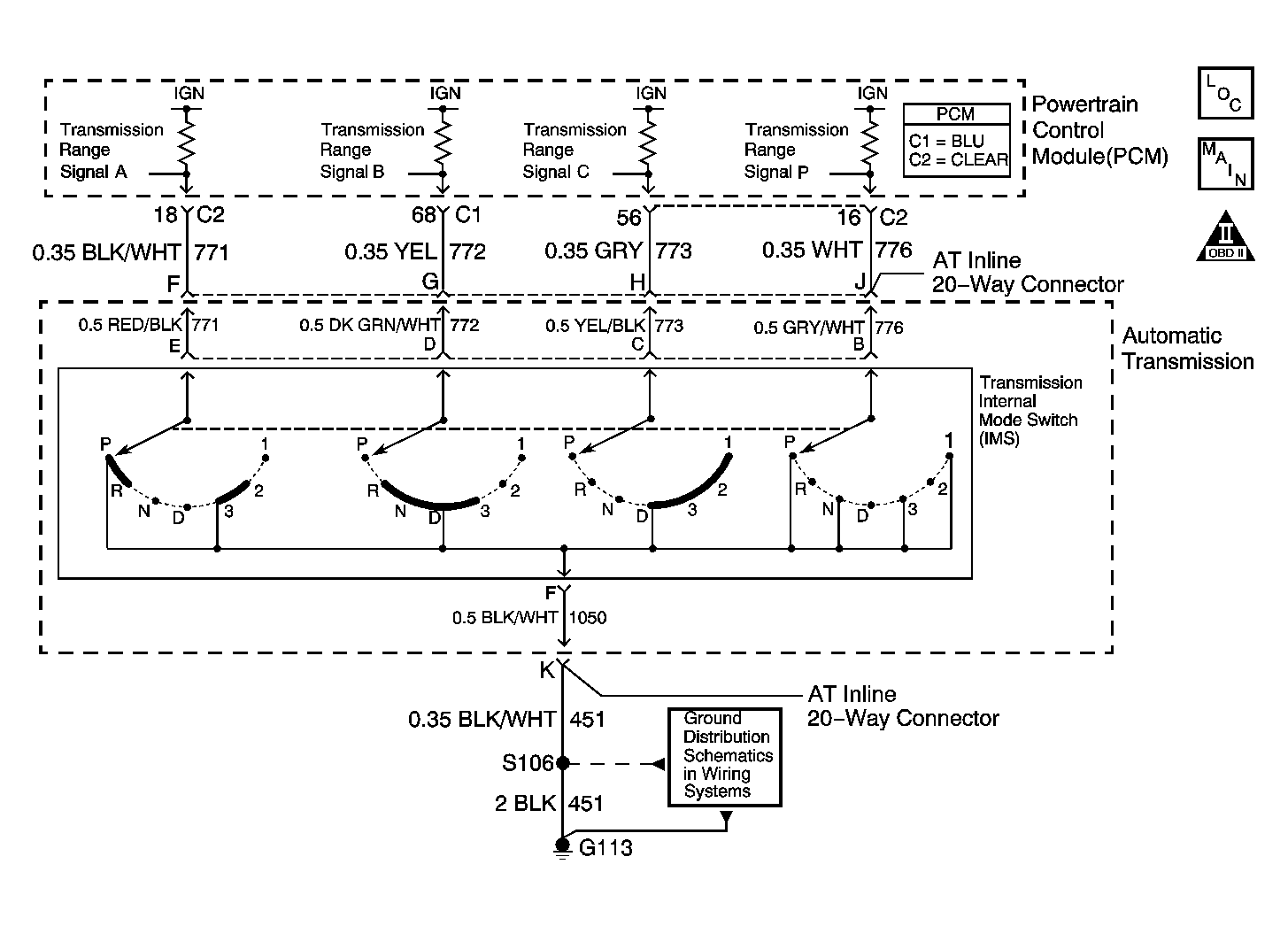

Fig 1: Transmission Internal Mode Switch (IMS) Circuit
GM1221571Courtesy of GENERAL MOTORS CORP.
