Removal Procedure

  1. Remove the door trim panel. Refer to Trim Panel Replacement - Side Front Door  or Trim Panel Replacement - Side Rear Door .
  2. Disconnect the electrical connectors.
  3. Remove the door control module fasteners.

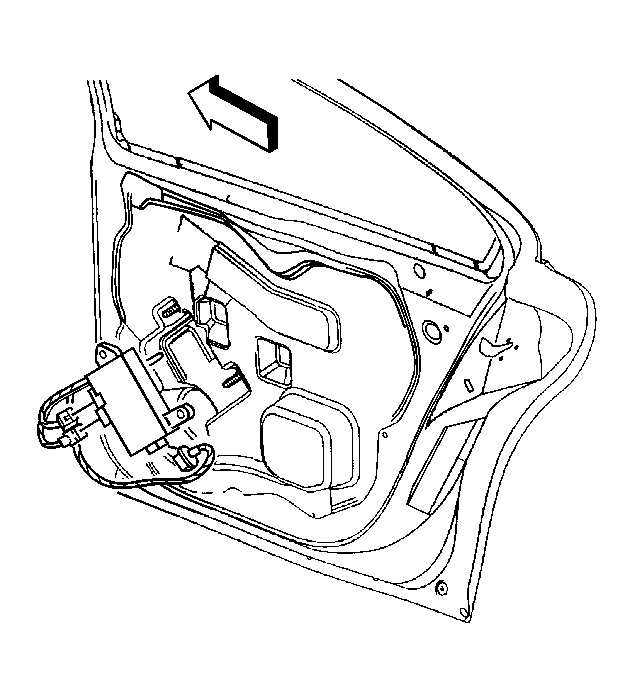

    Fig 1: View of Door Control Module and Door Trim Panel
    GM428695Courtesy of GENERAL MOTORS CORP.
  4. Remove the door control module.
