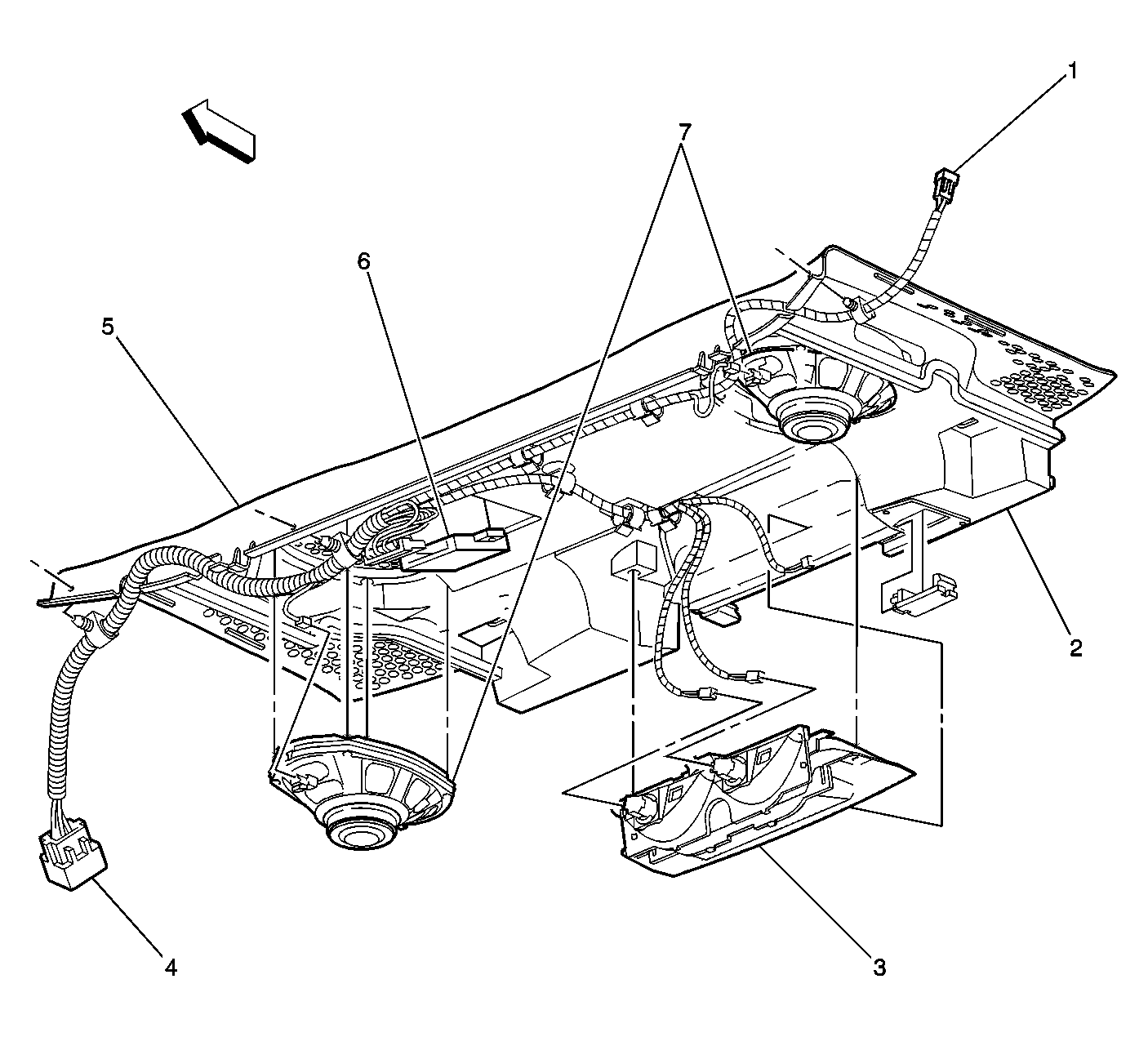

Keyless Entry Component Views
Courtesy of GENERAL MOTORS CORP. Identifying Callouts For Fig. 3
| Callout |
Component Name |
| 1 |
C402 |
| 2 |
Rear Compartment Lamp |
| 3 |
Center High Mount Stop Lamp (CHMSL) |
| 4 |
C310 |
| 5 |
Rear Shelf Trim Panel |
| 6 |
Remote Control Door Lock Receiver (RCDLR) |
| 7 |
Speakers - LR and RR |
