Power Door Systems Component Views

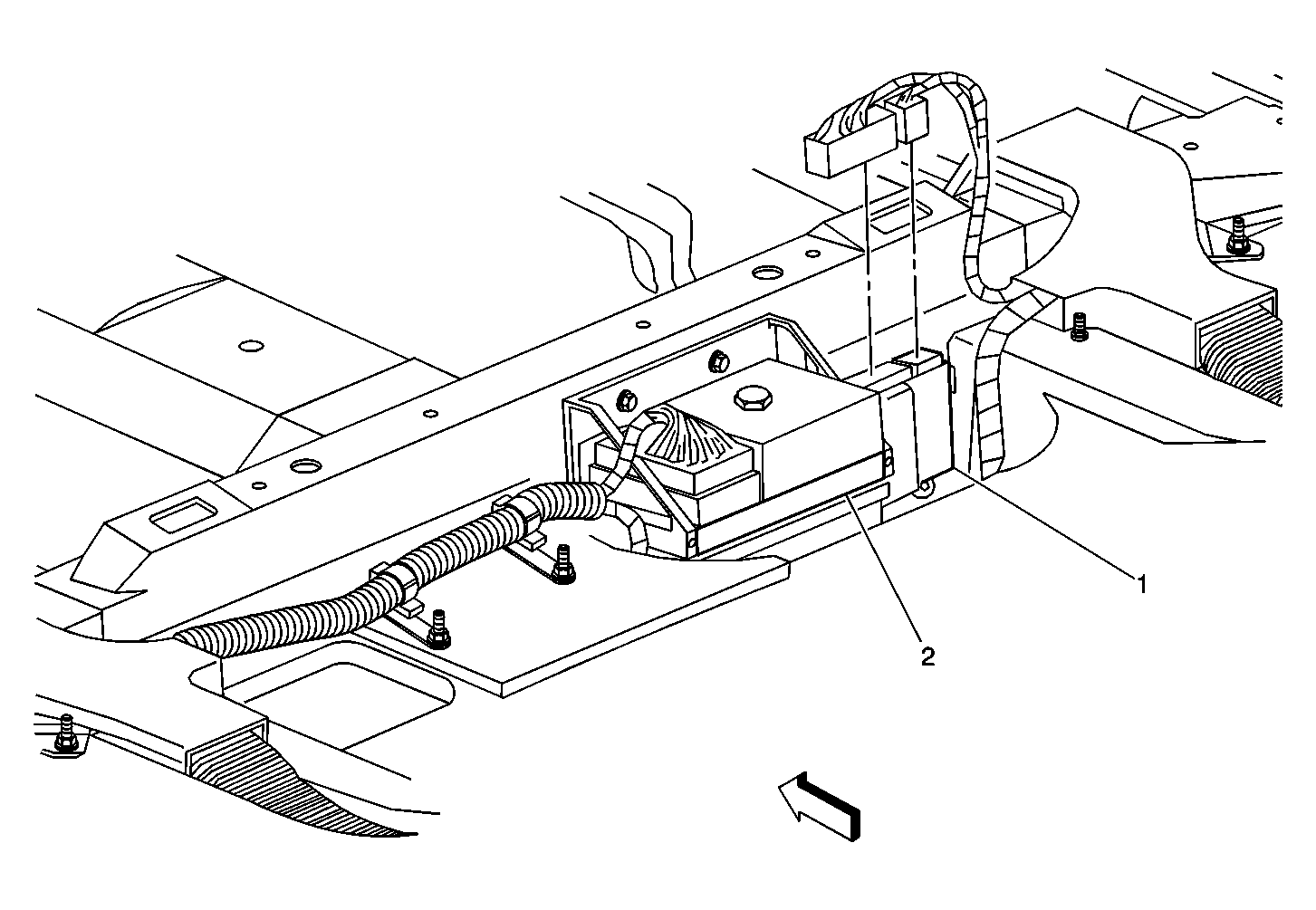

Fig 1: Locating Rear Door Module & Fuse Block (Under Rear Seat)

Courtesy of GENERAL MOTORS CORP.

Identifying Callouts For Fig. 14

Callout	Component Name
1	Rear Door Module (RDM)
2	Fuse Block - Rear

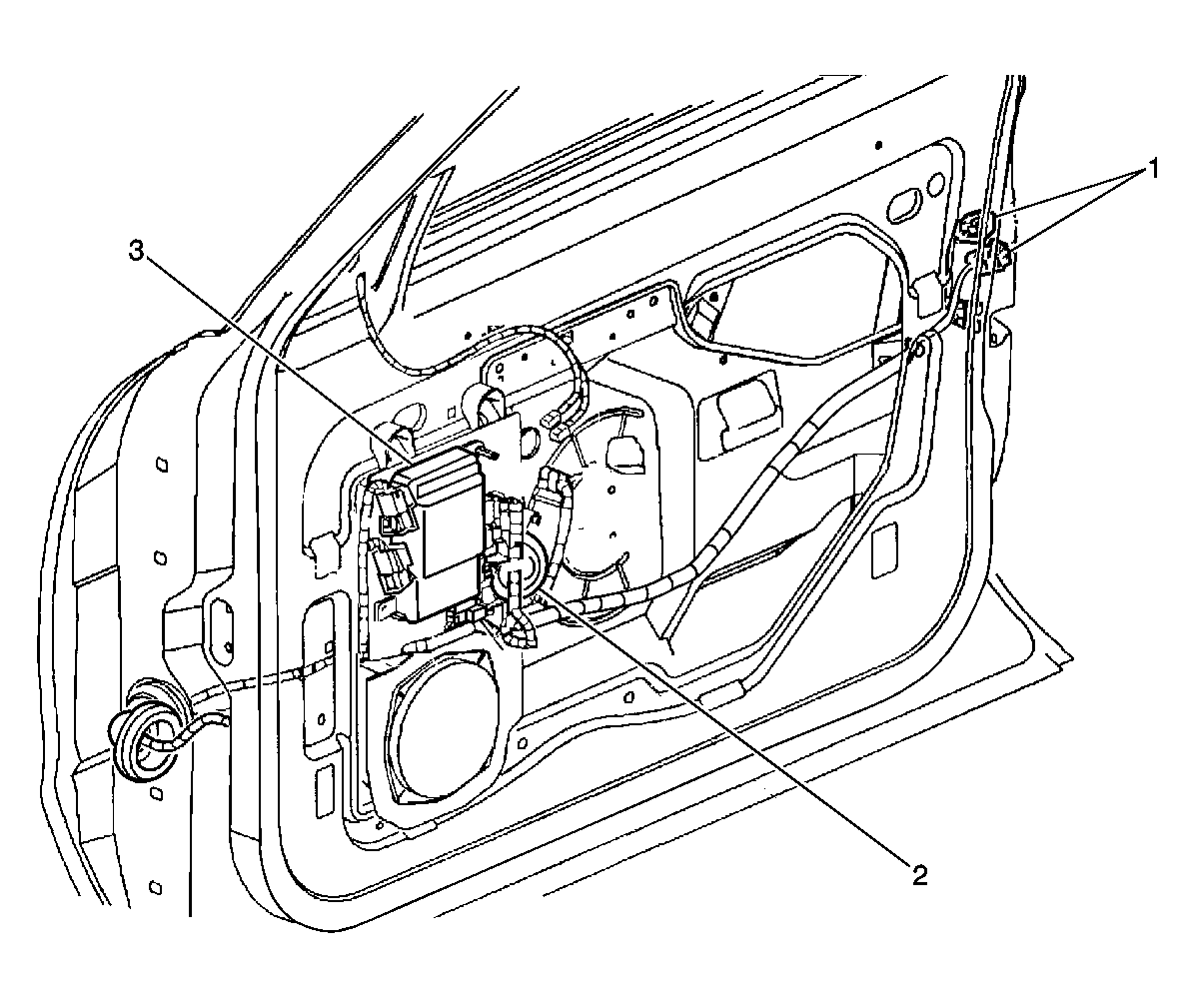

Fig 2: Identifying Internal Door Components (Behind Right Front Door Trim)

Courtesy of GENERAL MOTORS CORP.

Identifying Callouts For Fig. 15

Callout	Component Name
1	Door Lock Actuator - Front Passenger, Driver Similar
2	Window Motor - Front Passenger, Driver Similar
3	Passenger Door Module (PDM), Driver Door Module (DDM) Similar

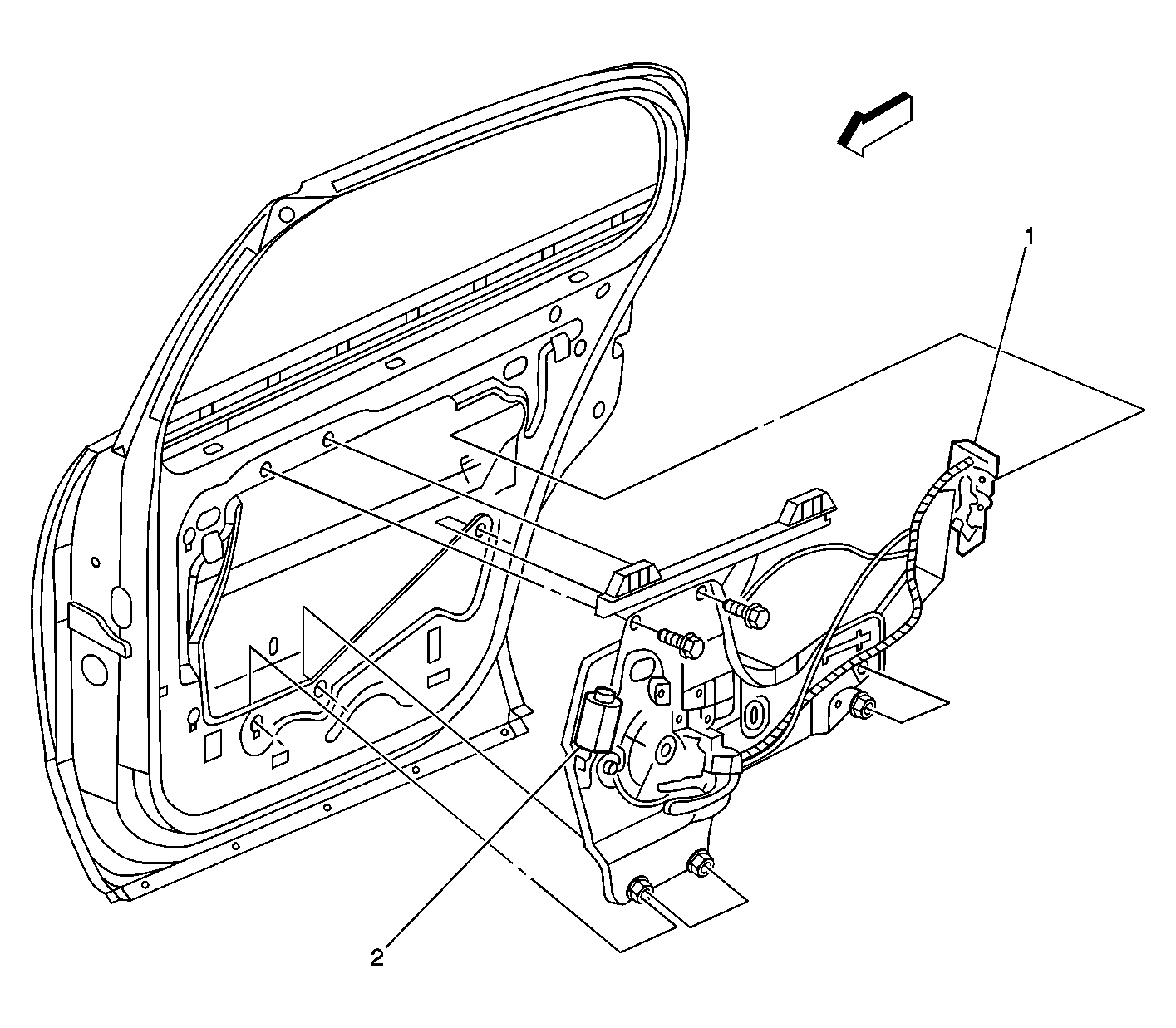

Fig 3: Identifying Internal Door Components (Right Rear Door)

Courtesy of GENERAL MOTORS CORP.

Identifying Callouts For Fig. 16

Callout	Component Name
1	Door Lock Actuator - RR, LR Similar
2	Window Motor - RR, LR Similar

Fig 4: Identifying Window Switch, Handle & Speaker (Right Rear Door)

Courtesy of GENERAL MOTORS CORP.

Identifying Callouts For Fig. 17

Callout	Component Name
1	Window Switch - RR, LR Similar
2	Door Handle
3	Speaker - RR Door, LR Door Similar

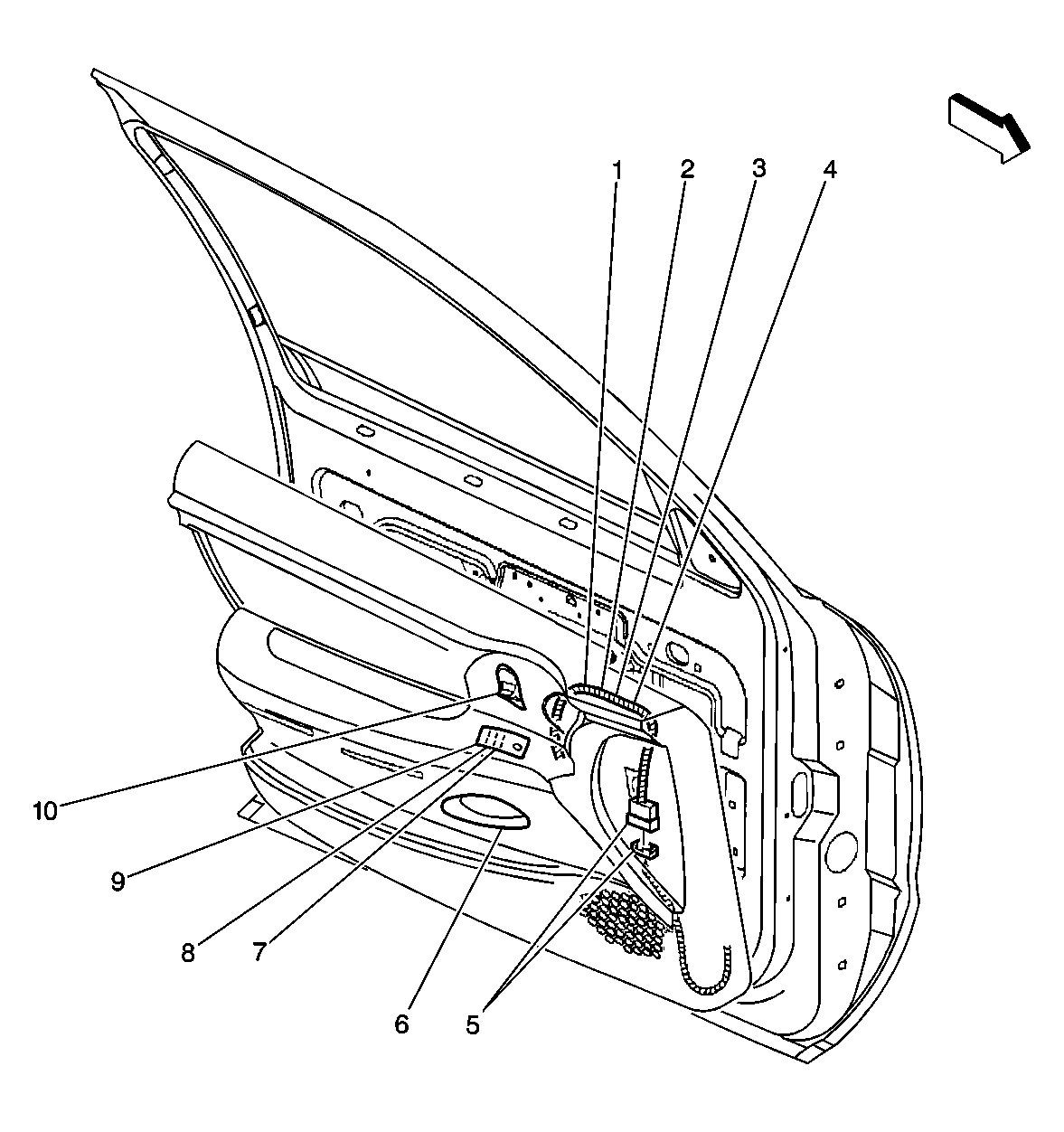

Fig 5: Identifying Switches, Components & Connectors (Left Front Door)

Courtesy of GENERAL MOTORS CORP.

Identifying Callouts For Fig. 18

Callout	Component Name
1	S500
2	S501
3	S503
4	S502
5	C500
6	Door Courtesy Lamp - LF
7	Window Switch - Driver, Front Passenger Similar
8	Outside Rearview Mirror Switch
9	Memory/Personalization Function Switch
10	Door Lock Switch - Driver, Front Passenger Similar
