Removal Procedure

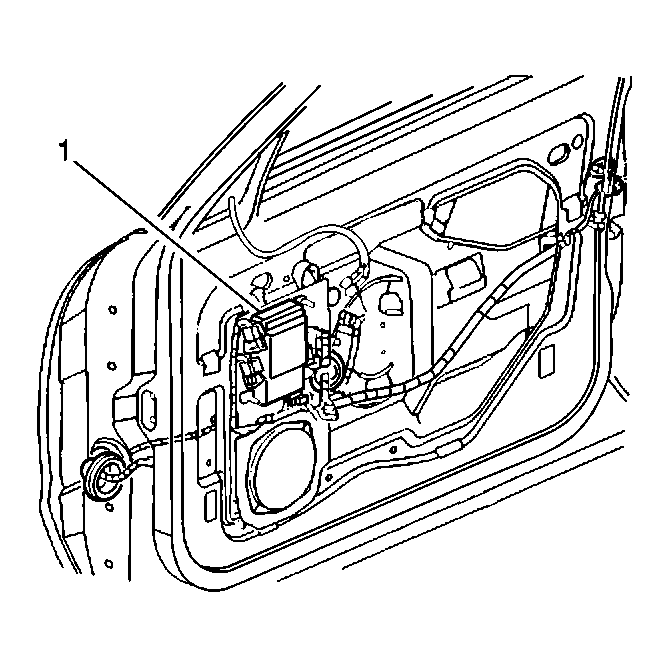

    Fig 1: Removing/Installing Front Door Control Module
    GM420432Courtesy of GENERAL MOTORS CORP.
  1. Remove the door trim panel. Refer to Trim Panel Replacement - Side Front Door .
  2. Disconnect the electrical connectors.
  3. Remove the door control module fasteners.
  4. Remove the control module (1).
