ABS Component Views

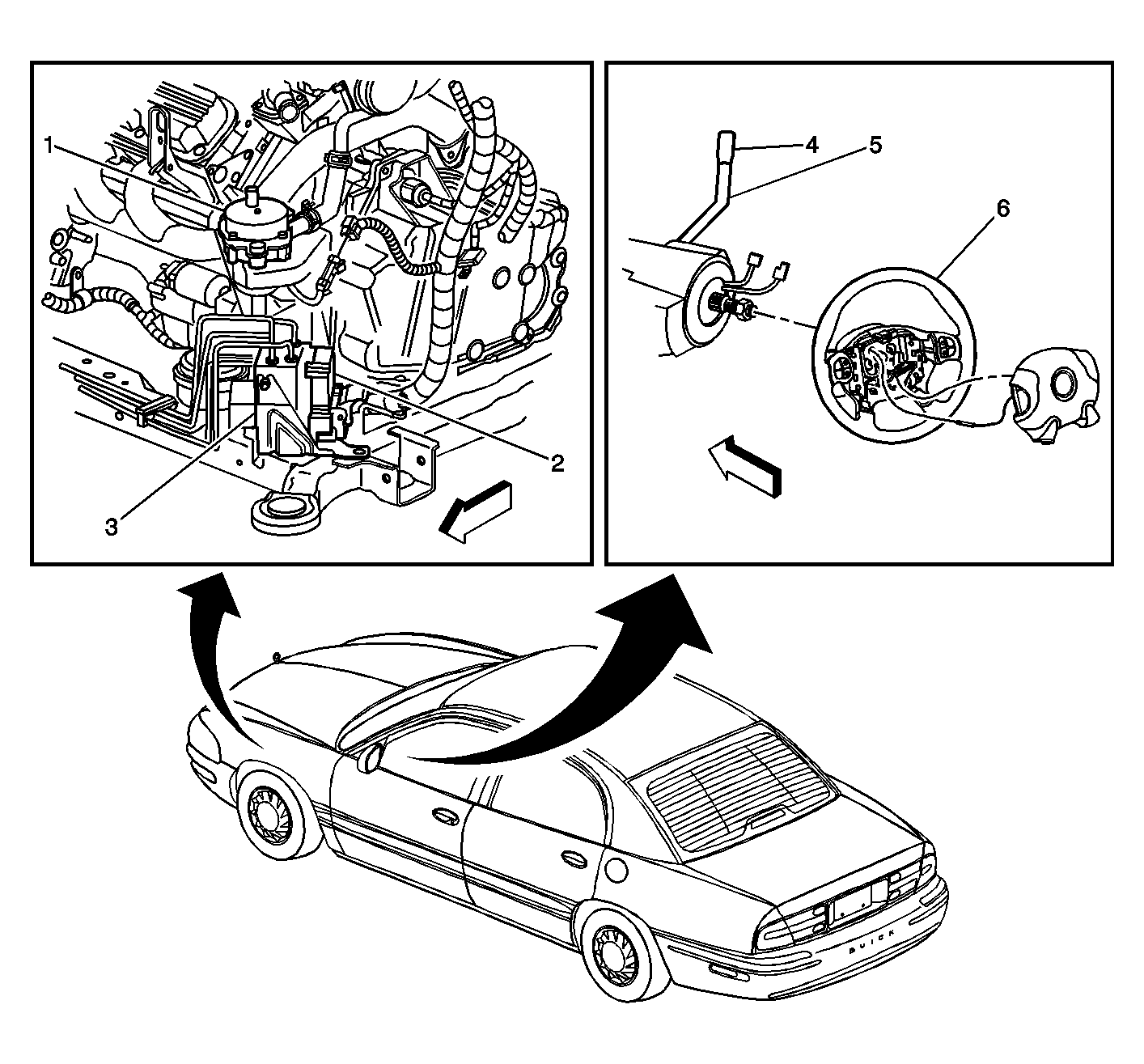

Identifying Callouts For Fig. 6
| Callout | Component Name |
|---|---|
| 1 | Secondary Air Injection (AIR) Pump |
| 2 | Electronic Brake Control Module (EBCM) |
| 3 | Brake Pressure Modulator Valve (BPMV) |
| 4 | Traction Control Switch |
| 5 | Gear Shift Lever |
| 6 | Steering Wheel |

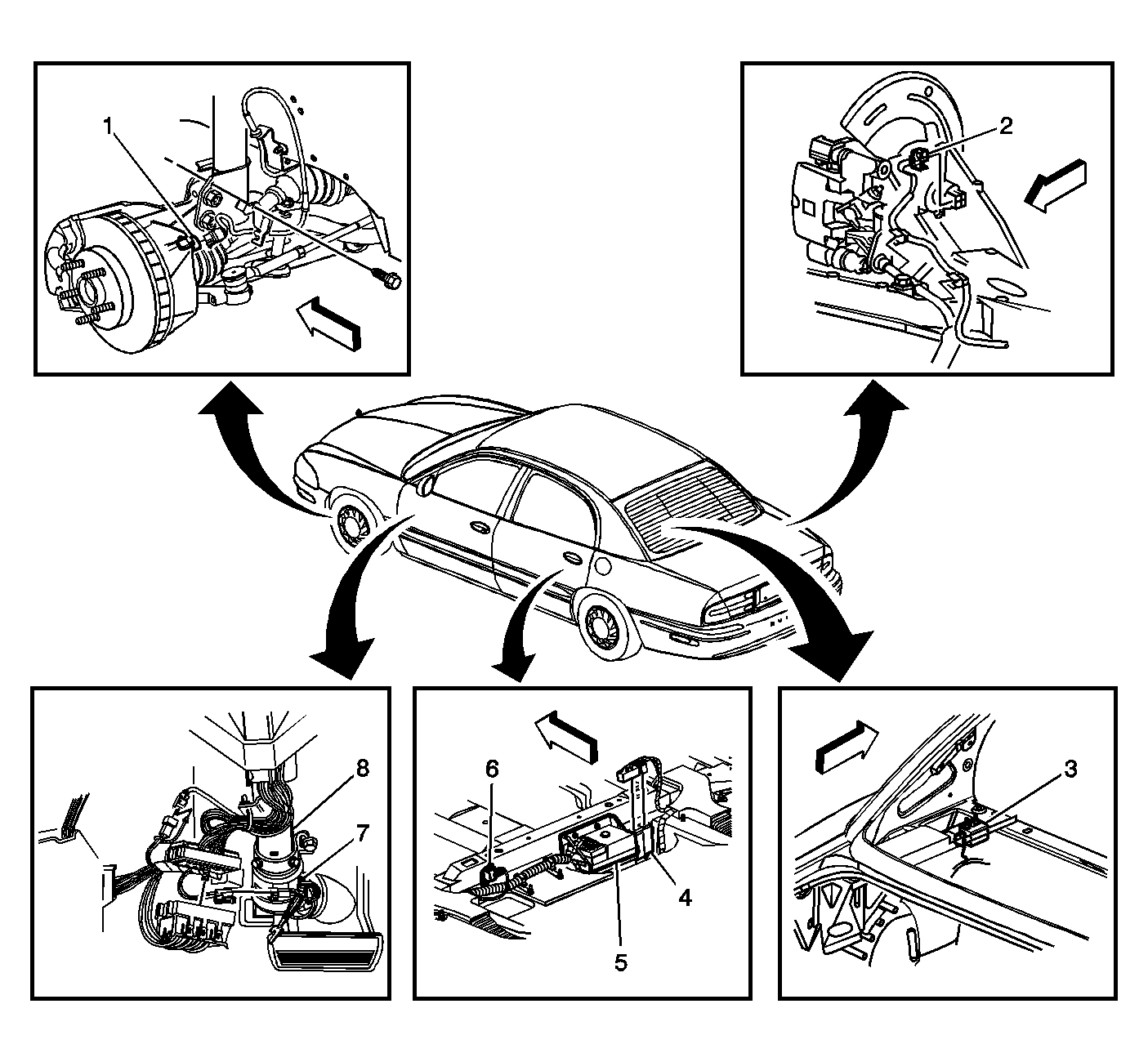

Identifying Callouts For Fig. 7
| Callout | Component Name |
|---|---|
| 1 | Wheel Speed Sensor (WSS) - LF, RF Similar |
| 2 | Wheel Speed Sensor (WSS) - RR, LR Similar |
| 3 | YAW Rate Sensor |
| 4 | Rear Door Module |
| 5 | Fuse Block - Rear |
| 6 | Lateral Accelerometer Sensor |
| 7 | Steering Wheel Position Sensor |
| 8 | Steering Column |
