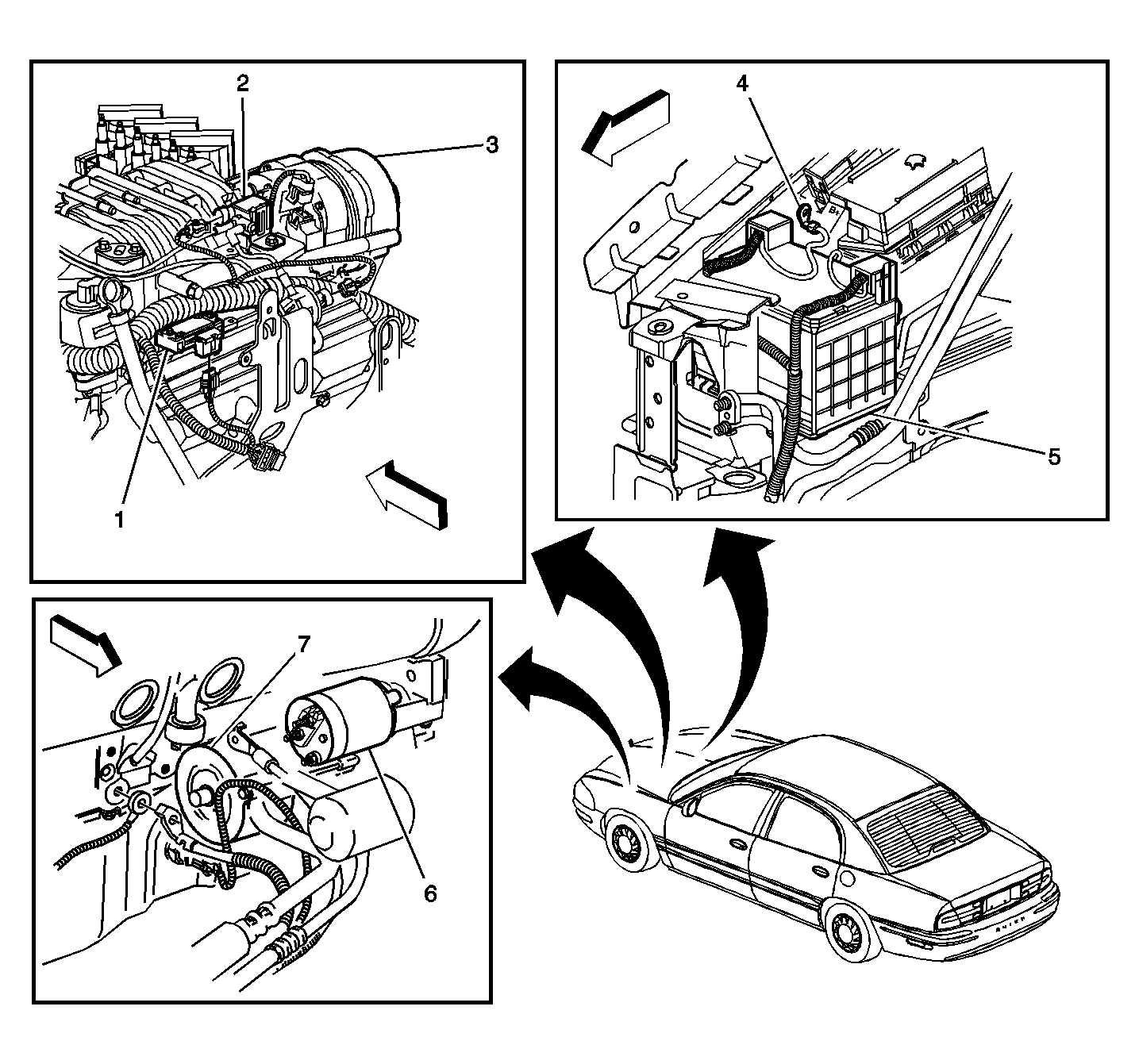

Engine Electrical Component Views
Courtesy of GENERAL MOTORS CORP. Identifying Callouts For Fig. 3
| Callout |
Component Name |
| 1 |
Manifold Absolute Pressure (MAP) Sensor |
| 2 |
Evaporative Emission (EVAP) Canister Purge Solenoid |
| 3 |
Generator |
| 4 |
G103 |
| 5 |
Battery |
| 6 |
Starter Solenoid |
| 7 |
Starter Motor |
