Installation Procedure

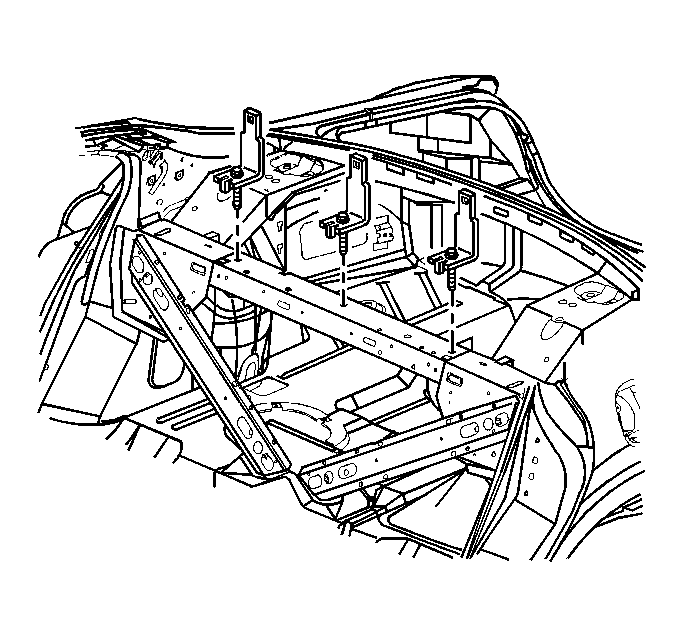

    Fig 1: Removing/Installing Child Restraint Tether Anchor
    GM430304Courtesy of GENERAL MOTORS CORP.
  1. Install the child tether anchors to the vehicle.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the child tether anchor fasteners.

    Tighten:  Tighten the fastener to 30 N.m (22 ft. lb.).

  3. Install the rear shelf trim panel. Refer to Trim Panel Replacement - Rear Window Shelf in Interior Trim.
