Automatic Transmission Shift Lock Control Component Views

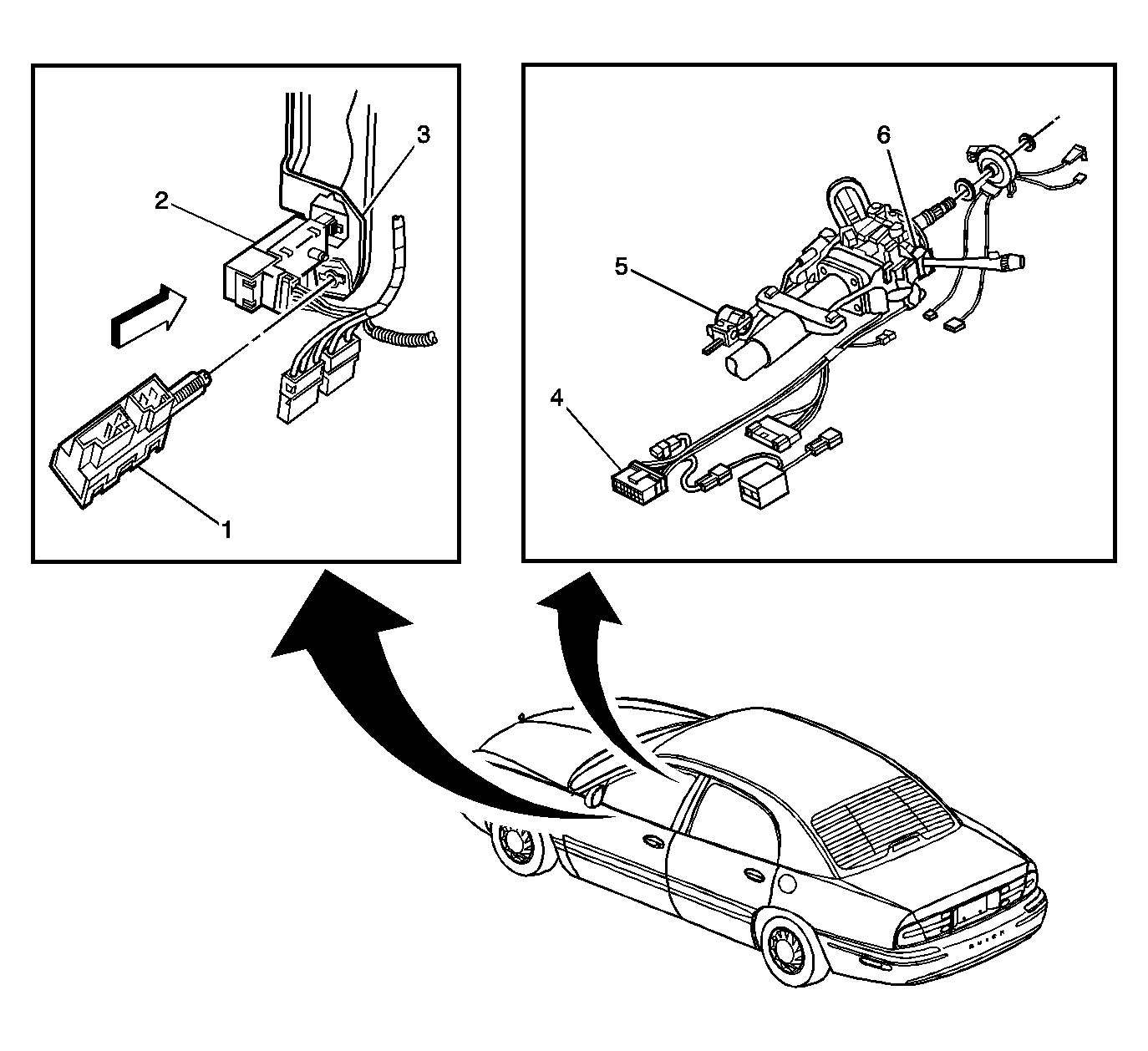

Fig 1: Identifying Shift Lock Control Subsystem Components

Courtesy of GENERAL MOTORS CORP.

Identifying Callouts For Fig. 3

Callout	Component Name
1	Stop Lamp Switch
2	TCC/Cruise Release Switch
3	Brake Pedal Support Bracket
4	C206
5	A/T Shift Lock Control Solenoid
6	Turn Signal/Multifunction Switch
