Air Bag Control Module

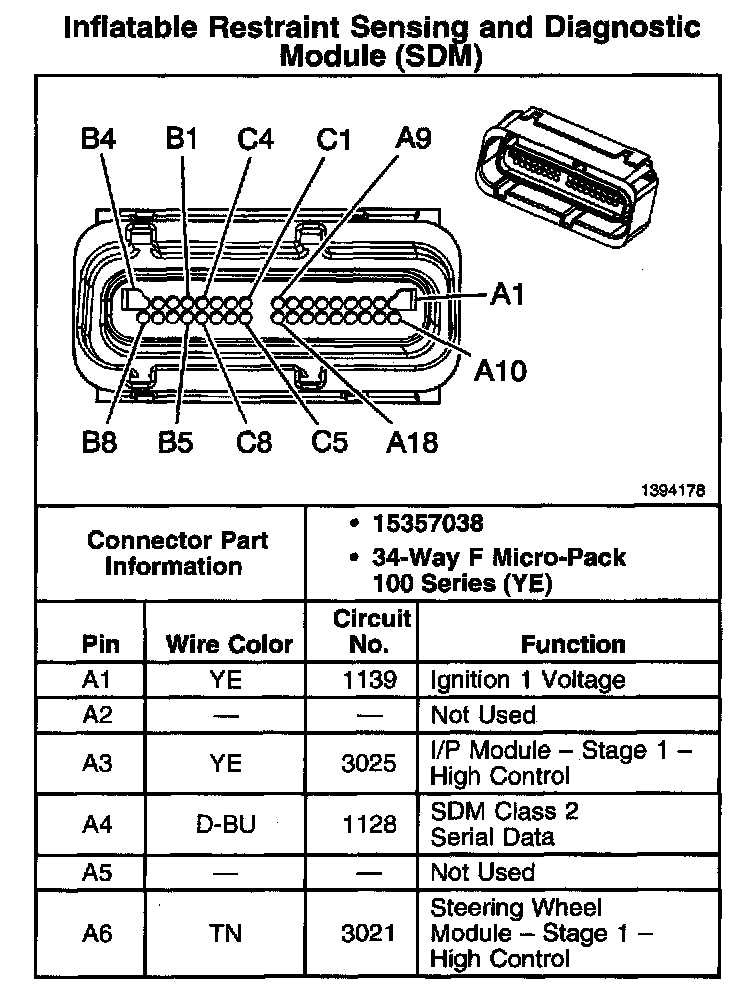

Inflatable Restraint Sensoring And Diagnostic Module (SDM):

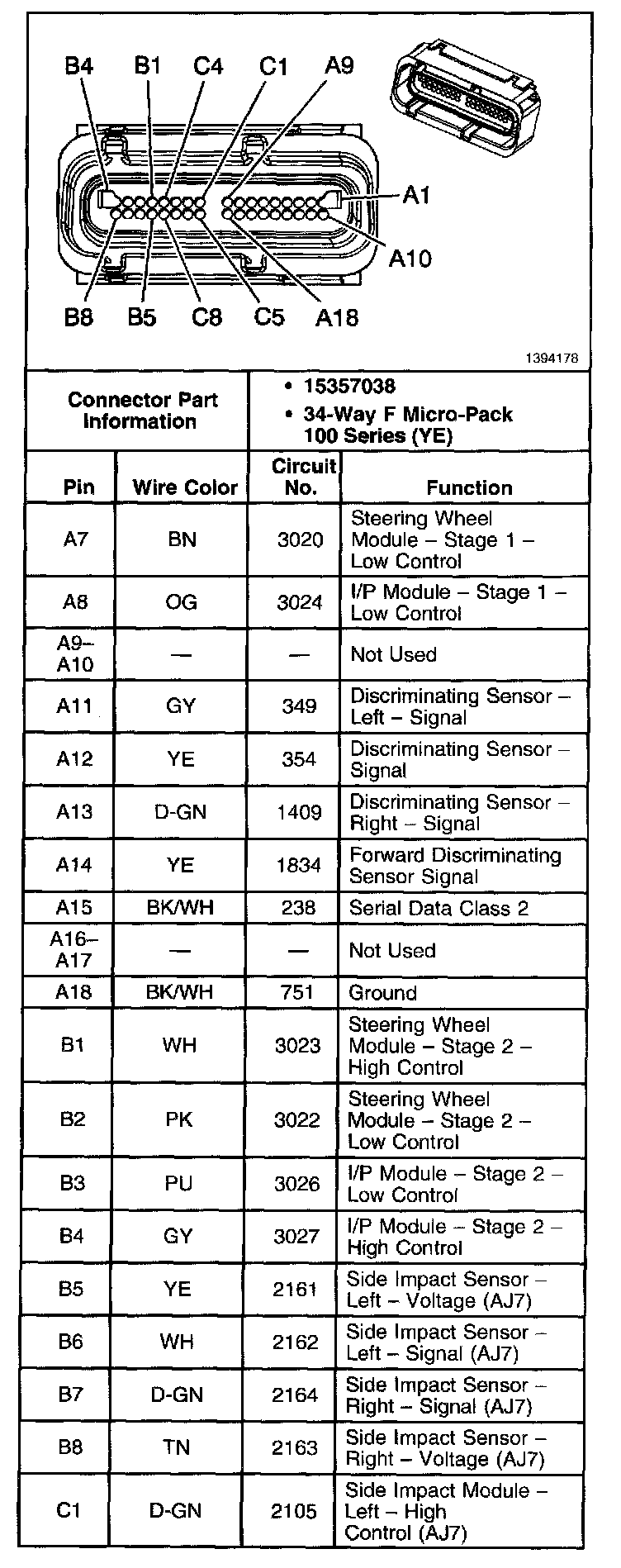

Inflatable Restraint Sensoring And Diagnostic Module (SDM) Part 2:

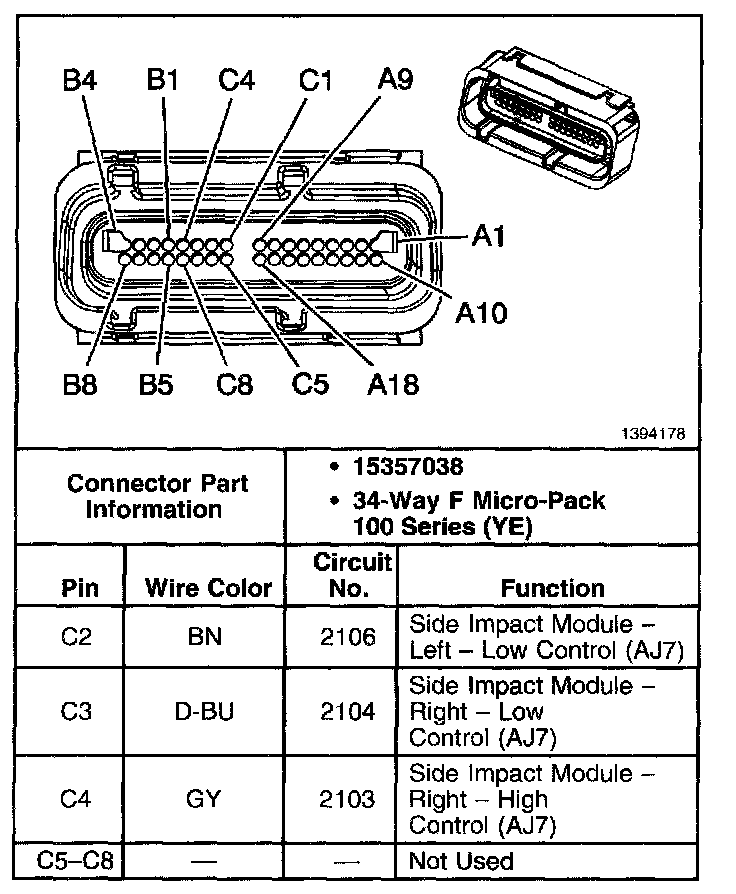

Inflatable Restraint Sensoring And Diagnostic Module (SDM) Part 3:
