System Diagram

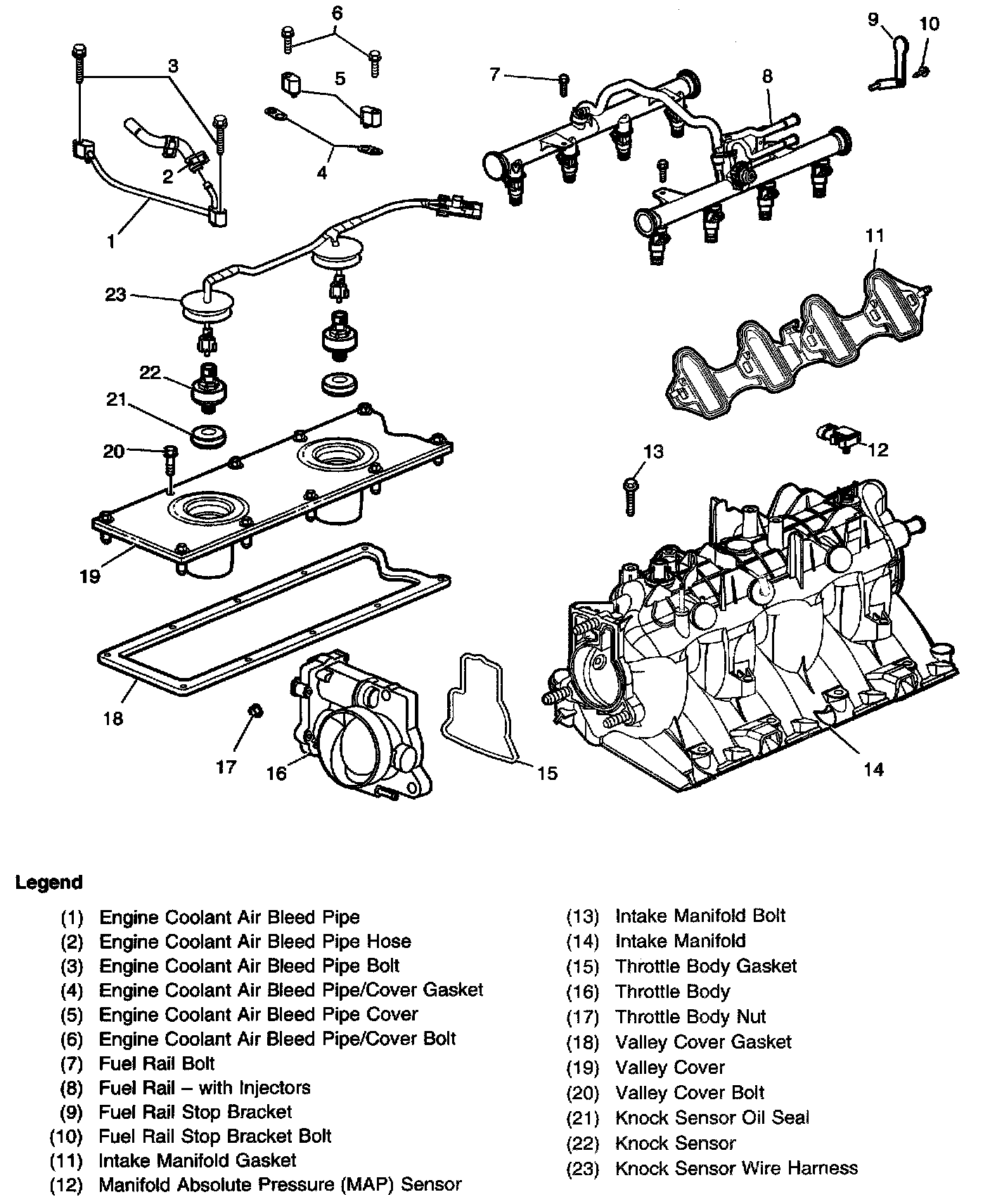

Intake Manifold/Upper Engine:

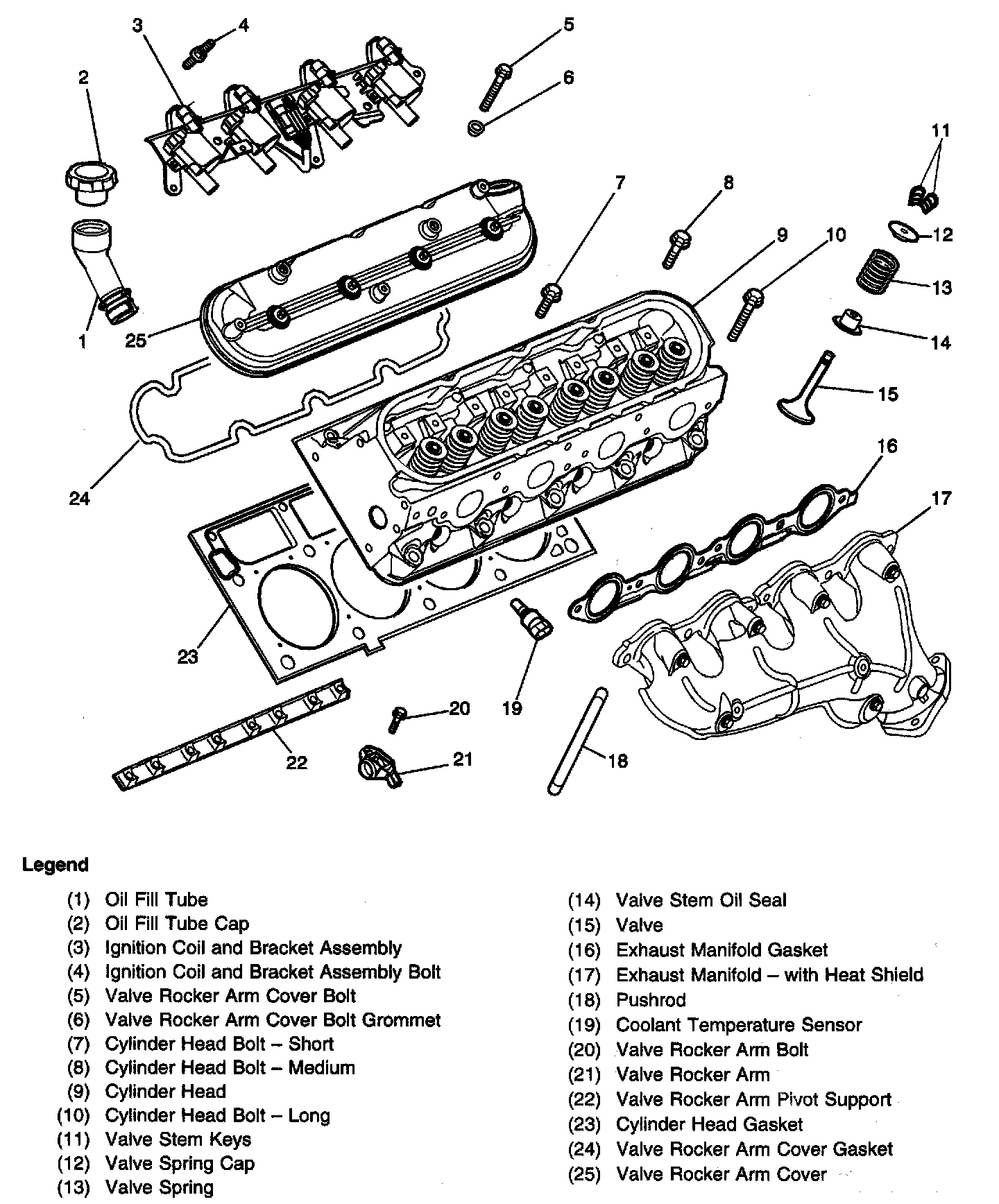

Cylinder Head/Upper Engine:

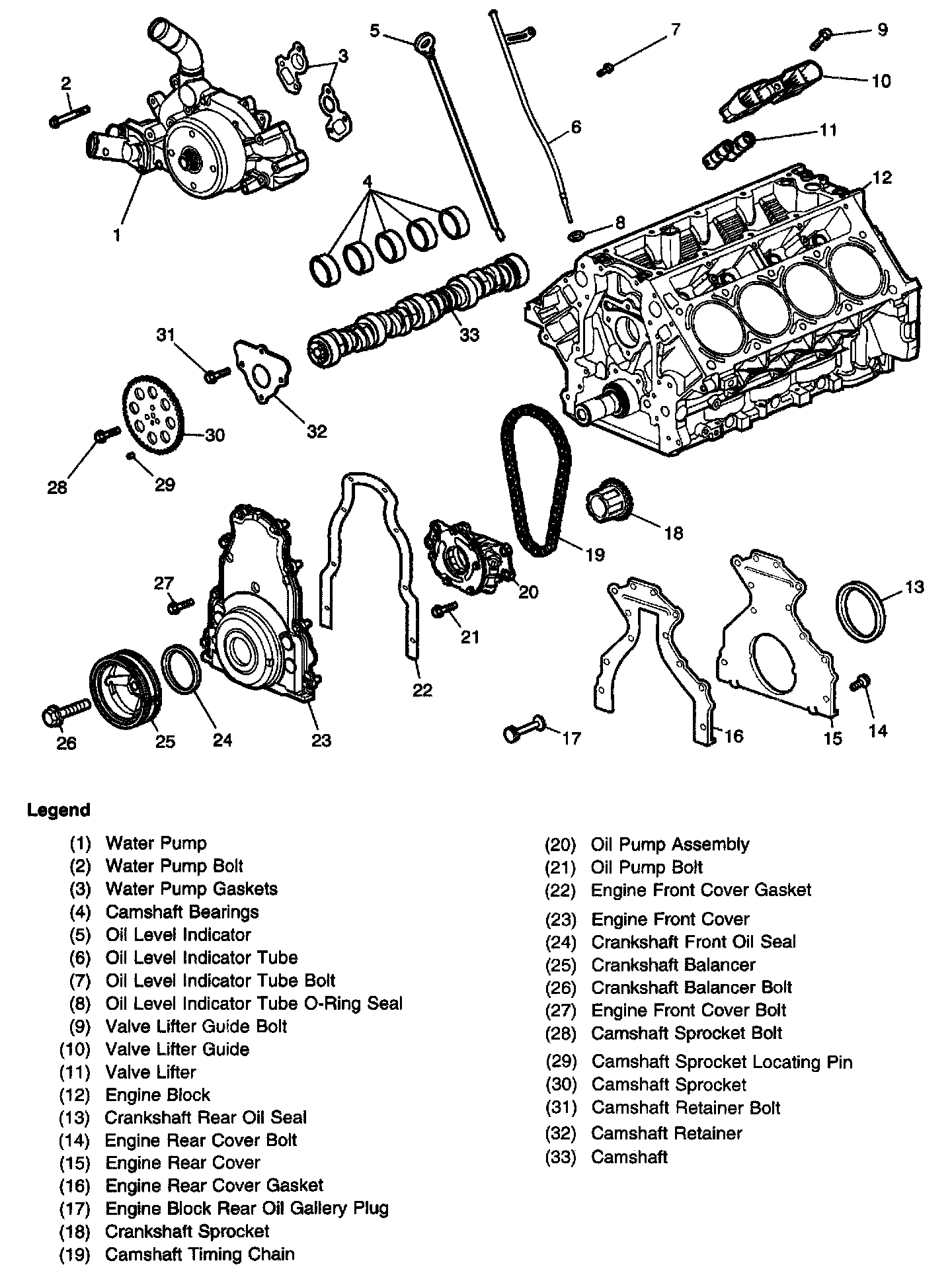

Lower Front of Engine:

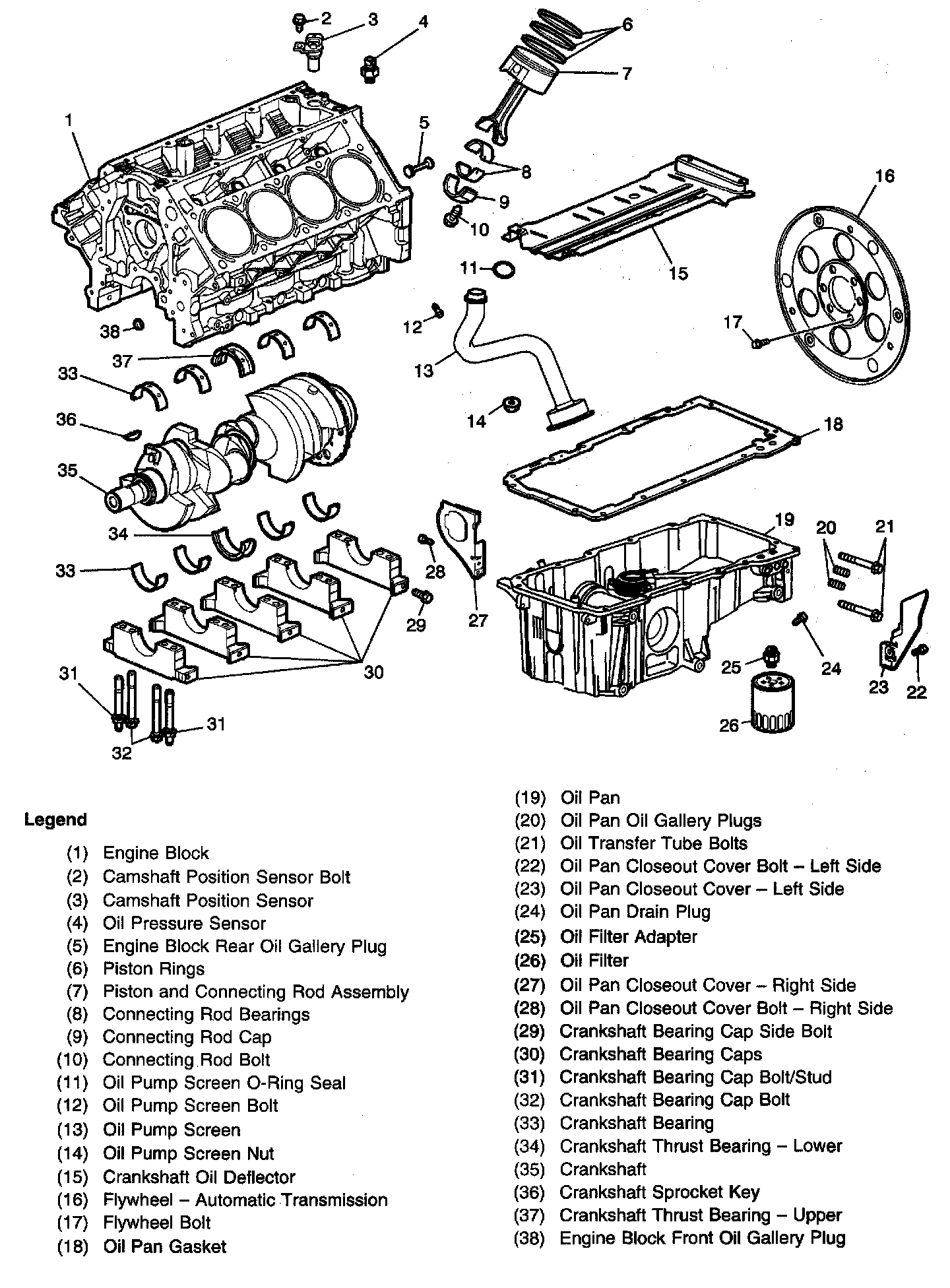

Lower Engine Assembly:

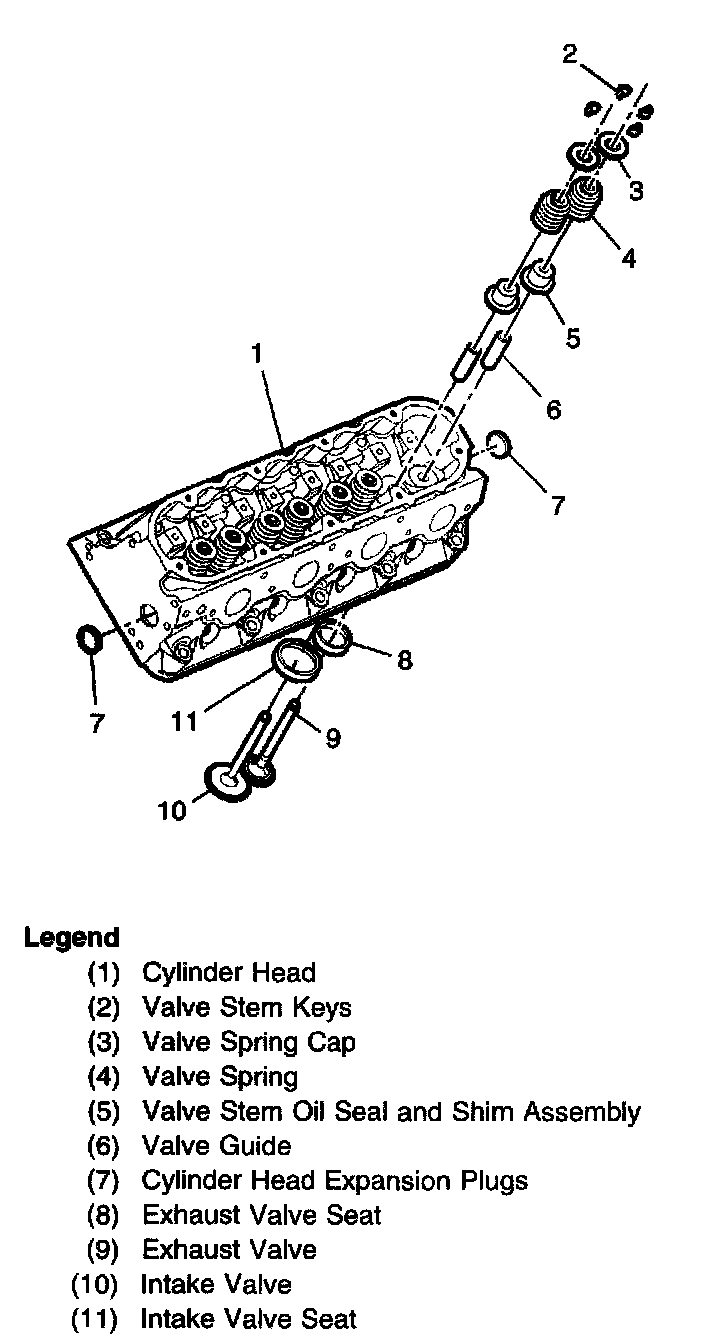

Cylinder Head Assembly - Aluminum:

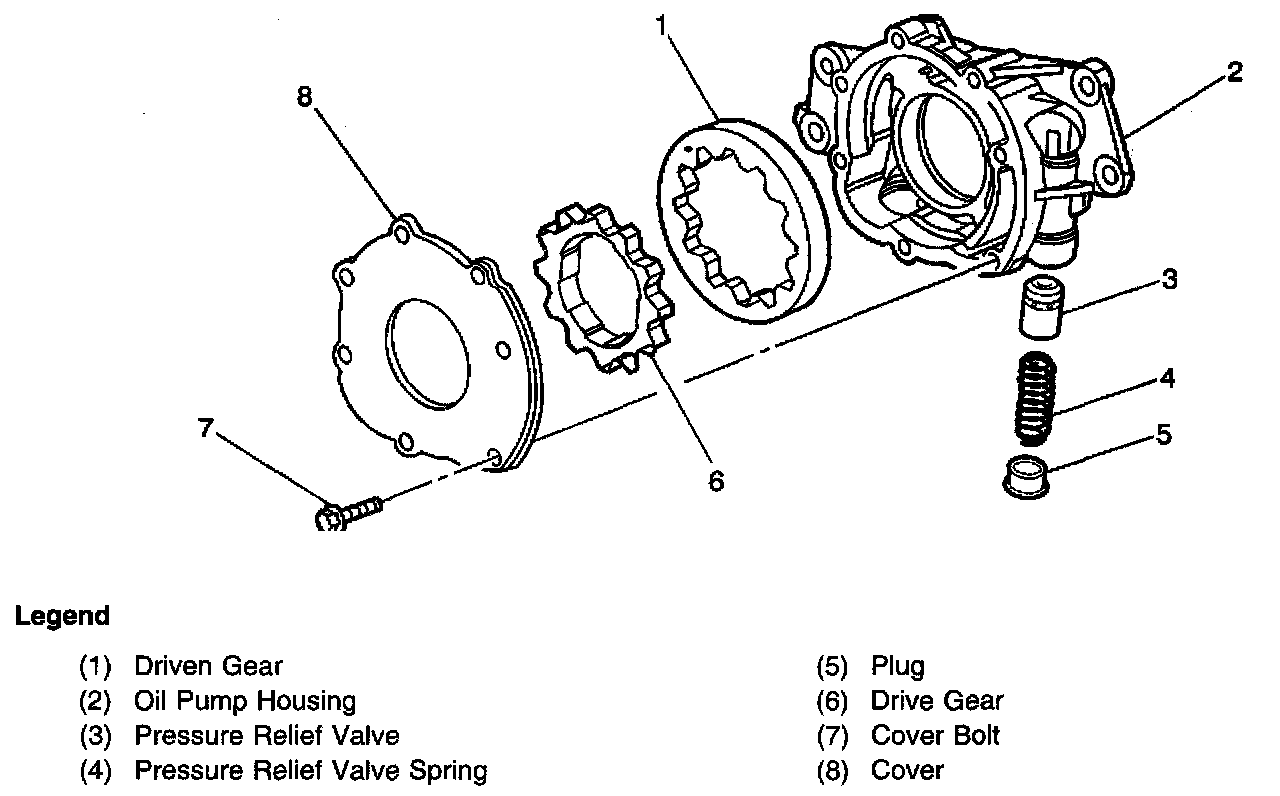

Oil Pump Assembly:
