Removal Procedure

WARNING: This page is about a different car, the 2004 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

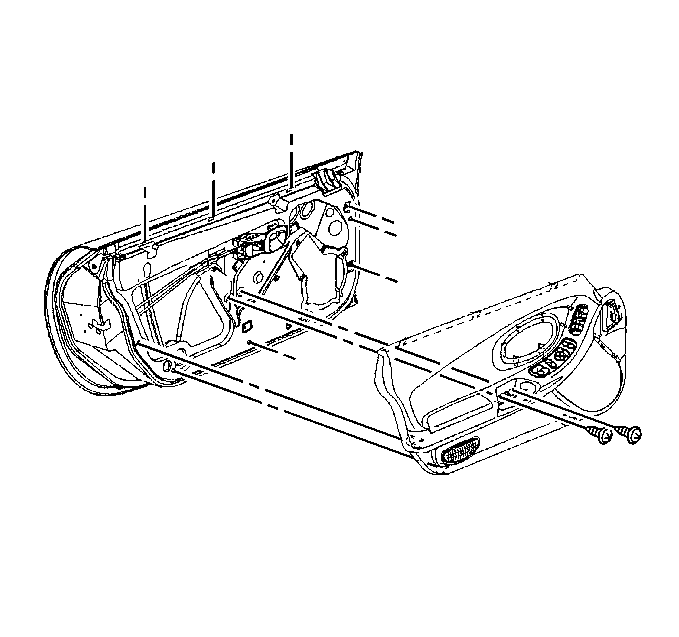

Fig 1: View Of Door Trim Panel

Courtesy of GENERAL MOTORS CORP.

Remove the door trim panel. Refer to Trim Panel Replacement - Door .

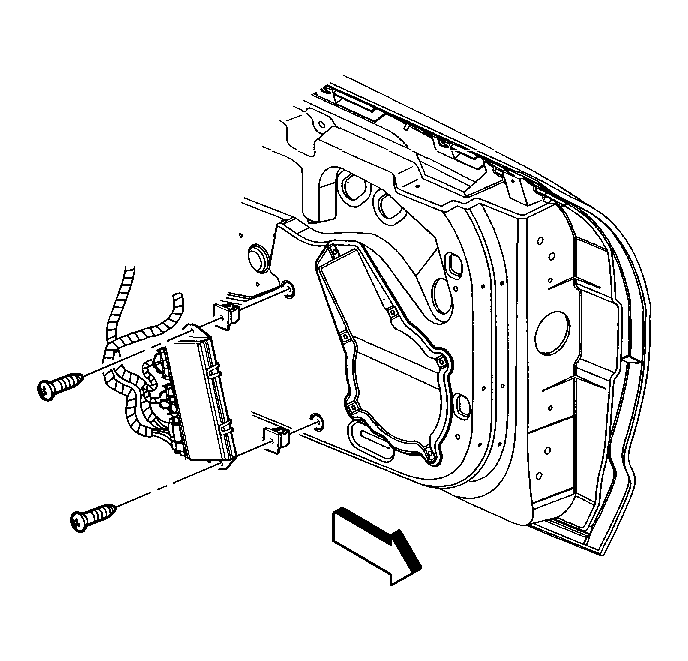

Fig 2: Door Control Module & Screws

Courtesy of GENERAL MOTORS CORP.

Remove the screws attaching the door control module.
Disconnect the electrical connectors.
