Internal Components

Part 1 Of 2:




Part 2 Of 2:

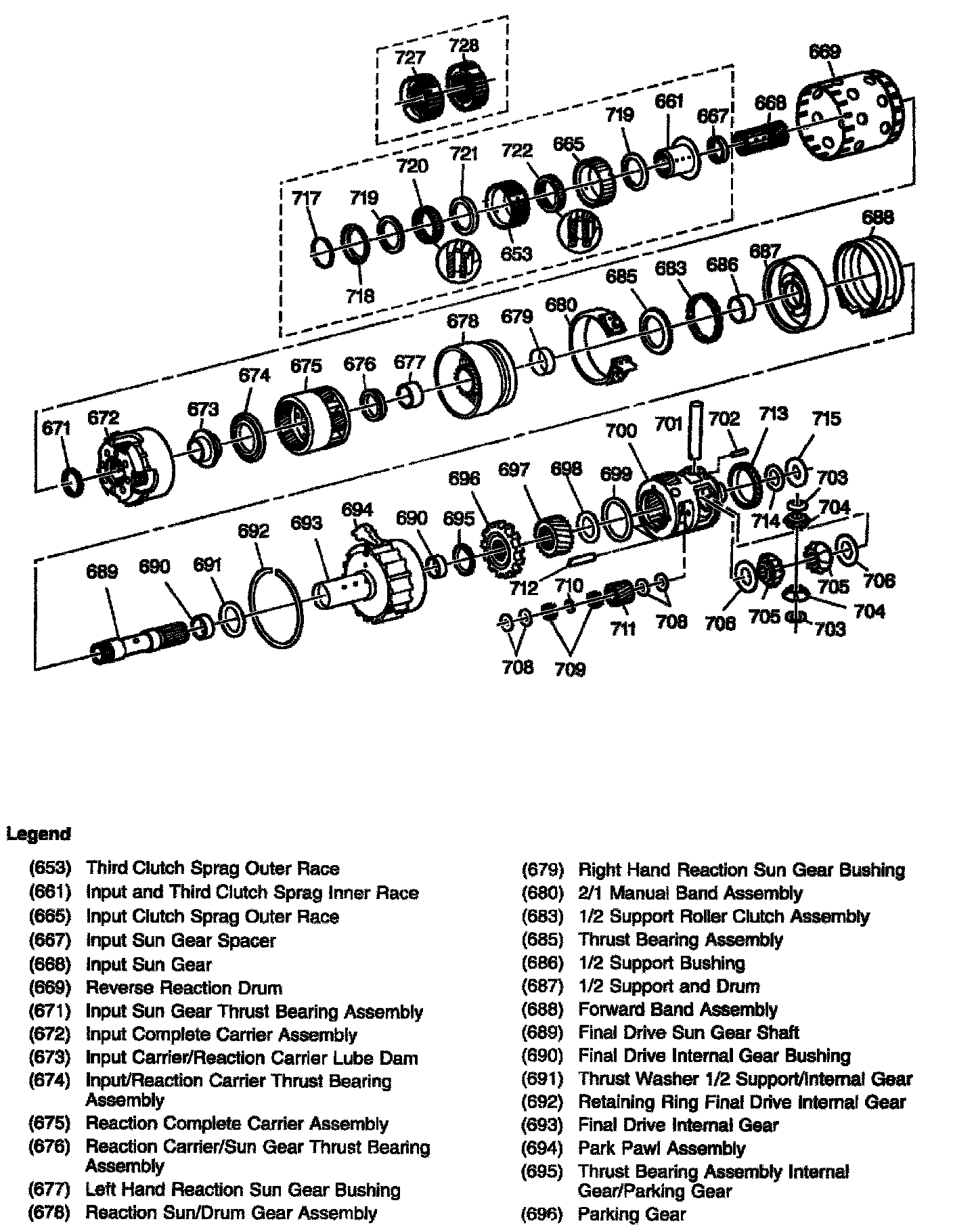

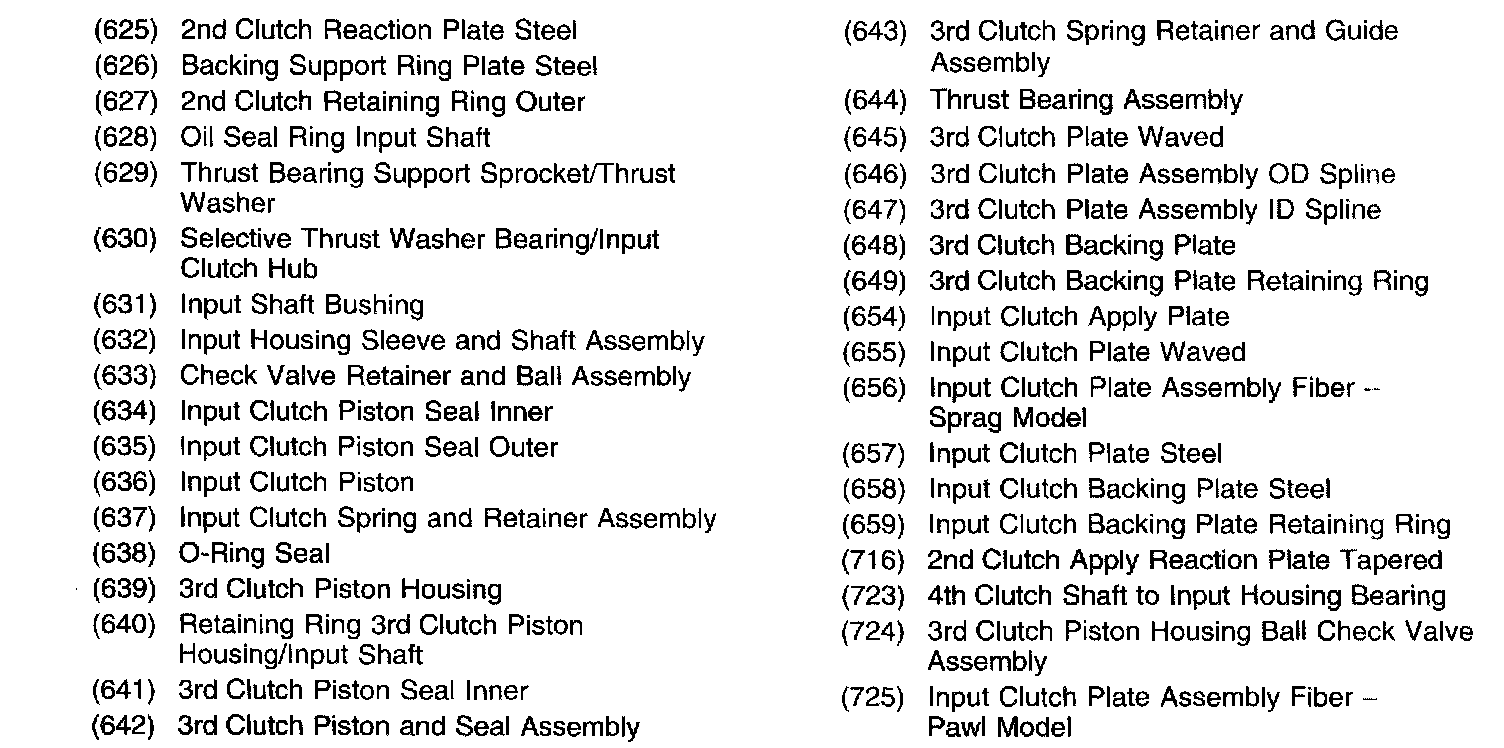

Internal Components (1 of 2)

Part 1 Of 2:




Part 2 Of 2:

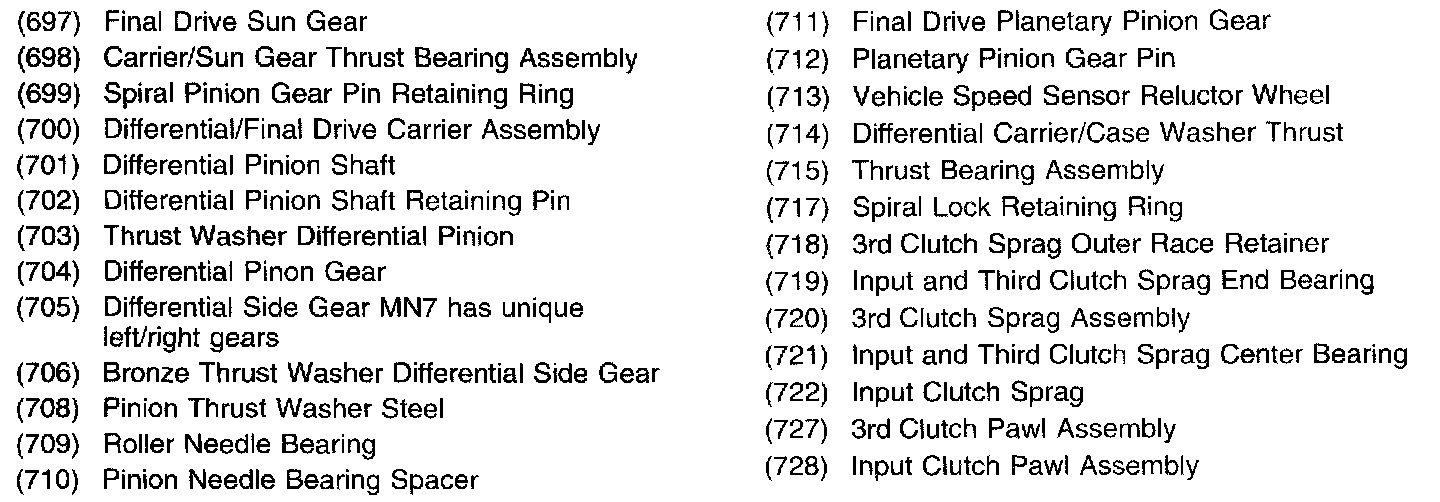

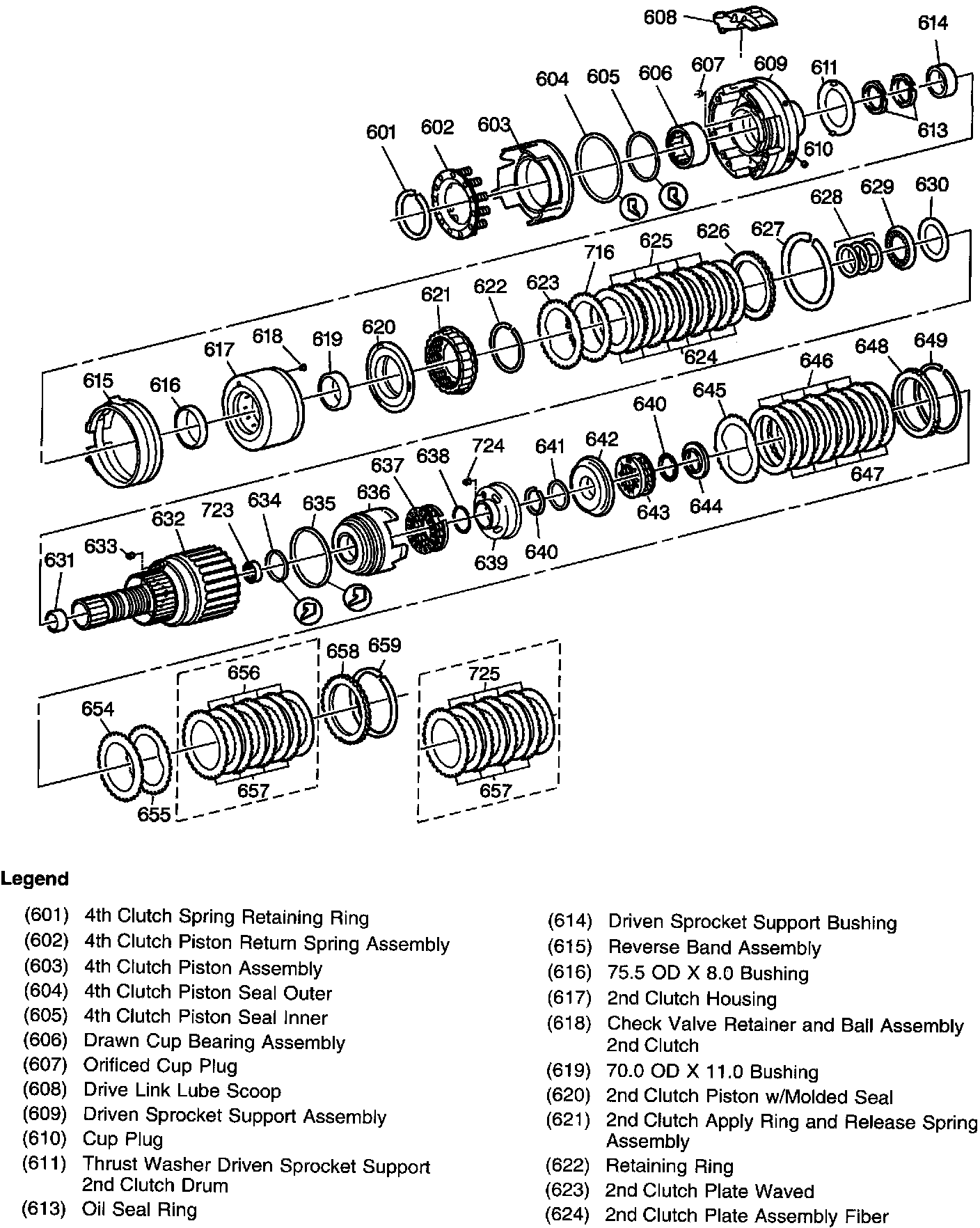

Internal Components (2 of 2)
