Steering Column

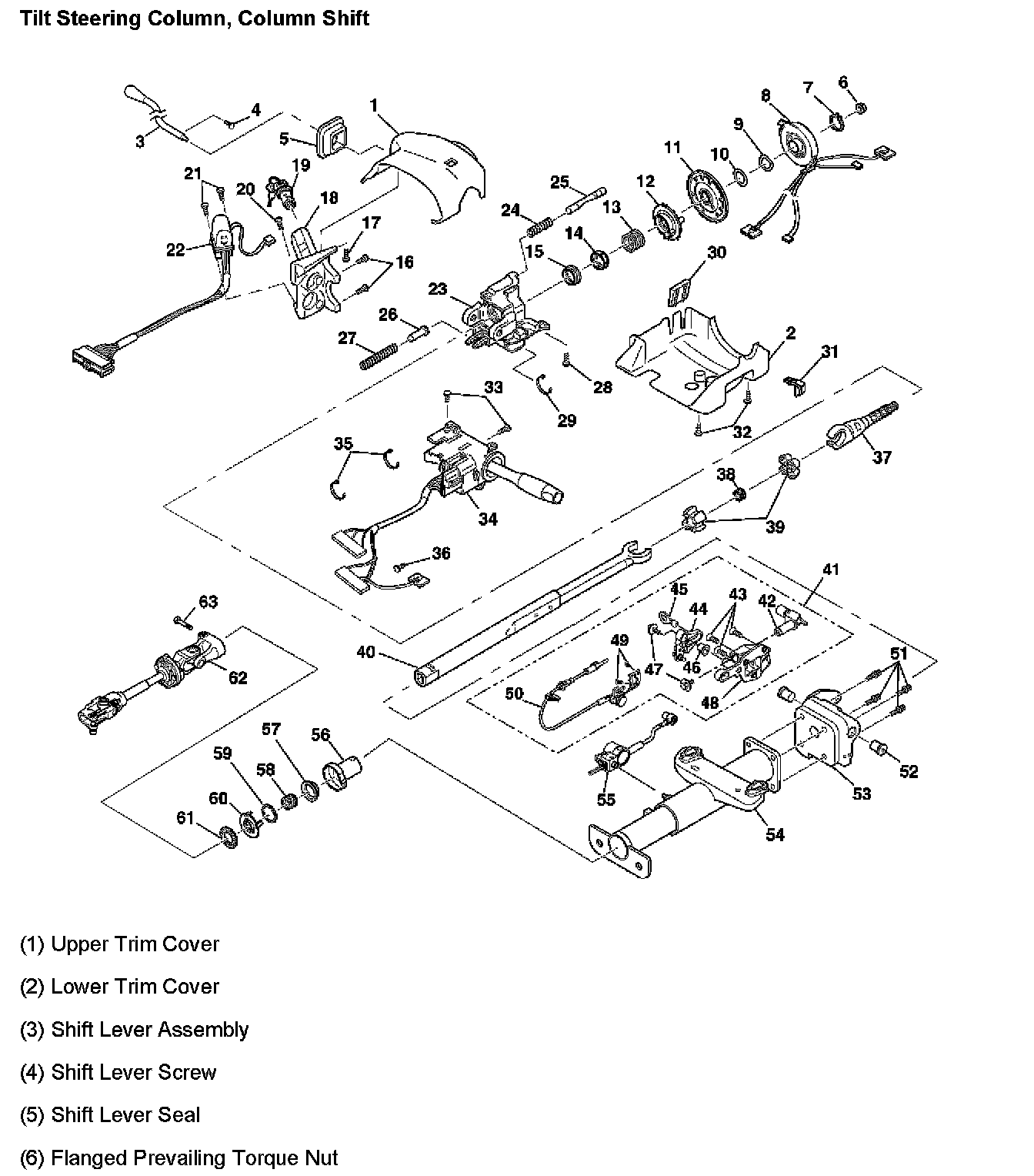

Tilt Steering Column, Column Shift Part 1:

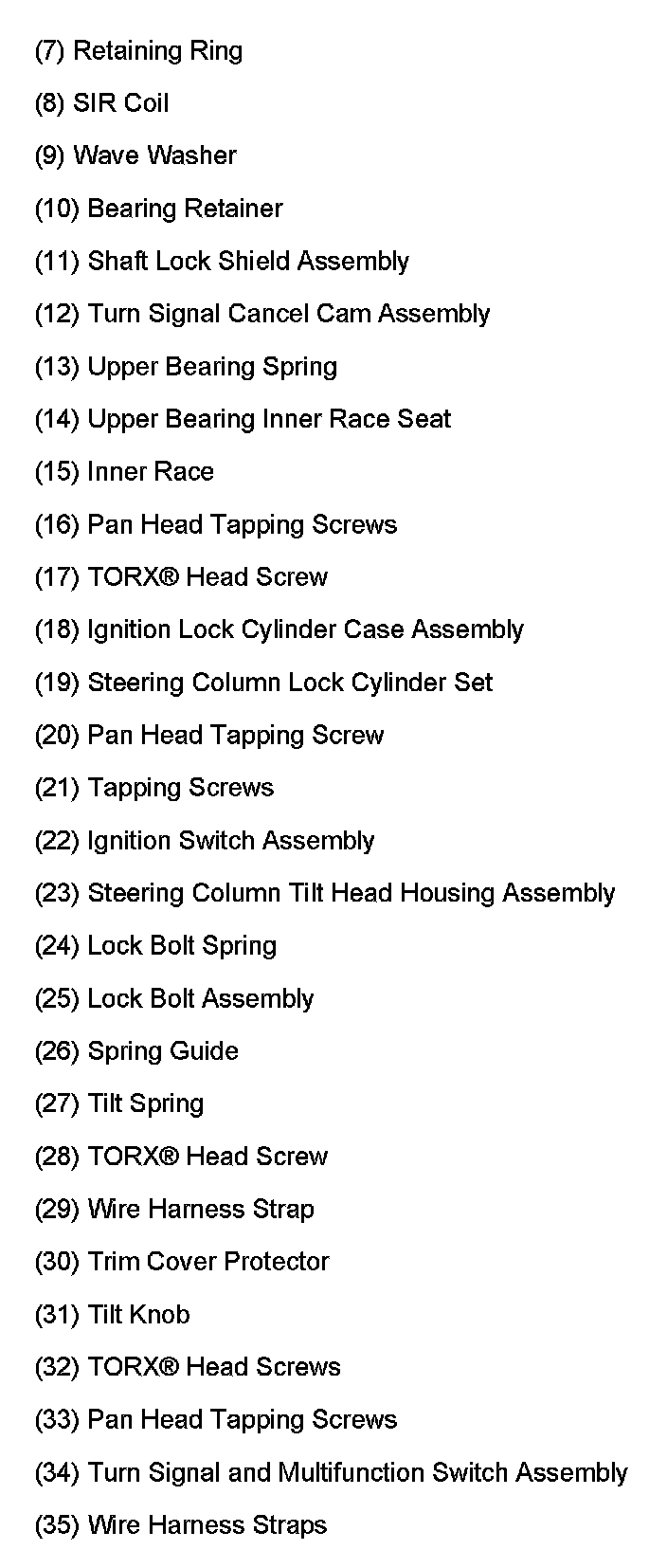

Tilt Steering Column, Column Shift Part 2:

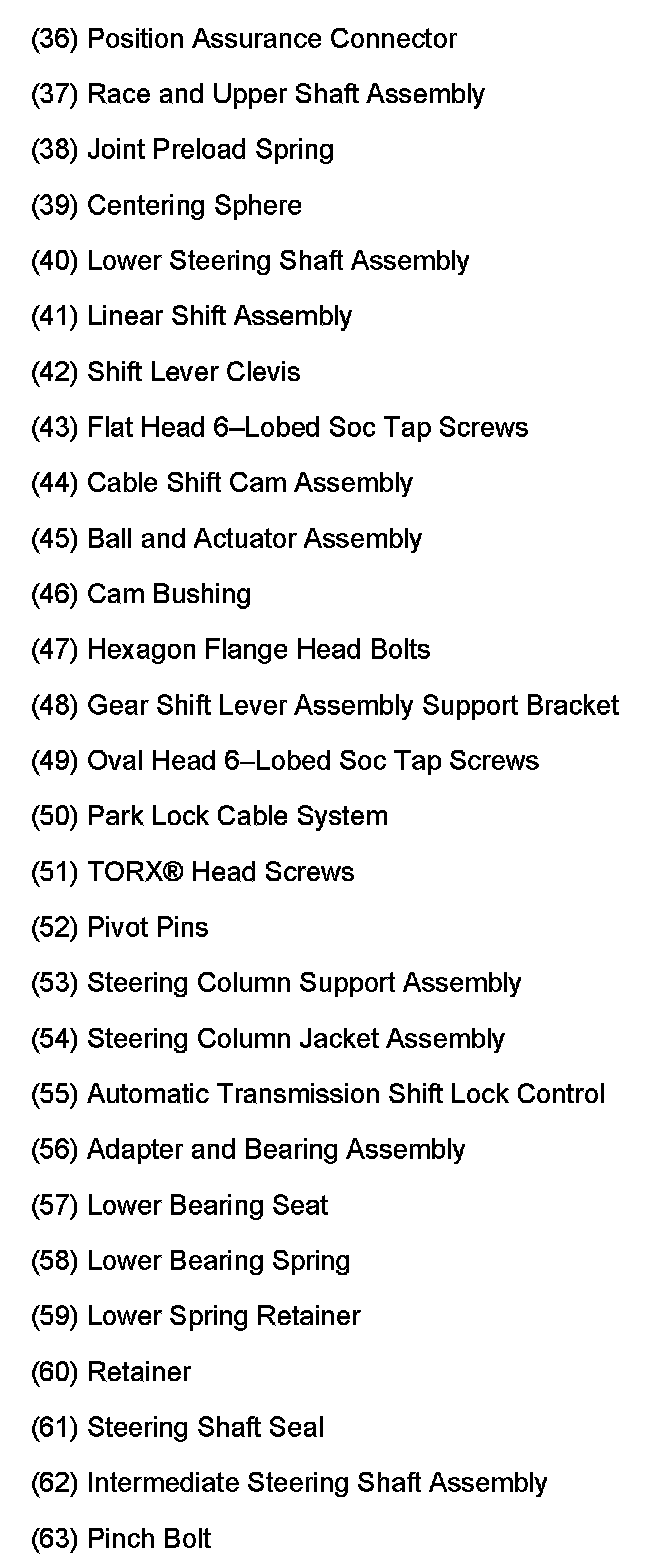

Tilt Steering Column, Column Shift Part 3:

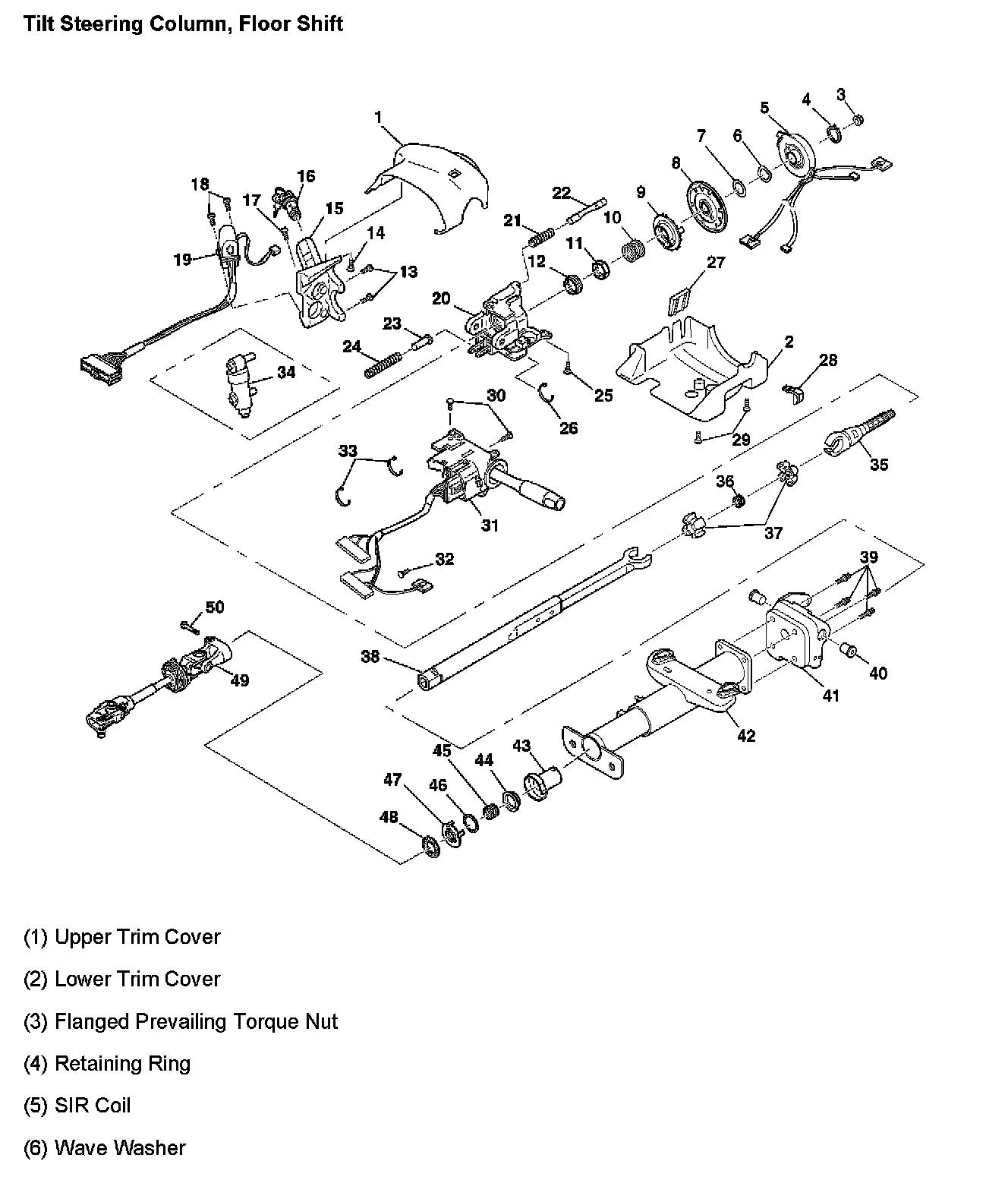

Tilt Steering Column, Floor Shift Part 1:

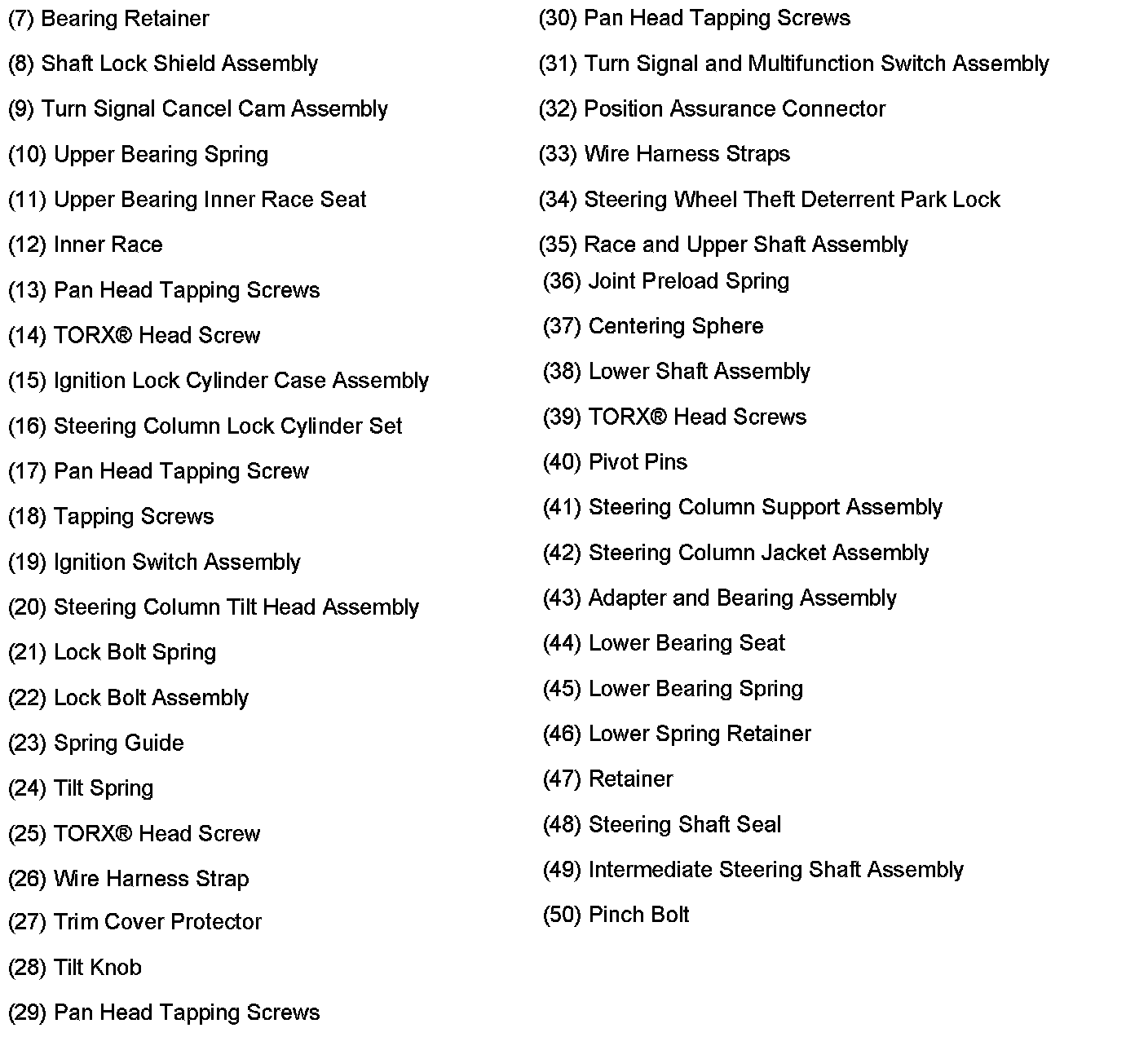

Tilt Steering Column, Floor Shift Part 2:
