Engine Controls Schematics

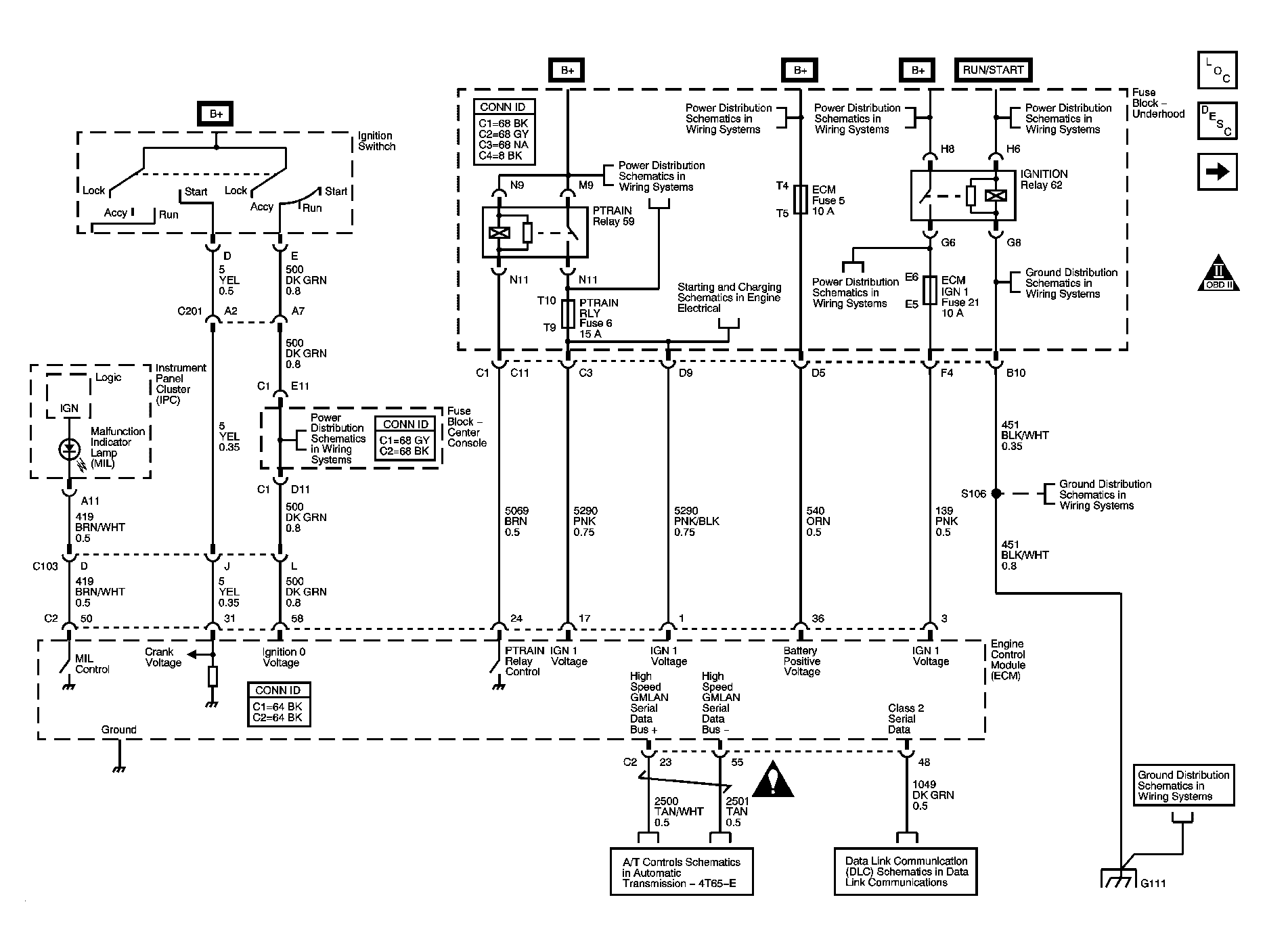

Fig 1: Power, Ground, Serial Data, MIL and Indicators Schematics

Courtesy of GENERAL MOTORS CORP.

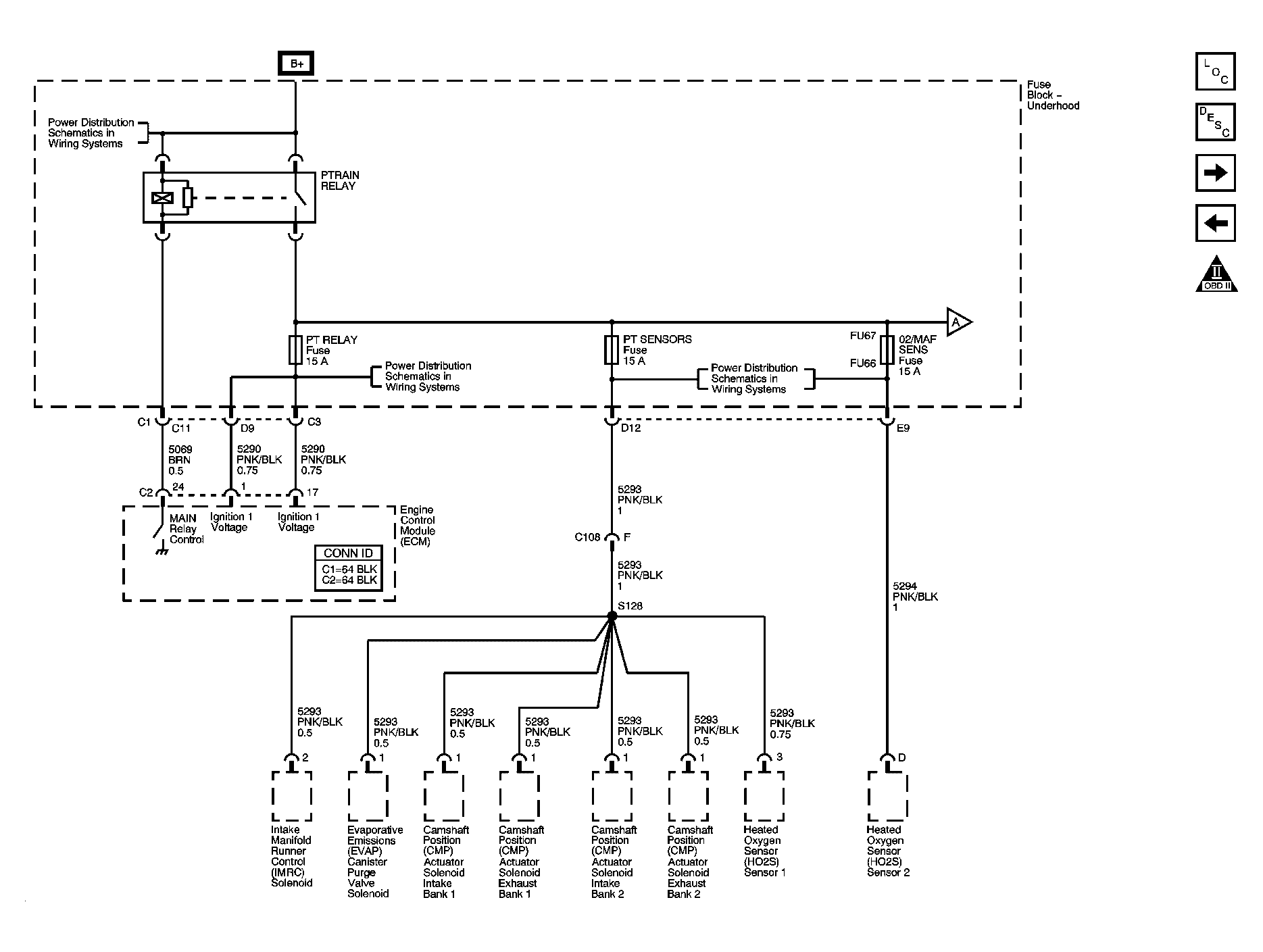

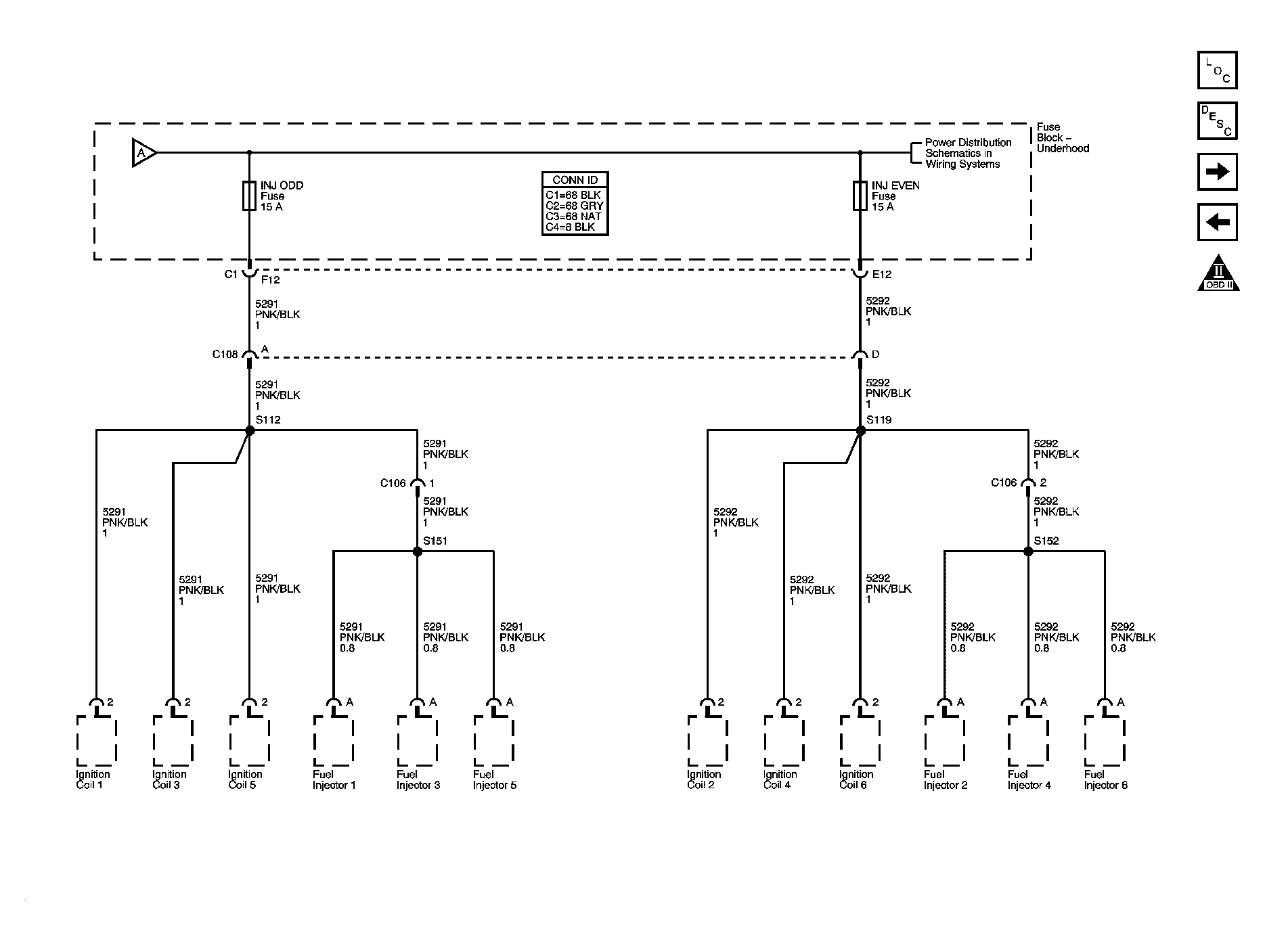

Fig 2: Underhood Fuse Block Main Relay Schematics (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

Fig 3: Underhood Fuse Block Main Relay Schematics (2 Of 2)

Courtesy of GENERAL MOTORS CORP.

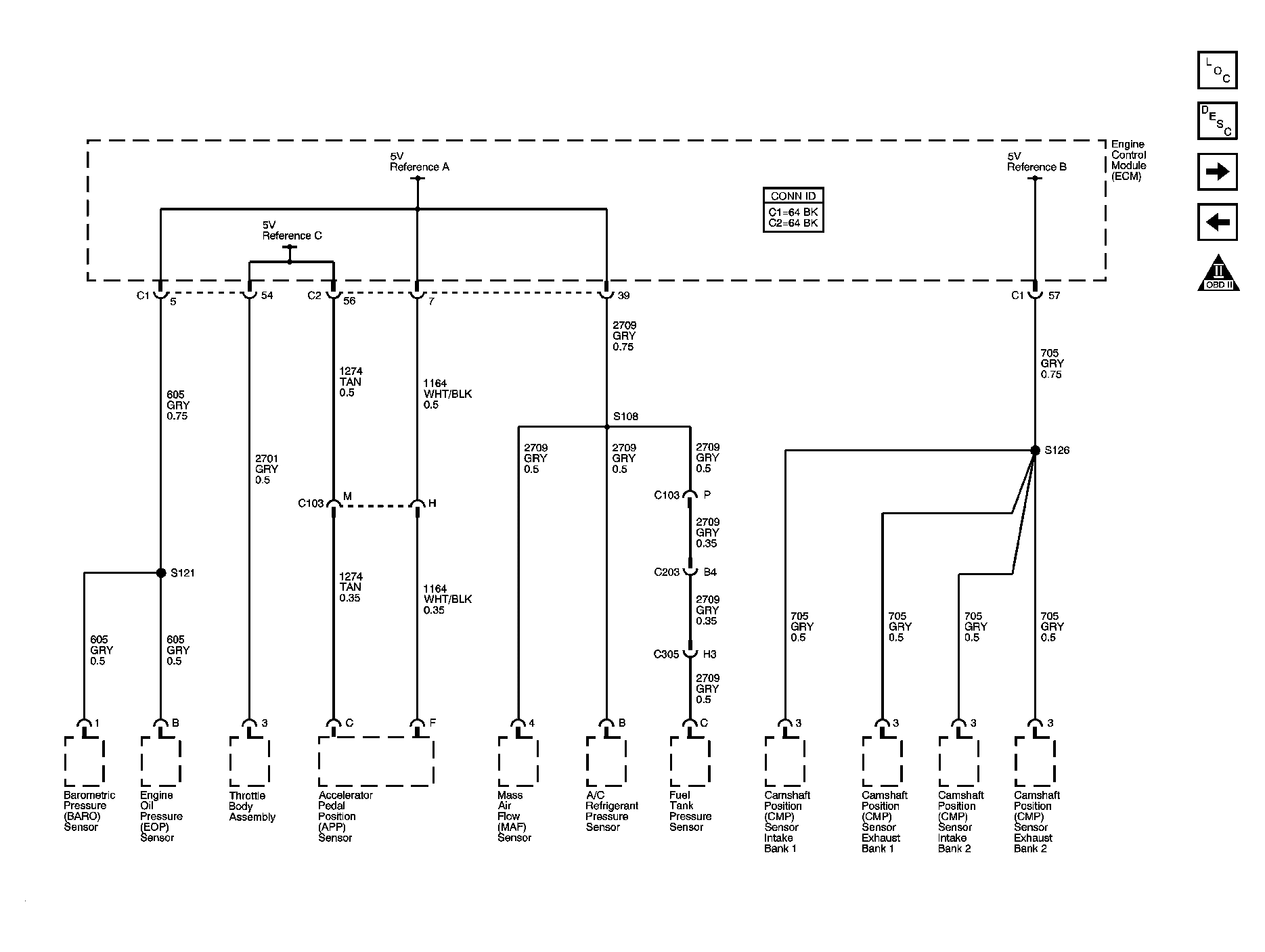

Fig 4: Engine Data Sensors - 5-Volt Reference Bus Schematics

Courtesy of GENERAL MOTORS CORP.

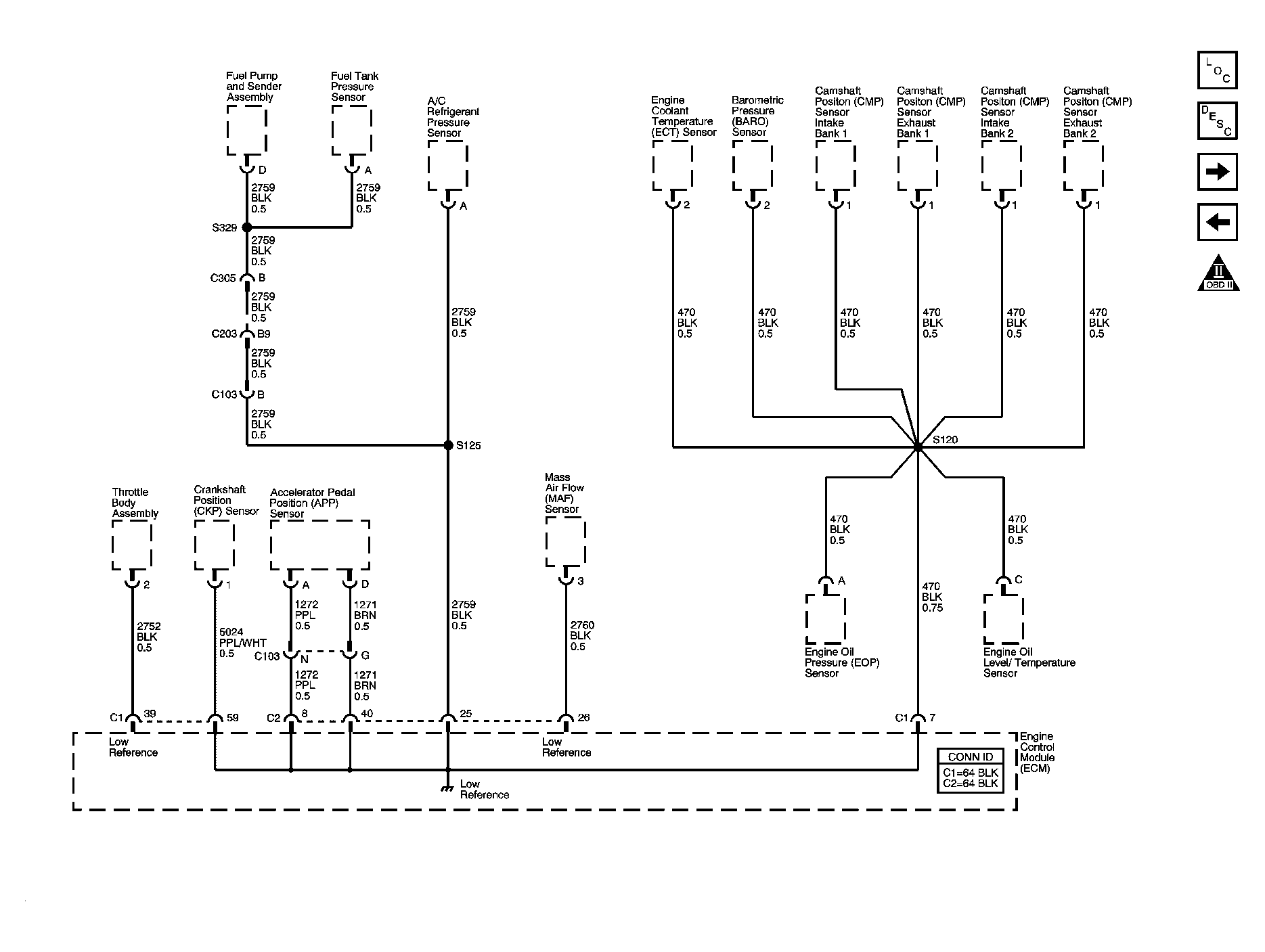

Fig 5: Engine Data Sensors - Low Reference Bus Schematics

Courtesy of GENERAL MOTORS CORP.

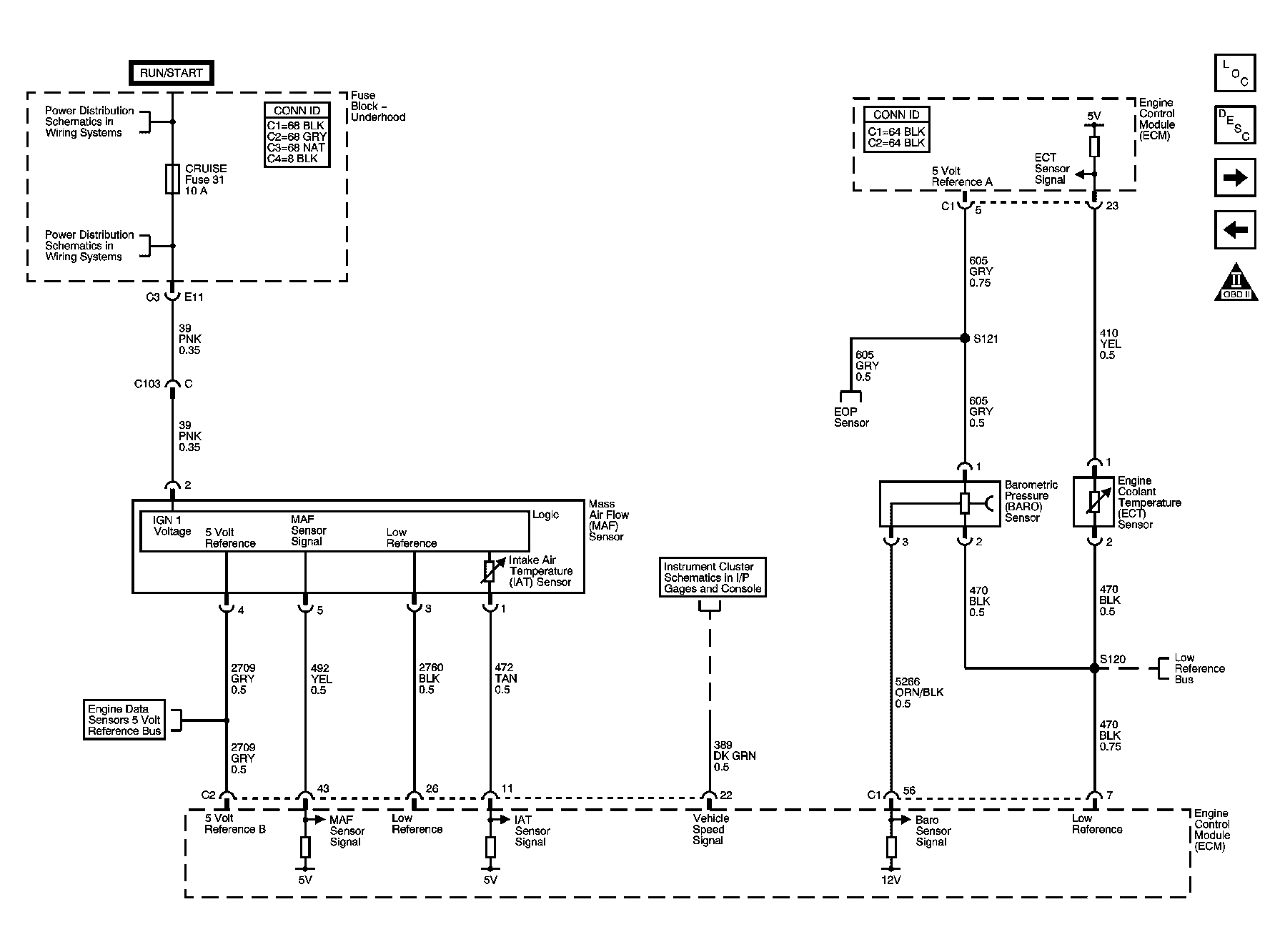

Fig 6: Engine Data Sensors - BARO, ECT and MAF/IAT Sensors Schematics

Courtesy of GENERAL MOTORS CORP.

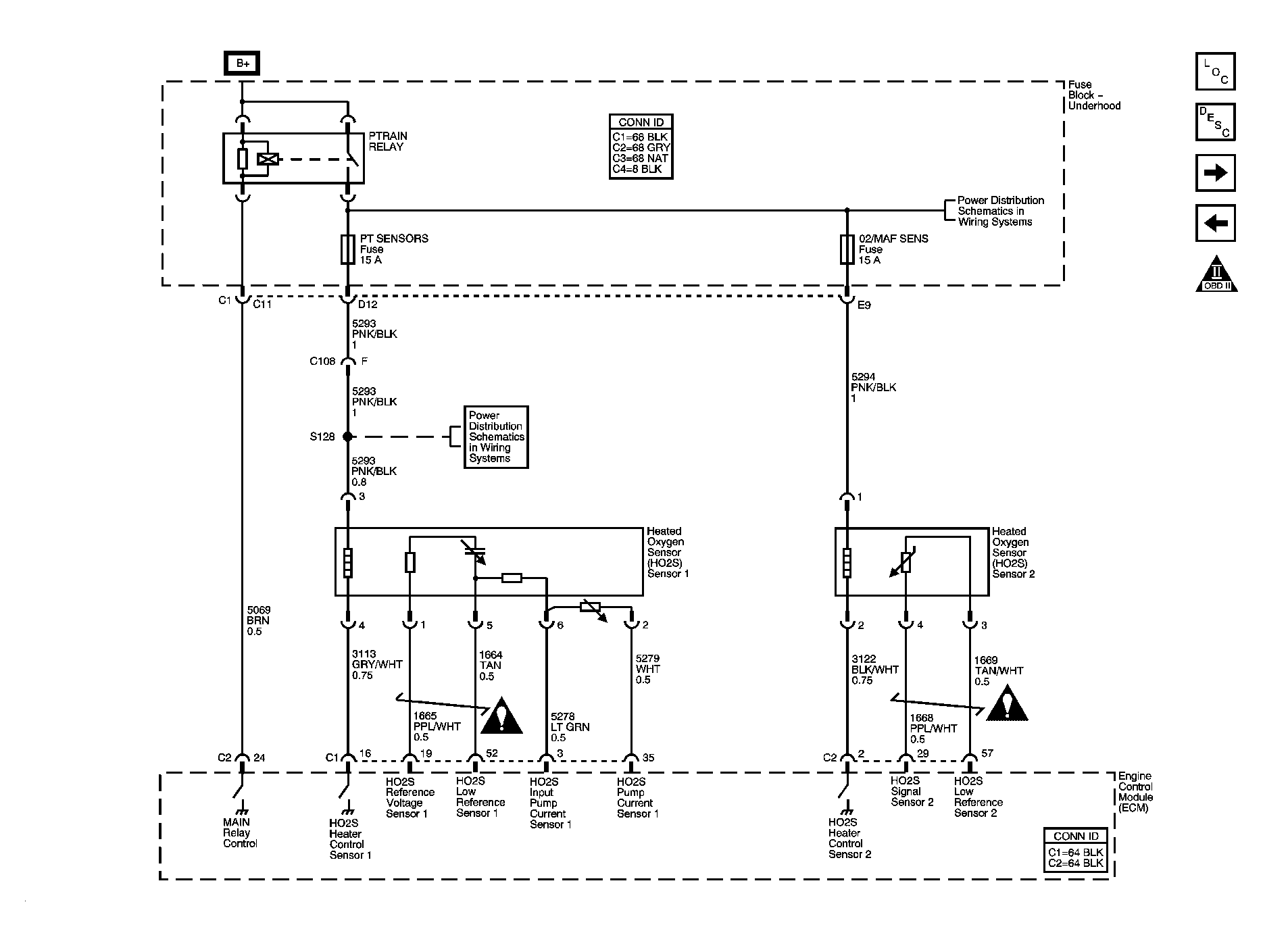

Fig 7: Engine Data Sensors - Heated Oxygen Sensors (HO2S) Schematics

Courtesy of GENERAL MOTORS CORP.

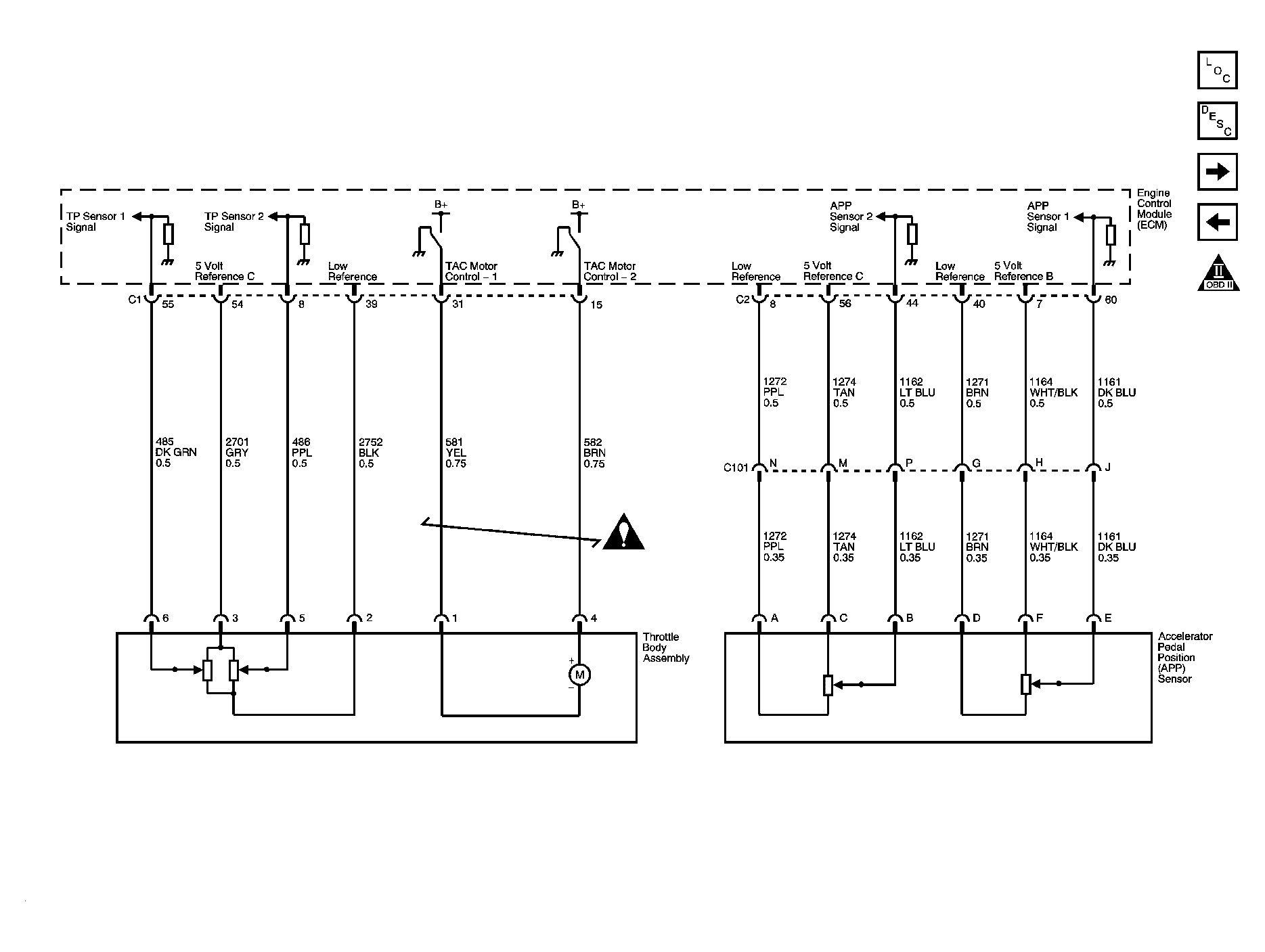

Fig 8: Engine Data Sensors - Throttle Actuator Control (TAC) System Schematics

Courtesy of GENERAL MOTORS CORP.

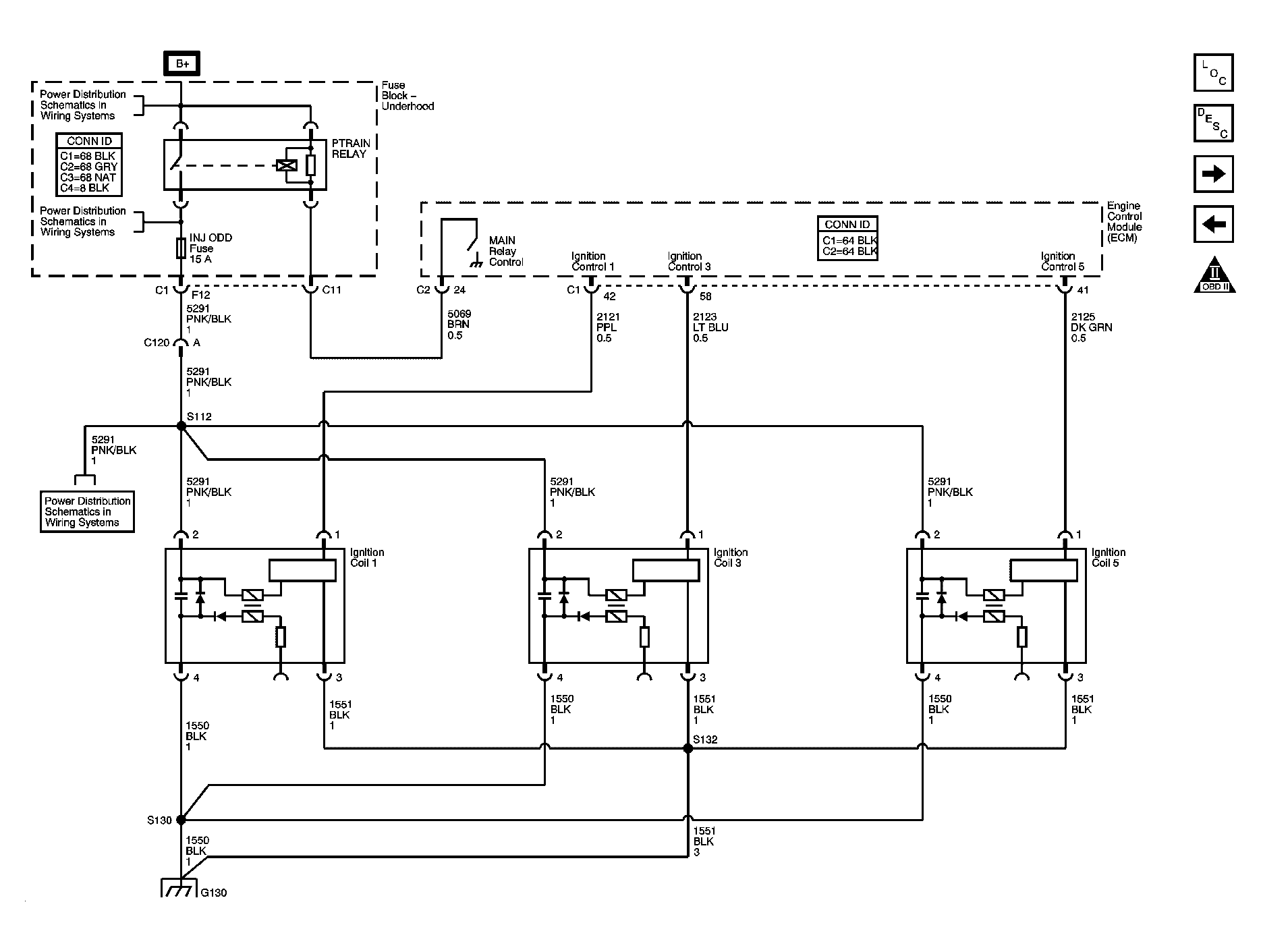

Fig 9: Ignition Controls - Bank 1 (Odd) Ignition Coils Schematics

Courtesy of GENERAL MOTORS CORP.

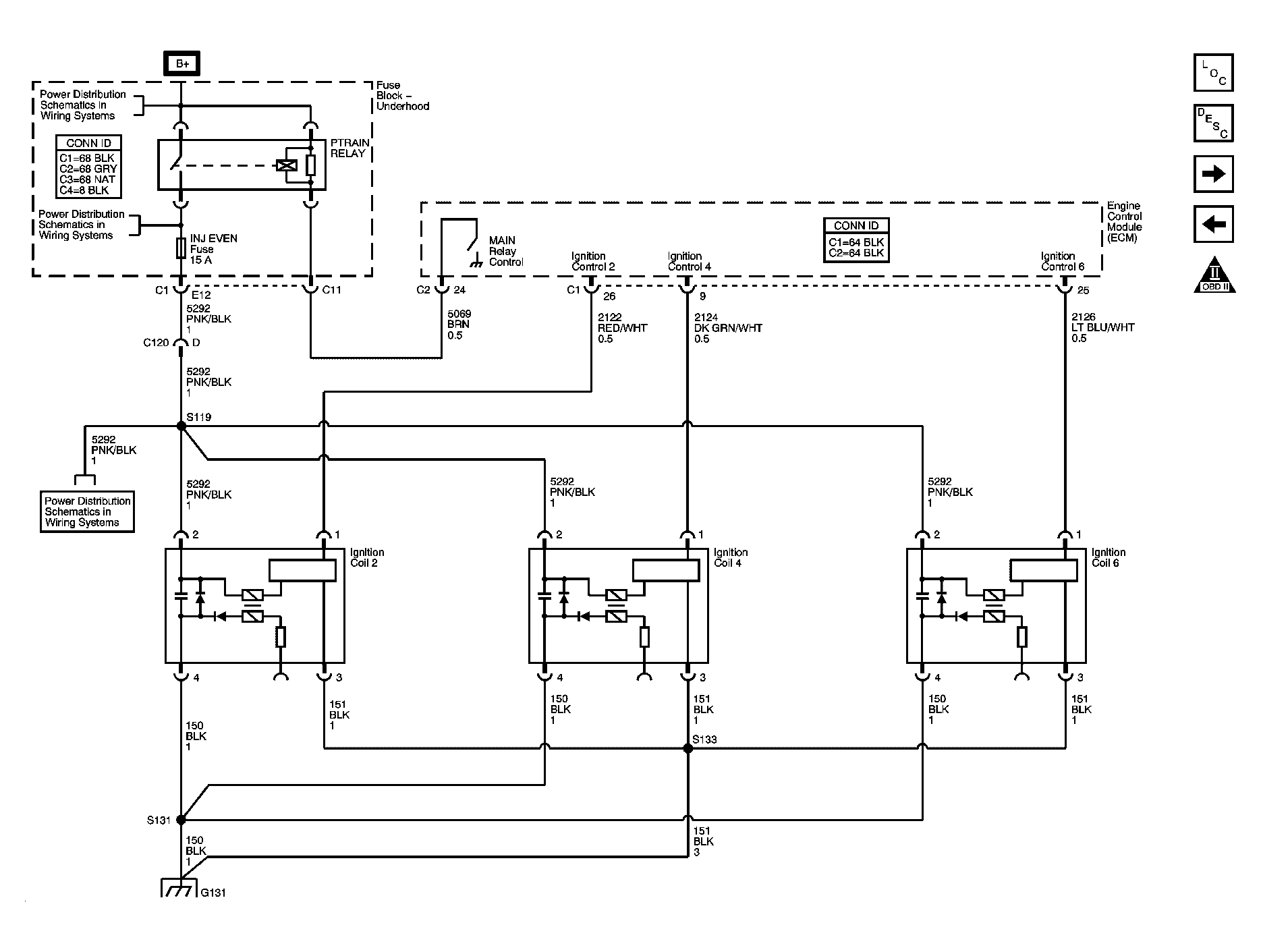

Fig 10: Ignition Controls - Bank 2 (Even) Ignition Coils Schematics

Courtesy of GENERAL MOTORS CORP.

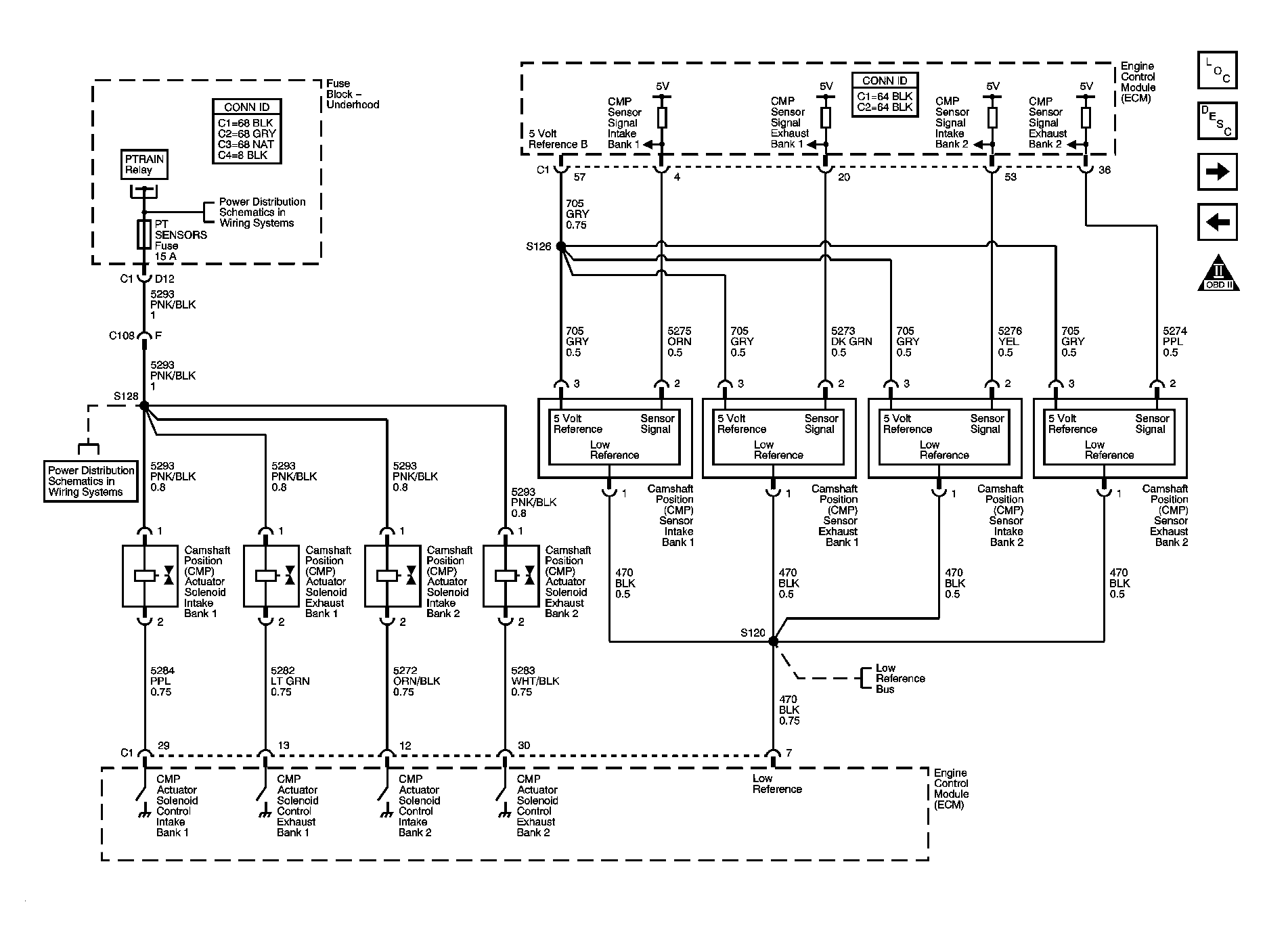

Fig 11: Ignition Controls - Camshaft Position (CMP) Sensors and Actuator Solenoids Schematics

Courtesy of GENERAL MOTORS CORP.

Fig 12: Ignition Controls - Knock and Crankshaft Position (CKP) Sensors Schematics

Courtesy of GENERAL MOTORS CORP.

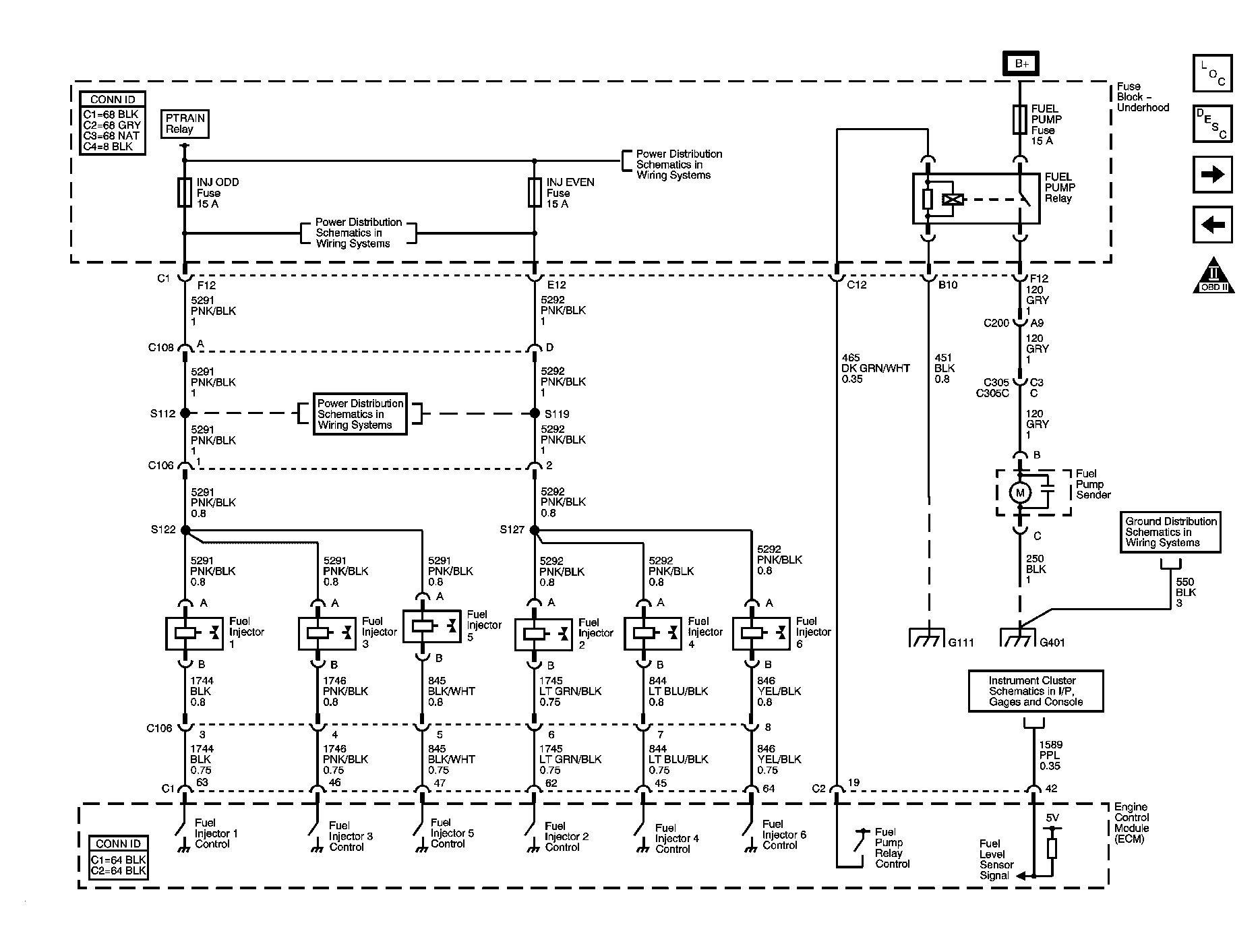

Fig 13: Fuel Controls - Fuel Pump and Injectors Schematics

Courtesy of GENERAL MOTORS CORP.

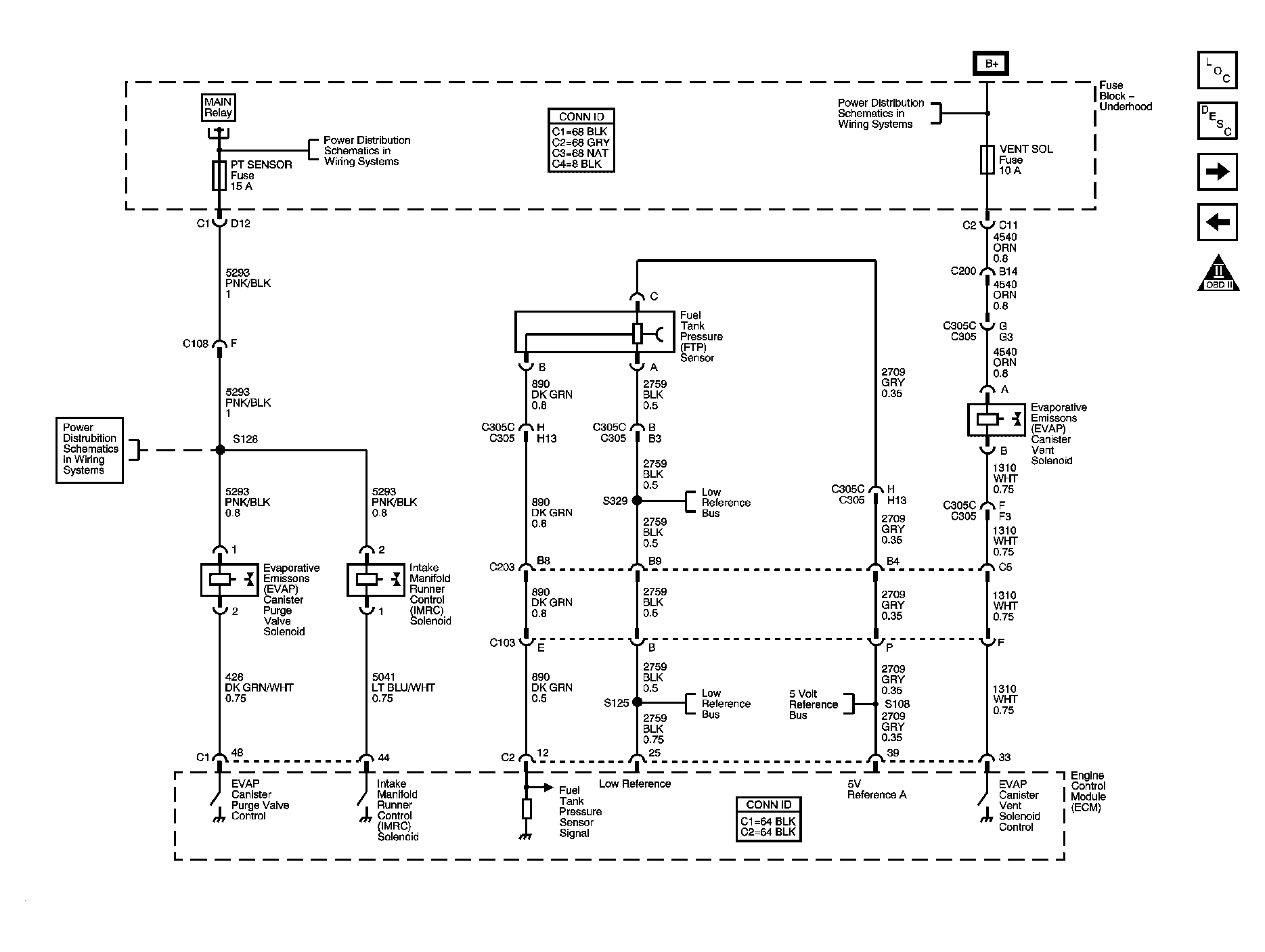

Fig 14: Fuel Controls - EVAP Controls Schematics

Courtesy of GENERAL MOTORS CORP.

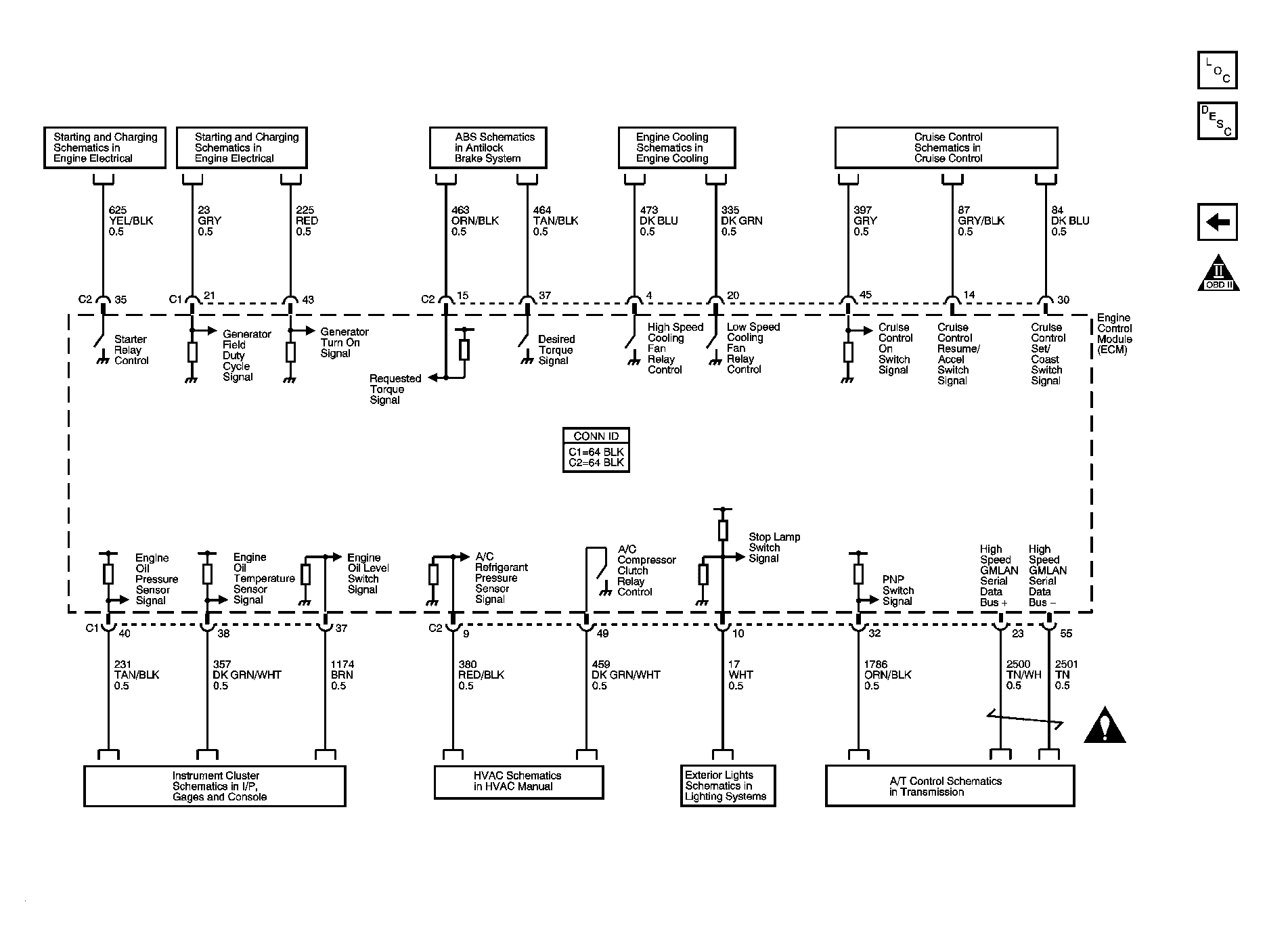

Fig 15: Controlled/Monitored Subsystem References Schematics

Courtesy of GENERAL MOTORS CORP.
