Powertrain Control Module (PCM) C1 (With RPO Code NU3)

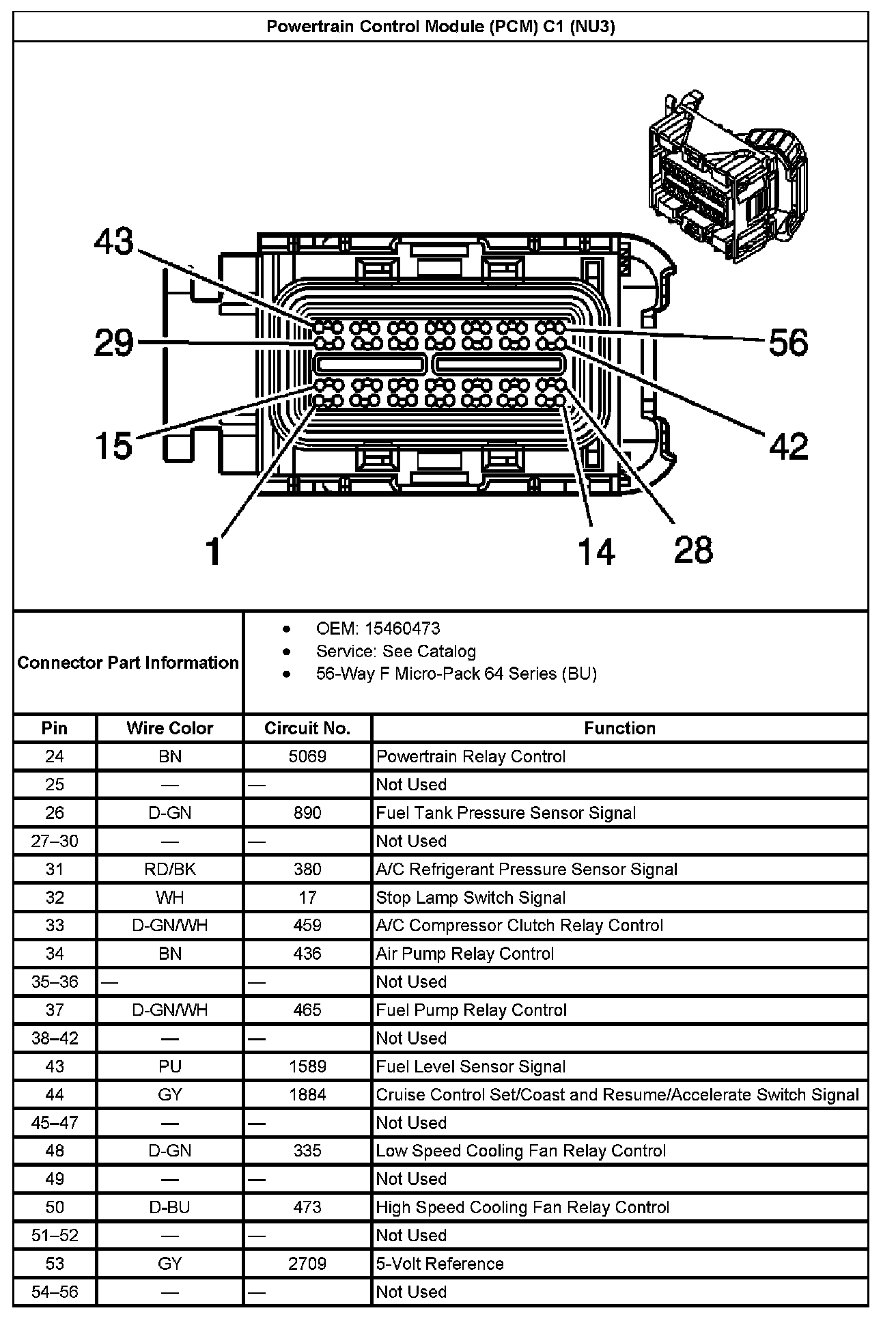

Powertrain Control Module (PCM) C1 (With RPO Code NU3) Part 1:

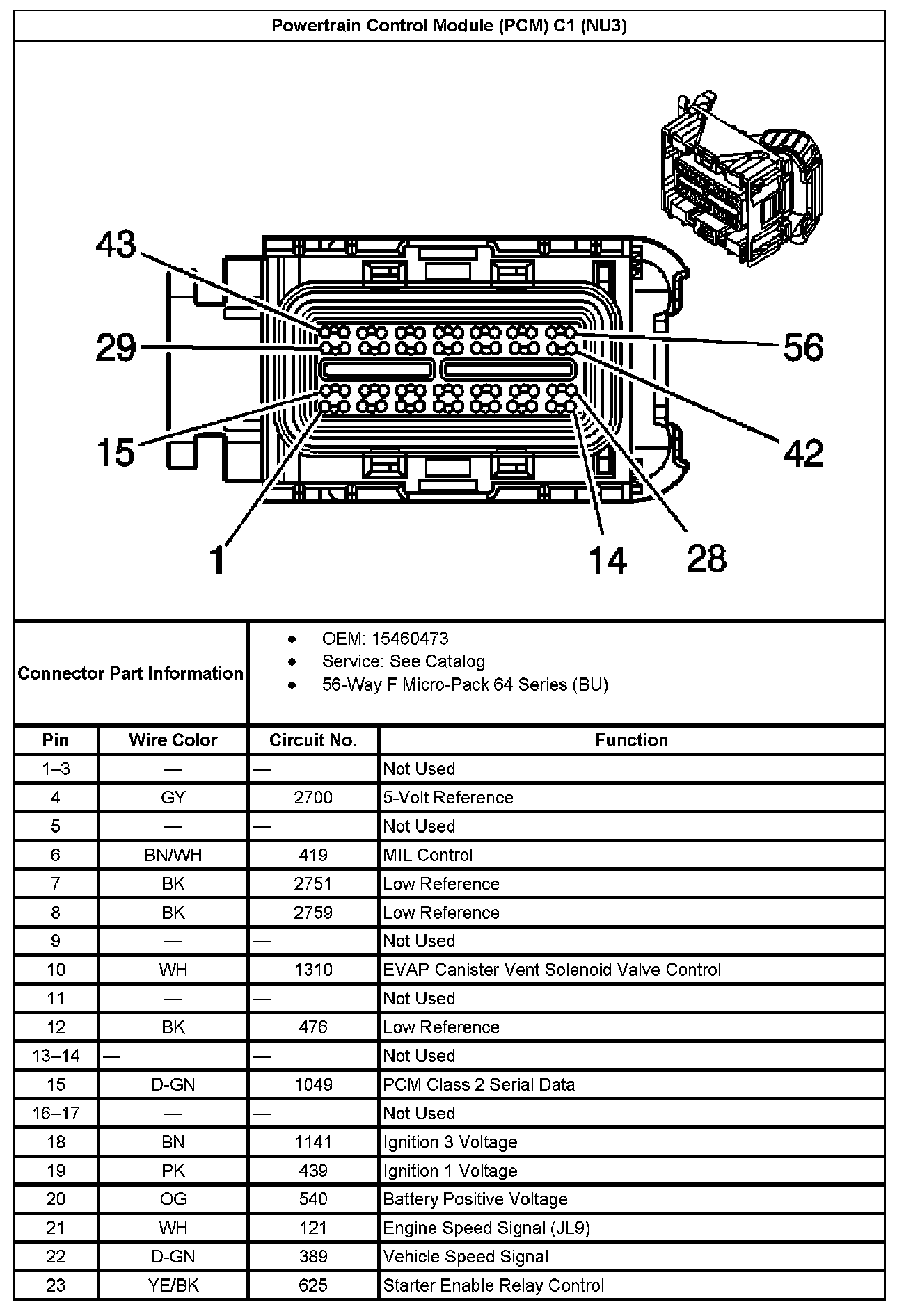

Powertrain Control Module (PCM) C1 (With RPO Code NU3) Part 2:
