Powertrain Control Module (PCM) C3 (With RPO Code NU3)

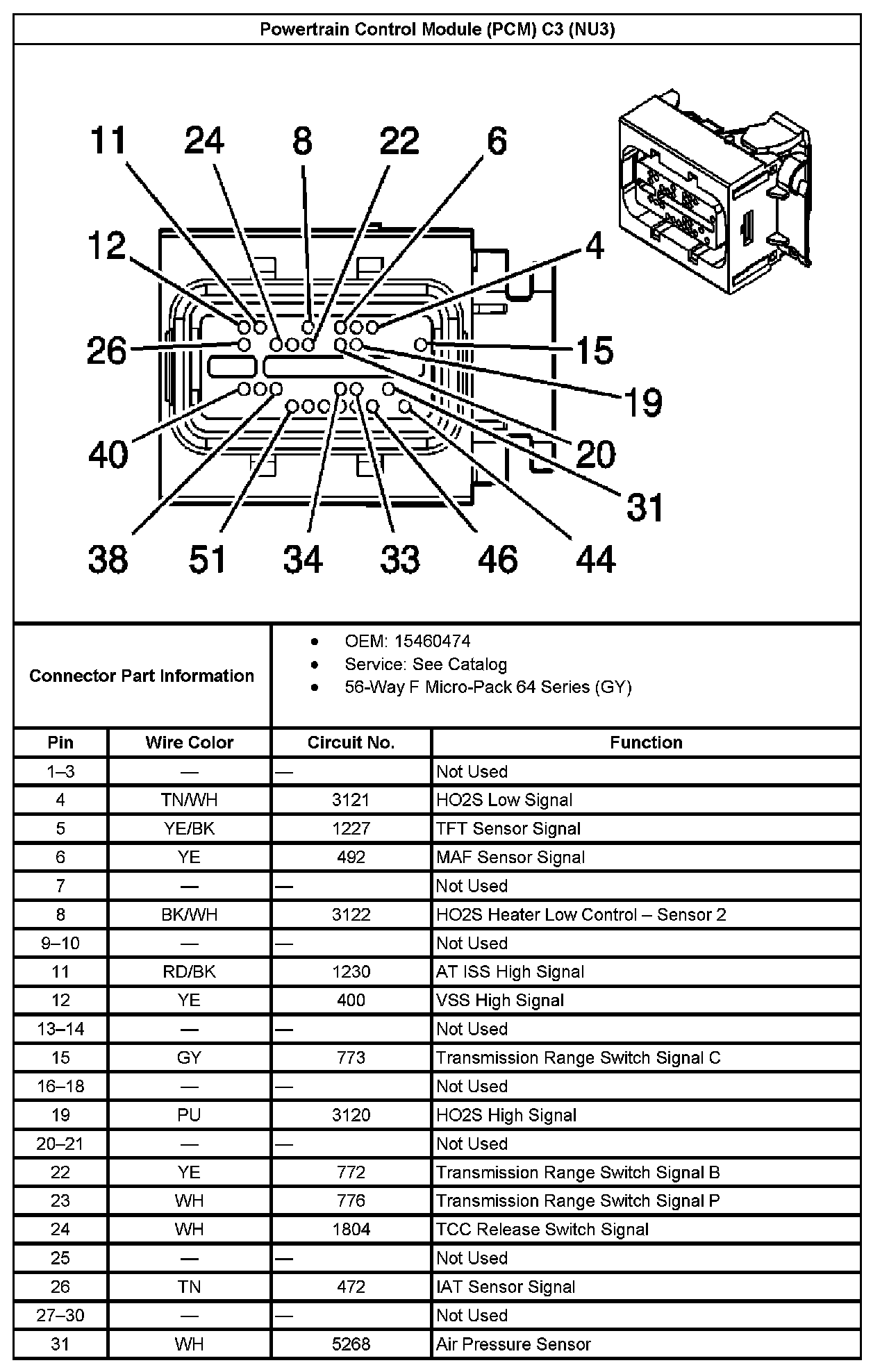

Powertrain Control Module (PCM) C3 (With RPO Code NU3) Part 1:

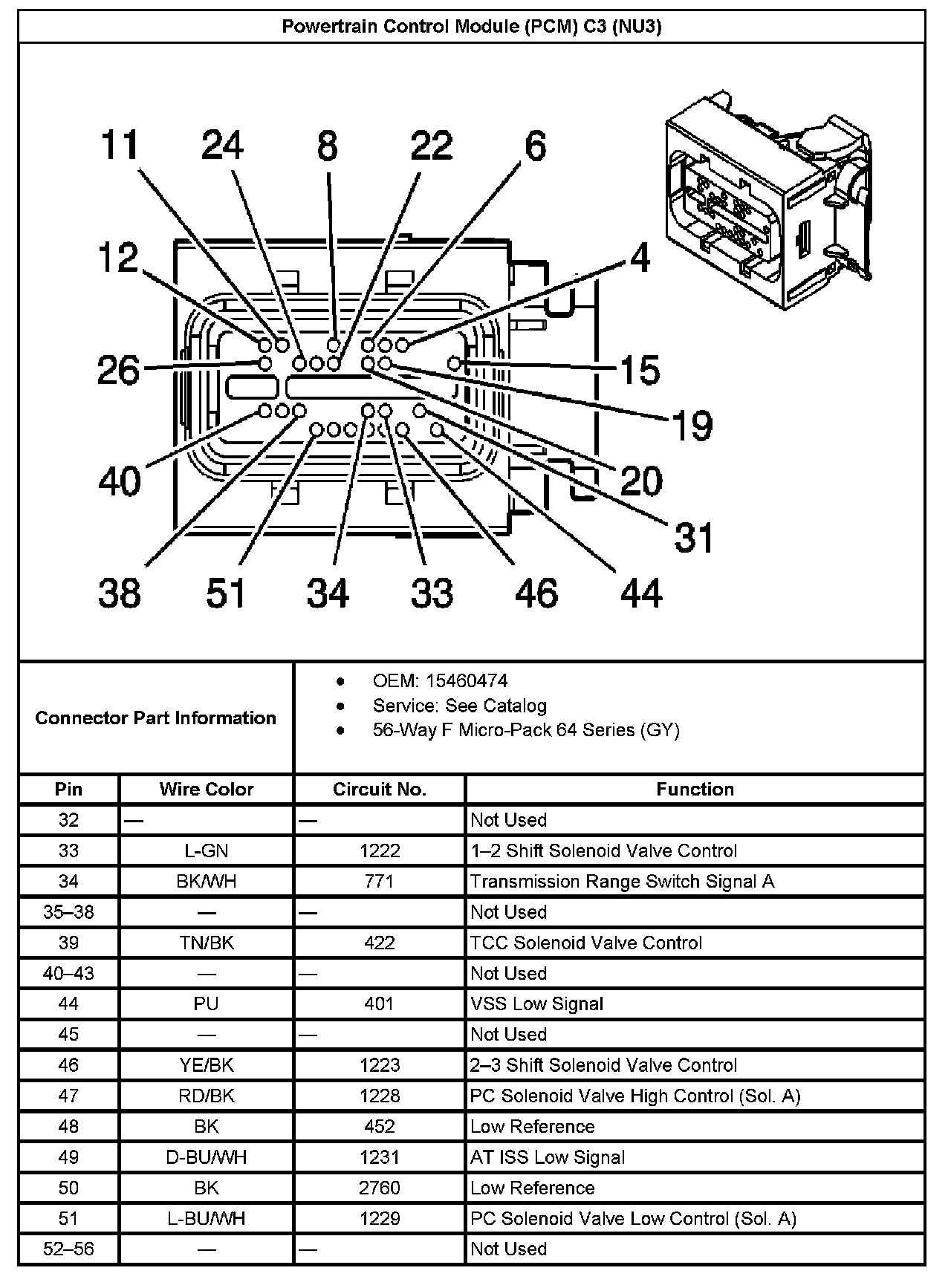

Powertrain Control Module (PCM) C3 ( With RPO Code NU3) Part 2:

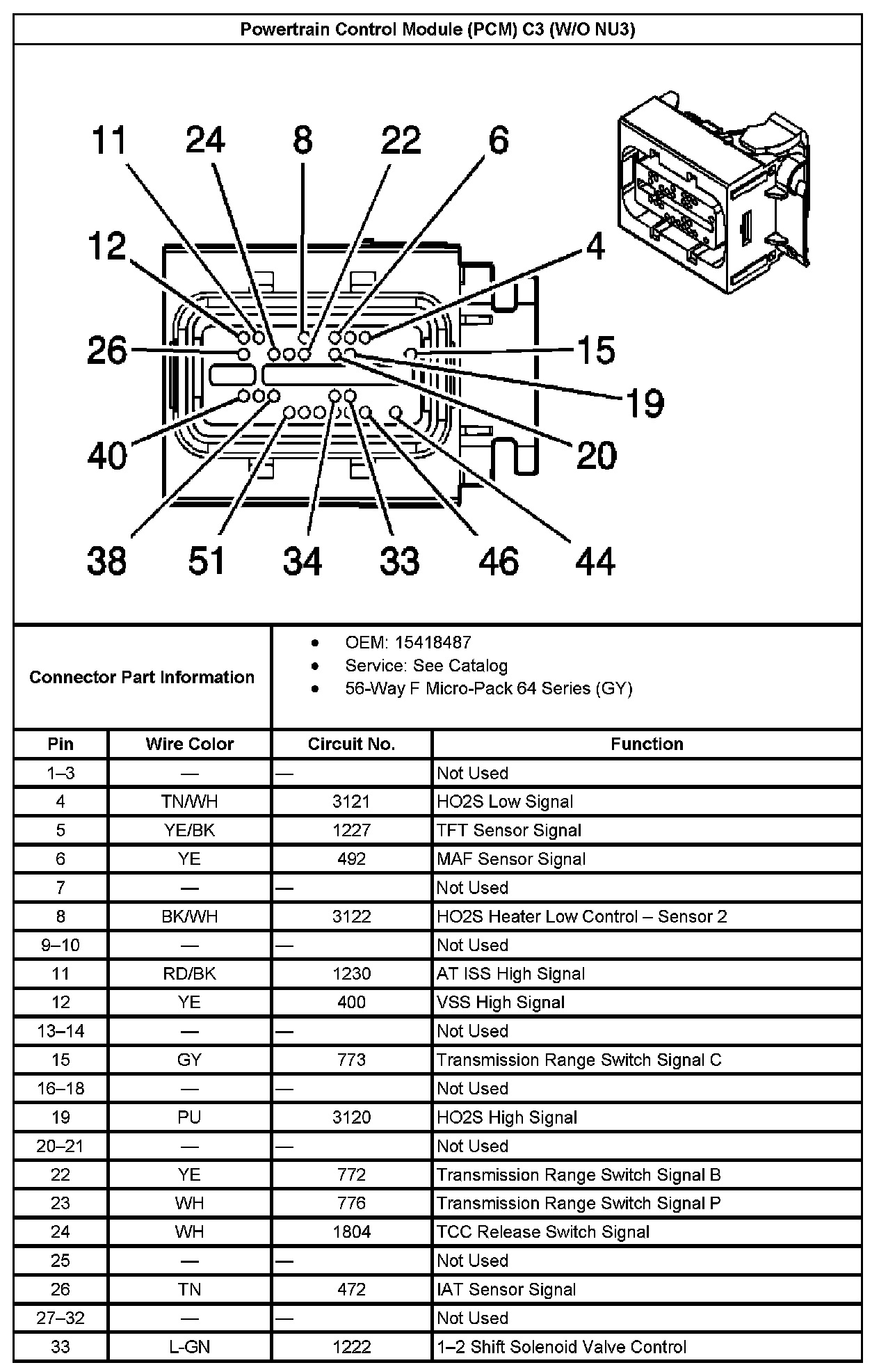

Powertrain Control Module (PCM) C3 (Without RPO Code NU3) Part 1:
