Data Link Connector: Service and Repair

DATA LINK CONNECTOR REPLACEMENT

REMOVAL PROCEDURE

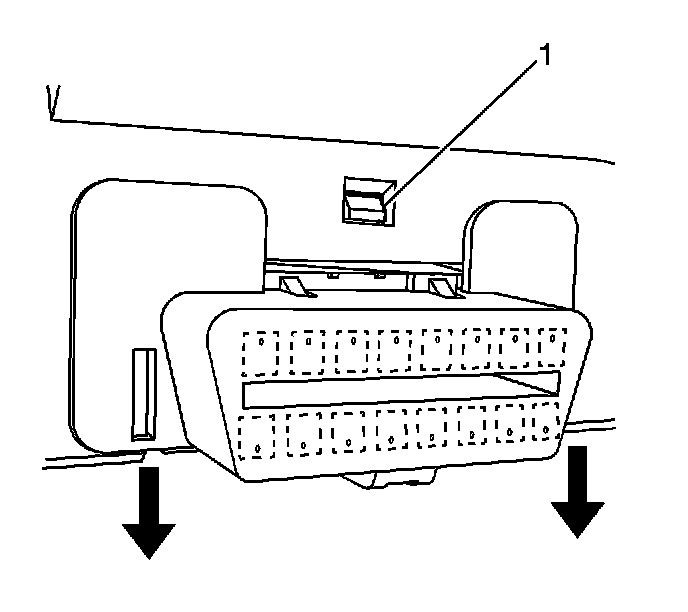

1. Disengage the data link connector (DLC) tab (1).
2. Remove the DLC from the instrument panel (I/P) trim pad.

INSTALLATION PROCEDURE




1. Align the DLC to the I/P trim pad.
2. Slide the DLC upward in order to engage the tab (1).
