Power Door Systems Connector End Views

Door Lock - Driver

GM845631Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 10768367
  • Service: 88986248
  • 10-Way F Micro Timer 3 Series Sealed (BK)
Pin Wire Color Circuit No. Function
1 - - Not Used
2 TN 694 Driver Door Lock Actuator Unlock Control
3 GY 295 Door Lock Actuator Lock Control
4 L-GN 1123 Door Lock Key Switch Lock Signal
5 - - Not Used
6 GY/BK 745 Left Front Door Ajar Switch Signal
7 TN 126 Left Front Door Open Switch Signal
8 BK 550 Ground
9 PU 1124 Door Lock Key Switch Unlock Signal
10 - - Not Used
Door Lock - Front Passenger

GM845632Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 10768369
  • Service: 88986251
  • 6-Way F Micro Timer 3 Series Sealed (BK)
Pin Wire Color Circuit No. Function
1 BK/WH 746 Right Front Door Ajar Switch Signal
2 L-GN 1177 Right Front Door Open Switch Signal
3 BK 750 Ground
4 - - Not Used
5 TN 294 Door Lock Actuator Unlock Control
6 GY 295 Door Lock Actuator Lock Control
Door Lock - LR

GM845632Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 10768369
  • Service: 88986251
  • 6-Way F Micro Timer 3 Series Sealed (BK)
Pin Wire Color Circuit No. Function
1 - - Not Used
2 TN 294 Door Lock Actuator Unlock Control
3 GY 295 Door Lock Actuator Lock Control
4 L-BU/BK 747 Left Rear Door Ajar Switch Signal
5 D-BU/WH 1179 Left Rear Door Open Switch Signal
6 BK 550 Ground
Door Lock - RR

GM845632Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 10768369
  • Service: 88986251
  • 6-Way F Micro Timer 3 Series Sealed (BK)
Pin Wire Color Circuit No. Function
1 L-GN/BK 748 Right Rear Door Ajar Switch Signal
2 YE/BK 1181 Right Rear Door Open Switch Signal
3 BK 750 Ground
4 - - Not Used
5 TN 294 Door Lock Actuator Unlock Control
6 GY 295 Door Lock Actuator Lock Control
Door Lock Switch - Driver

GM130714Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 12124997
  • Service: 12167130
  • 5-Way F Metri-Pack 150 Series Right Angle (BK)
Pin Wire Color Circuit No. Function
A GY 8 Instrument Panel Lamp Supply Voltage
B BK 550 Ground
C - - Not Used
D RD/BK 780 Driver Door Lock Switch Lock Signal
E OG/BK 781 Driver Door Lock Switch Unlock Signal
Door Lock Switch - Front Passenger

GM130714Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 12124997
  • Service: 12167130
  • 5-Way F Metri-Pack 150 Series Right Angle (BK)
Pin Wire Color Circuit No. Function
A GY 8 Instrument Panel Lamp Supply Voltage
B BK 750 Ground
C - - Not Used
D L-BU 244 Passenger Door Lock Switch Lock Signal
E D-BU 245 Passenger Door Lock Switch Unlock Signal
Outside Rearview Mirror Motor - Driver

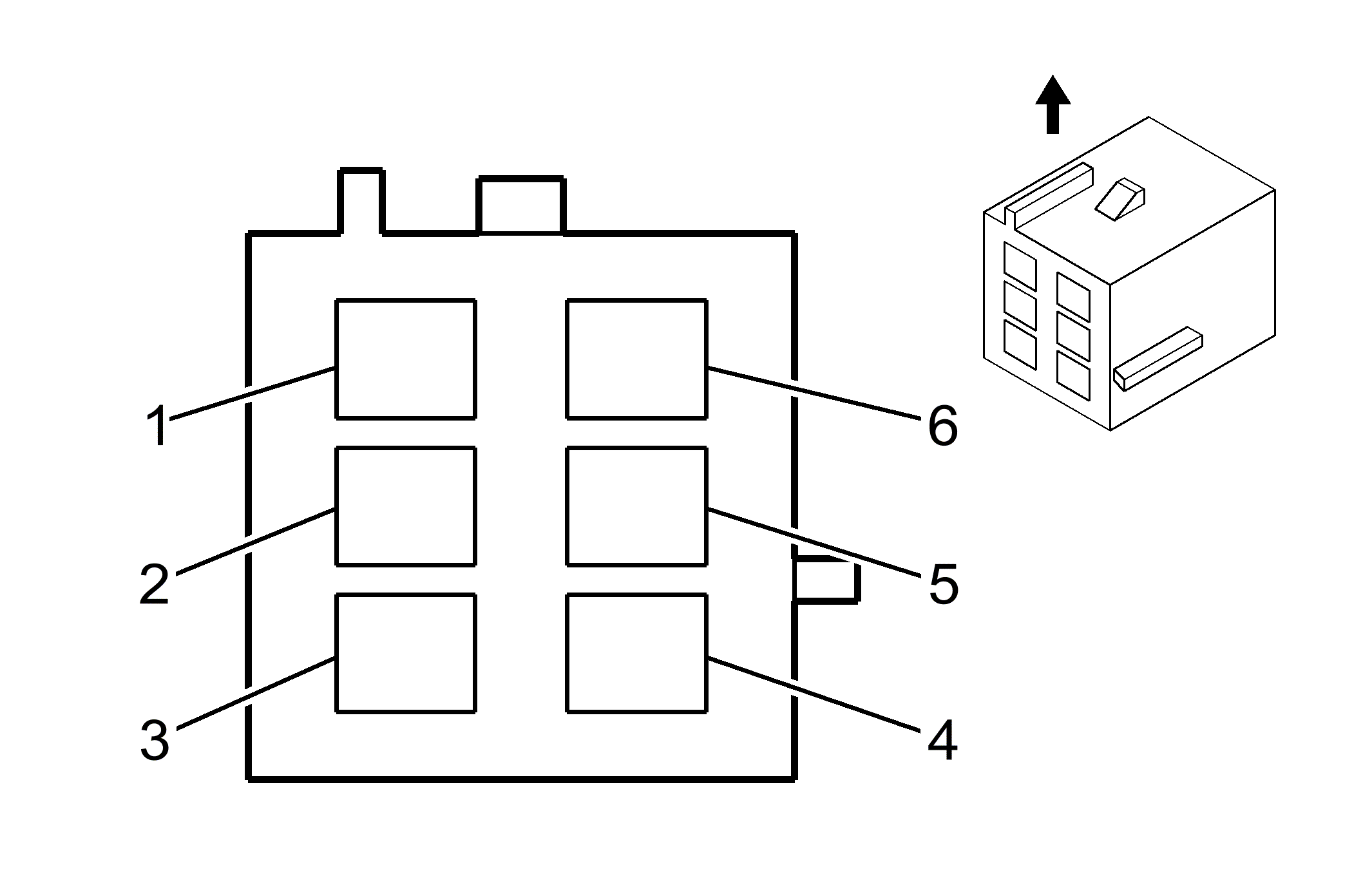

GM1527223Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 15396848
  • Service: See Catalog
  • 6-Way F Metri-Pack 150 Series (BK)
Pin Wire Color Circuit No. Function
1 YE 88 Driver Mirror Motor Up Control
2 L-GN 1499 Driver Mirror Motor Left/Down Control
3 WH 81 Driver Mirror Motor Right Control
4 OG 267 Heated Mirror Element Supply Voltage
5 BK 550 Ground
6 - - Not Used
Outside Rearview Mirror Motor - Passenger

GM1527223Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 15396848
  • Service: See Catalog
  • 6-Way F Metri-Pack 150 Series (BK)
Pin Wire Color Circuit No. Function
1 BN/WH 1498 Passenger Mirror Motor Up Control
2 L-BU/WH 1497 Passenger Mirror Motor Left/Down Control
3 RD/WH 881 Passenger Mirror Motor Right Control
4 OG 267 Heated Mirror Element Supply Voltage
5 BK 750 Ground
6 - - Not Used
Outside Rearview Mirror Switch

GM62464Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 12064769
  • Service: 12101762
  • 10-Way F Metri-Pack 150 Series (NA)
Pin Wire Color Circuit No. Function
A - - Not Used
B BK 550 Ground
C L-BU/WH 1497 Passenger Mirror Motor Left/Down Control
D WH 81 Driver Mirror Motor Right Control
E GY 8 Instrument Panel Lamp Supply Voltage
F YE 88 Driver Mirror Motor Up Control
G OG 840 Battery Positive Voltage
H L-GN 1499 Driver Mirror Motor Left/Down Control
J RD/WH 881 Passenger Mirror Motor Right Control
K BN/WH 1498 Passenger Mirror Motor Up Control
Window Motor - Driver

GM684837Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 12129487
  • Service: 12129487
  • 2-Way F Metri-Pack 280 Series Flexlock Sealed (GY)
Pin Wire Color Circuit No. Function
A D-BU 164 Power Window Motor Left Front Up Control
B BN 165 Power Window Motor Left Front Down Control
Window Motor - Front Passenger

GM684837Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 12129487
  • Service: 12129487
  • 2-Way F Metri-Pack 280 Series Flexlock Sealed (GY)
Pin Wire Color Circuit No. Function
A D-BU 666 Power Window Motor Right Front Up Control
B BN 667 Power Window Motor Right Front Down Control
Window Motor - LR

GM684837Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 12129487
  • Service: 12129487
  • 2-Way F Metri-Pack 280 Series Flexlock Sealed (GY)
Pin Wire Color Circuit No. Function
A D-BU 668 Power Window Motor Left Rear Up Control
B BN 669 Power Window Motor Left Rear Down Control
Window Motor - RR

GM684837Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 12129487
  • Service: 12129487
  • 2-Way F Metri-Pack 280 Series Flexlock Sealed (GY)
Pin Wire Color Circuit No. Function
A D-BU 670 Power Window Motor Right Rear Up Control
B BN 671 Power Window Motor Right Rear Down Control
Window Switch - Driver C1

GM646380Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 15326900
  • Service: 15306380
  • 6-Way F GT 280 (BK)
Pin Wire Color Circuit No. Function
A BN 165 Power Window Motor Left Front Down Control
B L-BU 166 Power Window Master Switch Right Front Up Signal
C TN 167 Power Window Master Switch Right Front Down Signal
D - - Not Used
E D-BU 164 Power Window Motor Left Front Up Control
F GY 8 Instrument Panel Lamp Supply Voltage
Window Switch - Driver C2

GM556473Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 15326924
  • Service: See Catalog
  • 8-Way F GT 280 (BK)
Pin Wire Color Circuit No. Function
A - - Not Used
B BK 550 Ground
C PU 169 Power Window Master Switch Left Rear Down Signal
D D-GN 168 Power Window Master Switch Left Rear Up Signal
E YE 143 Accessory Voltage
F D-BU 1307 Power Window Master Switch Lockout Signal
G L-GN 170 Power Window Master Switch Right Rear Up Signal
H PU 171 Power Window Master Switch Right Rear Down Signal
Window Switch - Front Passenger

GM333036Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 12191825
  • Service: 15306048
  • 8-Way GT 280 Series (BN)
Pin Wire Color Circuit No. Function
A YE 143 Accessory Voltage
B GY 8 Instrument Panel Lamp Supply Voltage
GY 8 Instrument Panel Lamp Supply Voltage
C BK 750 Ground
D TN 167 Power Window Master Switch Right Front Down Signal
E - - Not Used
F BN 667 Power Window Motor Right Front Down Control
G D-BU 666 Power Window Motor Right Front Up Control
H L-BU 166 Power Window Master Switch Right Front Up Signal
Window Switch - LR

GM62469Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 12064998
  • Service: 15306189
  • 8-Way F Metri-Pack 280 Series (BK)
Pin Wire Color Circuit No. Function
A BN 669 Power Window Motor Left Rear Down Control
B - - Not Used
C D-GN 168 Power Window Master Switch Left Rear Up Signal
D D-BU 668 Power Window Motor Left Rear Up Control
E D-BU 1307 Power Window Master Switch Lockout Signal
F-G - - Not Used
H PU 169 Power Window Master Switch Left Rear Down Signal
Window Switch - RR

GM62469Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 12064998
  • Service: 15306189
  • 8-Way F Metri-Pack 280 Series (BK)
Pin Wire Color Circuit No. Function
A BN 671 Power Window Motor Right Rear Down Control
B - - Not Used
C L-GN 170 Power Window Master Switch Right Rear Up Signal
D D-BU 670 Power Window Motor Right Rear Up Control
E D-BU 1307 Power Window Master Switch Lockout Signal
F-G - - Not Used
H PU 171 Power Window Master Switch Right Rear Down Signal
