Engine Controls Schematics

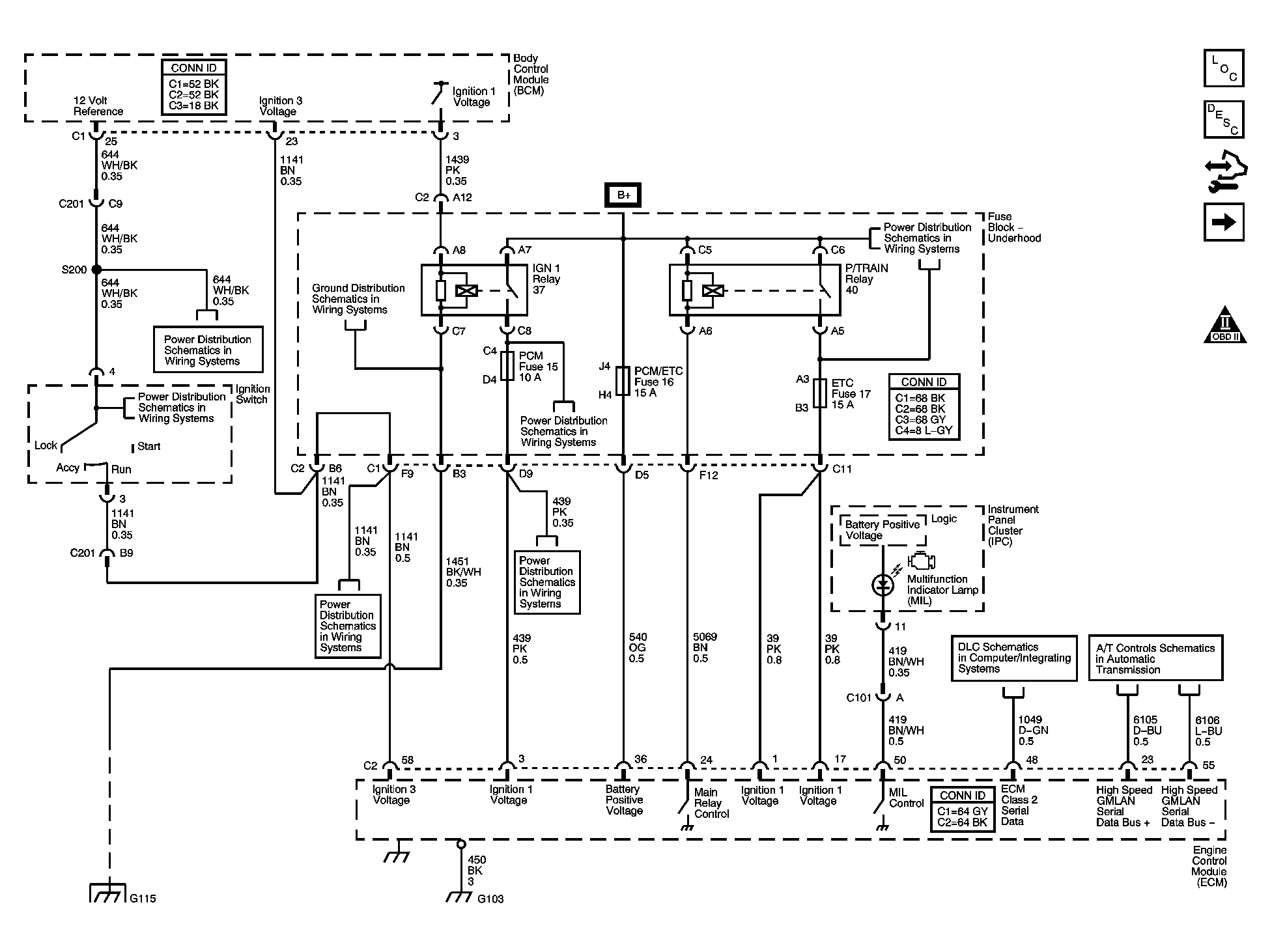

Fig 1: Module Power, Ground, Serial Data, and MIL Schematic

Courtesy of GENERAL MOTORS CORP.

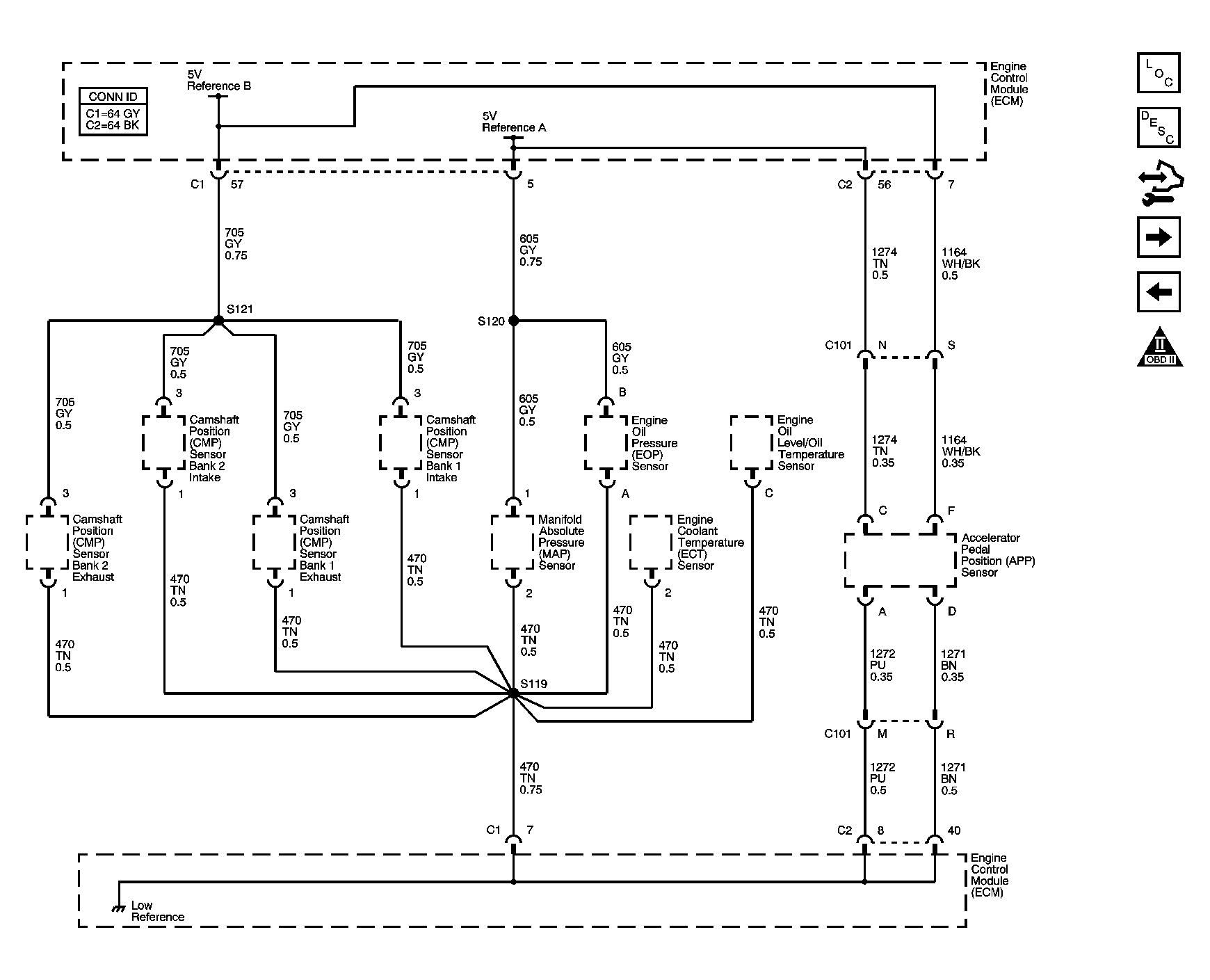

Fig 2: 5-Volt and Low Reference Schematic - 1 of 2

Courtesy of GENERAL MOTORS CORP.

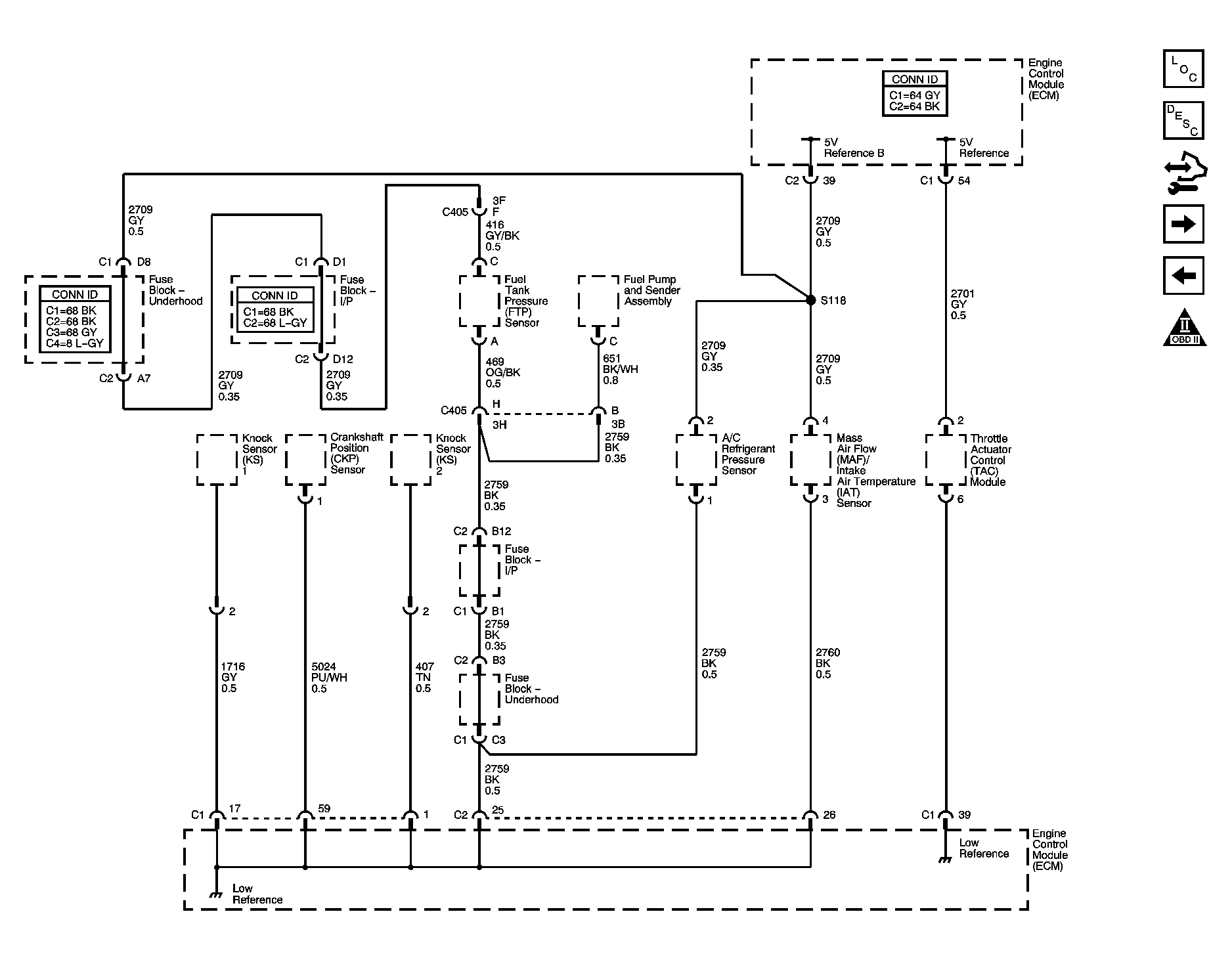

Fig 3: 5-Volt and Low Reference Schematic - 2 of 2

Courtesy of GENERAL MOTORS CORP.

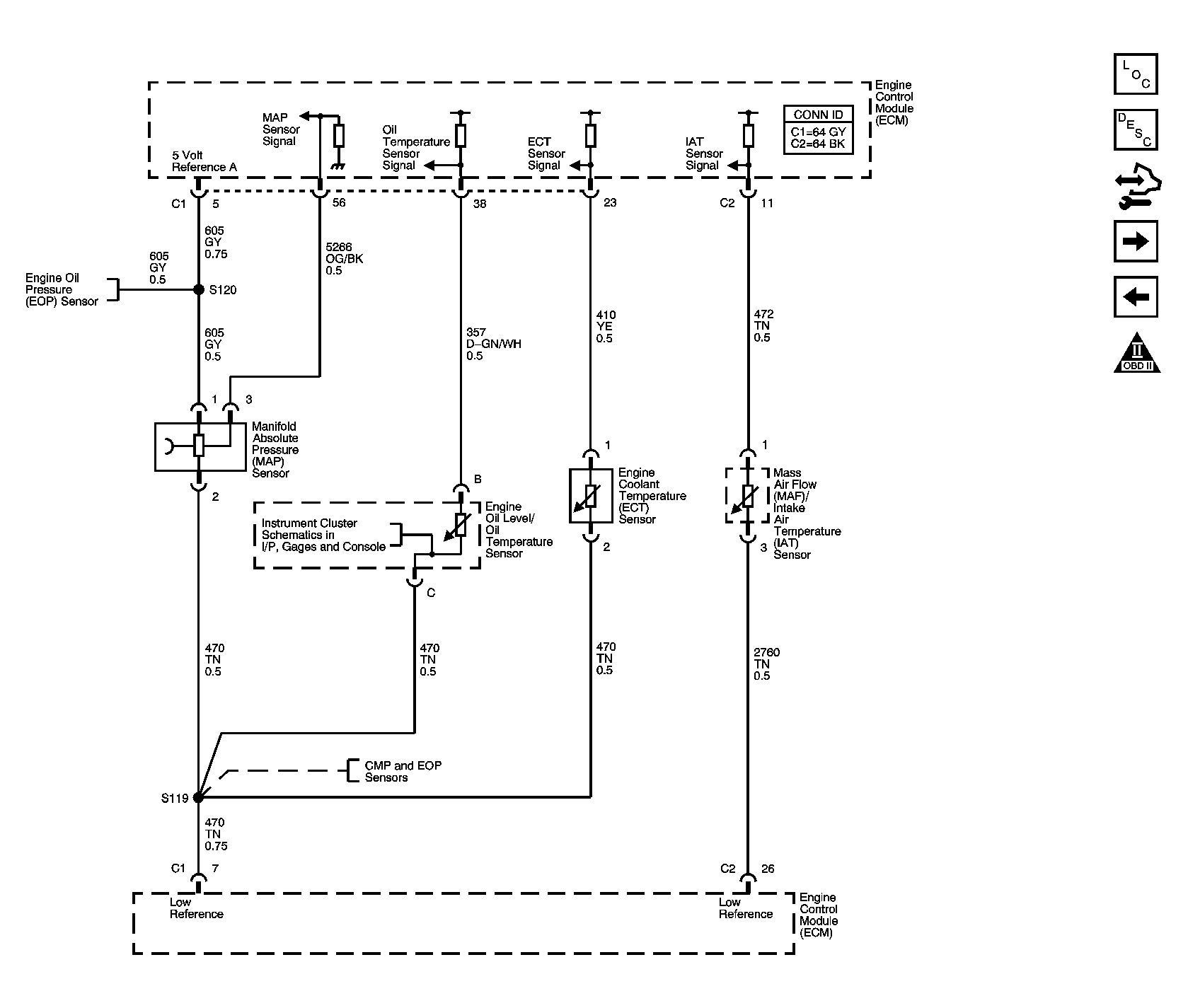

Fig 4: Pressure and Temperature Sensors Schematic

Courtesy of GENERAL MOTORS CORP.

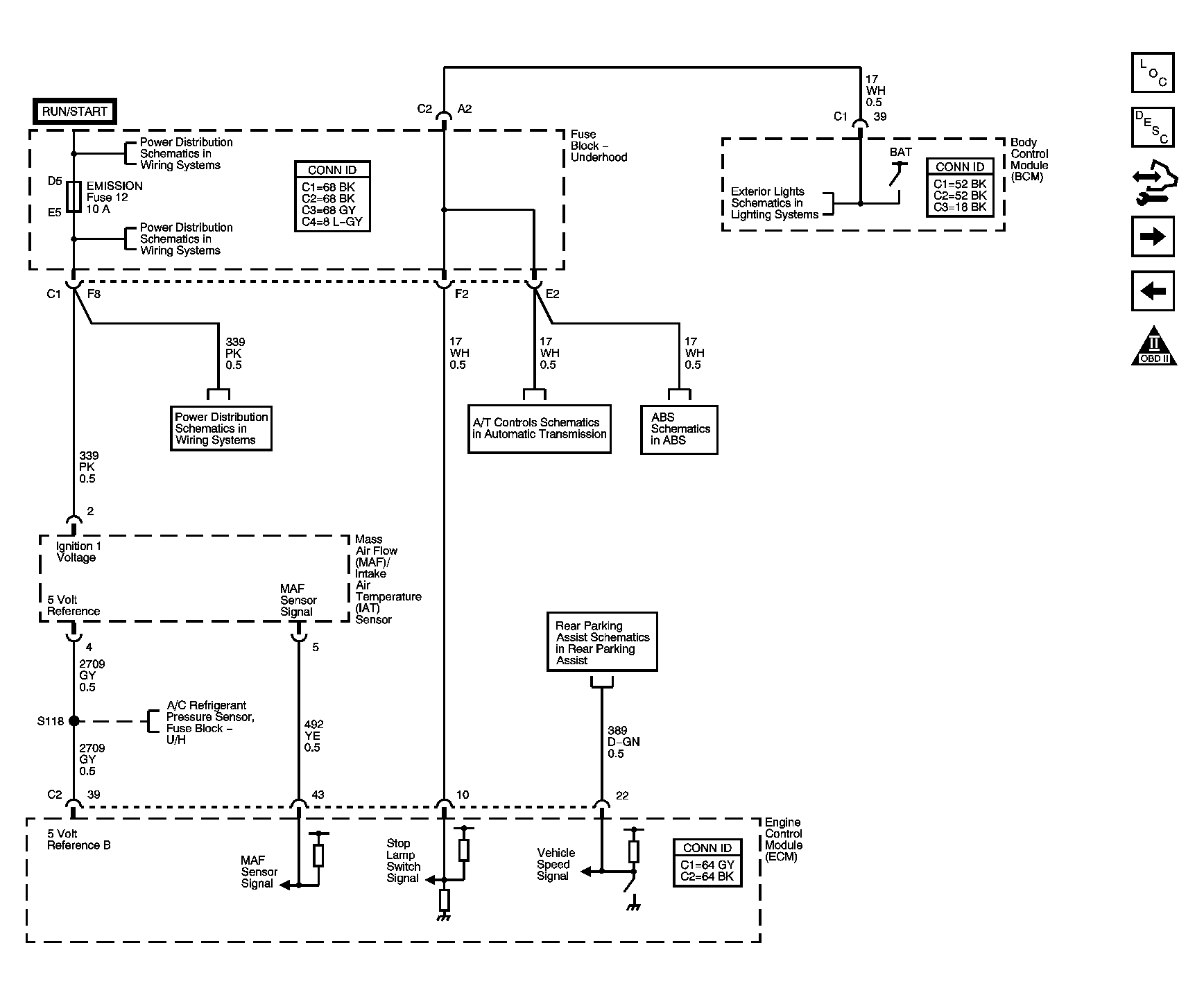

Fig 5: MAF, VSS and Stop Lamp Switch Schematic

Courtesy of GENERAL MOTORS CORP.

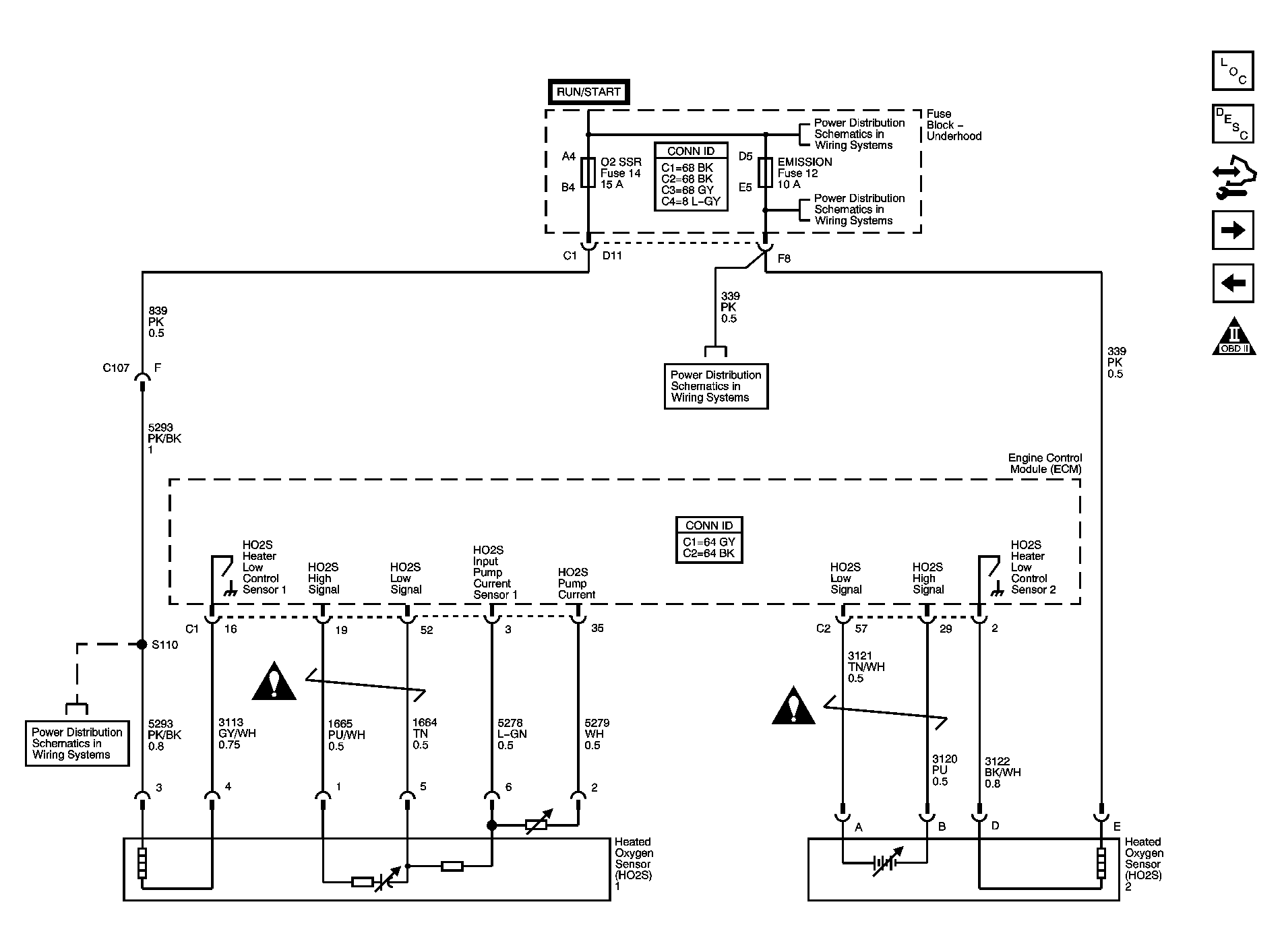

Fig 6: Oxygen Sensors Schematic

Courtesy of GENERAL MOTORS CORP.

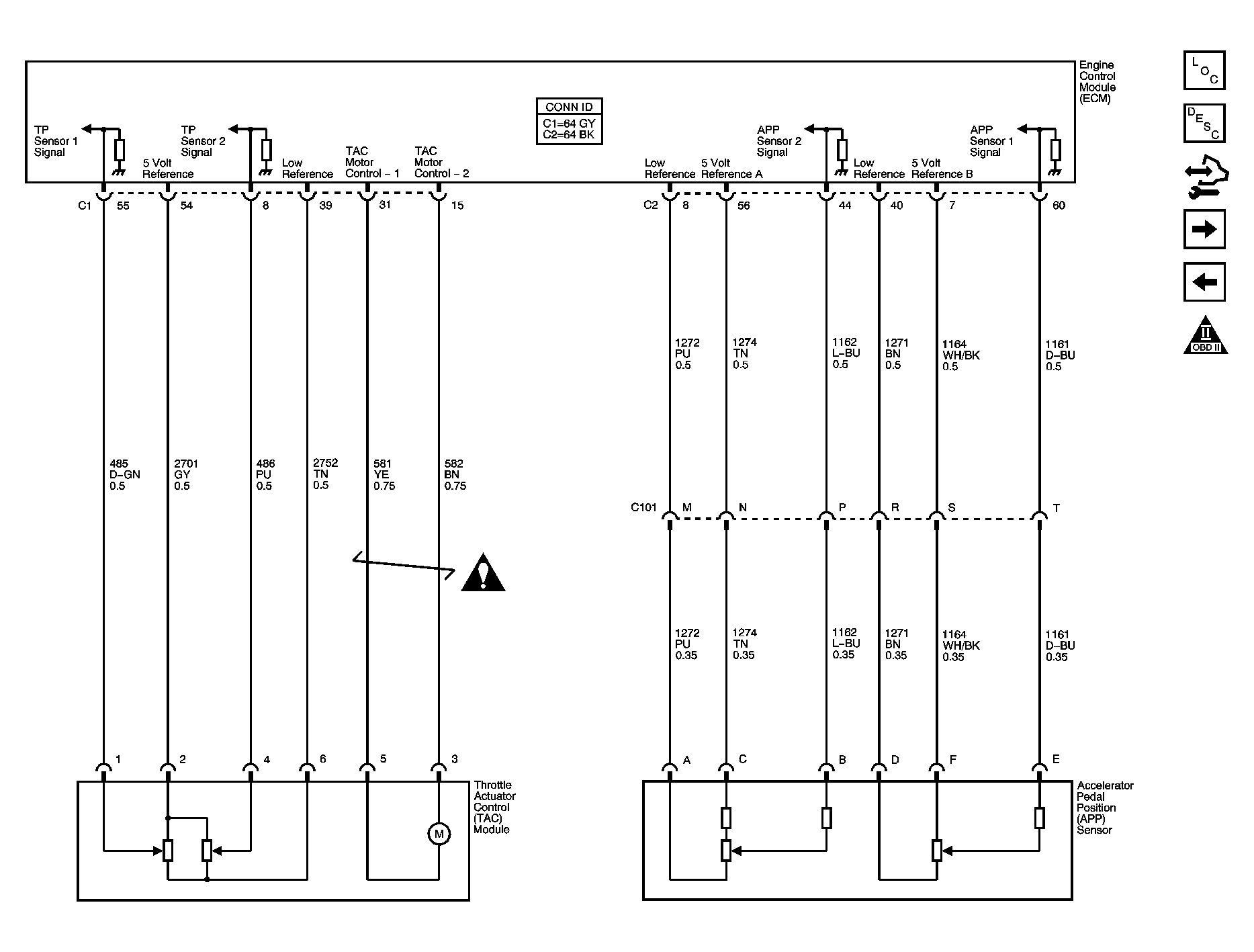

Fig 7: Electronic Throttle Controls Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 8: Ignition Controls - Bank 1 (Odd) Ignition Coils Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 9: Ignition Controls - Bank 2 (Even) Ignition Coils Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 10: Ignition Controls - Knock and CKP Sensors and Engine Speed Schematic

Courtesy of GENERAL MOTORS CORP.

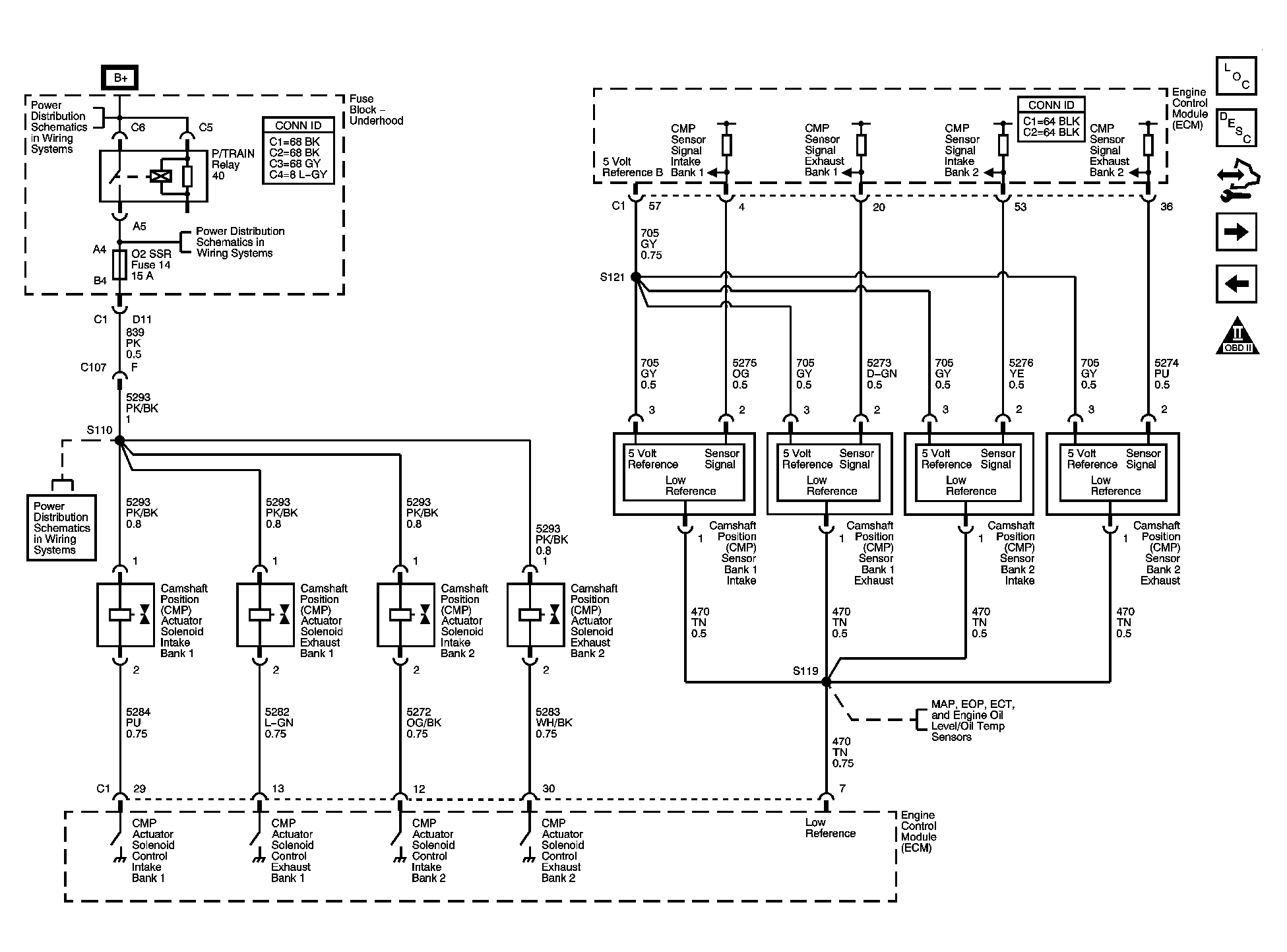

Fig 11: Ignition Controls - CMP Sensors and Solenoids Schematic

Courtesy of GENERAL MOTORS CORP.

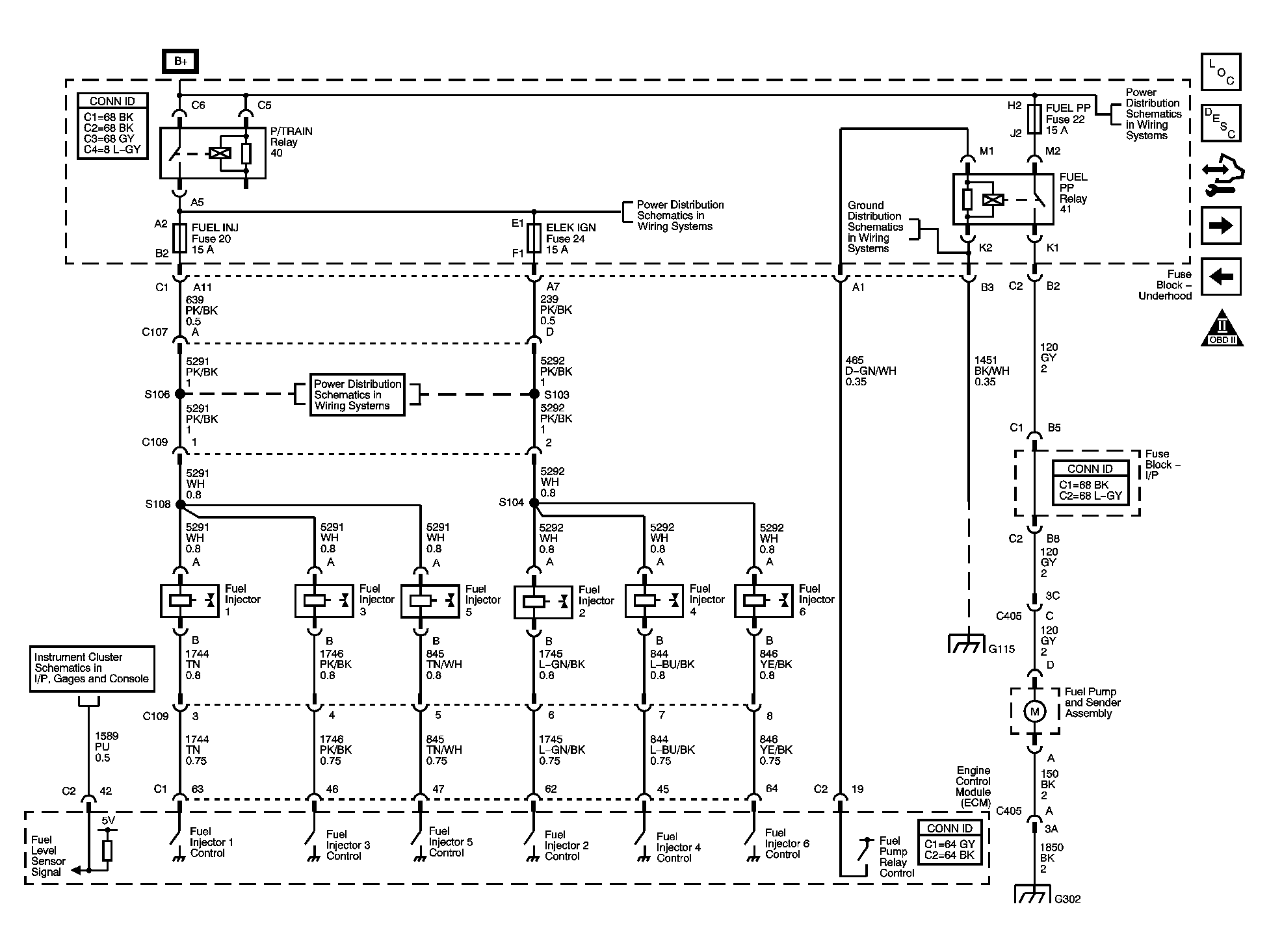

Fig 12: Fuel Controls - Fuel Pump and Injectors Schematic

Courtesy of GENERAL MOTORS CORP.

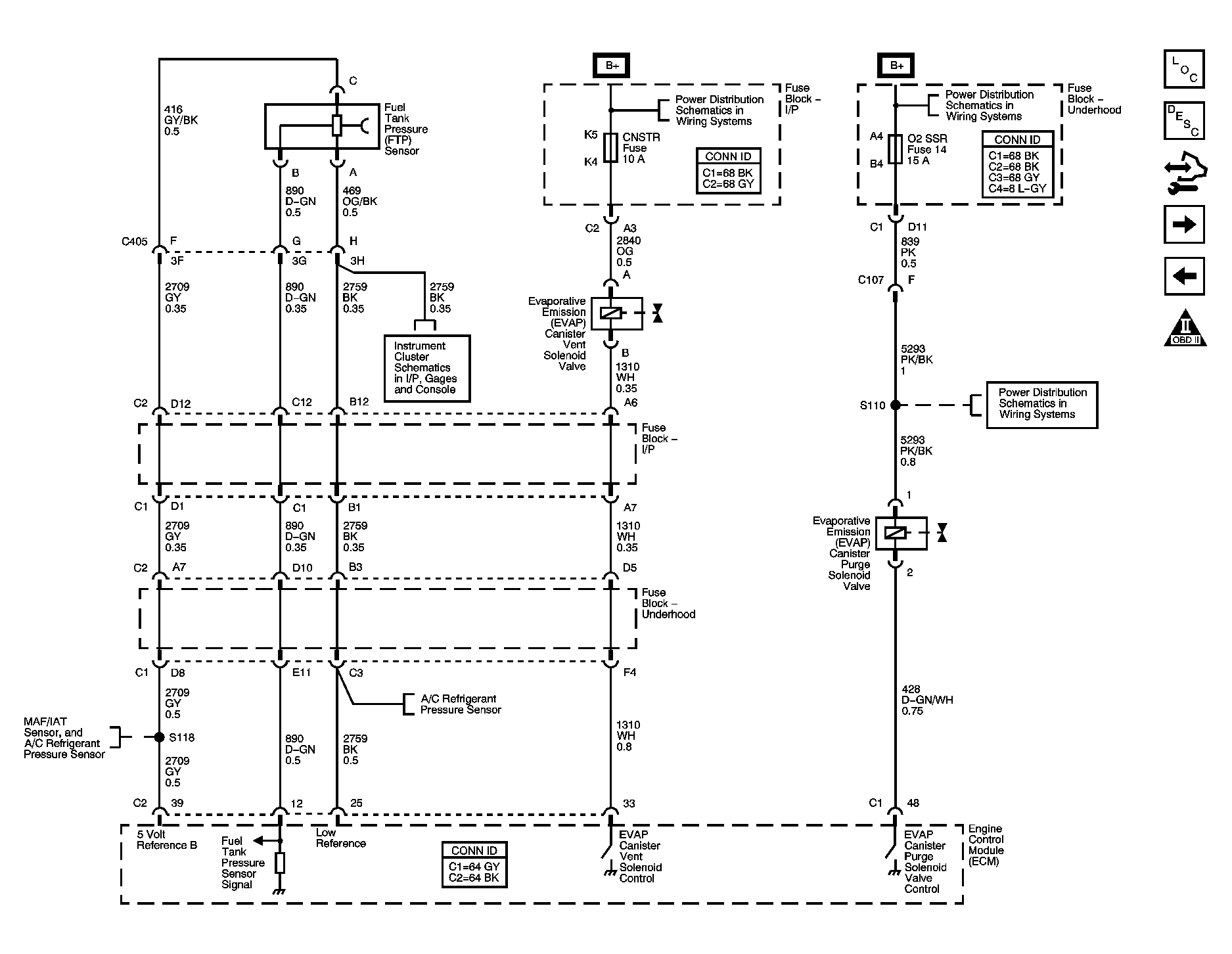

Fig 13: EVAP Controls Schematic

Courtesy of GENERAL MOTORS CORP.

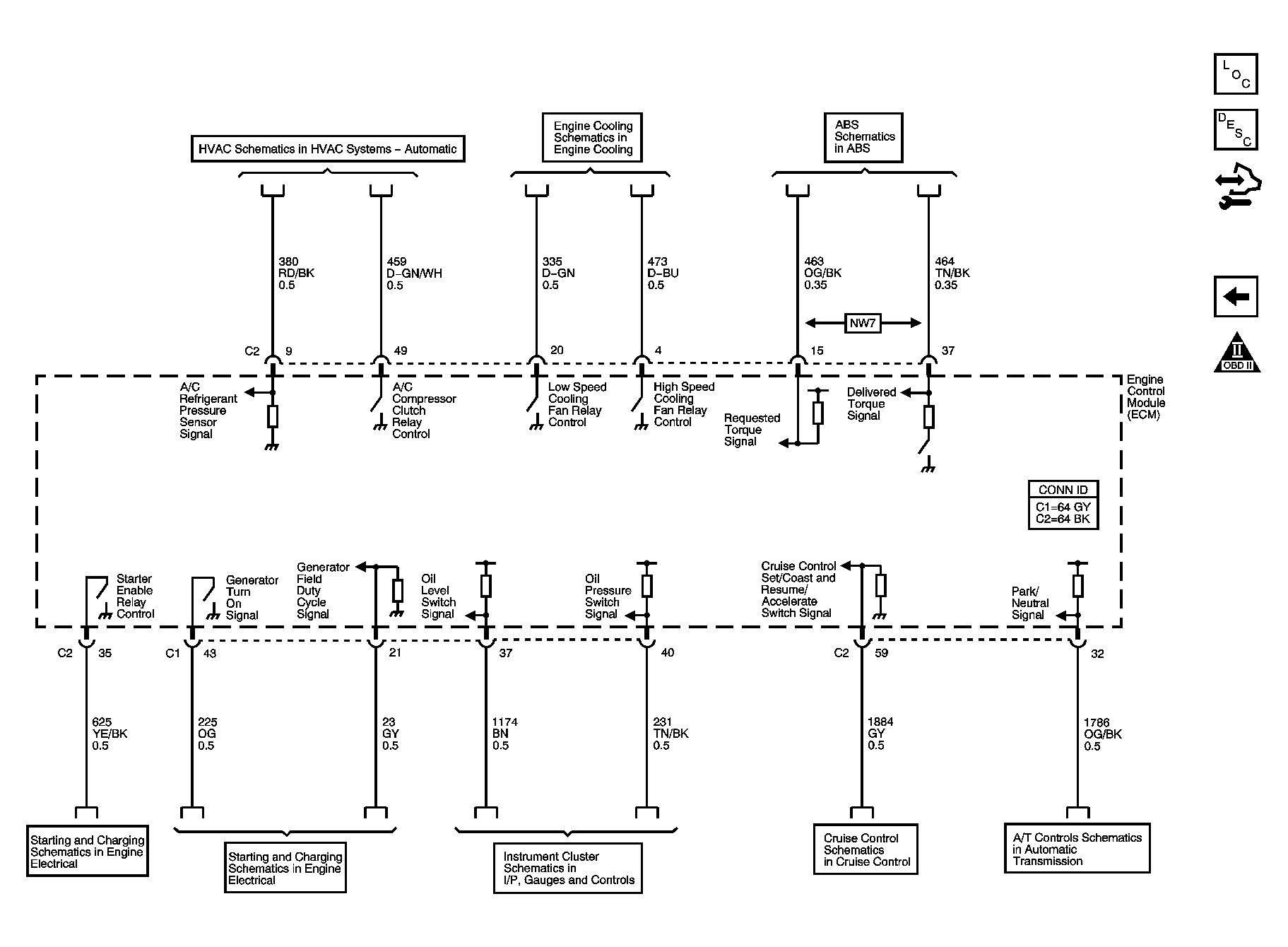

Fig 14: Module References Schematic

Courtesy of GENERAL MOTORS CORP.
