ABS Schematics

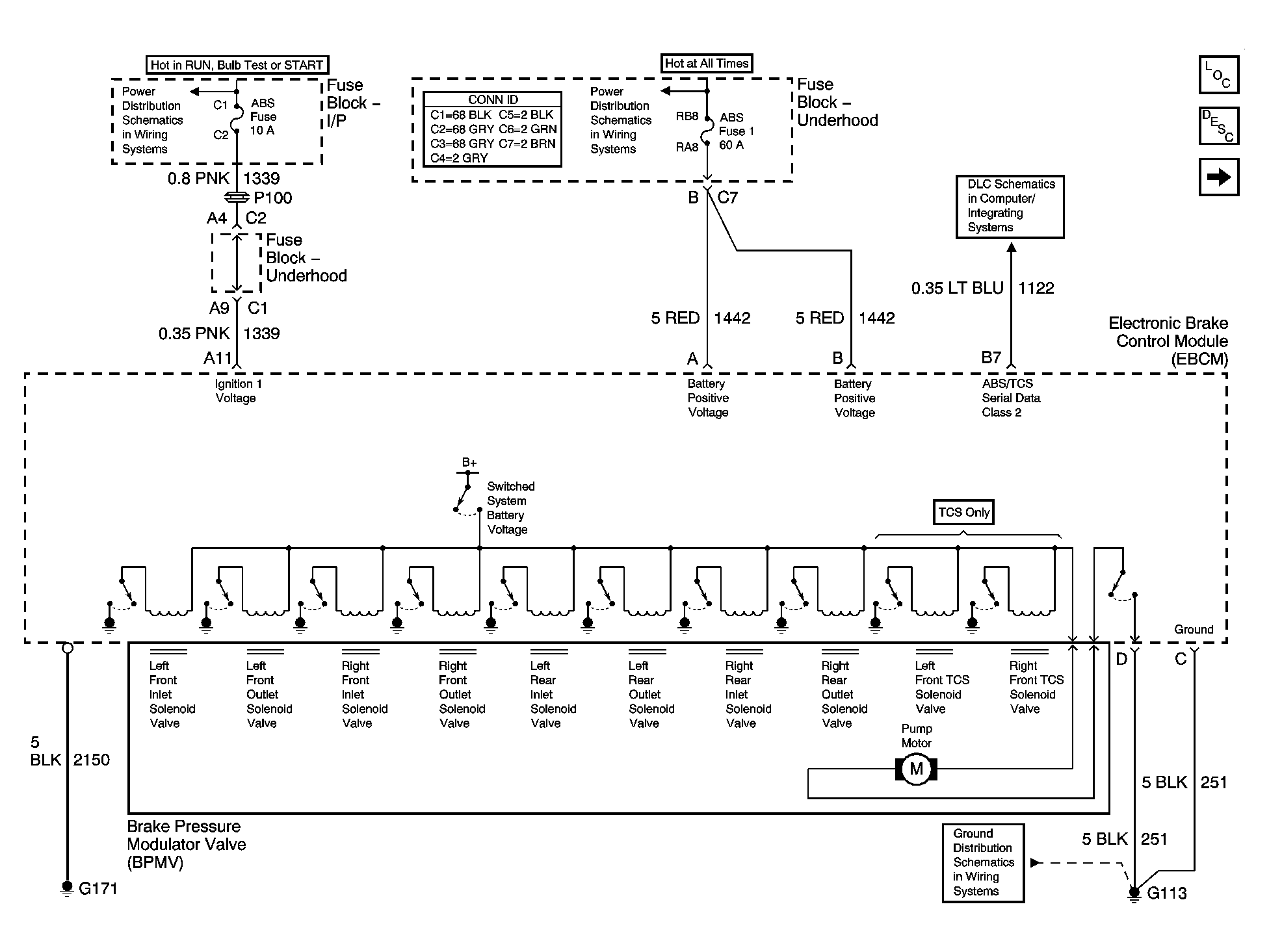

Fig 1: Power, Ground, and Serial Data Schematic
GM1469705Courtesy of GENERAL MOTORS CORP.

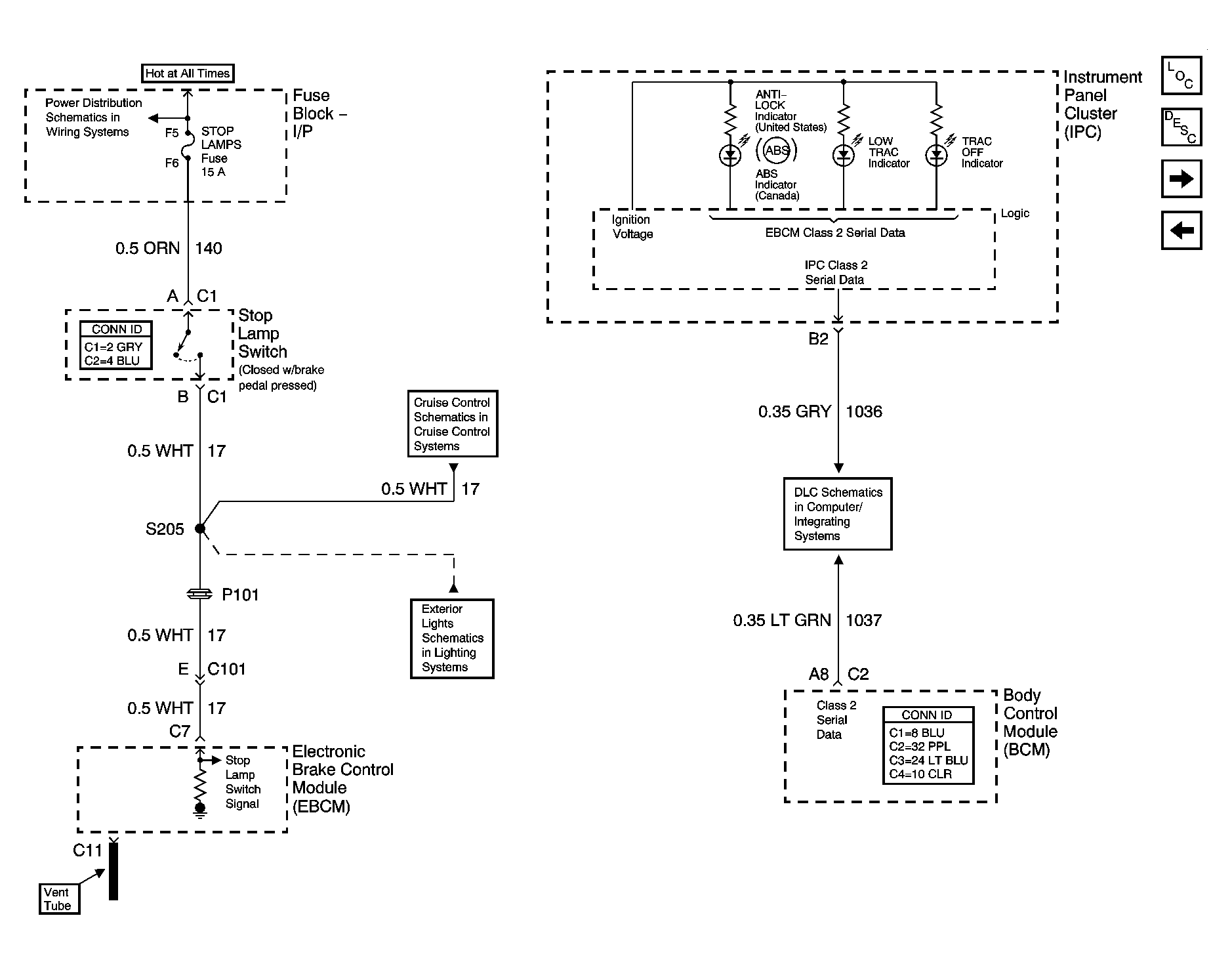

Fig 2: Indicators and Stop Lamp Schematic
GM1379854Courtesy of GENERAL MOTORS CORP.
Fig 3: Wheel Speed Sensors Schematic
GM1353605Courtesy of GENERAL MOTORS CORP.
