Instrument Panel Fuse Block
NOTE:

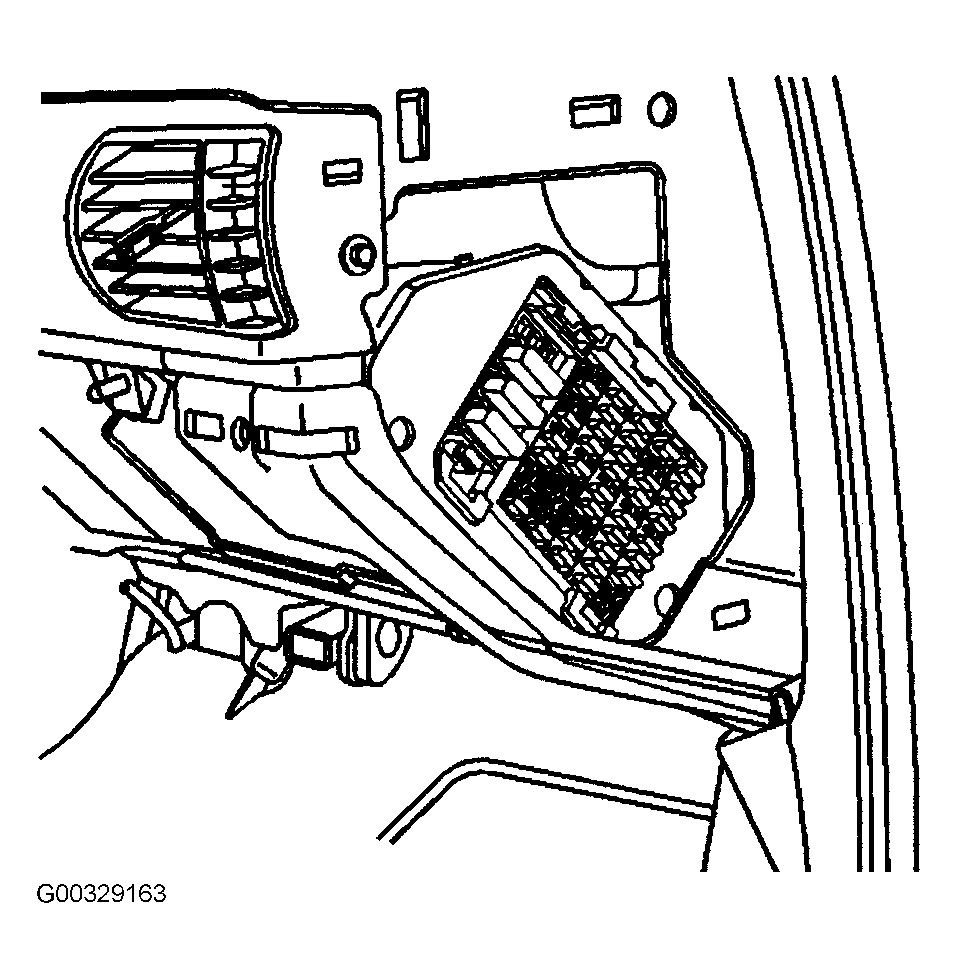

Instrument panel fuse block is located on right side of the I/P, in the right front door opening. See Fig 1.
Fuse Application Table (Fuse Block - I/P) Fuse And Relay Identification Legend
| Device | Rating | Description |
|---|---|---|
| ABS | 10 AMP | Electronic Brake Control Module (EBCM) (JL9) |
| ACCY PWR BUS | 15 AMP | Body Control Module (BCM) and Retained Accessory Power (RAP) Relay (KP2) |
| AIRBAG | 10 AMP | Inflatable Restraint Sensing and Diagnostic Module (SDM) |
| BCM ACCY | 10 AMP | Body Control Module (BCM) |
| BCM PWR | 10 AMP | Body Control Module (BCM) |
| BTSI | 10 AMP | Stop Lamp Switch and Brake To Shift Relay |
| CLSTR | 10 AMP | Instrument Panel Cluster (IPC) |
| CRNK SIG, BCM, CLSTR | 10 AMP | Instrument Panel Cluster (IPC), Body Control Module (BCM) and Powertrain Control Module (PCM) |
| CRUISE | 10 AMP | Cruise Control Switch (K34), Cruise Control Module (K34), and Cruise Control Release Switch |
| DR/LCK | 20 AMP | Rear Compartment Lid Release Relay and Body Control Module (BCM) |
| HAZRD | 15 AMP | Turn Signal Switch |
| HI/BLWR | 30 AMP | Blower Motor Resistor Assembly (CJ3) and Blower Motor Control Processor (CJ2) |
| HVAC | 10 AMP | Rear Window Defogger Relay, LH and RH Air Temperature Actuators, HVAC Control Module, Inside Rearview Mirror (C79), and Vacuum Control Assembly (CJ2) |
| IGN 0: CLSTR, PCM & BCM | 10 AMP | Powertrain Control Module (PCM), Body Control Module (BCM) and Instrument Cluster |
| INT/ILLUM | 7.5 AMP | Radio, Headlamp Switch, Instrument Panel Cluster (IPC) and HVAC Control Module (CJ3) |
| LOW BLWER | 20 AMP | HVAC Control Module (CJ3) |
| LTR | 20 AMP | Cigar Lighter |
| ONSTAR | 5 AMP | Vehicle Communications Interface Module (VCIM) |
| PCM, BCM, U/H | 10 AMP | CRANK and IGN MAIN Relays, Body Control Module (BCM) and Powertrain Control Module (PCM) |
| PRK/LGHT | 10 AMP | Headlamp Assembly - Left and Right |
| PWR/MIR | 2 AMP | Outside Rearview Mirror Switch |
| PWR/SEAT Circuit Breaker | 30 AMP | Seat Adjuster Switch - Driver (AG1) |
| PWR/WNDW PWR S/ROOF Circuit Breaker | 30 AMP | Window Master Switch - Driver |
| RADIO, HVAC, RFA, CLSTR ALDL | 15 AMP | HVAC Control Module, Radio, Data Link Connector (DLC), Remote Control Door Lock Receiver (RCDLR) and Instrument Panel Cluster (IPC) |
| R/DEFOG Circuit Breaker | 30 AMP | Rear Window Defogger Relay |
| R/LAMPS | 15 AMP | INT/ILLUM Fuse, Marker Lamp - LR and RR, Tail/Stop and Turn Signal Lamp - Left and Right, Tail Lamp - Left and Right, and License Lamp - Left and Right |
| STOP LAMPS | 15 AMP | Stop Lamp Switch |
| STR/WHL/CNTRL | 2 AMP | Inflatable Restraint Steering Wheel Module Coil, Steering Wheel Controls - Left and Right (UK3) |
| TRN/SIG | 10 AMP | Turn Signal/Hazard Flasher Module |
| WPR | 25 AMP | Windshield Wiper Motor and Turn Signal/Multifunction Switch |
