Horns Component Views

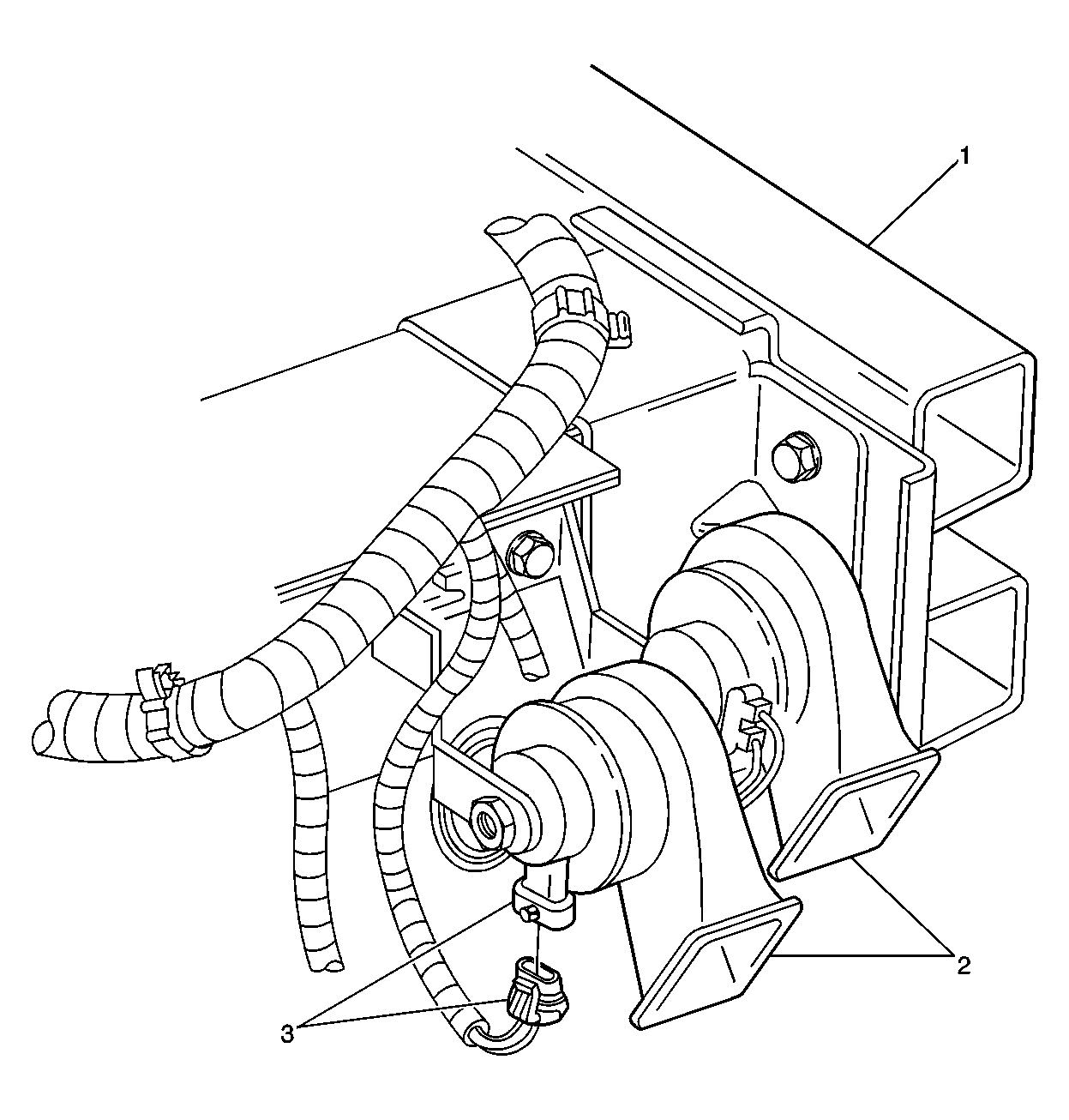

Fig 1: RF Of The Vehicle Components View
GM592187Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Right Front Frame Rail
2 Horn Assembly
3 C103
Fig 2: Steering Wheel Component Views
GM1318303Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Steering Wheel Controls - Left (UK3)
2 C203 (UK3)
3 Steering Wheel Controls - Right (UK3)
4 Inflatable Restraint Steering Wheel Module Connector
5 Inflatable Restraint Steering Wheel Module
6 Horn Switch B+ Connector
7 C203 (UK3)
8 Horn Switch Ground Connector
