Cellular Communication Component Views

WARNING: This page is about a different car, the 2004 Buick Regal and 2004 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.

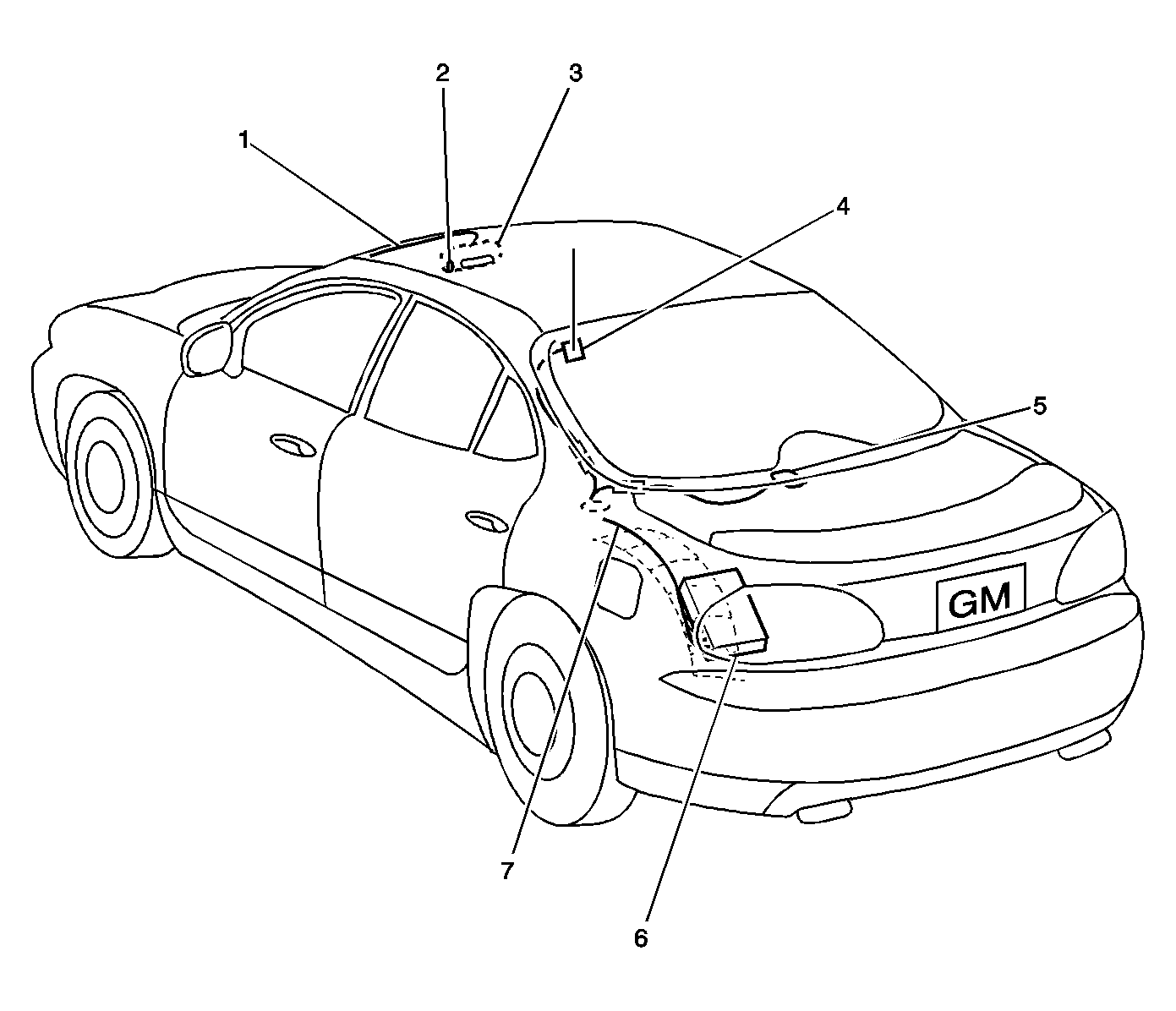

Fig 1: OnStar System Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Headliner Wiring Harness
2	Cellular Telephone Microphone
3	OnStar Button Assembly
4	Cellular Telephone Antenna
5	Navigation Antenna
6	Vehicle Communications Interface Module (VCIM)
7	Body Wiring Harness

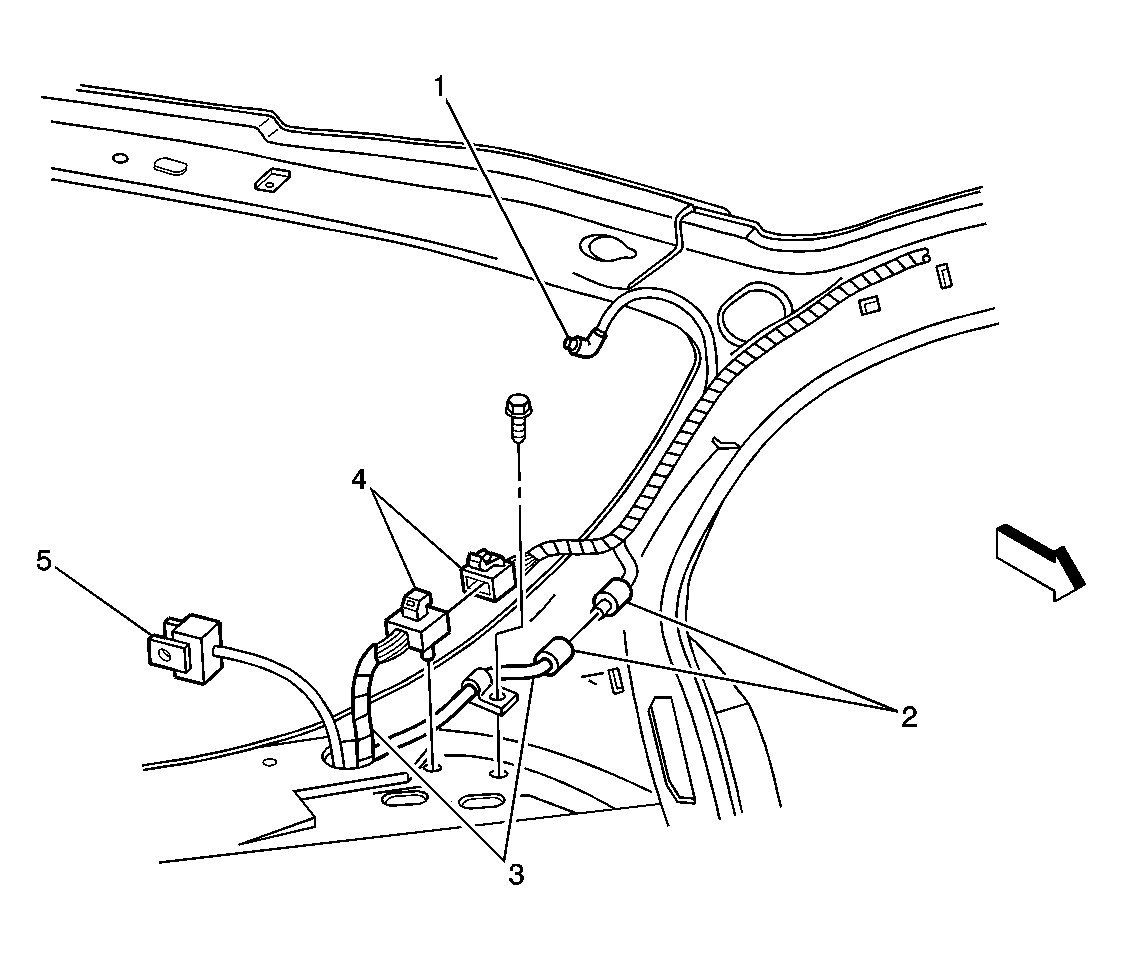

Fig 2: Left Side of the Luggage Compartment Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Body Wiring Harness
2	Vehicle Communications Interface Module (VCIM)
3	Cellular Telephone Antenna Connection
4	Vehicle Communications Interface Module (VCIM) C1, C2
5	Navigation Antenna Connection

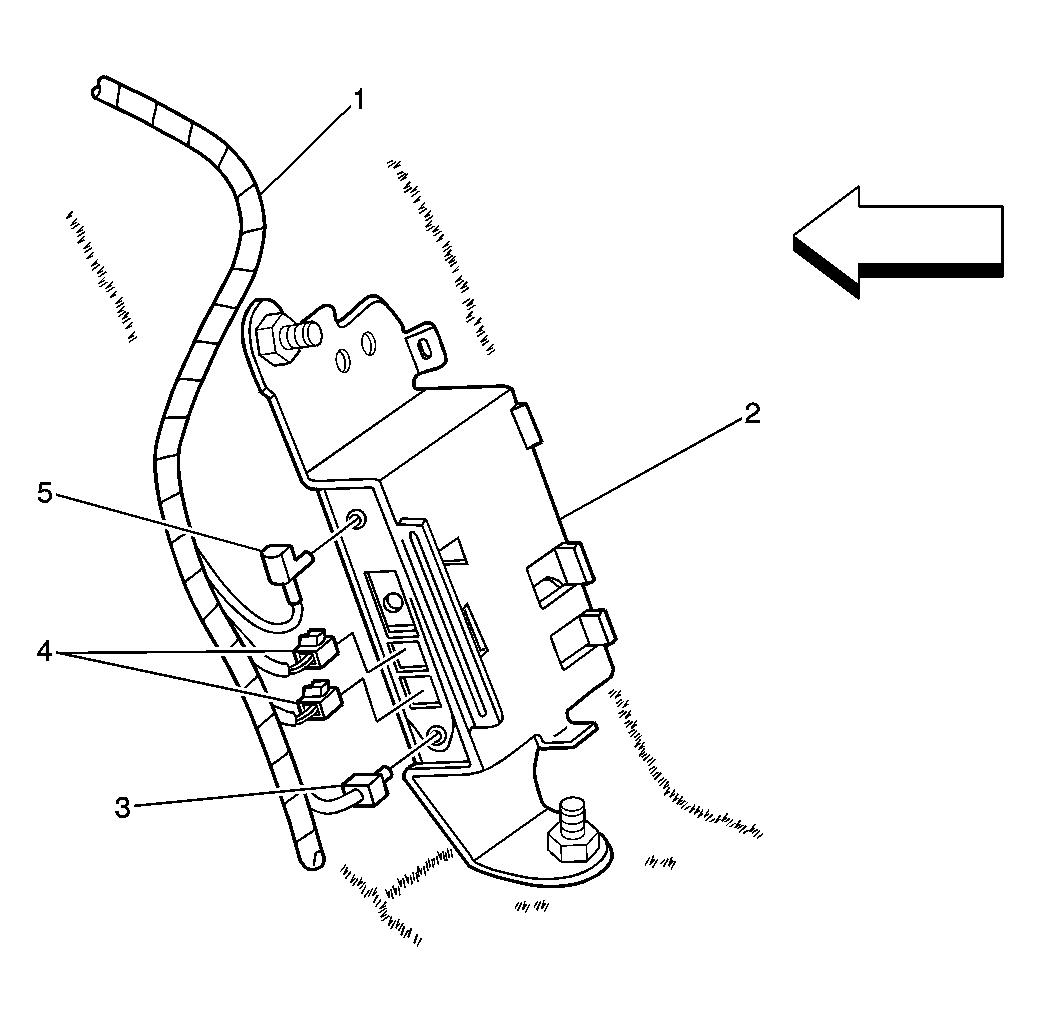

Fig 3: Left Side Of Rear Window Shelf Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Cellular Antenna Connector (UE1)
2	C404 (UE1)
3	Body Wiring Harness
4	C403 (UE1)
5	Navigation Antenna Connector (UE1)
