Entertainment Component Views

WARNING: This page is about a different car, the 2004 Buick Regal and 2004 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.

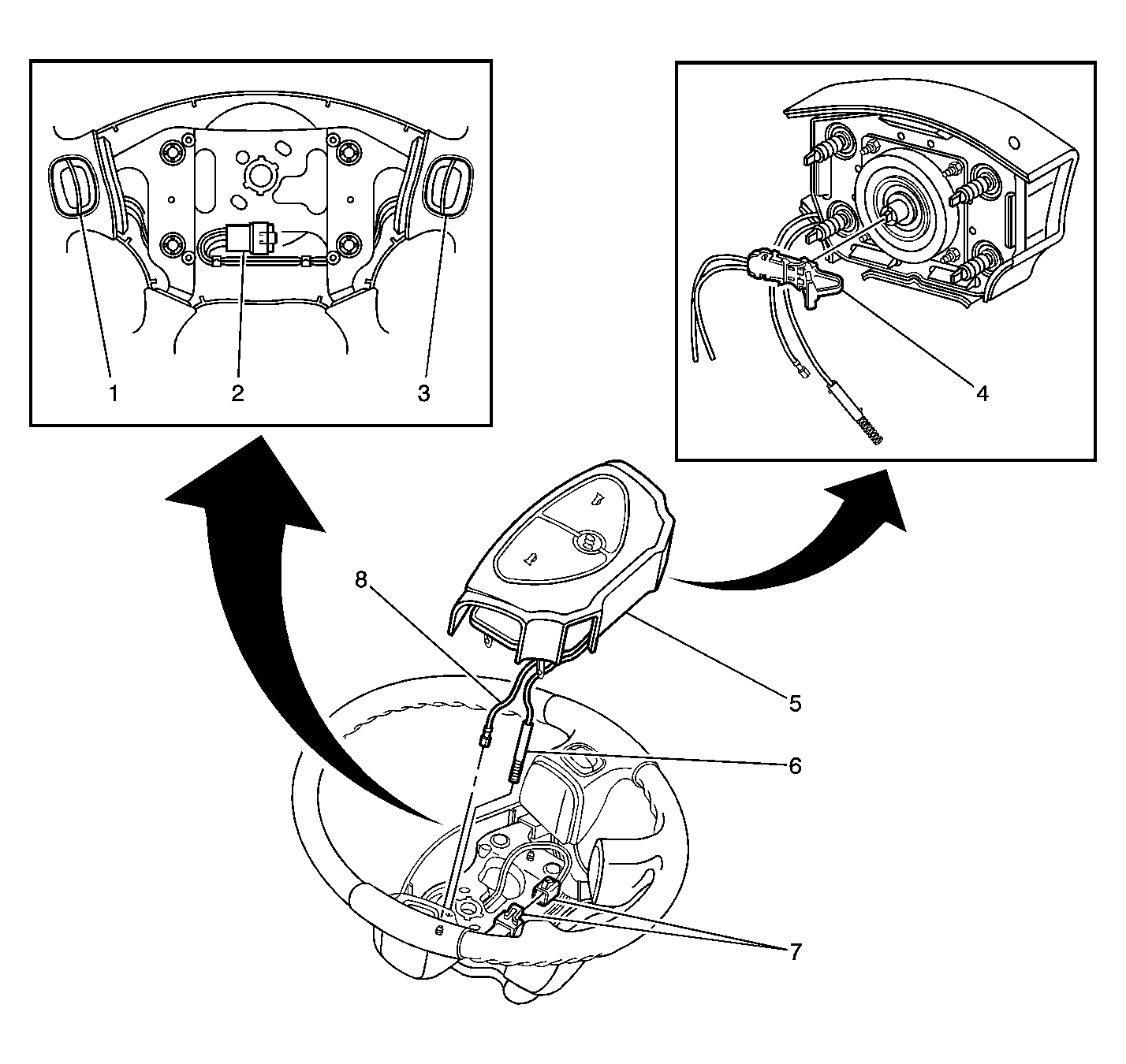

Fig 1: Steering Wheel Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Steering Wheel Controls - Left (UK3)
2	C203 (UK3)
3	Steering Wheel Controls - Right (UK3)
4	Inflatable Restraint Steering Wheel Module Connector
5	Inflatable Restraint Steering Wheel Module
6	Horn Switch B+ Connector
7	C203 (UK3)
8	Horn Switch Ground Connector

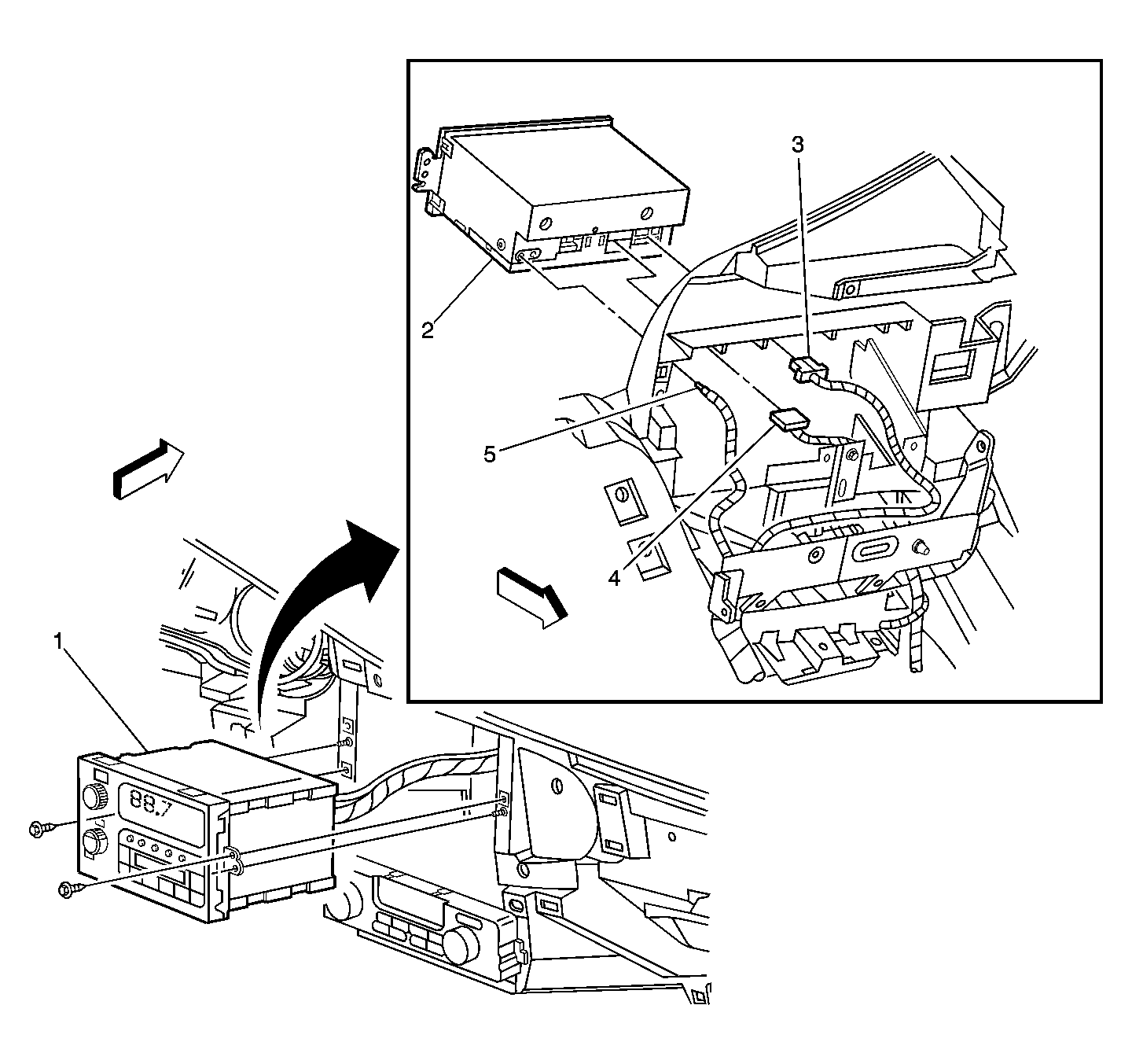

Fig 2: Center Of The I/P Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Radio
2	Radio
3	Radio Connector C1
4	Radio Connector C2
5	Radio Antenna Connector

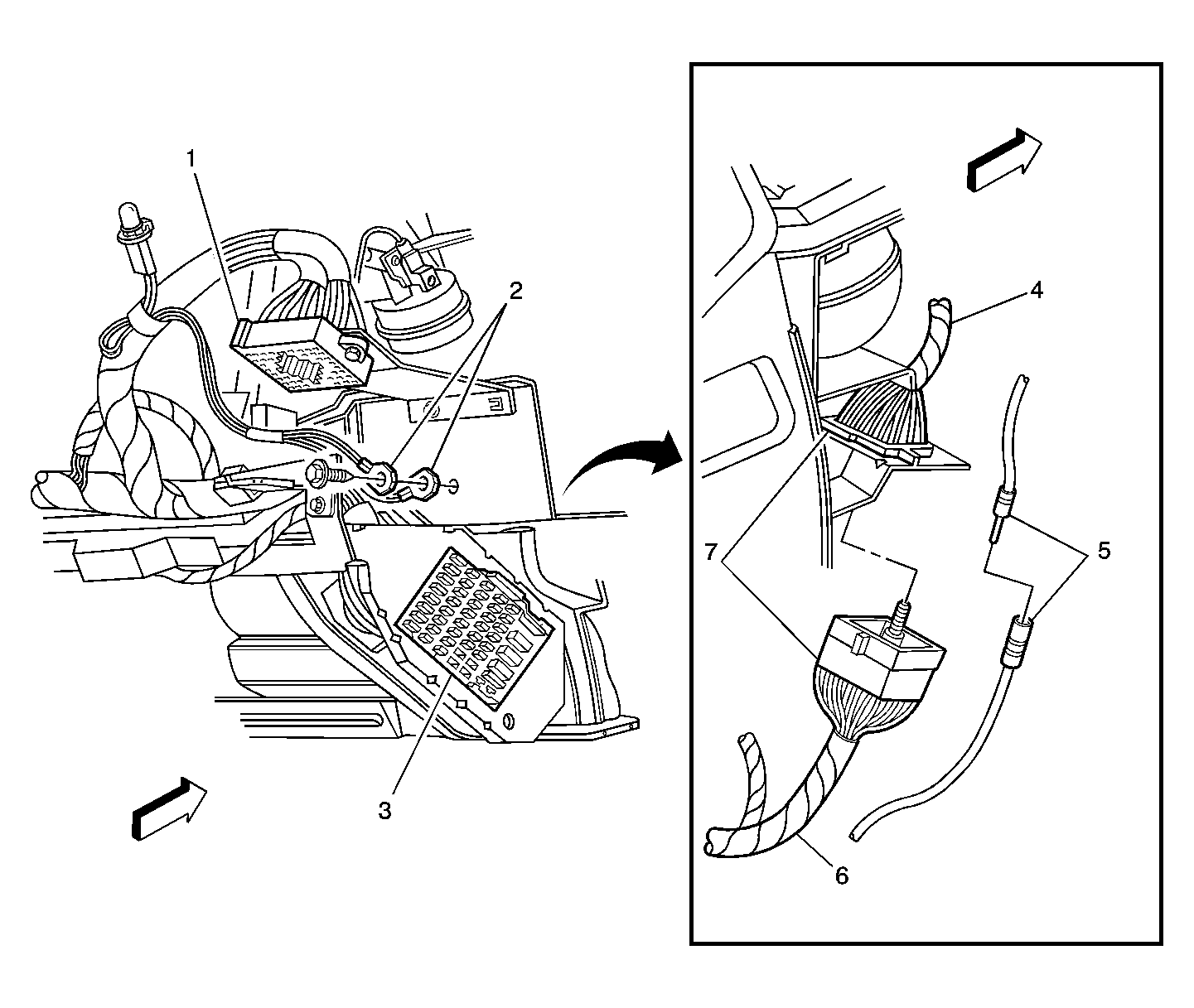

Fig 3: Right Side Of The I/P Component Views - Front

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C200
2	G200
3	Fuse Block - I/P
4	I/P Wiring Harness
5	C290
6	Body Wiring Harness
7	C200

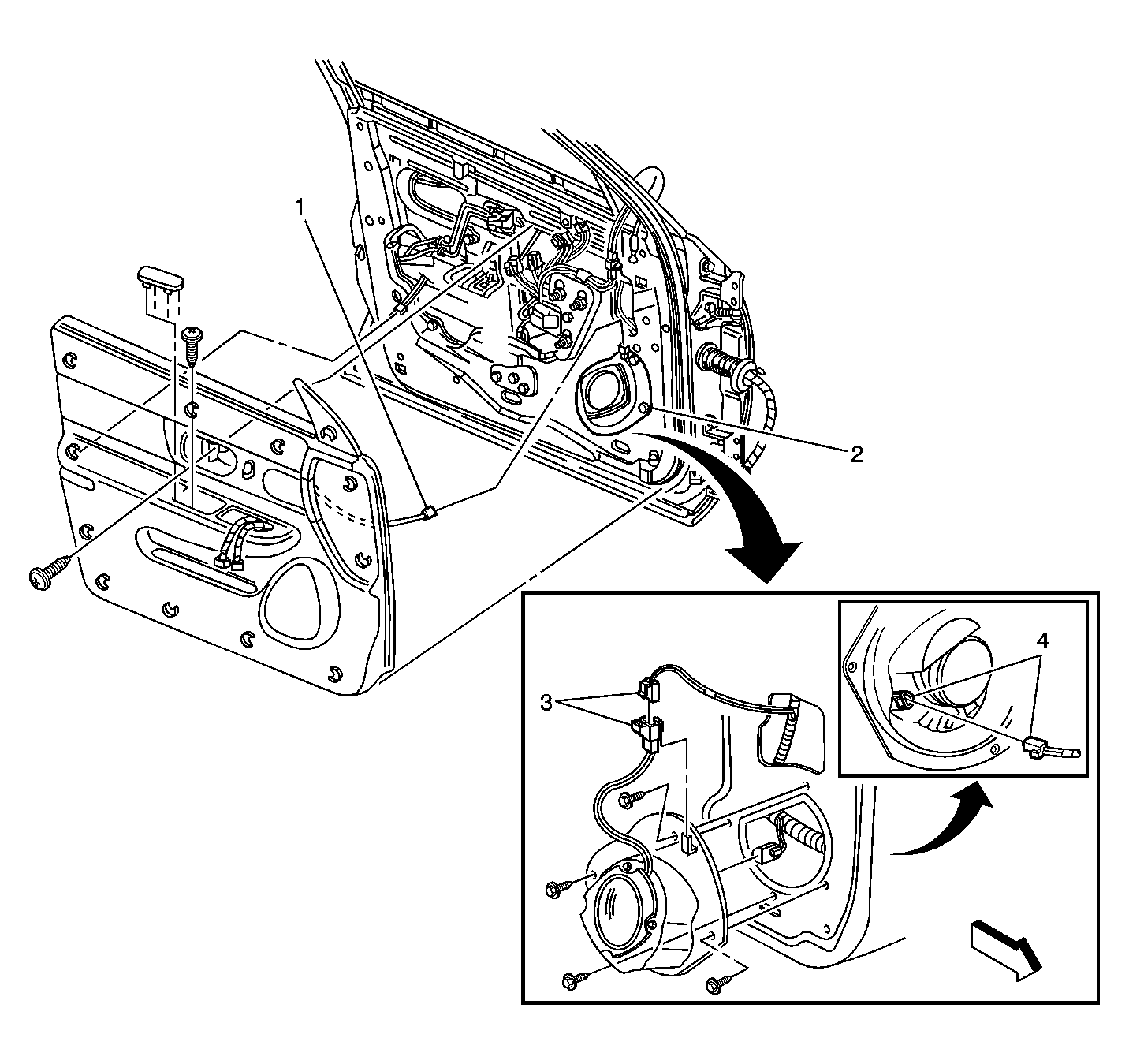

Fig 4: Left Front Door Component View (Right Front Similar)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Speaker - LF Door Tweeter Connector (U85)
2	Speaker - LF Door
3	Speaker - LF Door Tweeter Connector (UQ3)
4	Speaker - LF Door Midrange Connector

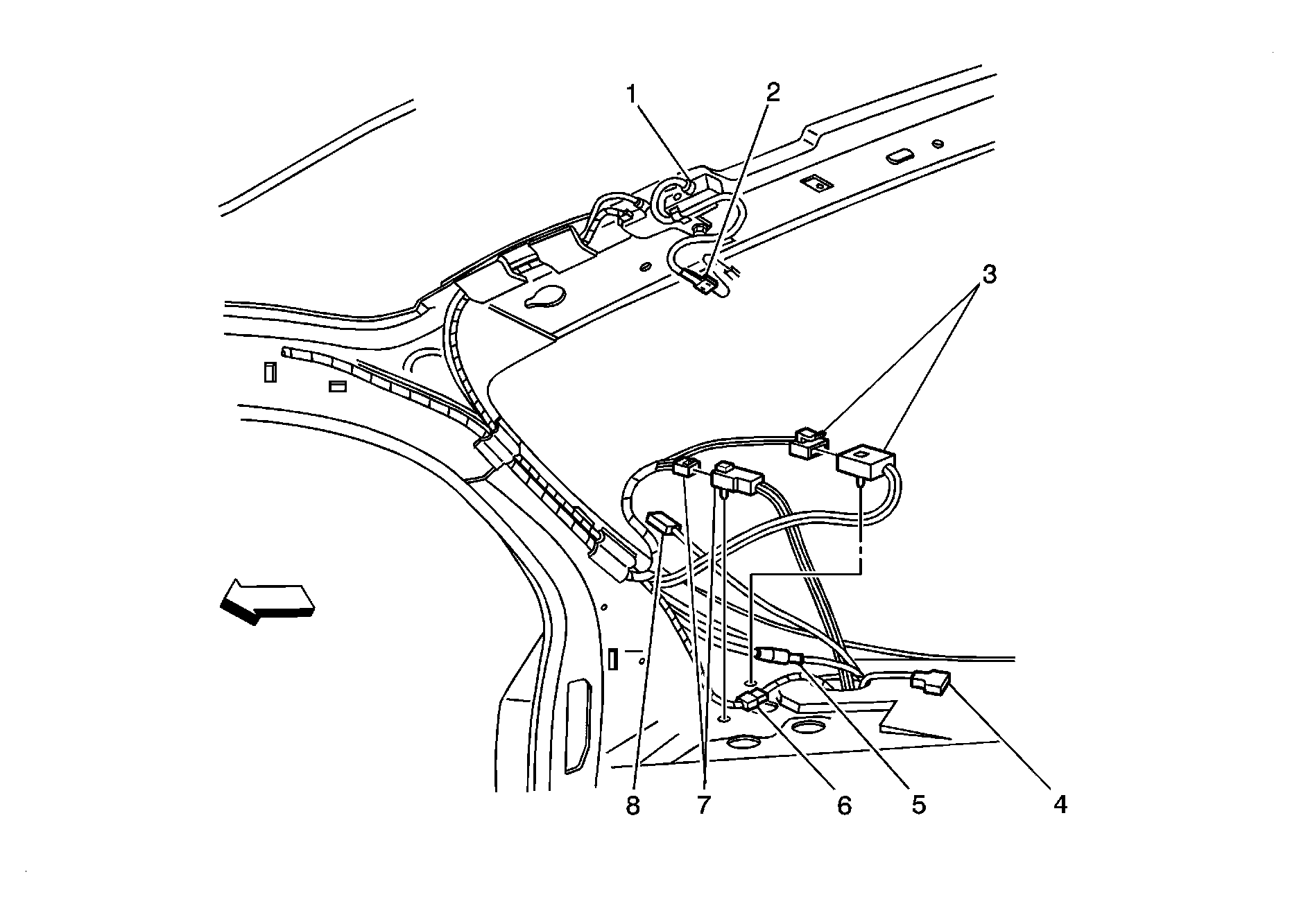

Fig 5: Right Side Of The Rear Window Shelf Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Radio Antenna Module (U77)
2	Rear Window Antenna Grid Connector (U77)
3	C398
4	C420
5	C399
6	C395 (U77)
7	C390
8	Rear Window Defogger Connector, C1

Fig 6: RR Of The Passenger Compartment Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Window Defogger Grid Connector, C3 (U77)
2	Rear Window Defogger Grid Connector, C1
3	Radio Noise Suppressor
4	Body Wiring Harness

Fig 7: Luggage Compartment Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Compartment Courtesy Lamp
2	Speaker - RR Connector
3	Speaker - LR Connector
4	Center High Mounted Stop Lamp (CHMSL)
5	Rear Package Shelf
6	Speaker - LR Connector Shown, RR Similar
7	Speaker - LR Shown, RR Similar

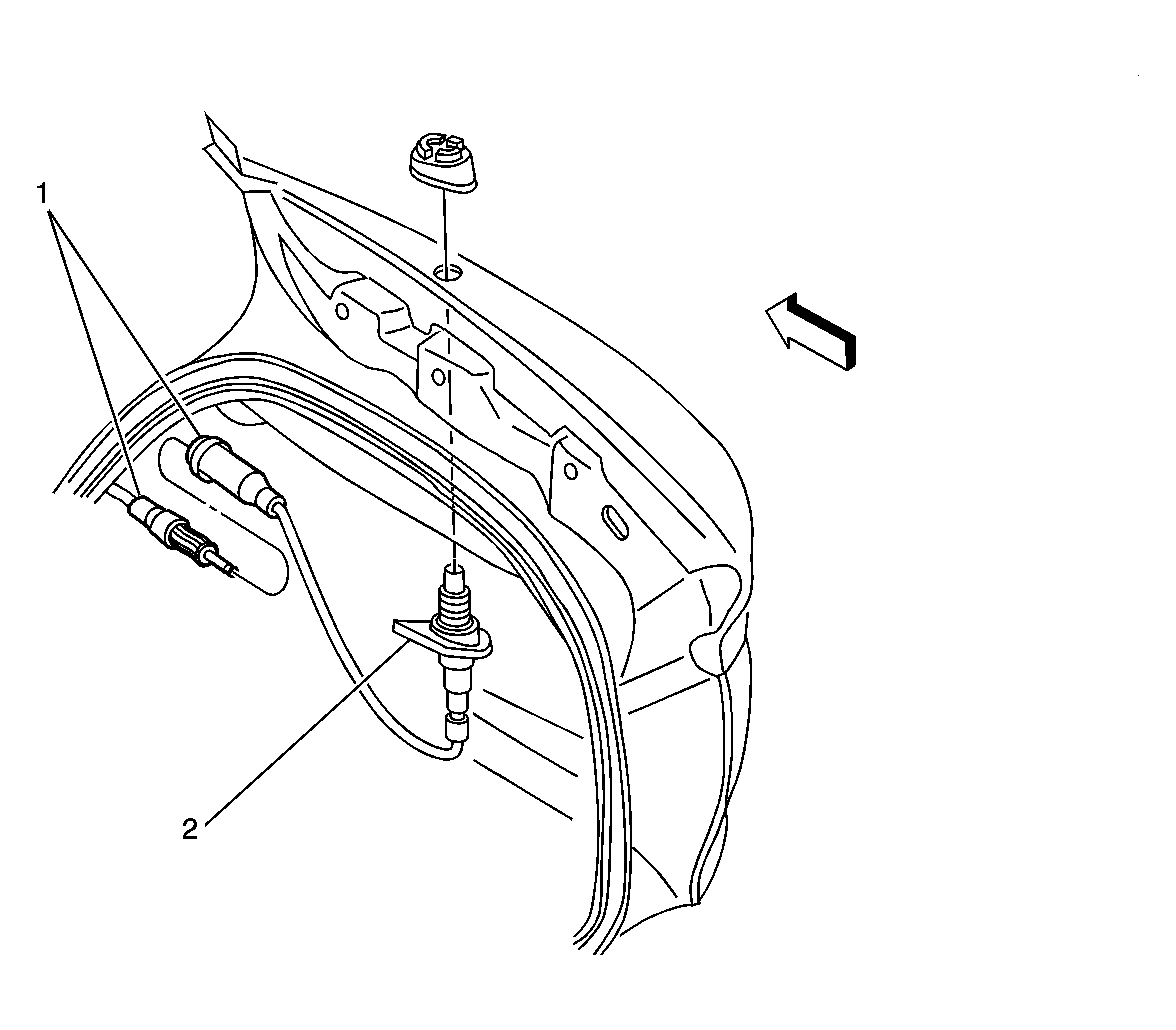

Fig 8: Right Side Of The Luggage Compartment Component Views (US6)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C399
2	Fixed Mast Antenna

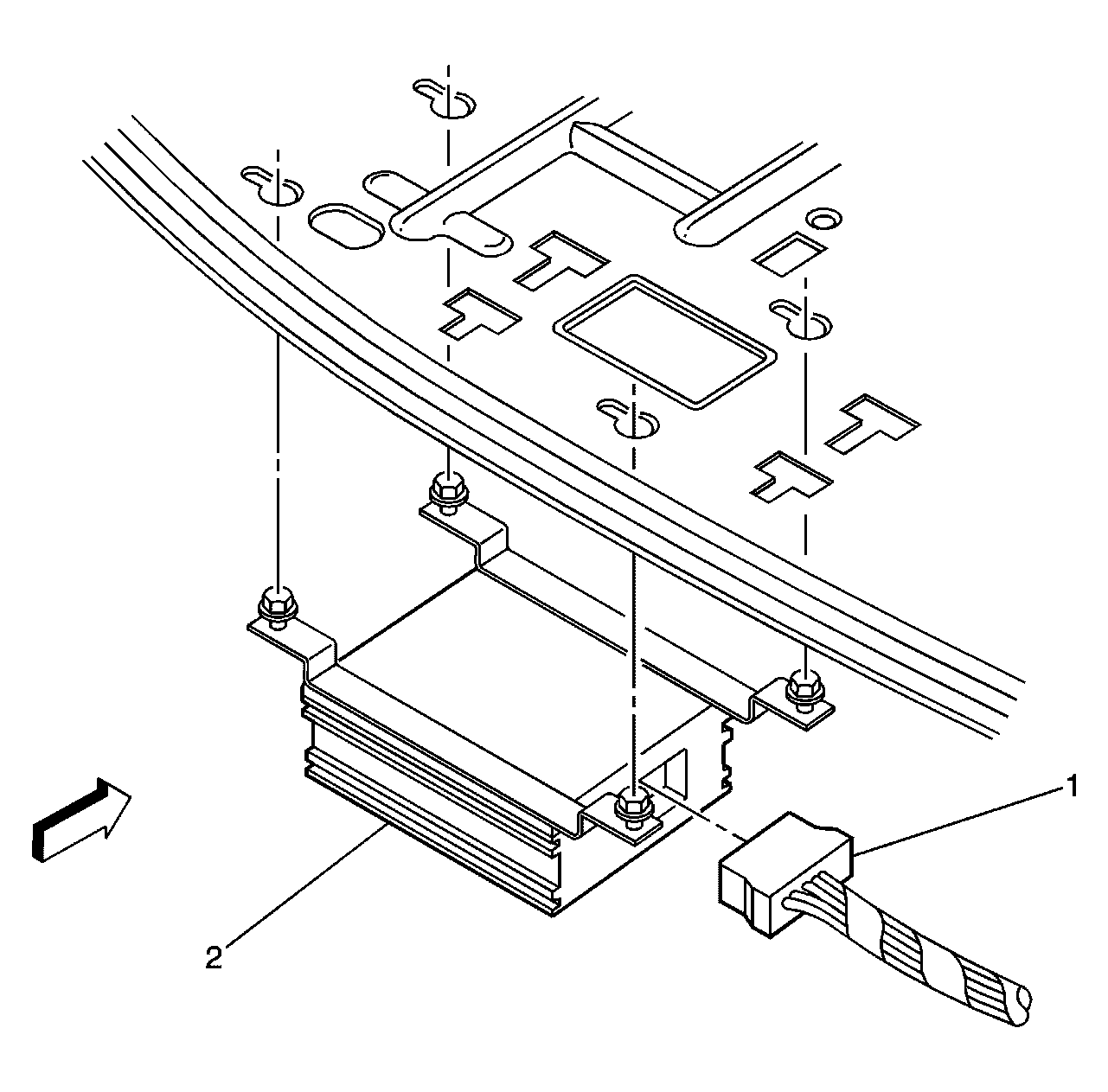

Fig 9: Rear Compartment Below Rear Shelf Component Views (U85)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Audio Amplifier Connector
2	Audio Amplifier
