Installation Procedure

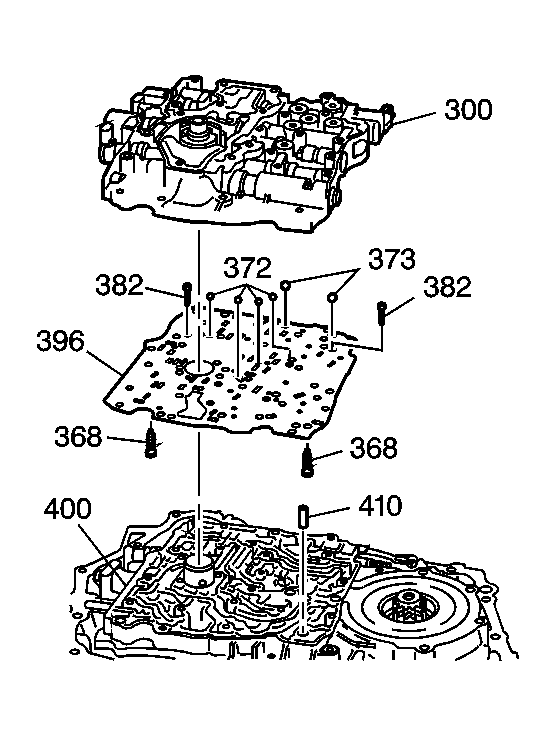

- Install the ball check valves (372) into the case cover. Use the J 36850 to retain the ball check valves in their proper locations.

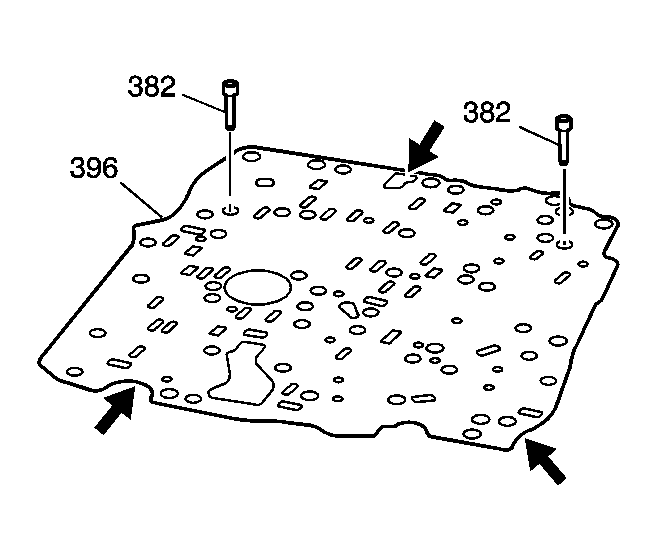

- Install the gasket and spacer plate assembly (396).
- Install the ball check valves (372 and 373) into the valve body. Use the J 36850 to retain the ball check valves in their proper locations.
- Install the spacer plate/gasket assembly (396) and the valve body (300).
- Install the valve body bolts (374-381, 384).
Tighten:
- Tighten the M6 X 1.0 X 20 bolt (381) to 8 N.m (70 lb in).
- Tighten the M6 X 1.0 X 30 bolt (376) to 12 N.m (106 lb in).
- Tighten the M6 X 1.0 X 45 bolt (377) to 12 N.m (106 lb in).
- Tighten the M6 X 1.0 X 55 bolt (378) to 12 N.m (106 lb in).
- Tighten the M6 X 1.0 X 60 bolt (375) to 12 N.m (106 lb in).
- Tighten the M6 X 1.0 X 65 bolt (374) to 12 N.m (106 lb in).
- Tighten the M6 X 1.0 X 85 bolt (384) to 12 N.m (106 lb in).
- Tighten the M6 X 1.0 X 95 bolt (379) to 16 N.m (11 lb ft).
- Tighten the M8 X 1.25 X 90 bolt (380) to 25 N.m (18 lb ft).
- Install the oil pump. Refer to Oil Pump Replacement .
- Install the case side cover. Refer to Case Side Cover Replacement .
NOTE:
Do NOT use any type of grease to retain parts during the assembly of this unit. Using greases other than the recommended assembly lube changes the transaxle fluid characteristics. Using greases other than the recommended assembly lube causes undesirable shift conditions and/or filter clogging. Use TRANSJEL™ J 36850 or equivalent during the assembly of this unit.
IMPORTANT:
Do NOT use impact type tools on the valve body or on the oil pump.
NOTE:
Refer to Fastener Notice
in Cautions and Notices.
